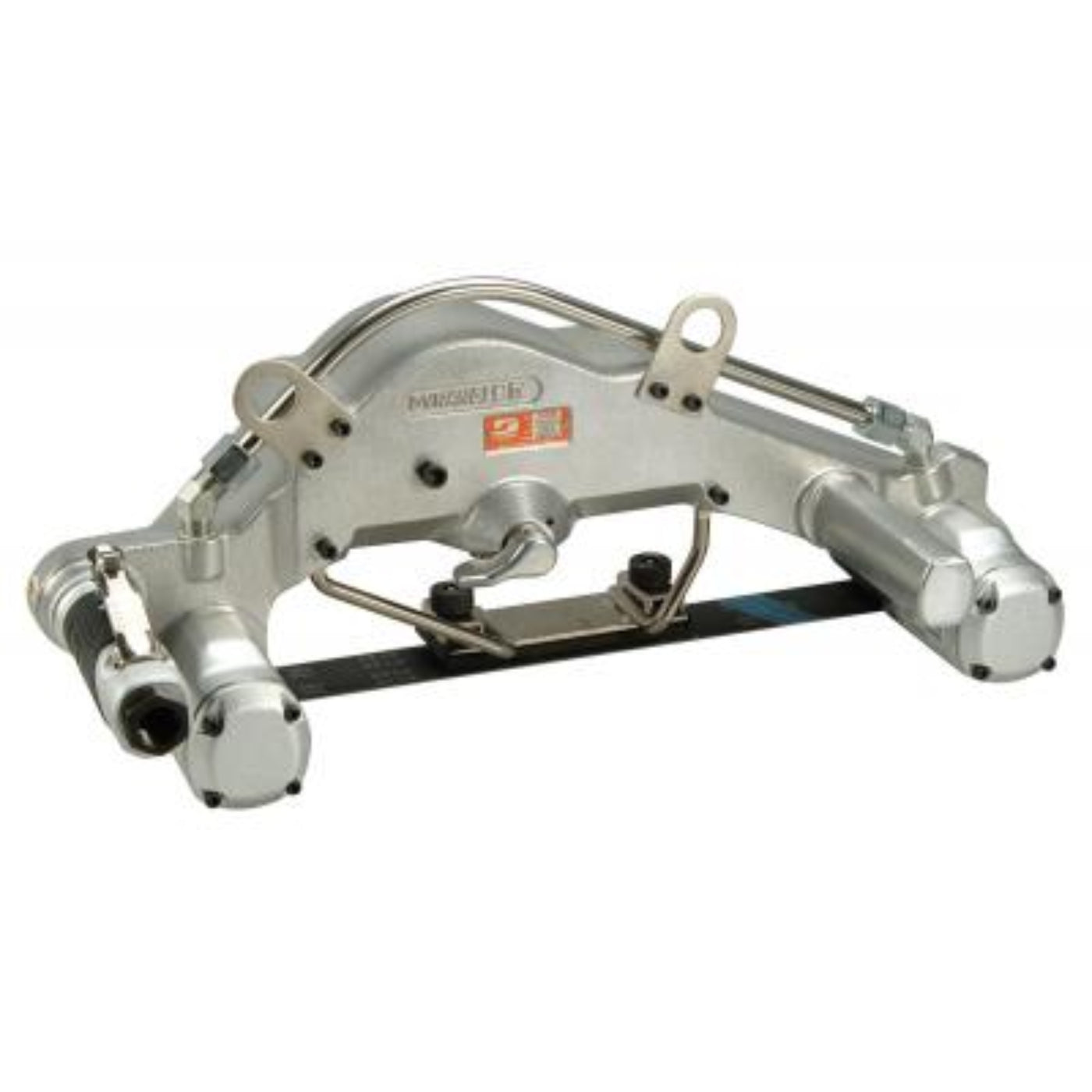

DYNABRADE Dynangle II Abrasive Belt Tool, Dual Motor w/ Platen - 14306
-
2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 45" L (51 mm x 1143 mm) Belts.
- Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
-
Heavy-Duty 'Dual Motor' with Platen, offers extra power. Uses 2" x 45" belts; belts spans 17" for polishing pipe up to 48" diameter.
-
Includes 2" wide x 6" long platen which is easily removed for strap polishing.
Specifications
| Air Consumption (SCFM) |
106.0 |
| Power (hp) |
2.0 |
| Max. RPM |
13,000 |
| Max. SFPM |
8,500 |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
9.5 |
| Length in. (mm) |
22.875 |
| Weight lb. (kg) |
20.51 |
| Width in. (mm) |
15.0 |
| Pkg. Height in. (mm) |
10.5 |
| Pkg. Length in. (mm) |
20.5 |
| Pkg. Weight lb. (kg) |
23.81 |
| Pkg. Width in. (mm) |
15 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026143067 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Enhanced Power for Heavy-Duty Applications
Equipped with a 2.4 hp dual motor, the Dynangle II 14306 delivers up to 13,000 RPM, providing the necessary power for demanding tasks such as polishing, grinding contours, and surface conditioning of stainless steel and other metals.
-
Versatile Belt Compatibility
Designed to use 2" wide x 45" long abrasive belts, the tool offers a belt span of 17", making it suitable for polishing pipes up to 48" in diameter.
-
Dual Motor with Platen for Optimal Performance
The dual motor configuration, combined with a 6" long platen, ensures efficient material removal and a smooth finish. The platen is easily removable for strap polishing applications.
-
Ergonomic Design for User Comfort
The straight-line tool design, along with rear exhaust and composite housing, reduces operator fatigue and provides better control during extended use.
-
Built-in Safety Features
Includes a built-in abrasive belt guard for added safety and fast belt changes, enhancing overall user experience.
Q&A
Q: What is the Dynabrade Dynangle II 14306 used for?
A: A pneumatic dual-motor abrasive belt tool designed for heavy-duty sanding, blending, and finishing on flat and contoured surfaces.
Q: What belt size does the 14306 support?
A: Compatible with 1/2" x 18" abrasive belts.
Q: What makes the dual motor with platen beneficial?
A: Provides increased power and surface contact for faster material removal and consistent finishes.
Q: Which industries benefit most from this tool?
A: Ideal for metal fabrication, automotive, aerospace, and industrial finishing professionals.
Q: Why choose the Dynangle II 14306?
A: Delivers enhanced productivity, precise control, low vibration, and quick abrasive changes for demanding applications.
Maintenance Tips
-
Inspect abrasive belts regularly; replace worn belts to maintain peak performance.
-
Clean the tool, especially air inlets and platen, after each use to prevent debris buildup.
-
Lubricate both air motors and moving parts following manufacturer recommendations.
-
Use clean, dry compressed air to prevent moisture damage and clogging.
-
Check belt tension and tracking frequently to ensure smooth operation.
-
Tighten all screws and fasteners regularly to maintain tool stability.
-
Avoid overloading to prevent motor overheating and prolong tool life.
-
Store in a dry, dust-free environment to protect against corrosion and damage.
