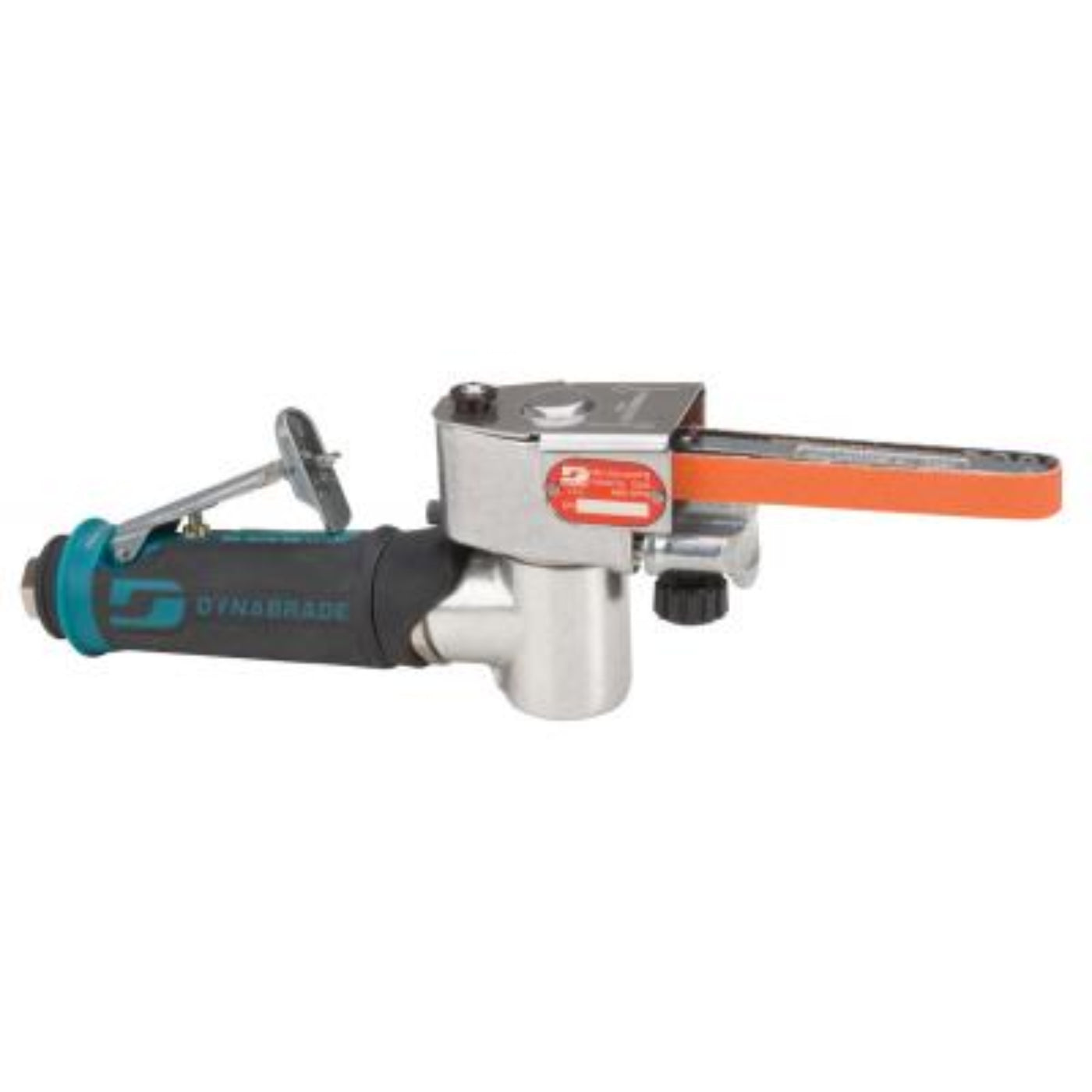

DYNABRADE Mini-Dynafile II Abrasive Belt Tool - 15003
-
.4 hp, 7 Degree Offset, 25,000 RPM, Rear Exhaust, for 1/8"-1/2" W x 12" L (3-13 mm x 305 mm) Belts.
- Ideal for strap polishing and working in narrow openings. Tool includes 15026 Contact Arm for 1/2" wide x 12" long abrasive belts and 15118 Drive Wheel.
-
Lightweight ergonomic design handle features 7 degree offset. Multi-position grinding head pivots 360 Degree.
-
Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
-
For added versatility, tool can be easily converted to Die Grinder with optional 01644 (1/4") Threaded Collet Insert.
-
40378 Rubber Drive Wheel may be ordered separately, for efficient use with optional non-woven nylon belts.
Specifications
| Air Consumption (LPM) |
595 |
| Air Consumption (SCFM) |
21 |
| Power (hp) |
0.40 |
| Max. RPM |
25,000 |
| Max. SFPM |
4,890 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Sound Power dB[A] |
89 |
| Sound Level dB[A] |
78 |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
3.5 |
| Length in. (mm) |
11.75 |
| Weight lb. (kg) |
1.7 |
| Width in. (mm) |
5.5 |
| Pkg. Height in. (mm) |
2.5 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
2.46 |
| Pkg. Width in. (mm) |
5.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026150034 |
| EAC Certified |
Yes |
| Tool Style |
7 Degree Offset |
| Vibration Test Method |
ISO 20643 |
| Power (W) |
298 |
| Vibration (m/sec�) |
<2.5 |
What our Experts Think
-
Compact Design: Ideal for precision sanding and shaping in tight or hard-to-reach areas.
-
Reliable Performance: Durable construction ensures long-lasting use in demanding environments.
-
Smooth Belt Operation: Consistent tracking enhances finish quality and reduces belt wear.
-
User-Friendly: Lightweight and ergonomic for comfortable extended use.
-
Preferred by Professionals: Widely used in metal fabrication, automotive repair, and finishing work.
Q&A
Q: What is the Dynabrade Mini-Dynafile II (15003)?
A: A compact abrasive belt tool designed for precision finishing, grinding, and deburring in tight spaces.
Q: What belt size does the 15003 model use?
A: It uses 6" abrasive belts for detailed work.
Q: Is it easy to handle?
A: Yes, its lightweight and ergonomic design ensures comfortable, extended use.
Q: What industries commonly use this tool?
A: Widely used in aerospace, automotive, metal fabrication, and maintenance.
Q: Does it have adjustable speed?
A: Yes, it offers variable speed control for versatile application.
Maintenance Tips
-
Regularly clean the belt track and tool housing to remove dust and debris.
-
Lubricate the air motor daily with pneumatic tool oil for optimal performance.
-
Replace abrasive belts as soon as they show wear or damage.
-
Check and maintain proper air pressure to prevent tool strain.
-
Inspect hoses and fittings for leaks to ensure steady airflow.
-
Store in a dry, dust-free area to prolong tool life.
