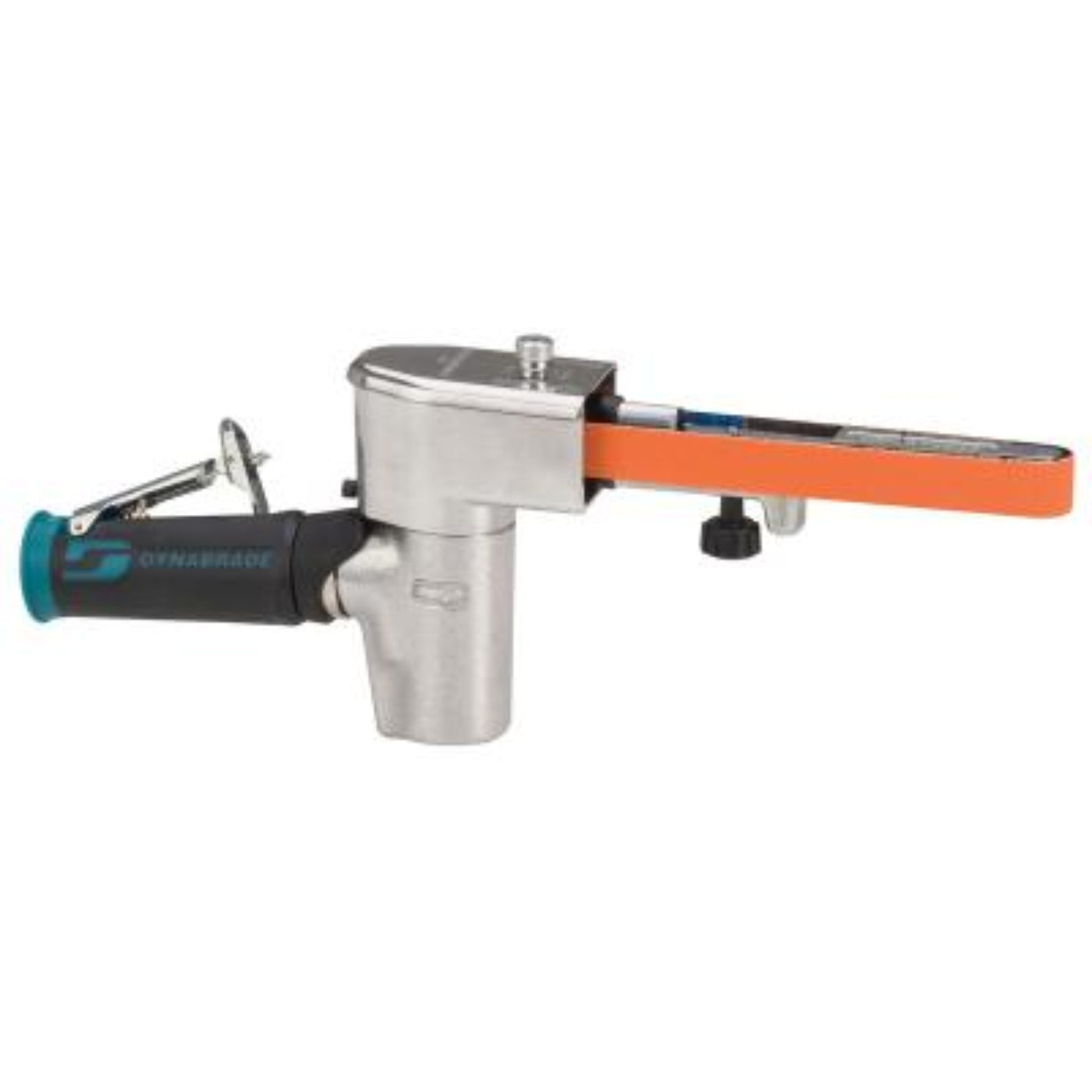

DYNABRADE Dynafile II Abrasive Belt Tool - 40320
-
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-3/4" W x 18" L (6-19 mm x 457 mm) Belts.
- Grind, deburr, blend and polish, on metal, plastic, fiberglass, composites, rubber, glass and more. Grind from contact wheel or platen pad; finish and polish using slack of belt.
-
Tool includes 11206 Contact Arm for 3/4" wide x 18" long abrasive belts.
-
Lightweight, ergonomic 7 degree offset design. Grinding head pivots 360 degrees for securing in most efficient position.
-
Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
Specifications
| Air Consumption (SCFM) |
28.0 |
| Power (hp) |
0.5 |
| Max. RPM |
20,000 |
| Max. SFPM |
4,550 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
4.875 |
| Length in. (mm) |
14.25 |
| Weight lb. (kg) |
2.81 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.58 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026403208 |
| EAC Certified |
Yes |
| Tool Style |
7 Degree Offset |
What our Experts Think
-
Precision Performance: The Dynafile II 40320 operates at 20,000 RPM with a 0.5 hp motor, delivering 4,550 SFPM for efficient material removal.
-
Versatile Abrasive Compatibility: Designed for 1/8" to 3/4" wide x 18" long abrasive belts, suitable for various applications on metal, plastic, fiberglass, composites, rubber, and glass.
-
Ergonomic Design: Features a lightweight composite housing with a 7° offset handle, enhancing maneuverability and reducing operator fatigue.
-
360° Pivoting Head: Allows the grinding head to rotate fully, providing access to tight spaces and enhancing versatility.
-
Quick Abrasive Change: Belt guard easily detaches for quick abrasive changes, and a simple belt tracking adjustment knob ensures optimal performance.
-
Durable Construction: Built with a front exhaust system to direct debris away from the work area, ensuring a cleaner workspace.
Q&A
Q: What is the Dynafile II 40320 used for?
A: A versatile abrasive belt tool for grinding, finishing, and blending in tight or detailed areas.
Q: What belt size does it support?
A: Compatible with 1/4" to 3/4" wide belts, up to 20-1/2" long.
Q: What are its key features?
A: Lightweight, ergonomic design, 20,000 RPM motor, tool-free arm adjustment, and quick belt changes.
Q: Which industries commonly use the 40320?
A: Ideal for aerospace, automotive, metal fabrication, and maintenance.
Q: Why choose the Dynafile II 40320?
A: Offers precision, high-speed performance, and flexibility for detailed finishing work.
Maintenance Tips
-
Clean the tool regularly to remove dust and debris.
-
Inspect abrasive belts frequently; replace when worn.
-
Lubricate moving parts as per manufacturer guidelines.
-
Ensure air supply is clean, dry, and properly regulated.
-
Store in a dry, cool place to prevent corrosion and damage.
