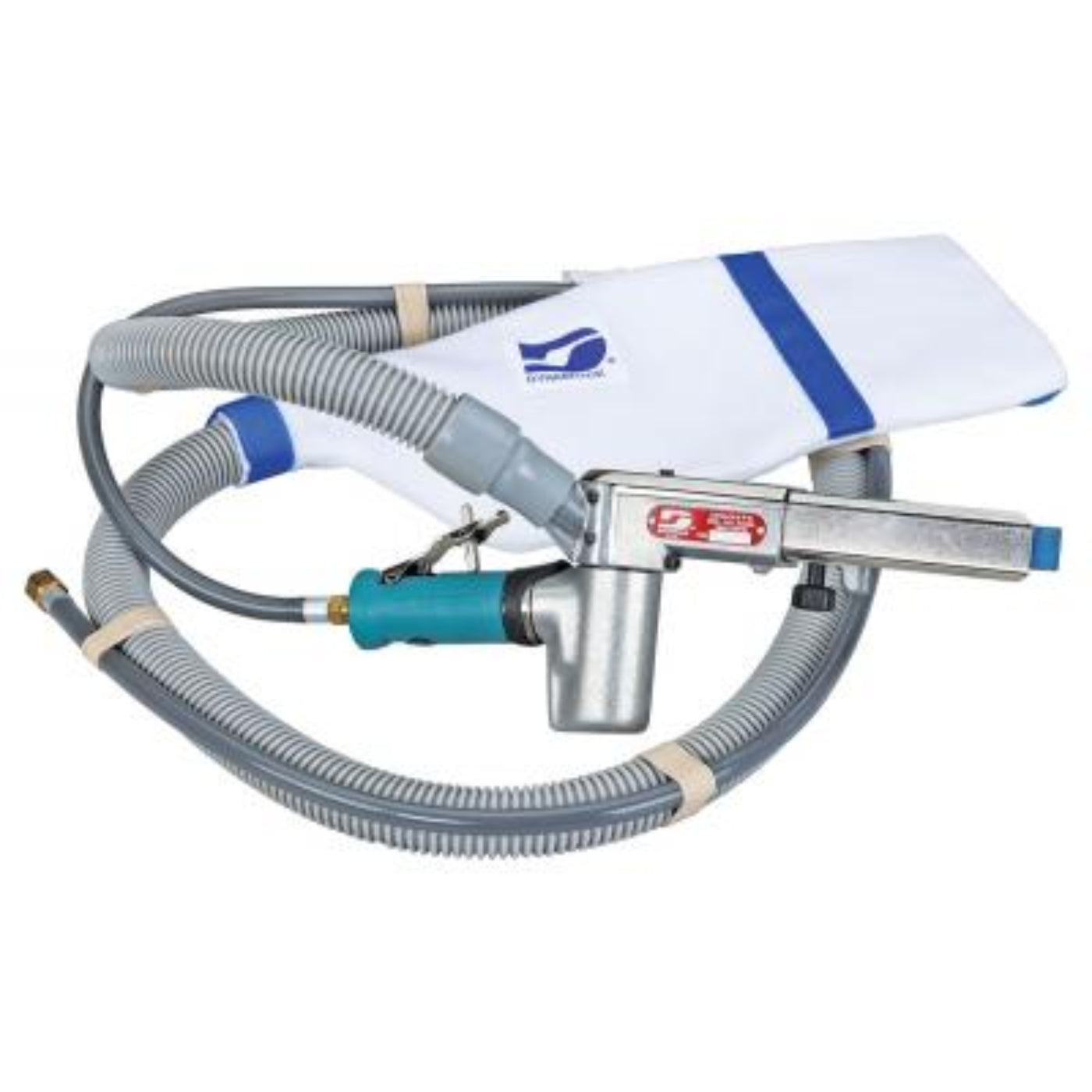

DYNABRADE Vacuum Dynafile II Abrasive Belt Tool - 40330
-
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4-3/4" W x 18-24" L (6-19 mm x 457-610 mm) Belt.
- Vacuum Dynafile II allows you to vacuum while you work. Highly portable vacuum system works on tool's exhaust.
-
Includes self-contained 'bag-within-bag' dust collection system (50683 Reusable Felt Bag). One-micron filter rating. Bag traps over 99% of vacuum particles one micron or larger. Hook-Face Closure. Also sold separately.
-
Includes 11206 Contact Arm for 3/4" wide x 18" long abrasive belts.
-
Excellent for grinding, deburring, finishing and polishing, on wood, plastic, fiberglass and exotic metals.
-
Air line is included and joined to exhaust hose to form 'one cord' for superb maneuverability.
Specifications
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.5 |
| Max. RPM |
20,000 |
| Max. SFPM |
5,730 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
5.3 |
| Length in. (mm) |
14.0 |
| Weight lb. (kg) |
4.42 |
| Width in. (mm) |
9.5 |
| Pkg. Height in. (mm) |
5.63 |
| Pkg. Length in. (mm) |
14.5 |
| Pkg. Weight lb. (kg) |
5.73 |
| Pkg. Width in. (mm) |
9.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026403307 |
| EAC Certified |
Yes |
| Tool Style |
7 Degree Offset |
What our Experts Think
-
Integrated dust collection system captures over 99% of particles 1 micron or larger, keeping the workspace cleaner.
-
Powerful 0.5 hp motor running at 20,000 RPM delivers efficient material removal.
-
Compatible with 1/4" to 3/4" wide x 18" to 24" long abrasive belts for versatile applications.
-
Ergonomic 7° offset handle and lightweight housing reduce operator fatigue.
-
Front exhaust system directs debris away for a safer, cleaner operation.
Q&A
Q: What is the Vacuum Dynafile II 40330 used for?
A: An abrasive belt tool with integrated vacuum for grinding, finishing, and dust-free operation in confined areas.
Q: What belt size does it support?
A: Compatible with 1/4" to 3/4" wide belts, up to 20-1/2" long.
Q: What are its key features?
A: Built-in vacuum system for dust collection, ergonomic design, high-speed motor, and quick belt changes.
Q: Which industries use the 40330?
A: Ideal for aerospace, automotive, metal fabrication, and maintenance requiring clean, precise finishing.
Q: Why choose the Vacuum Dynafile II 40330?
A: Combines effective dust control with precise abrasive performance for safer, cleaner work environments
Maintenance Tips
-
Clean the tool and vacuum system regularly to prevent dust buildup.
-
Inspect abrasive belts frequently; replace when worn or damaged.
-
Lubricate moving parts following manufacturer recommendations.
-
Check vacuum filters and hoses; replace if clogged or damaged.
-
Store in a dry, cool place to avoid corrosion and maintain tool longevity.
