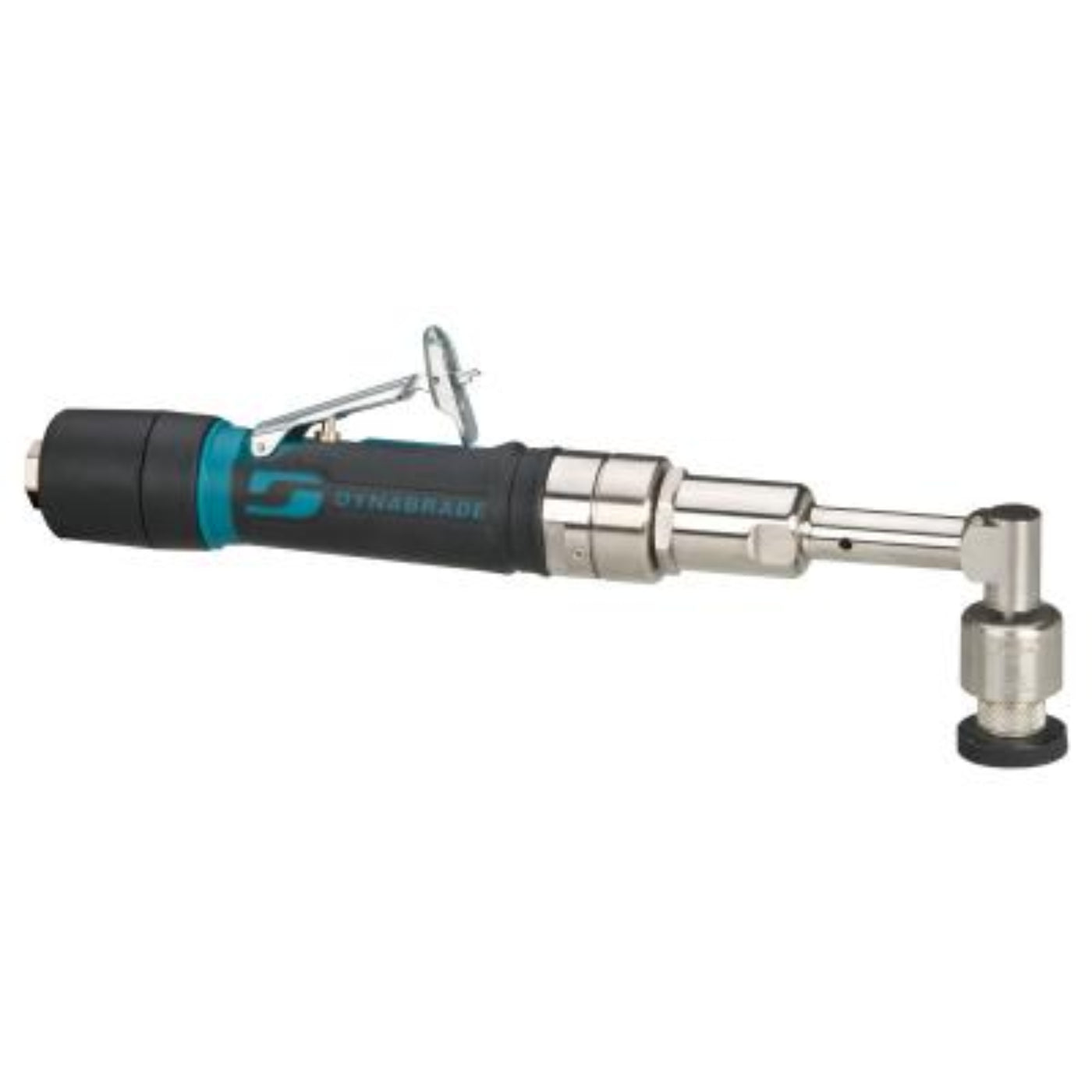

DYNABRADE Angle-Head Mini-Dynorbital Random Orbital Sander - 49401
-
.4 hp, 3,200 RPM, 3/16" (5 mm) Dia. Orbit, Accepts Pads with Locking-Type Thread.
- Built-in speed regulator, extended rear exhaust muffler, safety-lock lever included. Governor-controlled motor maintains speed under load.
-
Sample 9-micron micro-finishing film discs are included. Optional 54585 Side Handle Assembly available.
-
54029 Random Orbital Sanding Head accepts male locking-type pads.
-
Includes 1-1/4" dia. soft density locking-type pad (54031), which has male locking-type thread and mounts to sanding head.
Specifications
| Air Consumption (SCFM) |
26.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Pad Face |
Vinyl |
| Sanding Head Spindle Thread |
Male Locking-Type |
| Tool Spindle Thread |
1/4"-28 Female For Sanding-Head Spindle |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
3.0 |
| Length in. (mm) |
12.4 |
| Weight lb. (kg) |
3.75 |
| Width in. (mm) |
5.75 |
| Pkg. Height in. (mm) |
3.25 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.75 |
| Pkg. Width in. (mm) |
5.75 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026494039 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
Precision Sanding: Equipped with a 3/16" (5 mm) orbit, ideal for fine finishes on metal, wood, and composites.
-
High-Speed Performance: Operates at 3,200 RPM, delivering efficient material removal for detailed work.
-
Compact & Lightweight: Weighs 1.9 lbs (0.86 kg), offering excellent control and reduced operator fatigue.
-
Ergonomic Design: Right-angle configuration and palm-style grip ensure comfort during extended use.
-
Versatile Compatibility: Includes 54031 sanding pad with male locking-type thread, compatible with 54029 sanding head.
-
Quiet Operation: Rear exhaust system and low noise level (80 dB(A)) contribute to a quieter work environment.
-
Durable Build: Constructed for longevity, suitable for both professional and DIY applications.
Q&A
Q: What type of sander is the Dynabrade 49401?
A: It’s an angle-head mini random orbital sander designed for tight, angled spaces.
Q: What size sanding pad does it use?
A: Features a 2" diameter sanding pad for precision work.
Q: What power source does it require?
A: The sander is pneumatic (air-powered), needing an air compressor.
Q: What applications is the 49401 ideal for?
A: Perfect for sanding, finishing, and blending in confined or angled areas.
Q: Does it have variable speed control?
A: Yes, it offers variable speed for greater control.
Maintenance Tips
-
Clean After Use: Blow out dust and debris with compressed air to keep vents and moving parts clear.
-
Inspect Sanding Pads: Replace worn or damaged pads to maintain efficiency.
-
Lubricate Daily: Apply pneumatic tool oil to the air motor for smooth performance.
-
Use Correct Air Pressure: Operate at 90 PSI max with clean, dry air to prevent damage.
-
Check Fasteners: Periodically tighten screws and fittings for safety.
