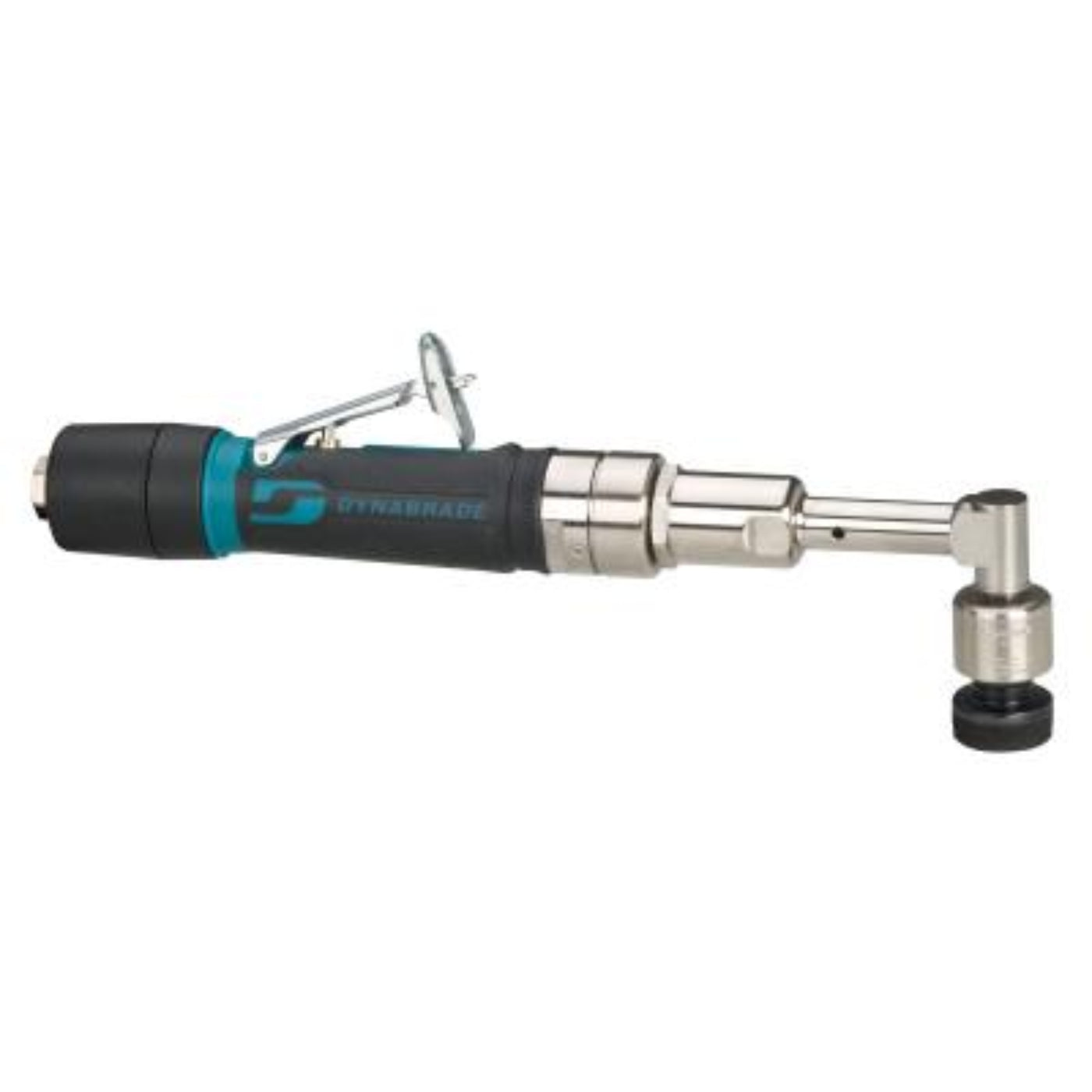

DYNABRADE Angle-Head Mini-Dynorbital Random Orbital Sander Versatility Kit - 49402
-
.4 HP, 3,200 rpm.
- Built-in speed regulator, extended rear exhaust muffler, safety-lock lever included. Governor-controlled motor maintains speed under load.
-
Sample 9-micron micro-finishing film discs are included. Optional 54585 Side Handle Assembly available.
-
Includes: 3,200 RPM Air Tool (see 49401), 54028 Random Orbital Sanding Head, 54018 Sanding Pad, 54029 Random Orbital Sanding Head, 54031 Sanding Pad, 50107 Sanding Pad, 54021 Adapter, Sample 2" Dia. Sanding Discs, 54030 Locking-Type Rotary Sanding Head, 50055 Collet Assembly (1/4" Capacity). Abrasives ? 3/4" and 1-1/4" Dia. 9-micron (1000-grit) micro-finishing film discs; assorted wrenches.
-
Tool also accepts 1/4"-28 threaded drill bits (not included).
Specifications
| Air Consumption (SCFM) |
26.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Pad Face |
Vinyl |
| Sanding Head Spindle Thread |
Male Locking-Type |
| Tool Spindle Thread |
1/4"-28 Female For Sanding-Head Spindle |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
3.0 |
| Length in. (mm) |
12.4 |
| Weight lb. (kg) |
3.75 |
| Width in. (mm) |
5.75 |
| Pkg. Height in. (mm) |
3.25 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.75 |
| Pkg. Width in. (mm) |
5.75 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026494039 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
Angle-Head Design: Provides superior access to tight, awkward spots for precise sanding.
-
Random Orbital Motion: Ensures smooth, swirl-free finishes across multiple surfaces.
-
Complete Kit: Includes versatile accessories to handle a wide range of sanding tasks.
-
Ergonomic & Lightweight: Minimizes user fatigue for extended use.
-
Durable Construction: Built for professional, long-lasting performance.
Q&A
Q: What is the DYNABRADE Angle-Head Mini-Dynorbital Sander Versatility Kit?
A: A compact angle-head random orbital sander kit designed for versatile sanding in hard-to-reach areas.
Q: What does the kit include?
A: The sander, multiple sanding pads, and accessories for various applications.
Q: What are its main benefits?
A: Ergonomic angle-head design for improved access, high-speed operation, and smooth finishes.
Q: What industries is it suited for?
A: Automotive, aerospace, metalworking, and woodworking.
Q: How does it improve sanding efficiency?
A: Provides better control and versatility, reducing operator fatigue and increasing productivity.
Q: What sanding pad sizes are supported?
A: Compatible with 3-inch sanding pads.
Maintenance Tips
-
Inspect tool and attachments regularly for wear, damage, or loose parts.
-
Lubricate air motor with 2-3 drops of pneumatic tool oil before each use.
-
Clean sanding pads and tool housing frequently to prevent dust buildup.
-
Replace worn sanding pads promptly for consistent finish quality.
-
Use clean, dry compressed air (max 90 PSI) to protect internal components.
-
Store in a dry, clean environment when not in use to prolong tool life.
