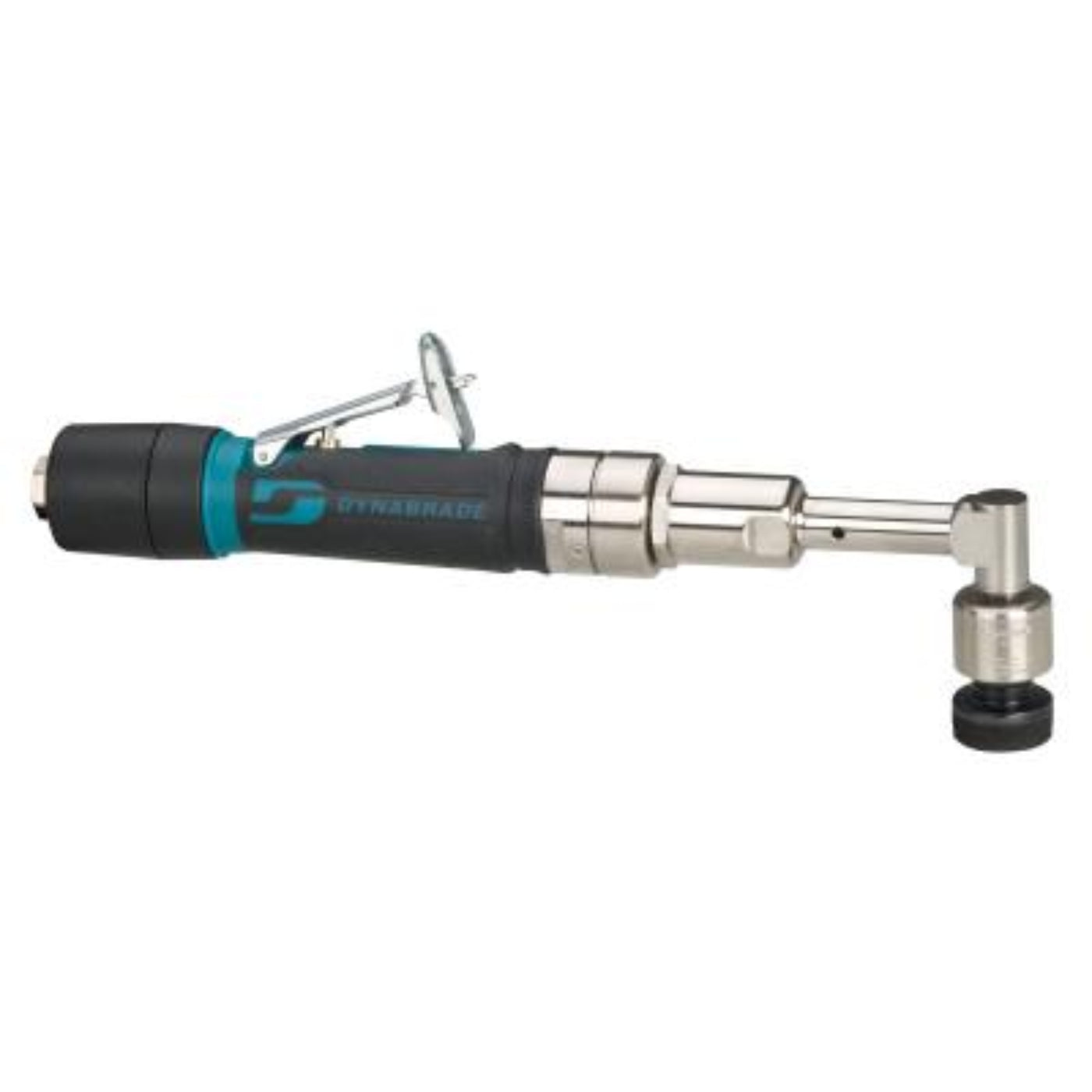

DYNABRADE Angle-Head Mini-Dynorbital Random Orbital Sander/Buffer Versatility Kit - 49403
-
.4 HP, 3,200 RPM.
- Built-in speed regulator, extended rear exhaust muffler, safety-lock lever included. Governor-controlled motor maintains speed under load.
-
Sample 9-micron micro-finishing film discs are included. Optional 54585 Side Handle Assembly available.
-
Includes: 3,200 RPM air tool (see 49400), 54028 Random Orbital Sanding Head, 50120 Hook ?n Loop Pad for Bonnets, 54018 Sanding Pad, 54021 Adapter, 90028 Wool Bonnet, assorted wrenches, 90027 Terry Cloth Bonnet, 95723 Finesse Sanding Creme, 95727 Dynabrade Glaze, 54017 Sanding Pad and sample abrasives.
Specifications
| Air Consumption (SCFM) |
26.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Pad Face |
Vinyl |
| Sanding Head Spindle Thread |
Male Locking-Type |
| Tool Spindle Thread |
1/4"-28 Female For Sanding-Head Spindle |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
3.0 |
| Length in. (mm) |
12.4 |
| Weight lb. (kg) |
3.75 |
| Width in. (mm) |
5.75 |
| Pkg. Height in. (mm) |
3.25 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.75 |
| Pkg. Width in. (mm) |
5.75 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026494039 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
Versatile Performance: Equipped with a 0.4 hp motor running at 3,200 RPM, suitable for both sanding and polishing tasks.
-
Comprehensive Kit: Includes a variety of sanding and polishing pads, bonnets, and abrasives to handle different surfaces and finishes.
-
Ergonomic Design: Right-angle configuration and lightweight construction (3.75 lbs) enhance maneuverability and reduce operator fatigue.
-
Built-in Speed Control: Features a governor-controlled motor with a built-in speed regulator to maintain consistent speed under load.
-
Durable Build: Constructed for longevity, suitable for both professional and DIY applications.
Q&A
Q: What does the Dynabrade 49403 Versatility Kit include?
A: It includes an angle-head mini random orbital sander/buffer, multiple sanding and buffing pads, and a storage case.
Q: What size sanding pad does it feature?
A: Equipped with a 2" diameter pad for detailed work.
Q: What power source is required?
A: The tool is pneumatic (air-powered), requiring an air compressor.
Q: What applications is this kit designed for?
A: Ideal for sanding, buffing, finishing, and blending in tight or angled spaces.
Q: Does the kit provide variable speed control?
A: Yes, it includes variable speed for precise operation.
Maintenance Tips
-
Clean Thoroughly: Use compressed air to remove dust and debris from all tool parts after use.
-
Inspect Pads & Accessories: Check sanding and buffing pads for wear; replace when needed.
-
Lubricate Air Motor: Apply pneumatic tool oil daily to maintain smooth operation.
-
Maintain Air Quality: Use clean, dry, and regulated air at 90 PSI max to protect the tool.
-
Tighten Fasteners: Regularly check and secure all screws and attachments.
