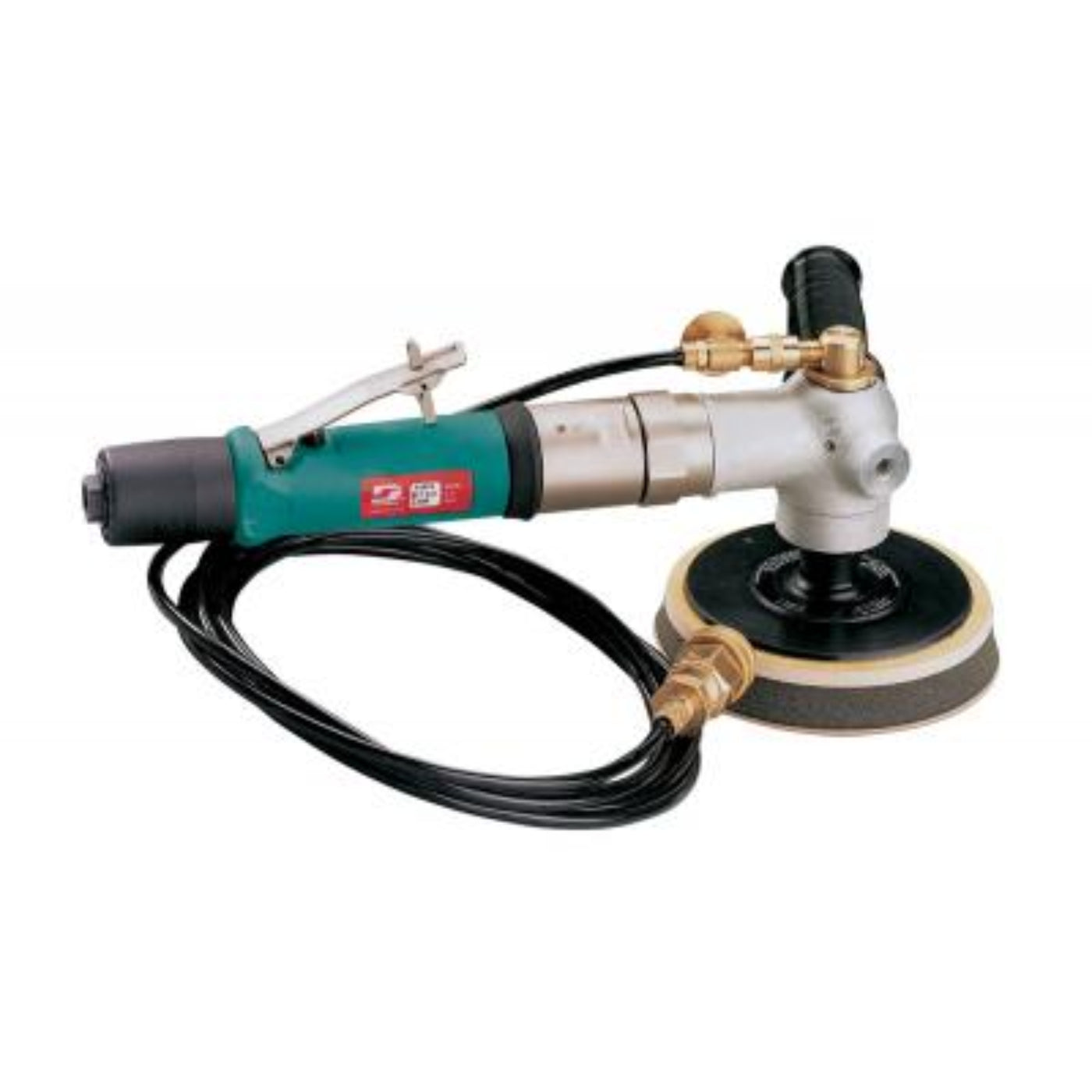

DYNABRADE 5"-8" (127 mm-203 mm) Dia. Right-Angle Wet Rotary Sander, Basic - 51474
- .7 hp, 0-2,000 RPM, Rear Exhaust, 5/8"-11 Spindle Thread.
- Basic Model runs 5" (127 mm), 6" (152 mm), or 8" (203 mm) diameter polishing pads. Pads sold separately. Without pre-assembled hook-ups for those not requiring through-the-tool water feed (for those who prefer to use a hose or spray bottle). Accepts variety of abrasive products including wet or dry discs, non-woven-nylon surface conditioning discs and filmbacked discs.
-
Water is fed through the center of pad directly to the work surface, providing optimum flushing of work surface and pad. This prevents build-up of sanding residue on the disc, allowing the tool to be used efficiently in any position. Independent water rinse allows flushing of the work surface without starting the tool.
-
Rear exhaust muffler reduces noise levels. Conventional rotary action with lubricated gears.
-
High torque air motor has variable speed.
-
Safety-lock throttle and soft-grip handle (adjusts to left or right hand).
Specifications
| Air Consumption (SCFM) |
43.0 |
| Power (hp) |
0.7 |
| Max. RPM |
2,000 |
| Tool Spindle Thread |
5/8-11 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
3.125 |
| Length in. (mm) |
13.0 |
| Weight lb. (kg) |
6.17 |
| Width in. (mm) |
10.0 |
| Pkg. Height in. (mm) |
5 |
| Pkg. Length in. (mm) |
15.25 |
| Pkg. Weight lb. (kg) |
6.84 |
| Pkg. Width in. (mm) |
10 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026514744 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
Versatile Pad Compatibility: Accommodates 5" (127 mm), 6" (152 mm), or 8" (203 mm) diameter polishing pads, offering flexibility for various applications.
-
Efficient Water Management: Features a center water feed that delivers water directly to the work surface, ensuring optimal flushing of both the surface and pad.
-
Independent Water Rinse: Allows for flushing of the work surface without activating the tool, enhancing convenience and control.
-
High-Torque Motor: Equipped with a 0.7 hp air motor that provides variable speed up to 2,000 RPM, suitable for a range of polishing tasks.
-
Ergonomic Design: The right-angle configuration with a soft-grip handle, adjustable for left or right hand use, and rear exhaust muffler contributes to reduced noise levels and increased operator comfort.
-
Durable Construction: Built with lubricated gears and a safety-lock throttle, ensuring longevity and safe operation in demanding environments.
Q&A
Q: What is the Dynabrade 51474 Wet Rotary Sander used for?
A: Designed for wet sanding applications on metal, composites, and painted surfaces to reduce dust and heat.
Q: What sanding pad sizes does it support?
A: Compatible with 5" to 8" (127 mm–203 mm) diameter sanding pads.
Q: What is the tool design?
A: Right-angle, basic rotary sander for comfortable handling and effective material removal.
Q: What are the benefits of wet sanding?
A: Minimizes dust, improves finish quality, and reduces heat buildup during sanding.
Q: Which industries commonly use this sander?
A: Used in automotive refinishing, aerospace, marine, and metal fabrication.
Maintenance Tips
-
Inspect Sanding Pads: Replace worn or damaged pads to maintain efficiency.
-
Tighten Guards and Fasteners: Ensure all parts are secure for safe use.
-
Lubricate Gear Housing: Follow manual instructions for smooth operation.
-
Clean Tool After Use: Remove water and debris to prevent corrosion and buildup.
-
Use Proper Water Supply: Ensure clean, filtered water to avoid clogging and extend tool life
