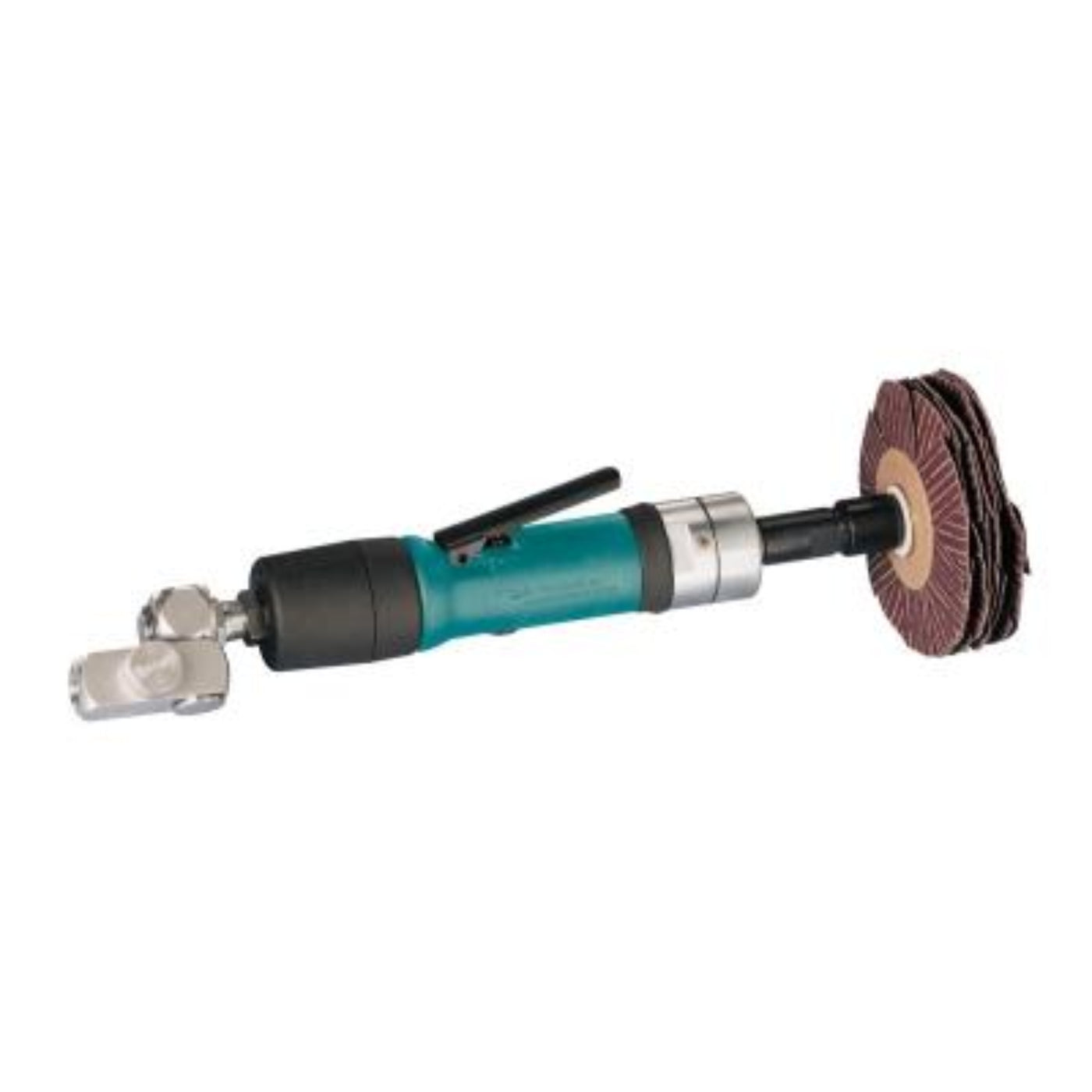

DYNABRADE Lightweight Dyninger Finishing Tool - 52051
-
.4 hp, Straight-Line, 0-3,200 RPM, Rear Exhaust, 6 mm Collet.
- Lightweight Dyninger Air-Powered Abrasive Finishing Tool, for use with Spindle-Mount, Arbor-Mount and Eyelet Sanding Stars.
-
0-3,200 RPM, .4 hp, 6 mm Collet. Mount 4" diameter spindle-mount abrasive sanding stars with 1/4" shank, or Eyelet Dy-Cut sanding stars. (Stars sold separately.)
-
For whitewood/sealer sanding, light deburring of metal, or fabrication and finishing of composite surfaces.
-
Excellent for use on wooden parts, moldings, raised panels and intricate profiles. Eliminates raised grain and removes loose fibers when whitewood sanding as well as scuffing sealer coats.
-
Tool includes 94407 Air-Flow Control Dynaswivel fitting for maximum tool maneuverability and control.
Specifications
| Arbor Hole |
1/2" |
| Collet Insert Size |
6 mm |
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Planetary-Geared |
| Height in. (mm) |
1.625 |
| Length in. (mm) |
9.25 |
| Weight lb. (kg) |
1.87 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
2.61 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026520516 |
| EAC Certified |
Yes |
What our Experts Think
-
High-Speed Performance: Equipped with a 0.4 hp planetary-geared motor, delivering up to 3,200 RPM for efficient material removal.
-
Versatile Applications: Ideal for sanding, defuzzing, blending, scuffing, and denibbing tasks.
-
Ergonomic Design: Straight-line configuration with a rear exhaust reduces operator fatigue during extended use.
-
Durable Construction: Built for heavy-duty industrial use and consistent performance.
-
Safety Features: Includes safety-lock throttle to prevent accidental startups.
-
Air Consumption: Requires 22 SCFM at 90 PSI for optimal performance.
-
Thread Specifications: Equipped with a 3/8"-24 male spindle thread.
-
Non-Vacuum Operation: Designed for use without a vacuum system.
Q&A
Q: What is the Dynabrade 52051 Lightweight Dyninger Finishing Tool?
A: A compact, lightweight tool designed for precision finishing, sanding, and polishing in tight spaces.
Q: What are the key benefits?
A: Offers enhanced maneuverability, reduced operator fatigue, and precise speed control for delicate tasks.
Q: What materials can it work on?
A: Suitable for metal, composites, plastics, and painted surfaces.
Q: Which industries use this tool?
A: Common in automotive, aerospace, metalworking, and maintenance applications.
Maintenance Tips
-
Clean After Use: Remove dust and debris to prevent clogging and wear.
-
Check Pads Regularly: Replace worn or damaged pads for consistent finishing quality.
-
Lubricate Moving Parts: Follow manufacturer’s instructions to maintain smooth operation.
-
Use Clean, Dry Air: Avoid moisture to protect internal components and extend tool life.
-
Store in Dry Place: Prevent damage by keeping the tool dust-free and dry.
