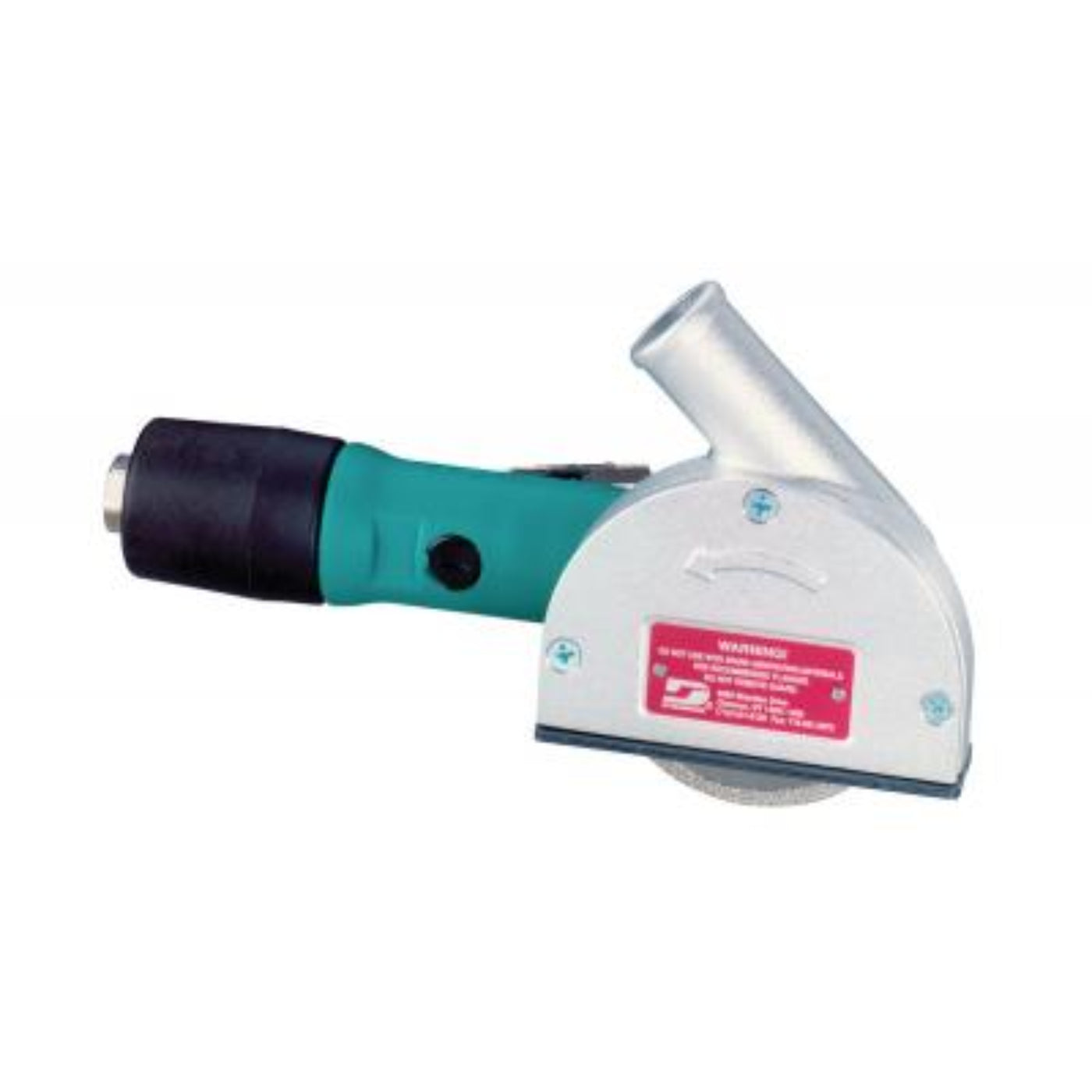

DYNABRADE 3" (76 mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool - 52538
-
.4 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
-
3" Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3" diameter Diamond Cut-Off Wheels.
-
Adjustable wheel guard has vacuum port (1" outside diameter) that diverts airborne dust and debris to optional vacuum source.
-
Non-marring composite base is removable to utilize maximum blade depth of 11/16". Optional 52646 composite base is available for gel coat notching.
-
Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime. Safety-lock lever is included.
Specifications
| Air Consumption (SCFM) |
21.0 |
| Power (hp) |
0.4 |
| Max. RPM |
12,000 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
4.375 |
| Length in. (mm) |
8.625 |
| Weight lb. (kg) |
2.4 |
| Width in. (mm) |
6.25 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.14 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026525382 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
Compact & Precise: 3" (76 mm) diameter ideal for detailed cut-off tasks in tight spaces.
-
Right Angle Design: Enhances accessibility and control for angled cuts.
-
Vacuum-Ready: Built-in vacuum port reduces dust for cleaner, safer work environments.
-
Ergonomic Grip: Comfortable handling reduces operator fatigue during prolonged use.
-
Durable & Reliable: Designed for heavy-duty industrial cutting applications.
-
Consistent Cutting Performance: Provides smooth, efficient cuts with minimal vibration.
Q&A
Q: What is the Dynabrade 52538 Cut-Off Wheel Tool used for?
A: Designed for precise cutting and trimming of metal, composites, and plastics.
Q: What type of tool is this?
A: A right-angle vacuum cut-off wheel tool for clean, dust-controlled cutting.
Q: What is the wheel size?
A: Uses a 3-inch (76 mm) diameter cut-off wheel for detailed, accurate cuts.
Q: How does the vacuum feature help?
A: Provides dust extraction to maintain a cleaner work environment and improve visibility.
Q: Which industries commonly use this tool?
A: Popular in aerospace, automotive, metal fabrication, and maintenance.
Maintenance Tips
-
Inspect Cut-Off Wheel: Check for cracks or damage before use; replace if necessary.
-
Secure Guards and Fasteners: Tighten to ensure safety and stability.
-
Clean Vacuum Port Regularly: Prevent clogging for optimal dust extraction.
-
Lubricate Gears as Recommended: Maintain smooth operation and reduce wear.
-
Use Clean, Dry Air Supply: Avoid moisture to extend tool life and ensure consistent performance.
