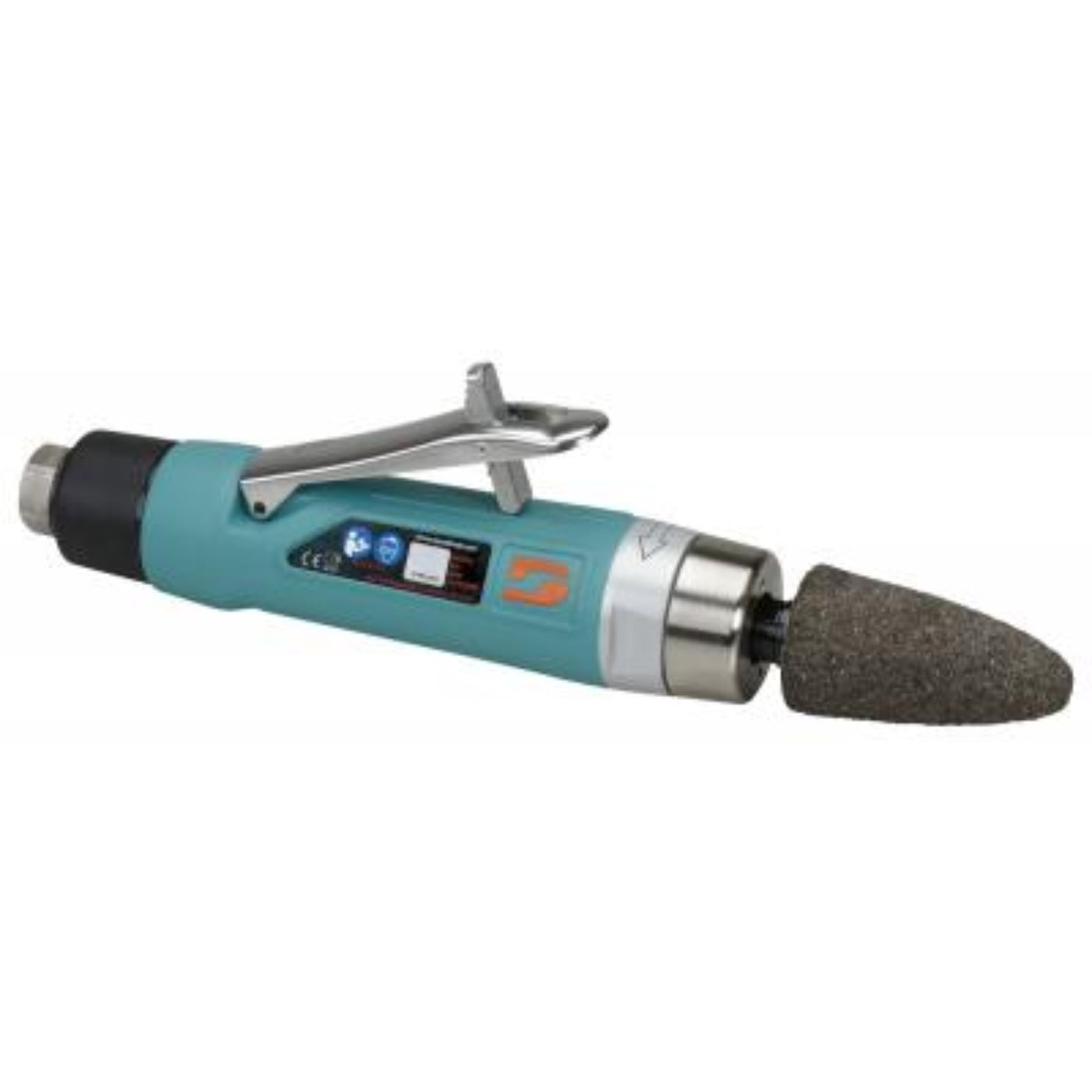

DYNABRADE Cone Or Plug Wheel Grinder - 52715
-
1 hp, Straight-Line, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 12,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
-
Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
38.0 |
| Power (hp) |
1.0 |
| Max. RPM |
12,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
7.75 |
| Weight lb. (kg) |
2.15 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
2.89 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527157 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Compact & Powerful: Designed for efficient grinding with cone or plug wheels in tight or angled areas.
-
High Performance: Delivers consistent power for heavy material removal and surface prep.
-
Ergonomic Grip: Comfortable handling reduces operator fatigue during extended use.
-
Durable Build: Built tough for industrial applications and long service life.
-
Versatile Use: Ideal for foundry, metal fabrication, and maintenance work.
Q&A
Q: What is the DYNABRADE Cone or Plug Wheel Grinder - 52715?
A: A high-performance pneumatic grinder designed for use with cone or plug wheels in heavy material removal applications.
Q: What are its key features?
A: Compact design, powerful motor, ergonomic grip, and optimized for grinding in tight or angled areas.
Q: What applications is it ideal for?
A: Perfect for metal fabrication, casting clean-up, weld removal, and maintenance work.
Q: What wheel types does it support?
A: Designed for use with Type 16, 17, and 18 cone or plug wheels.
Q: Why choose this model?
A: Delivers powerful, precise grinding with durability and comfort for demanding industrial tasks.
Maintenance Tips
-
Inspect tool and accessories regularly for cracks, wear, or loose components.
-
Lubricate air motor with 2-3 drops of pneumatic tool oil before each use to prevent internal wear.
-
Clean tool housing and grinding area to remove debris and maintain airflow.
-
Check cone/plug wheels for wear or imbalance; replace when necessary for safety and performance.
-
Use clean, dry compressed air (max 90 PSI) to protect internal components.
-
Store in a dry, protected area when not in use to extend tool life.
