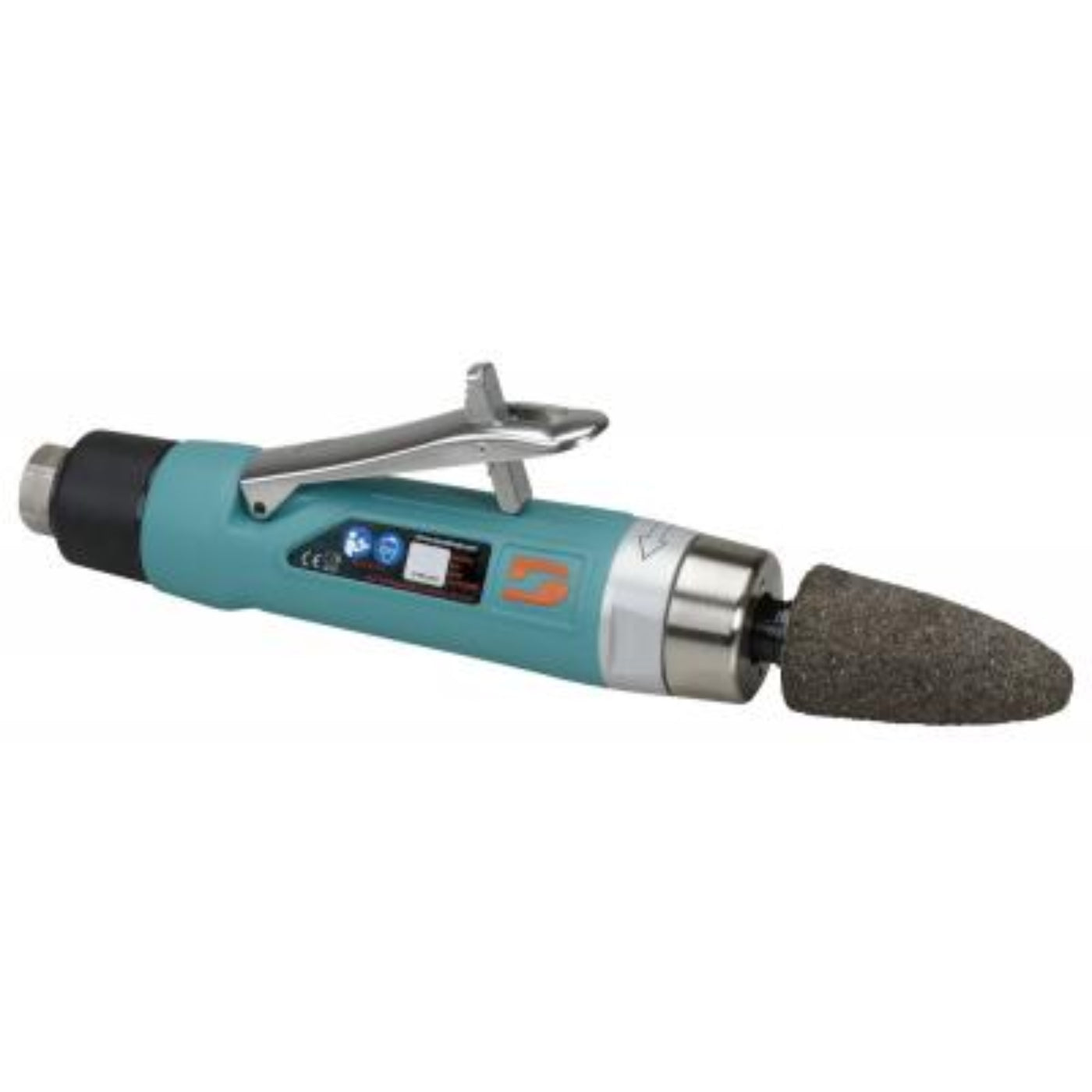

DYNABRADE Cone Or Plug Wheel Grinder - 52716
-
1 hp, Straight-Line, 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 15,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
-
Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
39.0 |
| Power (hp) |
1.0 |
| Max. RPM |
15,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
8.875 |
| Weight lb. (kg) |
2.17 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.02 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527164 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
High Performance: Powerful 1 hp air motor operates at 15,000 RPM for aggressive material removal.
-
Compact Design: Slim, straight-line housing allows access to tight, confined areas.
-
Wheel Compatibility: Accepts cone or plug wheels up to 1-1/4" in diameter with a 3/8"-24 spindle thread.
-
Consistent Speed: Governor-controlled motor maintains stable RPM under heavy load.
-
Safety First: Built-in safety-lock lever helps prevent accidental starts.
-
Rear Exhaust: Directs air away from the user for a cleaner, more comfortable work environment.
-
Heavy-Duty Use: Perfect for weld cleanup, surface prep, and casting work in industrial environments.
Q&A
Q: What is the Dynabrade 52716 used for?
A: It's a pneumatic cone or plug wheel grinder designed for heavy-duty grinding in confined or hard-to-reach areas.
Q: What type of power does it use?
A: This tool is air-powered and requires a compatible air compressor.
Q: What materials can it grind?
A: Ideal for metal, composites, and other hard materials.
Q: What applications is the 52716 best suited for?
A: Perfect for deburring, porting, and surface prep in industrial and automotive settings.
Q: Is the tool built for durability?
A: Yes, it features a robust design for long-term, high-performance use.
Maintenance Tips
-
Clean After Use: Use compressed air to clear dust and debris from housing, vents, and moving parts.
-
Inspect Wheel & Collet: Regularly check grinding cone or plug wheel for cracks, wear, or imbalance; ensure collet is tight and secure.
-
Lubricate Air Motor: Apply a few drops of pneumatic tool oil before each use to maintain smooth operation.
-
Use Correct Air Pressure: Operate at 90 PSI max with clean, dry, filtered air to avoid internal damage.
-
Check Fasteners: Periodically tighten all screws, guards, and attachments for safe operation.
