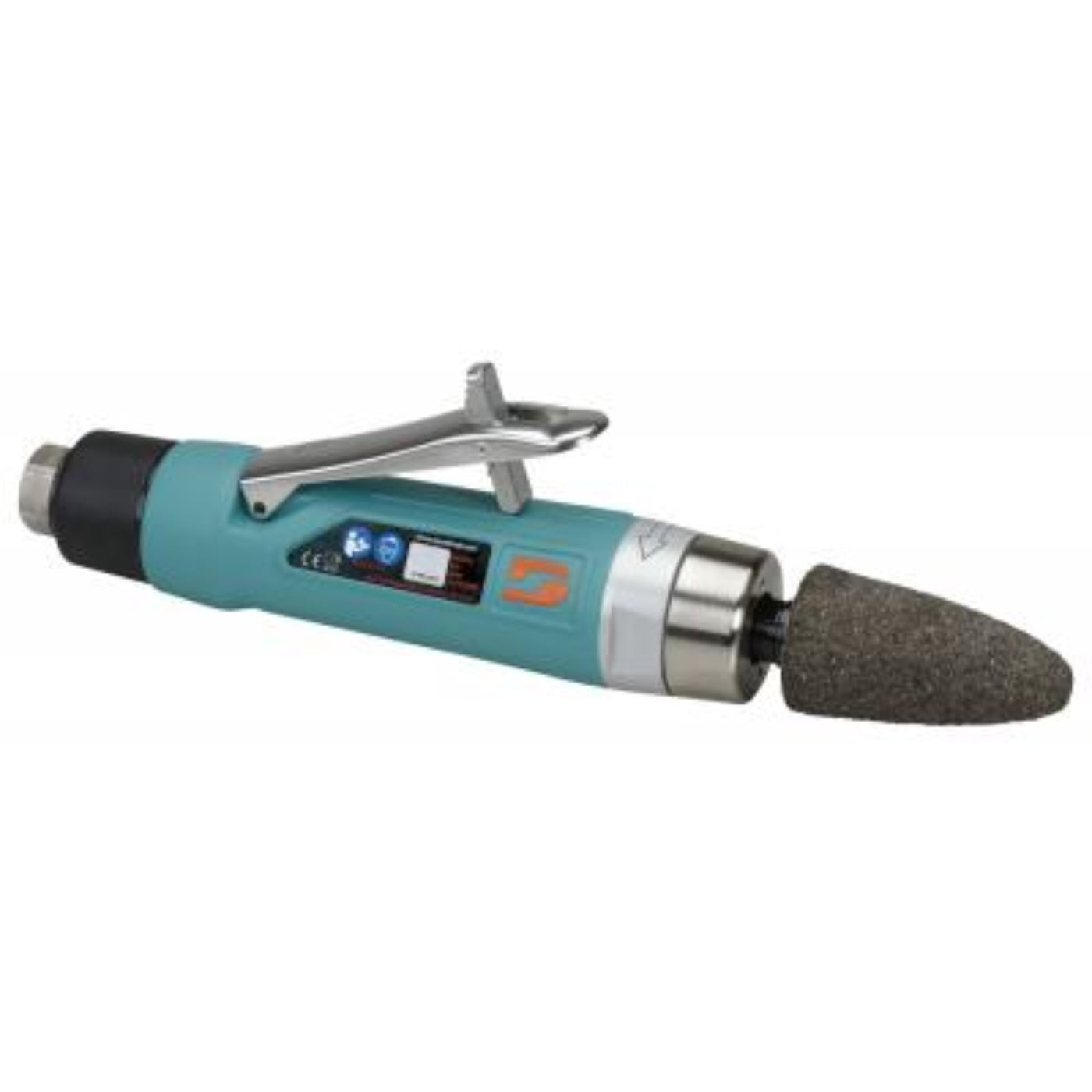

DYNABRADE Cone Or Plug Wheel Grinder - 52717
-
1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 18,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
-
Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
40.0 |
| Power (hp) |
1.0 |
| Max. RPM |
18,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
8.875 |
| Weight lb. (kg) |
2.26 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.05 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527171 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Angled Head Design: Optimized for grinding in hard-to-reach areas and confined spaces.
-
High Power Output: Delivers strong, consistent performance for heavy-duty material removal.
-
Compatible with Cone/Plug Wheels: Ideal for surface prep, weld blending, and contour work.
-
Rugged Construction: Built for industrial environments with long-term durability.
-
Operator Comfort: Ergonomic design helps reduce fatigue during extended use.
Q&A
Q: What is the DYNABRADE Cone or Plug Wheel Grinder - 52717?
A: A heavy-duty pneumatic grinder built for efficient use with cone or plug wheels in aggressive material removal jobs.
Q: What are its standout features?
A: High-torque motor, robust construction, ergonomic housing, and optimized for tough industrial environments.
Q: What is it used for?
A: Ideal for weld grinding, metal shaping, casting clean-up, and surface prep in metalworking and fabrication.
Q: What wheel types are compatible?
A: Supports Type 16, 17, and 18 cone or plug wheels.
Q: Why choose this tool?
A: Offers superior grinding power, control, and durability for demanding, high-volume tasks.
Maintenance Tips
-
Inspect grinder and accessories routinely for wear, cracks, or loose fittings.
-
Lubricate the air motor daily with 2–3 drops of pneumatic tool oil before operation.
-
Clean the tool body and grinding area after use to remove dust and debris.
-
Check grinding wheels for balance, wear, or damage—replace as needed for safety and performance.
-
Operate with clean, dry compressed air (max 90 PSI) to prevent internal damage.
-
Store in a clean, dry environment when not in use to protect components and extend tool life.
