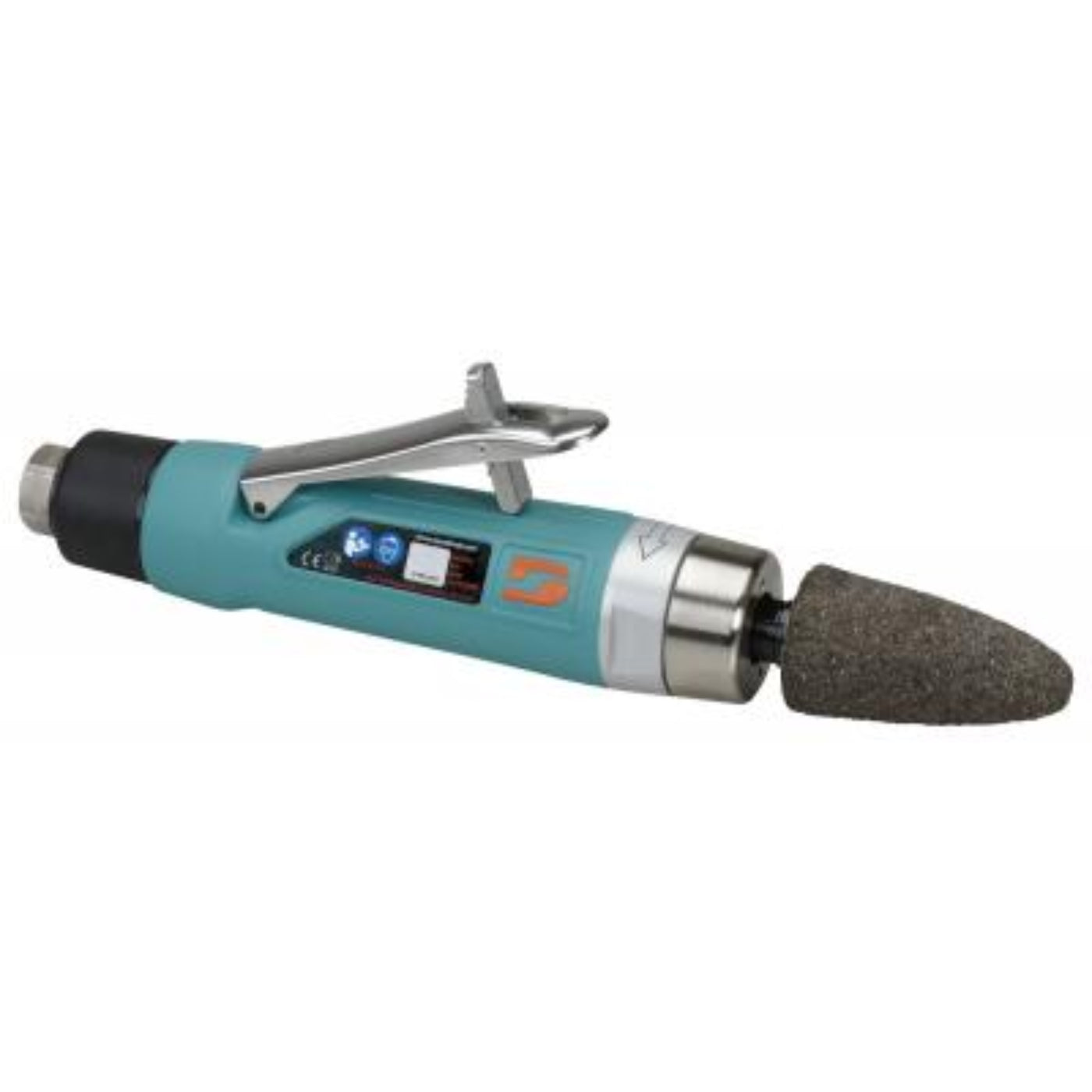

DYNABRADE Cone Or Plug Wheel Grinder - 52718
-
1 hp, Straight-Line, 20,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 20,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
-
Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
44.0 |
| Power (hp) |
1.0 |
| Max. RPM |
20,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
8.875 |
| Weight lb. (kg) |
2.27 |
| Width in. (mm) |
16.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.11 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527188 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
High-Speed Performance: Equipped with a 1 hp air motor delivering 20,000 RPM, ideal for aggressive grinding and smoothing tasks.
-
Compact & Lightweight: Straight-line design measuring 8-7/8" in length and weighing approximately 2.27 kg (5 lbs), offering excellent control in tight spaces.
-
Versatile Wheel Compatibility: Accepts abrasive cone or plug wheels up to 1-1/4" in diameter with a 3/8"-24 male spindle thread, suitable for various applications.
-
Consistent Power: Governor-controlled motor maintains RPM under heavy load, ensuring stable performance during extended use.
-
Safety Features: Includes a safety-lock lever to prevent accidental startups, enhancing operator safety.
-
Rear Exhaust: Designed with a rear exhaust system to direct air away from the user, contributing to a cleaner work environment.
-
Industrial Applications: Ideal for cleaning metal, grinding and smoothing weld seams, and removing imperfections prior to painting in fabrication plants, welding shops, foundries, steel mills, and shipyards.
Q&A
Q: What is the Dynabrade 52718 designed for?
A: It’s a pneumatic cone or plug wheel grinder for precise grinding in tight or confined spaces.
Q: What power source does it use?
A: The tool is air-powered and requires an air compressor.
Q: What materials can it work on?
A: Suitable for grinding metal, composites, and plastics.
Q: What applications is the 52718 ideal for?
A: Best for deburring, porting, and finishing tasks in industrial and automotive use.
Q: Is it built for durability?
A: Yes, designed with a sturdy housing for long-lasting performance.
Maintenance Tips
-
Clean Regularly: Use compressed air to remove dust and debris from vents and moving parts.
-
Inspect Grinding Wheel: Check for cracks, wear, or imbalance; replace if damaged.
-
Lubricate Daily: Apply pneumatic tool oil to the air motor before use for smooth operation.
-
Use Proper Air Supply: Operate with clean, dry, regulated air at 90 PSI max to prevent damage.
-
Tighten Hardware: Regularly check and tighten all screws, guards, and fittings.
