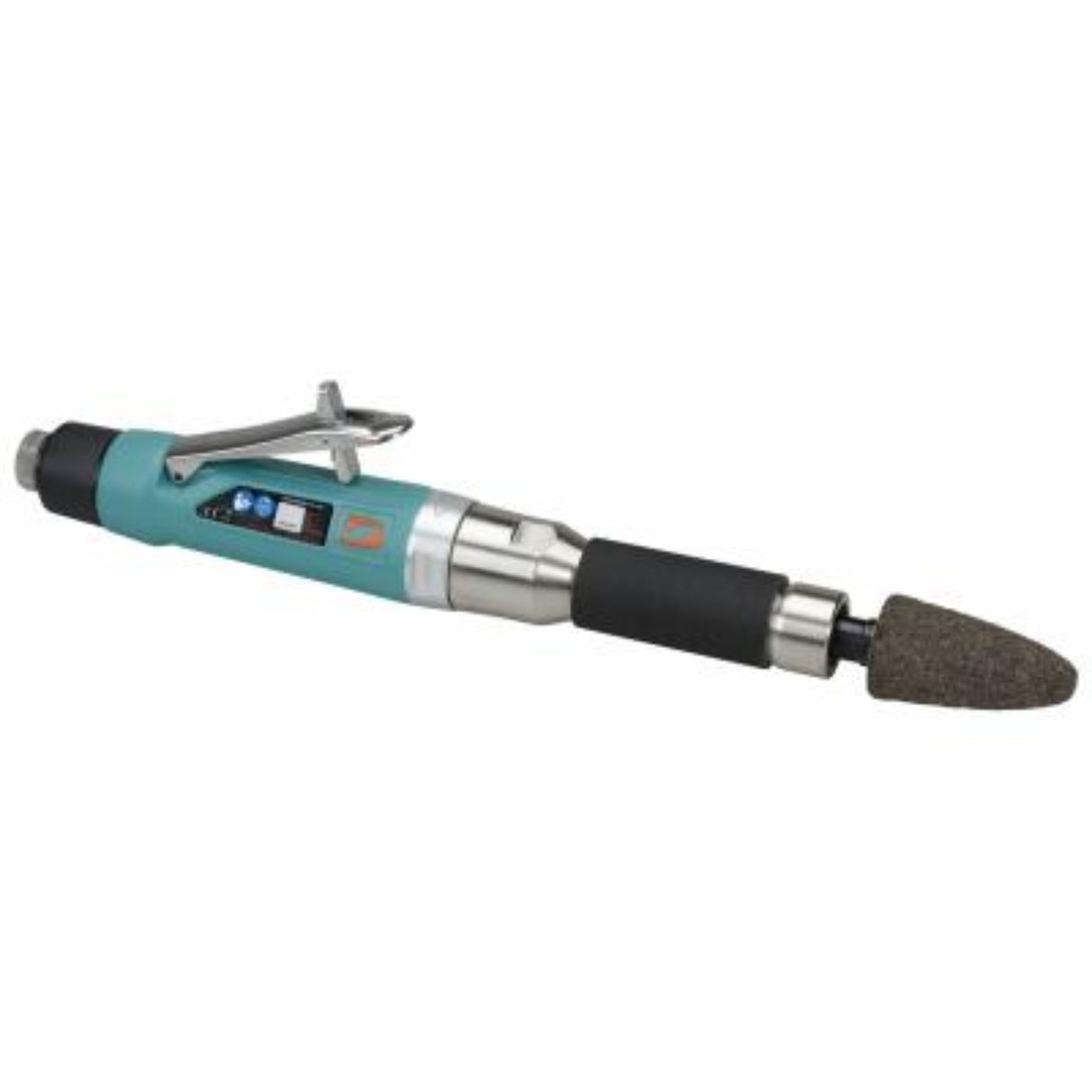

DYNABRADE Cone Or Plug 6" (152 mm) Extension Wheel Grinder - 52720
-
1 hp, Straight-Line, 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 6" Extension, 15,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter. Governor-controlled motor maintains RPM under heavy load.
-
Safety-lock lever is included on all models. Standard cushioned grip enhances operator comfort and offers additional control.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
39.0 |
| Power (hp) |
1.0 |
| Max. RPM |
15,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
14.375 |
| Weight lb. (kg) |
3.48 |
| Width in. (mm) |
4.38 |
| Pkg. Height in. (mm) |
2.75 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.36 |
| Pkg. Width in. (mm) |
4.38 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527201 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Extended Reach: 6" extension allows access to deep or confined areas without the need for continuous tightening.
-
High-Speed Performance: Equipped with a 1 hp motor delivering 15,000 RPM, suitable for aggressive grinding tasks.
-
Durable Construction: Straight-line design minimizes vibration and enhances tool stability.
-
Versatile Compatibility: Accepts cone or plug wheels up to 1-1/4" in diameter with a 3/8"-24 male spindle thread.
-
Safety Features: Includes a safety-lock lever to prevent accidental startups.
-
Rear Exhaust: Designed with a rear exhaust system to direct air away from the user, contributing to a cleaner work environment.
-
Industrial Applications: Ideal for cleaning metal, grinding and smoothing weld seams, and removing imperfections prior to painting in fabrication plants, welding shops, foundries, steel mills, and shipyards.
Q&A
Q: What type of grinder is the Dynabrade 52720?
A: It’s a cone or plug wheel grinder with a 6" (152 mm) extension for precise grinding in tight spaces.
Q: What power source does it require?
A: Pneumatic (air-powered), needing an air compressor.
Q: What materials can it grind?
A: Suitable for metal, plastic, and composite materials.
Q: What applications is the 52720 best for?
A: Ideal for deburring, porting, and finishing in deep or hard-to-reach areas.
Q: Is it built for durability?
A: Yes, designed with a robust housing for long-term use.
Maintenance Tips
-
Clean After Use: Use compressed air to remove dust and debris from vents and moving parts.
-
Inspect Grinding Wheel: Check for cracks, wear, or imbalance; replace if needed.
-
Lubricate Daily: Apply pneumatic tool oil to the air motor before each use for smooth performance.
-
Use Clean Air: Operate with dry, regulated air at 90 PSI max to avoid damage.
-
Check Fasteners: Periodically tighten screws, guards, and attachments for safety.
