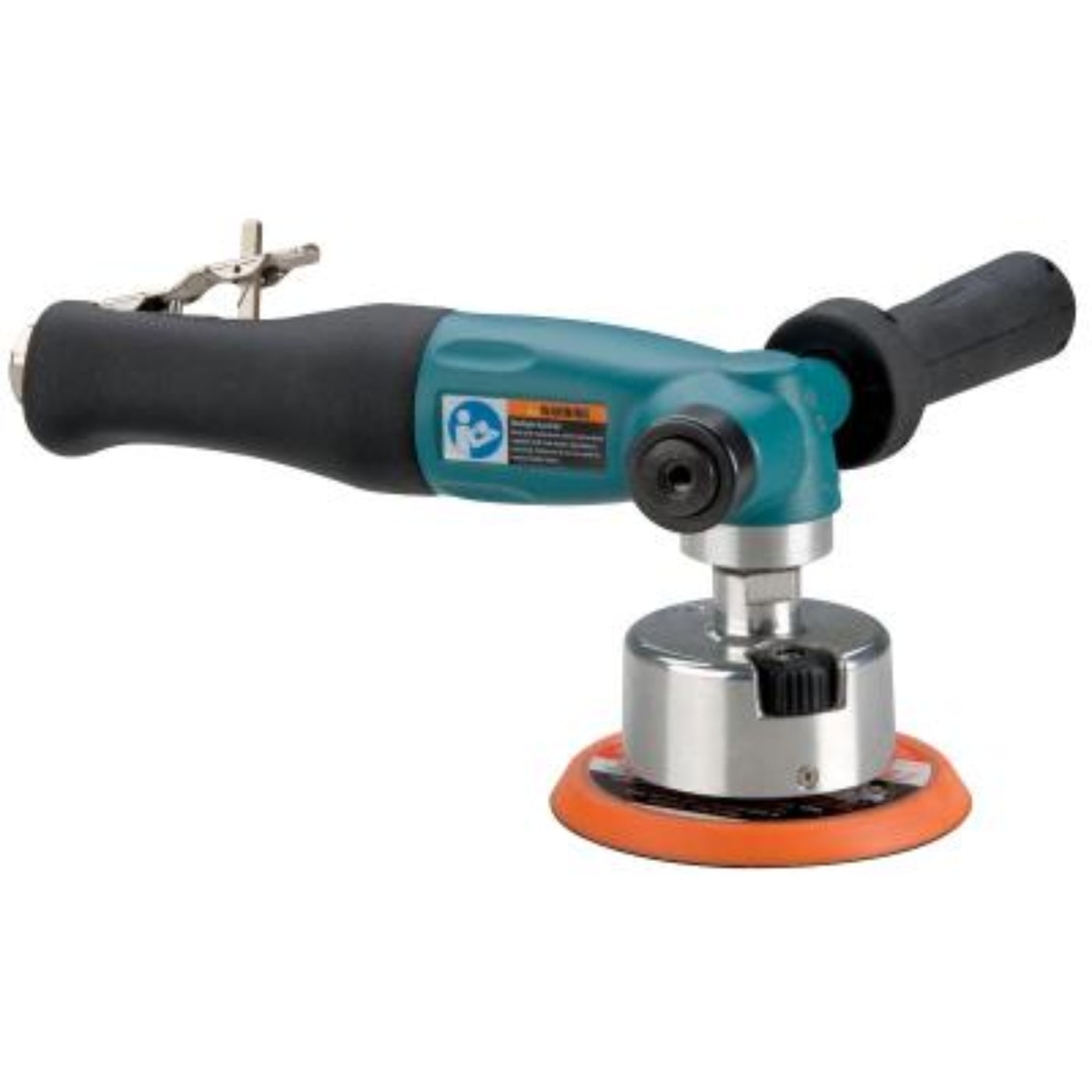

DYNABRADE 5" (127 mm) Dia. Sander w/ Random-Rotary Orbit Locking Head - 52760
-
1.3 hp, 12,000 RPM, Rotational Exhaust, 5/8"-11 Spindle Thread.
- This Sander is truly two-tools-in-one, easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch on the DynaLocke Head Assembly (61318). Ideal for metal applications and great on composite materials. Excellent for automotive work, such as paint stripping and blending. Also utilized for leveling glue seams on Corian and other solid surfaces.
-
Includes DynaLocke Head Assembly (61318) which comes with a 5" Dia. (127 mm), Medium Denisty, Short Hook-Face Pad (54325). This tool has a powerful 1.3 hp motor with a free -speed of 12,000 RPM. Tool has a 5/8"-11 spindle thread and has a governor controlled motor which maintains consistent RPM under load.
-
Our Wick-Lube system extends gear life when tool is properly lubricated with gear oil. reduces temperature transfer to the operator?s hand.
-
Two-position vibration dampening side handle allows for left or right hand use. A 360 degrees rotational exhaust directs exhaust where the operator desires. Insulated throttle handle.
-
Includes Grease Gun (95541), Gear Oil - 2.5 oz tube (95848) and 21 mm Open End Wrench (95823). Pad sold separately.
Specifications
| Air Consumption (SCFM) |
43.0 |
| Power (hp) |
1.3 |
| Max. RPM |
12,000 |
| Pad Face |
Hook-Face |
| Tool Spindle Thread |
5/8-11 Male |
| Exhaust Type |
Side |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
5.375 |
| Length in. (mm) |
10.5 |
| Weight lb. (kg) |
7 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
5 |
| Pkg. Length in. (mm) |
12 |
| Pkg. Weight lb. (kg) |
8 |
| Pkg. Width in. (mm) |
6.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527607 |
| EAC Certified |
Yes |
What our Experts Think
-
Dual-Mode Functionality: Switch between random orbit and rotary action for precision or aggressive sanding.
-
Locking Head Design: Ensures consistent performance and control during extended use.
-
Compact 5" Size: Ideal for detailed work and tight spaces without sacrificing power.
-
Industrial-Grade Build: Engineered for durability in demanding environments.
-
Comfort Grip: Ergonomic design reduces user fatigue and improves handling.
Q&A
Q: What is the Dynabrade 52760 Sander used for?
A: It’s a 5" (127 mm) diameter sander designed for high-precision surface finishing and material removal.
Q: What type of motion does it use?
A: Features a random-rotary orbit for smooth, swirl-free finishes.
Q: Does it have a locking head?
A: Yes, the locking head allows for controlled, consistent sanding performance.
Q: Is it suitable for professional use?
A: Absolutely — ideal for automotive, metalworking, and woodworking applications.
Q: What makes this sander stand out?
A: Combines random orbital action with rotary power for superior versatility and finish quality
Maintenance Tips
-
Inspect tool daily for air leaks, worn parts, or vibration issues.
-
Lubricate air motor with 2-3 drops of pneumatic tool oil before each use.
-
Clean sanding pad and housing regularly to prevent dust buildup and ensure smooth operation.
-
Check pad condition and replace if worn or damaged to maintain sanding quality.
-
Use clean, dry compressed air (90 PSI max) to prevent internal damage.
-
Store in a clean, dry area when not in use to protect components
