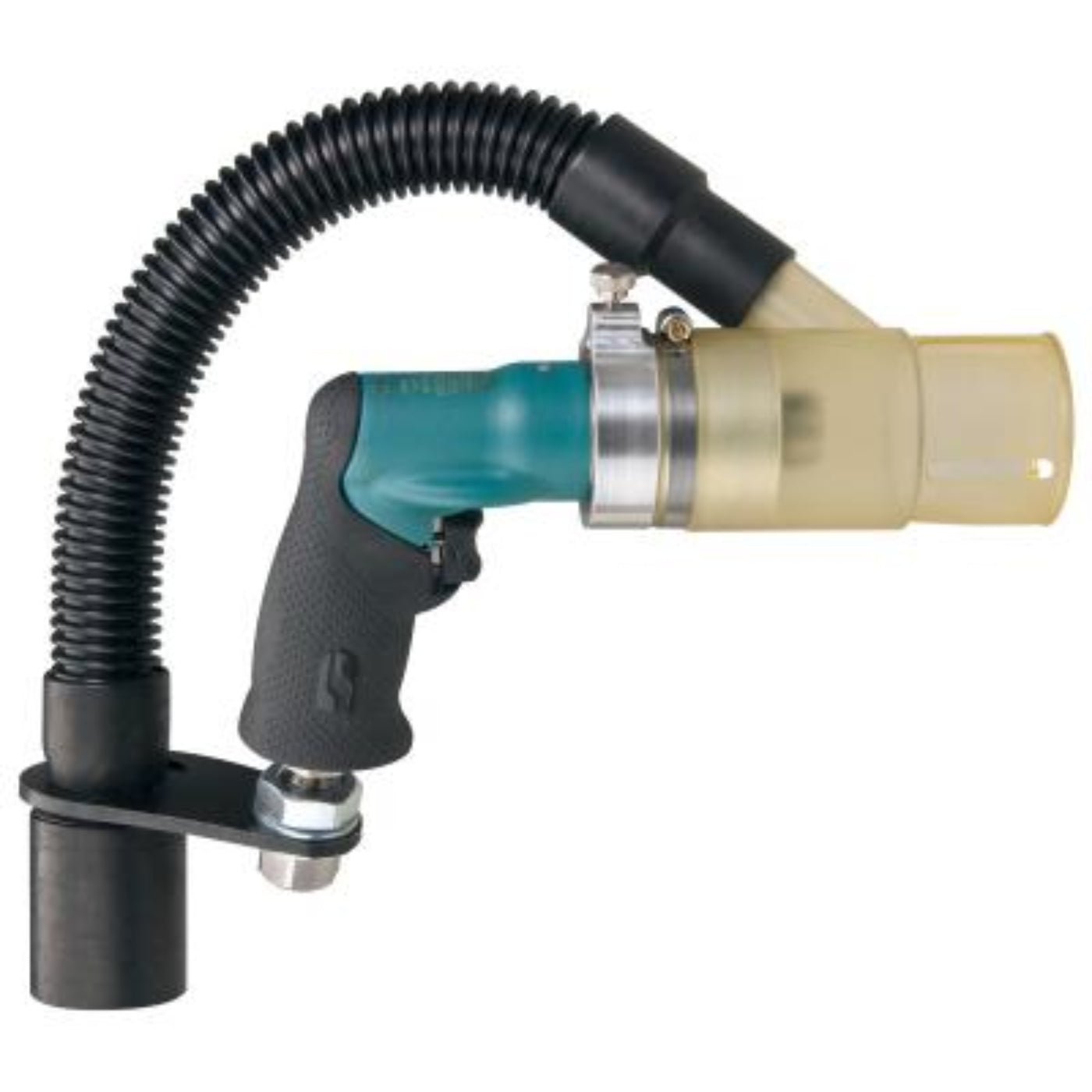

DYNABRADE 1/4" Drill, Central Vacuum - 52907
-
.4 hp, 5,500 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck.
- .4 hp (298 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
-
Pistol Grip design includes slow-speed start-up trigger.
-
High torque air motor; comfortable insulated tool grip.
-
Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
-
Each model includes 1/4" Dynachuck and key.
Specifications
| Air Consumption (SCFM) |
25.0 |
| Power (hp) |
0.4 |
| Max. RPM |
5,500 |
| Tool Spindle Thread |
3/8" - 24 Male |
| Air Inlet Thread |
1/4" NPT |
| Chuck Size |
1/4" |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Vacuum |
| Height in. (mm) |
11.75 |
| Length in. (mm) |
10.5 |
| Weight lb. (kg) |
3.1 |
| Width in. (mm) |
10.0 |
| Pkg. Height in. (mm) |
5 |
| Pkg. Length in. (mm) |
15 |
| Pkg. Weight lb. (kg) |
4.1 |
| Pkg. Width in. (mm) |
10 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026529076 |
| EAC Certified |
Yes |
| Tool Style |
Pistol Grip |
What our Experts Think
-
High-Speed Performance
Equipped with a 0.4 hp planetary-geared motor, the 52907 delivers 5,500 RPM, making it suitable for precision drilling tasks in metalworking, woodworking, marine, and aerospace industries.
-
Central Vacuum System Integration
Features a collapsible vacuum shroud that compresses around the drill bit to effectively capture chips and debris, maintaining a cleaner work environment.
-
Ergonomic Design
The pistol grip design enhances operator comfort, while the high-torque air motor ensures efficient performance.
-
Electrostatic Discharge (ESD) Protection
Includes conductive hose and cuffs to shield the operator from electrostatic discharge, ensuring safety during operations.
-
Durable Construction
Comes with a 1/4" DynaChuck and key, offering secure bit retention and long-lasting performance.
Q&A
Q: What is the Dynabrade 1/4" Drill 52907 with Central Vacuum used for?
A: A pneumatic drill designed for precision drilling with integrated central vacuum for dust extraction.
Q: What chuck size does the 52907 feature?
A: Equipped with a 1/4" chuck for small drill bits.
Q: What industries benefit from this drill?
A: Ideal for aerospace, automotive, electronics, and cleanroom applications.
Q: What are the key features of the 52907 drill?
A: Central vacuum system for dust control, ergonomic design, variable speed control, and smooth operation.
Q: Why choose the Dynabrade 52907?
A: Combines precise drilling with efficient dust extraction, improving worksite cleanliness and operator safety.
Maintenance Tips
-
Inspect drill bits regularly; replace dull or damaged bits for precise drilling.
-
Clean the tool and air vents after each use to prevent dust and debris buildup.
-
Lubricate moving parts and air motor according to manufacturer guidelines.
-
Use clean, dry compressed air to avoid moisture buildup and clogging.
-
Check chuck and fasteners frequently; tighten to ensure secure bit holding.
-
Avoid excessive pressure to prevent motor strain and overheating.
-
Store in a dry, dust-free environment to extend tool lifespan.
