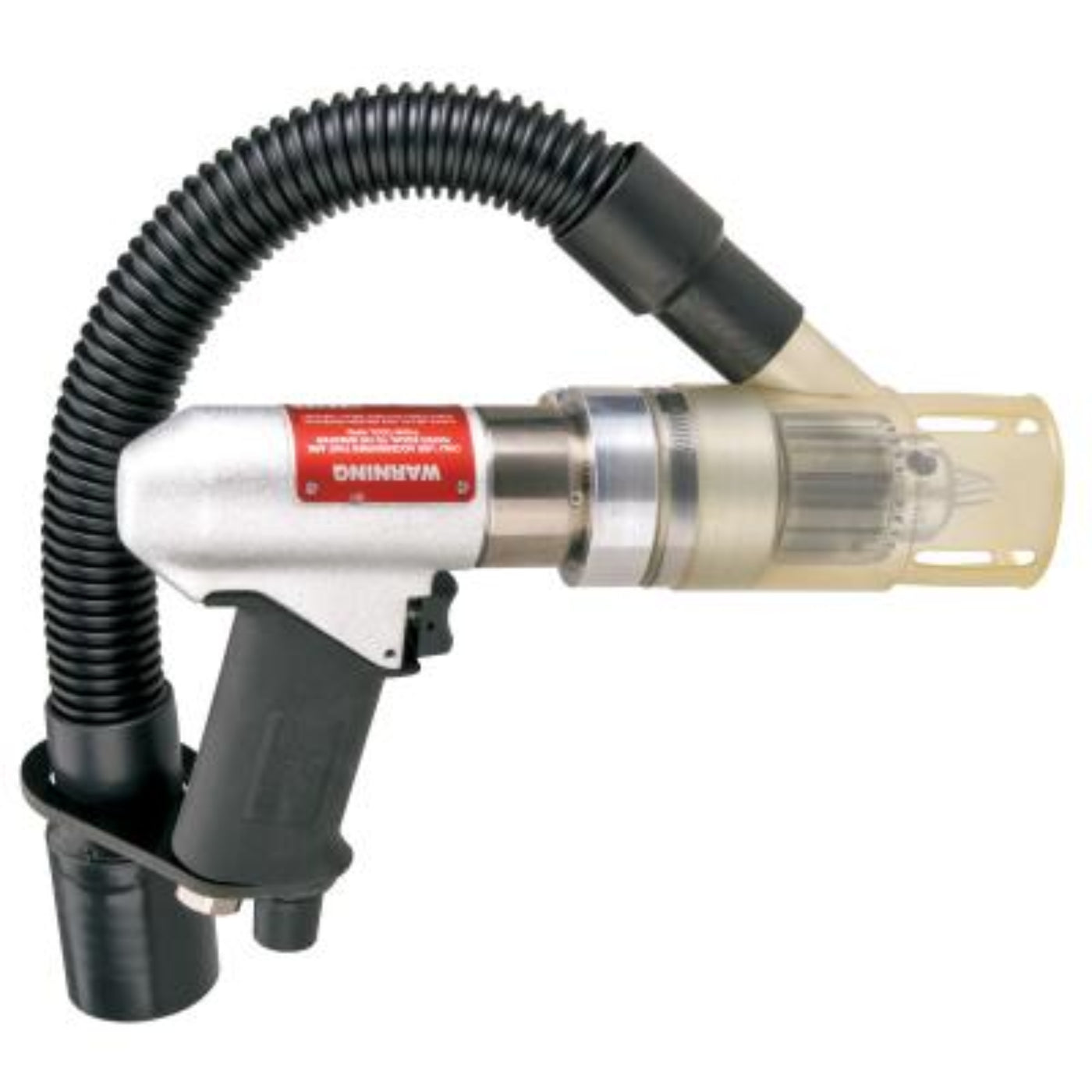

DYNABRADE 1/2" Drill For Central Vacuum Sytem - 53106
- .7 hp, 950 RPM, Pistol-Grip, Geared, Rear Exhaust, Jacobs Chuck.
- .7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
-
Pistol Grip design includes slow-speed start-up trigger.
-
High torque air motor; comfortable insulated tool grip.
-
Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
-
Includes drill chuck and key.
Specifications
| Air Consumption (SCFM) |
40.0 |
| Power (hp) |
0.7 |
| Max. RPM |
950 |
| Tool Spindle Thread |
1/2"-20 Male |
| Air Inlet Thread |
1/4" NPT |
| Chuck Size |
1/2" |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Vacuum |
| Height in. (mm) |
5.875 |
| Length in. (mm) |
12.25 |
| Weight lb. (kg) |
4.4 |
| Width in. (mm) |
10.0 |
| Pkg. Height in. (mm) |
6 |
| Pkg. Length in. (mm) |
15.5 |
| Pkg. Weight lb. (kg) |
5.2 |
| Pkg. Width in. (mm) |
10 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026531062 |
| EAC Certified |
Yes |
| Tool Style |
Pistol Grip |
What our Experts Think
-
High-Performance Motor: Equipped with a 0.7 hp (522 W) planetary-geared motor, delivering 950 RPM for efficient material removal.
-
Versatile Abrasive Compatibility: Designed for 1/2" diameter shank drill bits, suitable for various applications on metal, plastic, stone, and composites.
-
Integrated Dust Collection: Features a collapsible vacuum shroud that compresses around the drill bit to effectively capture chips and debris, ensuring a cleaner workspace.
-
Ergonomic Design: The pistol grip configuration and insulated tool grip provide comfort and reduce operator fatigue during extended use.
-
Electrostatic Discharge (ESD) Protection: Includes conductive hose and cuffs to shield the operator from electrostatic discharge, enhancing safety in sensitive environments.
-
Durable Construction: Built with a rear exhaust system to direct debris away from the work area, ensuring a cleaner workspace.
-
Quiet Operation: Operates at a sound level of 84 dB(A), ensuring a quieter working environment
Q&A
Q: What is the DYNABRADE 53106 drill used for?
A: A 1/2" drill designed for use with central vacuum systems to maintain clean, dust-free drilling.
Q: What are its key features?
A: Efficient dust extraction, ergonomic design, and compatibility with standard drill bits.
Q: Which industries commonly use the 53106?
A: Ideal for woodworking, metal fabrication, automotive, and maintenance applications.
Q: Why choose the 53106 drill?
A: Enhances operator safety and workspace cleanliness by reducing airborne dust during drilling.
Maintenance Tips
-
Clean the drill regularly to remove dust and debris.
-
Inspect drill bits for wear; replace as needed.
-
Lubricate moving parts according to manufacturer instructions.
-
Ensure the central vacuum system is functioning properly and free of blockages.
-
Store the drill in a dry, cool place to prevent rust and damage.
