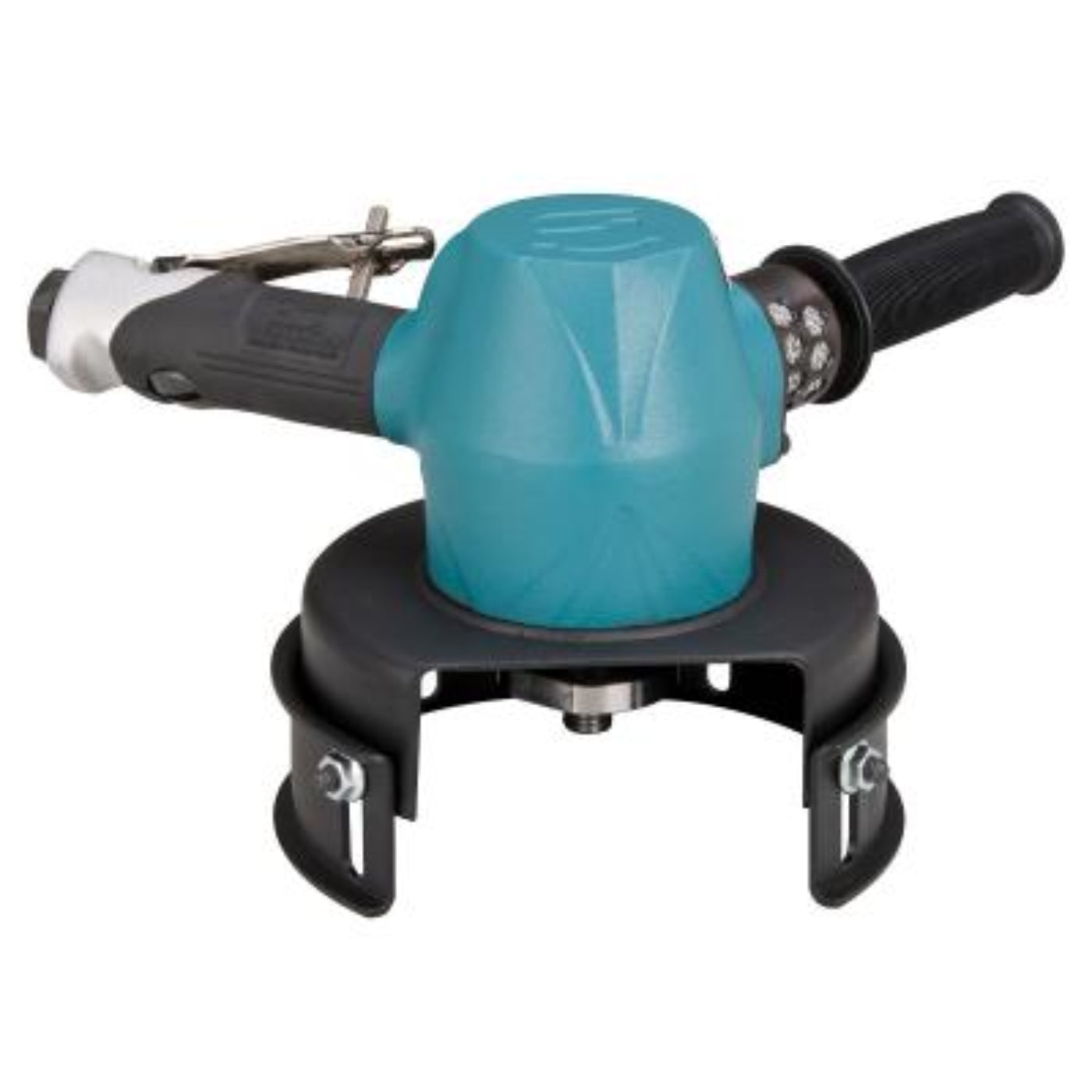

DYNABRADE 6" (152 mm) Dia. Type 11 Vertical Cup Wheel Grinder - 53243
- 3 hp, 6,000 RPM, Gearless, Rotational Exhaust, 5/8"-11 Male Spindle Thread.
- Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
-
Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
-
Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2" (13 mm) diameter is recommended.
-
Model accepts optional Type 11 Cup Wheels, 6" (152 mm) diameter. Wheel NOT included with tool. Covers more area in less time!
Specifications
| Air Consumption (SCFM) |
89.0 |
| Power (hp) |
3.0 |
| Max. RPM |
6,000 |
| Tool Spindle Thread |
5/8-11 Male |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Side |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
7.5 |
| Length in. (mm) |
9.5 |
| Weight lb. (kg) |
11.1 |
| Width in. (mm) |
10.0 |
| Pkg. Height in. (mm) |
8.5 |
| Pkg. Length in. (mm) |
14 |
| Pkg. Weight lb. (kg) |
12.1 |
| Pkg. Width in. (mm) |
10 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026532434 |
| EAC Certified |
Yes |
| Tool Style |
Vertical |
What our Experts Think
-
Robust Grinding Power: 6" (152 mm) Type 11 cup wheel delivers aggressive material removal.
-
Vertical Wheel Design: Ideal for edge grinding, weld prep, and surface blending on flat and curved surfaces.
-
Ergonomic Handling: Balanced design reduces user fatigue during extended use.
-
Heavy-Duty Construction: Built for industrial and fabrication environments demanding durability.
-
Versatile Applications: Perfect for metal fabrication, concrete, and masonry work.
-
Consistent Performance: Maintains steady speed and torque for precise, smooth finishes
Q&A
Q: What is the Dynabrade 53243 Vertical Cup Wheel Grinder used for?
A: Designed for heavy-duty grinding, blending, and surface preparation on metal and concrete.
Q: What type of grinder is this?
A: A Type 11 vertical cup wheel grinder for aggressive material removal.
Q: What is the wheel size?
A: Uses a 6-inch (152 mm) diameter cup wheel for fast, efficient grinding.
Q: What are the key benefits?
A: Offers powerful performance, improved control, and durability for tough applications.
Q: Which industries use this tool?
A: Widely used in metal fabrication, construction, aerospace, and maintenance.
Maintenance Tips
-
Inspect Wheel Before Use: Check for cracks or wear; replace damaged wheels immediately.
-
Tighten Wheel Guard and Fasteners: Ensure all parts are secure for safe operation.
-
Lubricate Gear Housing: Follow manufacturer’s instructions for smooth gear function.
-
Clean Tool After Use: Remove dust and debris to prevent internal wear.
-
Use Clean, Dry Air Supply: Prevent moisture to prolong tool life and maintain consistent performance.
