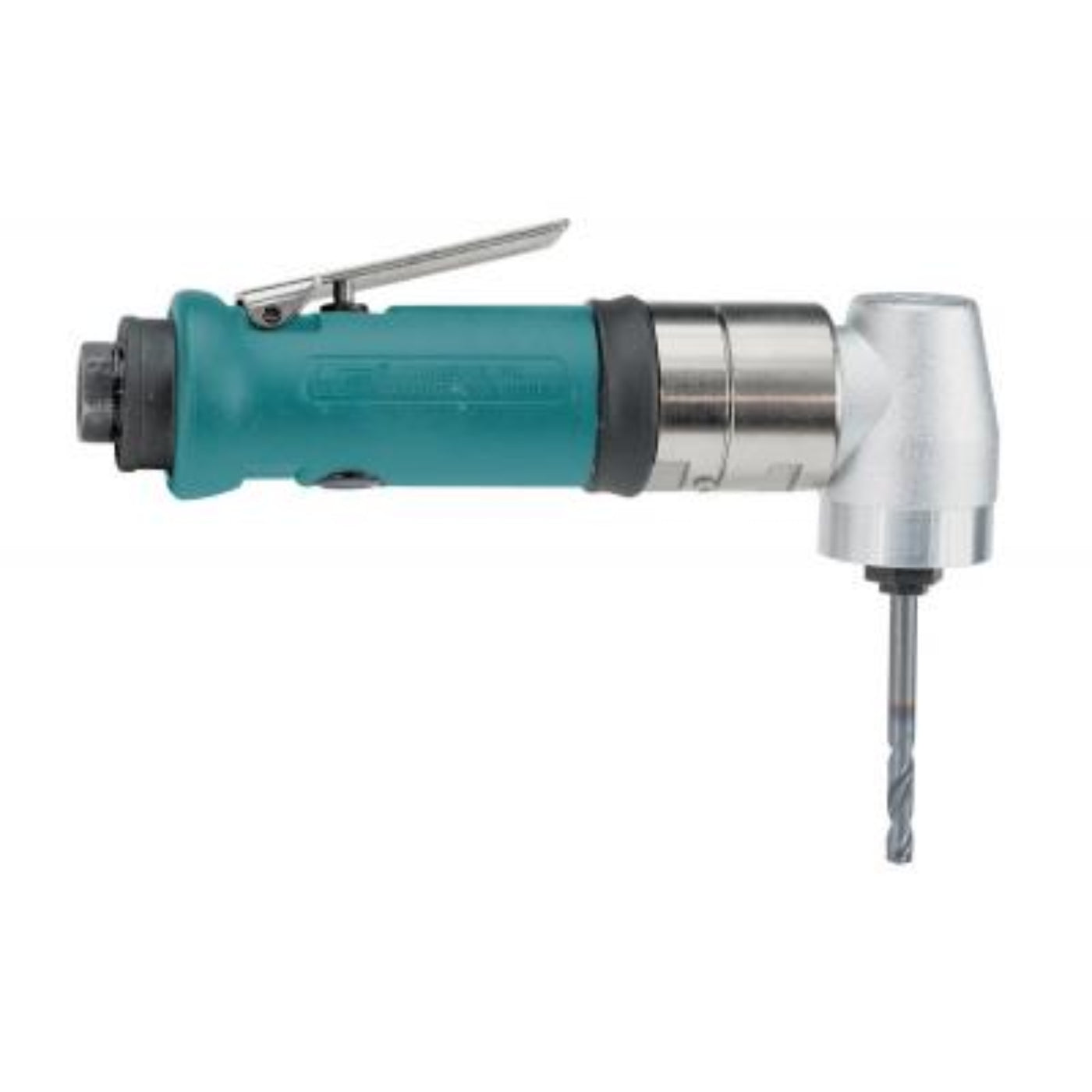

DYNABRADE Drill - 53435
-
.4 hp, 3,200 RPM, Right Angle, Planetary-Geared, Rear Exhaust, 1/4"-28 Female Thread.
- Accepts 1/4"-28 threaded drill bits, sold separately.
-
Angle height of 2-1/4" (57).
-
Standard muffler; optional safety-lock lever available.
-
Tools include lightweight aluminum head
Specifications
| Air Consumption (SCFM) |
21.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Tool Spindle Thread |
1/4" - 28 Female |
| Air Inlet Thread |
1/4" NPT |
| Chuck Size |
1/4" |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
2.25 |
| Length in. (mm) |
7.0 |
| Weight lb. (kg) |
2.79 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.51 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026534353 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
High-Performance Motor: Equipped with a 0.4 hp (298 W) planetary-geared motor, delivering 3,200 RPM for efficient material removal.
-
Versatile Abrasive Compatibility: Designed for 1/4"-28 threaded drill bits, suitable for various applications on metal, plastic, stone, and composites.
-
Compact Design: Features a right-angle configuration with a height of 2-1/4" (57 mm) and an overall length of 7" (178 mm), providing maneuverability in tight spaces.
-
Ergonomic Features: The lightweight aluminum head and rear exhaust system enhance comfort and reduce operator fatigue during extended use.
-
Standard Safety Features: Includes a standard muffler; optional safety-lock lever available for added safety.
-
Durable Construction: Built with a rear exhaust system to direct debris away from the work area, ensuring a cleaner workspace.
-
Quiet Operation: Operates at a sound level of 77 dB(A), ensuring a quieter working environment.
Q&A
Q: What is the DYNABRADE 53435 drill used for?
A: A durable pneumatic drill designed for precision drilling in metal fabrication and industrial applications.
Q: What are its key features?
A: High torque, ergonomic grip, variable speed control, and compatibility with various drill bits.
Q: Which industries commonly use the 53435?
A: Ideal for aerospace, automotive, metalworking, and maintenance.
Q: Why choose the DYNABRADE 53435?
A: Offers reliable performance and control for demanding drilling tasks.
Maintenance Tips
-
Clean the drill after each use to remove dust and debris.
-
Inspect drill bits regularly; replace when dull or damaged.
-
Lubricate moving parts as per manufacturer guidelines.
-
Check power cords or connections for damage before use.
-
Store in a dry, cool place to prevent corrosion and extend tool life.
