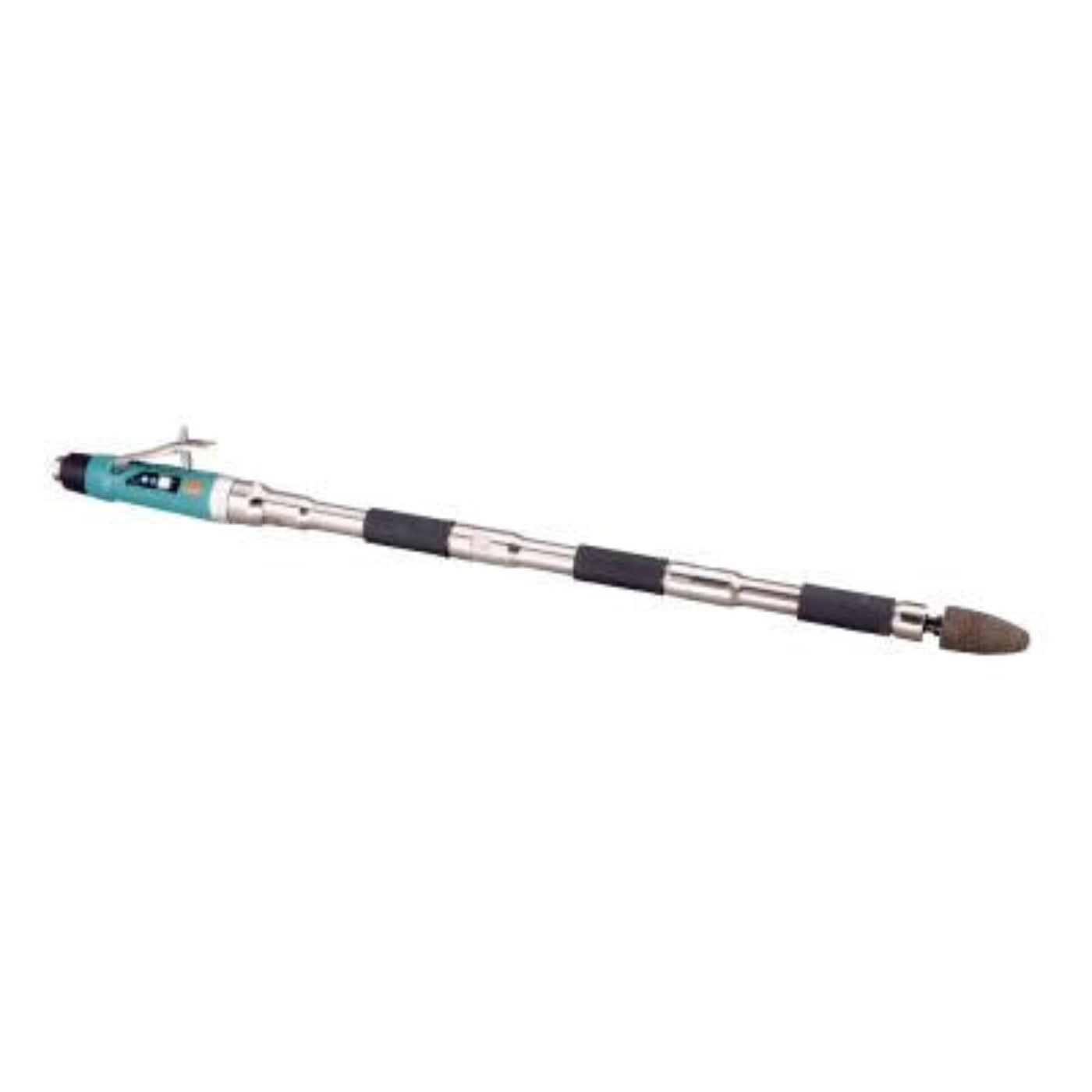

DYNABRADE Cone Or Plug Grinder (Triple Extension) - 53533
-
1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Includes 3/8"-24 Male Threaded Adapter (53610)
-
Extension Grinders allow operator to extend into work pieces and reach lengthy distances.
-
Extension length of 8-3/8? allows longer reach than competitive models! Extensions are constructed of steel for maximum durability.
-
Designed for minimal vibration. Extensions do not spin during tool use, so continuous tightening is not needed (as with some one-piece shaft-type extensions).
-
Tools can also be fitted with optional Buffing Pads, optional collets and inserts, plus optional Cone/Plug Wheels. (Note: Speed of tool must not exceed maximum operating speed of accessory.)
Specifications
| Air Consumption (SCFM) |
40.0 |
| Power (hp) |
1.0 |
| Max. RPM |
18,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
35.125 |
| Weight lb. (kg) |
8.9 |
| Width in. (mm) |
5.25 |
| Pkg. Height in. (mm) |
5.25 |
| Pkg. Length in. (mm) |
34 |
| Pkg. Weight lb. (kg) |
10.75 |
| Pkg. Width in. (mm) |
5.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026535336 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Triple Extension: Reaches deep, narrow areas for precise grinding in tight spots.
-
Cone & Plug Shape: Ideal for detailed surface preparation and finishing on curved or angled surfaces.
-
Durable Construction: Built to withstand heavy industrial use with long-lasting performance.
-
Ergonomic Design: Offers excellent control and comfort during extended operation.
-
Versatile Application: Perfect for automotive, aerospace, and metalworking tasks.
Q&A
Q: What is the DYNABRADE Cone or Plug Grinder (Triple Extension) - 53533?
A: A precision grinder designed for detailed grinding inside cones, plugs, and tight spaces.
Q: What are its main features?
A: Triple extension for extended reach, durable construction, and smooth operation.
Q: What applications is it best for?
A: Ideal for automotive, aerospace, metalworking, and pipe fitting tasks.
Q: Why choose this grinder?
A: Provides excellent control and access for precision grinding in confined areas.
Maintenance Tips
-
Inspect grinder and extensions regularly for wear, cracks, or loose parts.
-
Lubricate air motor with 2-3 drops of pneumatic tool oil before each use.
-
Clean grinding attachments and housing frequently to remove debris and dust.
-
Check and replace worn grinding cones or plugs for optimal grinding performance.
-
Use clean, dry compressed air (max 90 PSI) to avoid internal damage.
-
Store in a clean, dry environment when not in use to prolong tool life.
