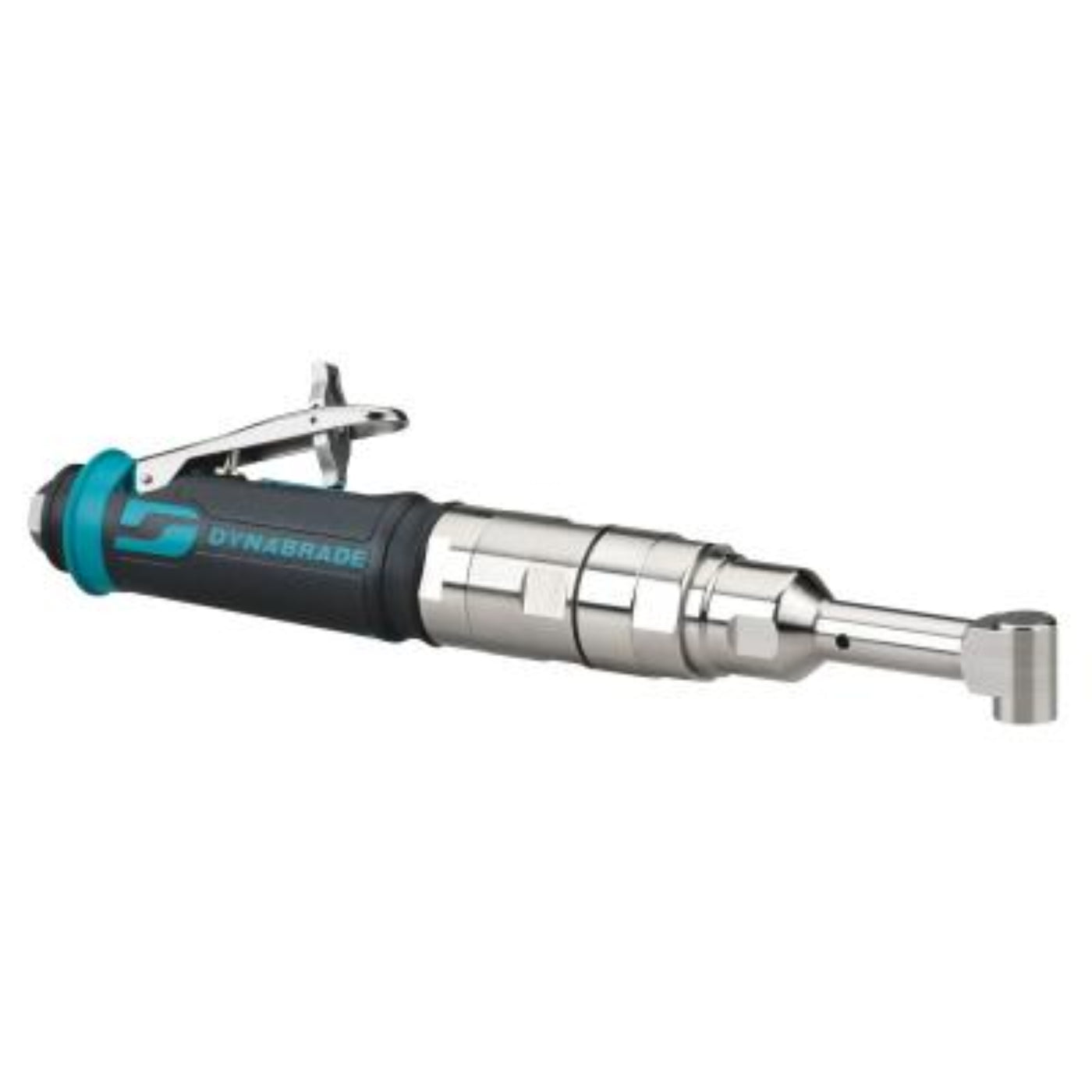

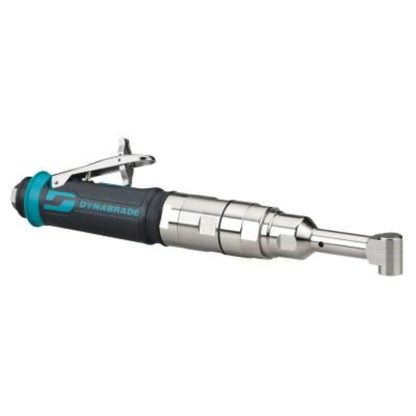

DYNABRADE Right Angle Rotatable Drill - 55580
- New Unique Feature – Head is adjustable into 12 positions; head can be rotated by pulling the head away from the body, rotating to desired position and releasing to lock back into position
-
Head Adjustability/Rotation does not require tools and can be done by the operator as needed Accepts 1/4"-28 or 9/32" – 40 threaded drill bits, sold separately Head rotates in both clockwise and counter clockwise directions
-
Compact head design is ideal for drilling and deburring in hard to access locations
-
“Featherable” trigger provide slow starting action and allows for variable speed as needed by the operator Composite body and tactile thermoplastic rubber tool grip provide comfortable control of the tool during use
-
Lightweight thermal-insulated housing reduces cold air transmission and vibration to the operator Governor-controlled motor maintains speed under load, (4) RPMs to choose from Compact standard rear muffler design and safety-lock lever included
Specifications
| Max. RPM |
900 |
| GL_Country Of Origin |
US |
| Vacuum Type |
Non-Vacuum |
| Weight lb. (kg) |
2.28 |
| Pkg. Height in. (mm) |
4.25 |
| Pkg. Length in. (mm) |
10.75 |
| Pkg. Weight lb. (kg) |
2.94 |
| Pkg. Width in. (mm) |
6.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026555808 |
| EAC Certified |
Yes |
What our Experts Think
-
Rotatable Head Design
The 55580 features a head that can rotate 360°, adjustable into 12 positions without tools, providing flexibility for accessing tight spaces.
-
Variable Speed Control
Equipped with a governor-controlled motor, it offers four speed settings: 900, 2,400, 3,200, and 5,000 RPM, allowing for precise control over drilling operations.
-
Ergonomic and Durable Build
Its composite body with a thermoplastic rubber grip ensures comfort and reduces vibration, while the lightweight, thermal-insulated housing minimizes cold air transmission.
-
Rear Exhaust System
Designed with a rear exhaust to direct debris away from the operator, maintaining a cleaner work environment.
-
Versatile Chuck Compatibility
Accepts 1/4"-28 or 9/32"-40 threaded drill bits (sold separately), making it adaptable for various applications.
Q&A
Q: What is the Dynabrade Right Angle Rotatable Drill 55580 used for?
A: A pneumatic drill designed for drilling in tight or angled spaces with adjustable head rotation.
Q: What are the key features of the 55580 drill?
A: Right-angle design, 360° rotatable head, variable speed control, and ergonomic grip for precise drilling.
Q: Which industries benefit from this tool?
A: Ideal for aerospace, automotive, metal fabrication, and maintenance applications.
Q: What drill sizes does it support?
A: Compatible with various drill bits, suited for versatile drilling tasks.
Q: Why choose the Dynabrade 55580?
A: Provides flexibility and control for drilling in confined or awkward spaces, enhancing productivity and reducing operator fatigue.
Maintenance Tips
-
Regularly inspect drill bits; replace worn or damaged bits for precise drilling.
-
Clean the tool and air vents after each use to prevent dust buildup.
-
Lubricate moving parts and air motor according to manufacturer guidelines.
-
Use clean, dry compressed air to avoid moisture and clogging.
-
Check chuck and fasteners frequently; tighten to ensure secure bit holding.
-
Avoid excessive pressure to prevent motor strain and overheating.
-
Store in a dry, dust-free environment to prolong tool life.
