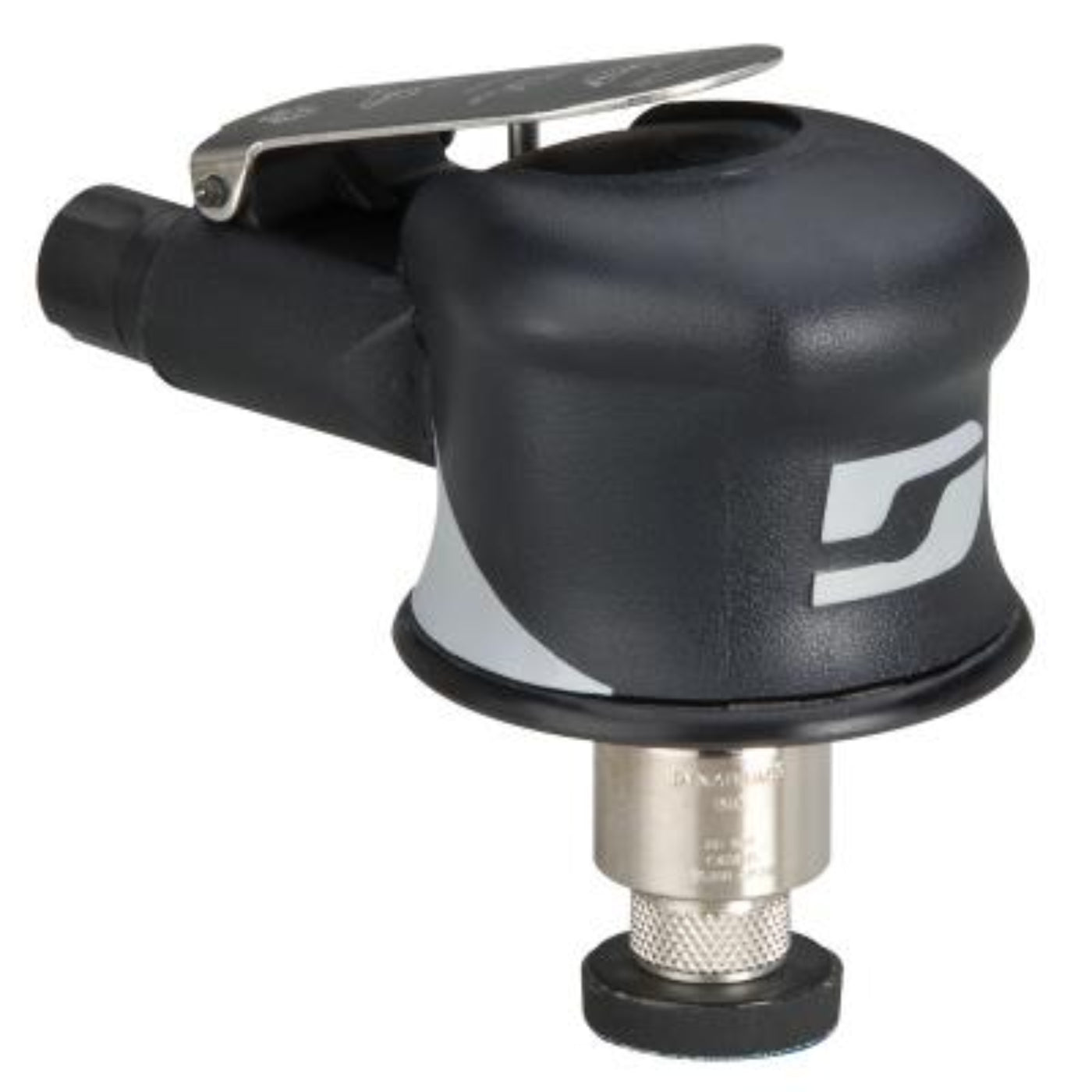

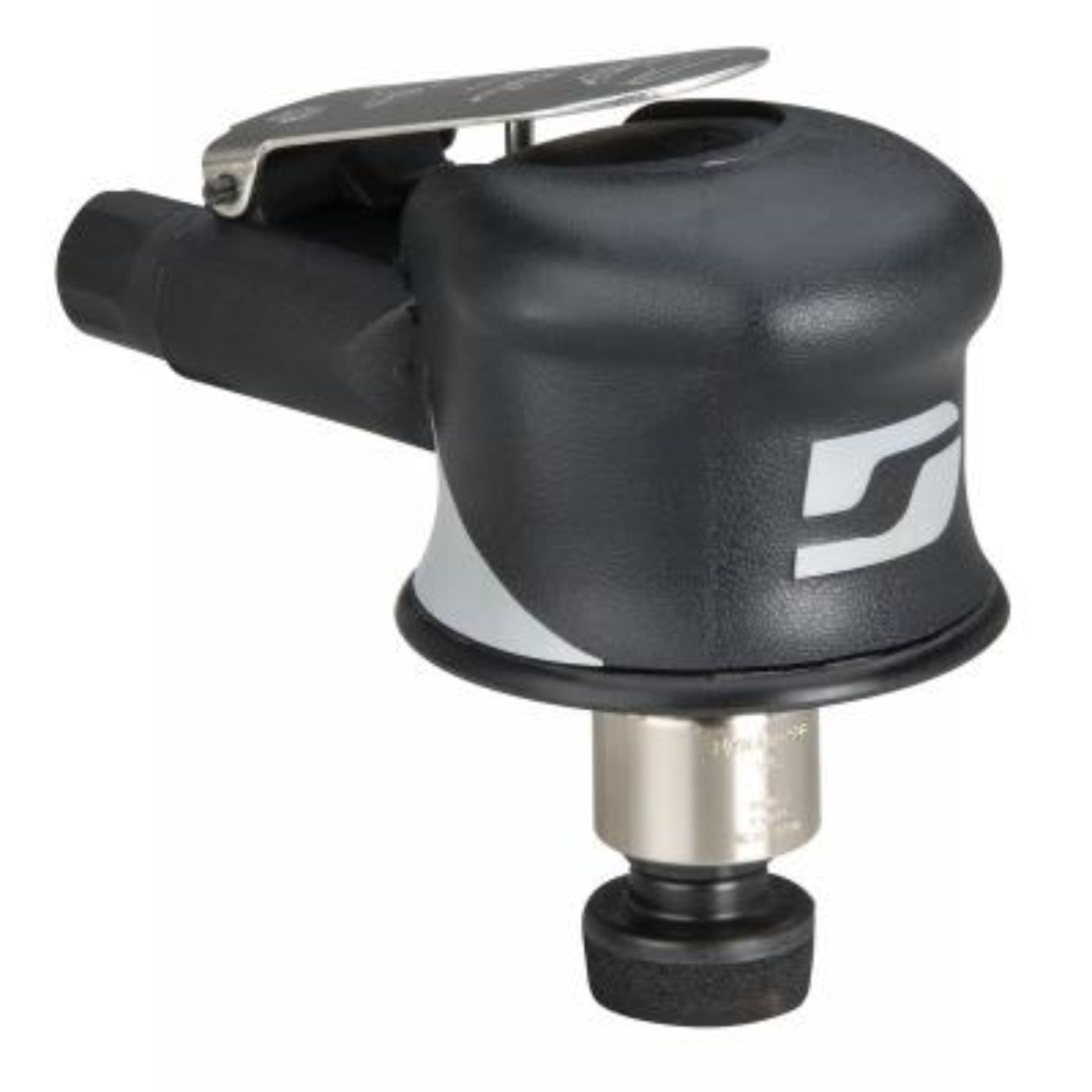

DYNABRADE Palm-Style Mini-Dynorbital Random Orbital Sander - 57504
-
.08 hp, 7,500 RPM, 3/16" (5 mm) Dia. Orbit, Rear Exhaust, for 1/4"-20 Female Pads.
- Random orbital action provides ultra-smooth finishes on wood and coated surfaces. Sanding head provides the random action. Also excellent on metal and composites. Ideal for finesse sanding. Weighs only 1.7 lbs., for great operator comfort and control.
-
Includes 54034 Sanding Head (accepts sanding pads with 1/4"-20 female thread).
-
Includes 1/4" dia. pad (54018).
SPECIFICATIONS
| Air Consumption (SCFM) |
6.0 |
| Power (hp) |
0.08 |
| Max. RPM |
7,500 |
| Pad Face |
Vinyl |
| Sanding Head Spindle Thread |
1/4-20 Male |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
3.625 |
| Length in. (mm) |
5.0 |
| Weight lb. (kg) |
1.7 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
2.4 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026575042 |
| EAC Certified |
Yes |
| Tool Style |
Palm |
What our Experts Think
-
Precision Sanding: Equipped with a 3/16" (5 mm) orbit, ideal for fine finishes on wood, metal, and composites.
-
Compact & Lightweight: Weighs only 1.7 lbs (0.77 kg), offering excellent control and reduced operator fatigue.
-
High-Speed Performance: Operates at 7,500 RPM, delivering efficient material removal for detailed work.
-
Ergonomic Design: Palm-style grip ensures comfort during extended use, enhancing maneuverability.
-
Versatile Compatibility: Includes 54034 sanding head, accepting 1/4"-20 female-threaded sanding pads.
-
Quiet Operation: Rear exhaust system and low noise level (74 dB(A)) contribute to a quieter work environment.
-
Durable Build: Constructed for longevity, suitable for both professional and DIY applications
Q&A
Q: What type of sander is the Dynabrade 57504?
A: It’s a palm-style mini random orbital sander designed for precision sanding.
Q: What is the sanding pad size?
A: Features a 3" diameter sanding pad for detailed work.
Q: What power source does it use?
A: The sander is pneumatic (air-powered), requiring an air compressor.
Q: What applications is the 57504 sander best suited for?
A: Ideal for sanding, finishing, and blending in tight or small areas.
Q: Does it offer variable speed control?
A: Yes, it includes variable speed for precise control over sanding.
Maintenance Tips
-
Clean Regularly: Use compressed air to remove dust from vents and moving parts after each use.
-
Inspect Pads & Bearings: Check sanding pads for wear and replace as needed; monitor bearings for smooth operation.
-
Lubricate Motor: Apply a few drops of pneumatic tool oil daily to keep the air motor running smoothly.
-
Use Proper Air Supply: Ensure clean, dry, and regulated air at recommended pressure (90 PSI max).
-
Check Fasteners: Periodically tighten screws and attachments to maintain stability.
