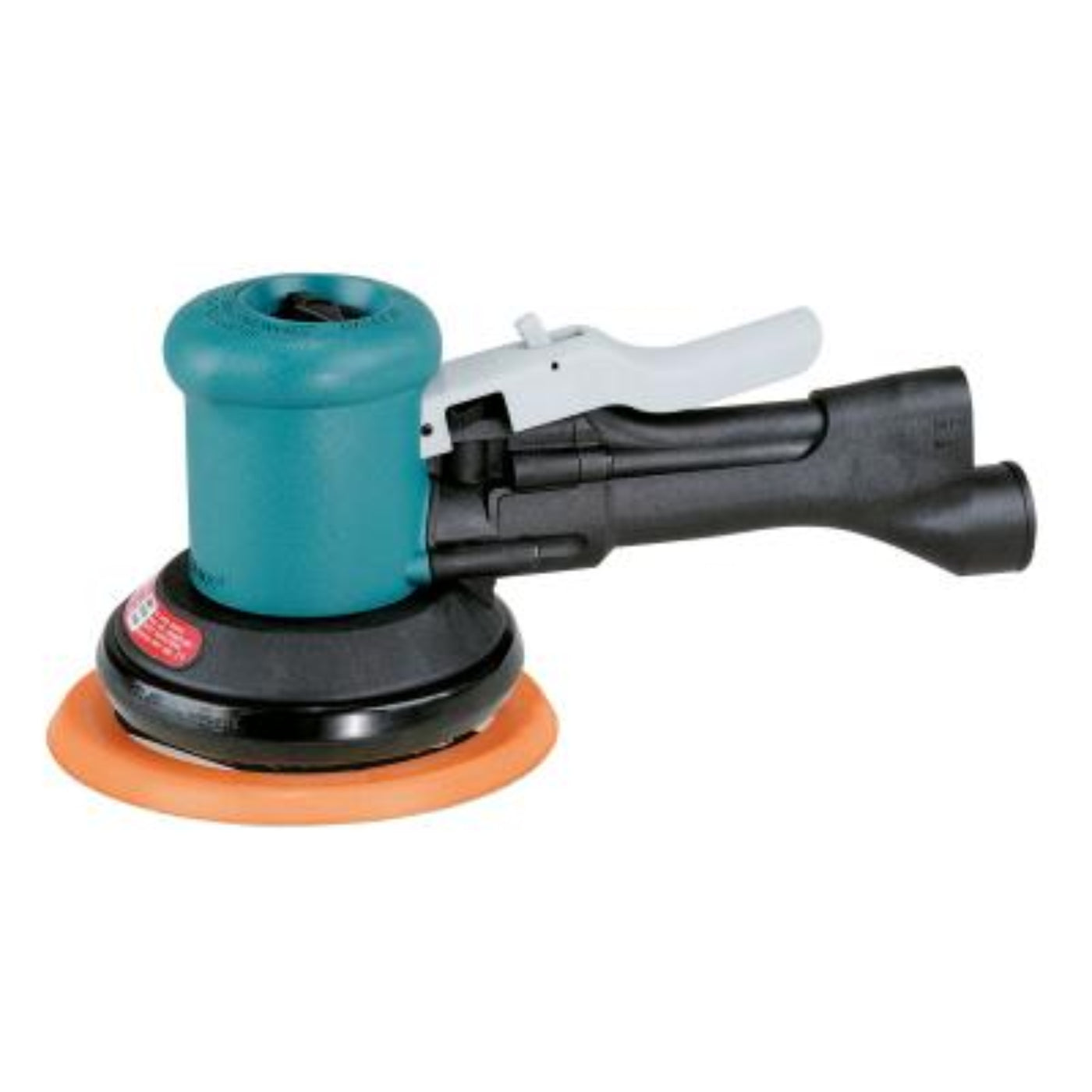

DYNABRADE 6" (152 mm) Dia. DynaLocke Dual-Action Sander, Self-Generated Vacuum - 58436
-
.45 hp, 12,000 RPM, 3/16" (5 mm) Dia. Orbit/Rotary, Rear Exhaust.
- Self-Generated Vacuum models are ready for connection to optional portable dust collection system.
-
Tool has 1-1/4" outside diameter vacuum port, allowing increased air flow.
-
Designed to vacuum in random orbital mode only.
-
Includes low profile, premium urethane, hook-face sanding pad.
Specifications
| Air Consumption (SCFM) |
23.0 |
| Power (hp) |
0.45 |
| Max. RPM |
12,000 |
| Pad Face |
Hook-Face |
| Tool Spindle Thread |
5/16-24 Female |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Self Generated Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
5.125 |
| Length in. (mm) |
11.0625 |
| Weight lb. (kg) |
2.89 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
5.75 |
| Pkg. Length in. (mm) |
11.88 |
| Pkg. Weight lb. (kg) |
3.84 |
| Pkg. Width in. (mm) |
6.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026584365 |
| EAC Certified |
Yes |
| Tool Style |
Two-Hand |
What our Experts Think
-
Dual-Action Versatility: Seamlessly switch between rotary and random orbital sanding modes with the recessed DynaLocke® switch, offering flexibility for various applications.
-
High-Speed Performance: Equipped with a 0.45 hp motor delivering 12,000 RPM, suitable for aggressive sanding tasks.
-
Efficient Dust Collection: Self-generated vacuum system with a 1-1/4" OD vacuum port enhances dust extraction capabilities.
-
Ergonomic Design: Rubber housing provides a comfortable grip, and the rear exhaust directs air away from the user for a cleaner work environment.
-
Versatile Pad Compatibility: Accepts both vinyl face and hook face sanding pads, ensuring smooth performance.
-
Ideal Applications: Perfect for automotive work, such as paint stripping, blending, and achieving swirl-free finishes.
Q&A
Q: What type of sander is the Dynabrade 58436?
A: It’s a 6" diameter dual-action (DA) sander with a self-generated vacuum system.
Q: What does the self-generated vacuum do?
A: Captures dust efficiently without needing an external vacuum, keeping work areas clean.
Q: What power source does it require?
A: Pneumatic (air-powered), requiring an air compressor.
Q: What applications is the 58436 ideal for?
A: Perfect for automotive, woodworking, and metal finishing with dust control.
Q: Does it have variable speed control?
A: Yes, it offers variable speed for precise sanding.
Maintenance Tips
-
Clean Vacuum System: Regularly remove dust and debris from vacuum ports and filters to maintain suction efficiency.
-
Inspect Sanding Pads: Replace worn or damaged pads promptly for optimal sanding.
-
Lubricate Air Motor: Apply pneumatic tool oil daily to ensure smooth motor operation.
-
Use Proper Air Supply: Operate with clean, dry, regulated air at 90 PSI max to prevent damage.
-
Check Hardware: Tighten screws and fittings regularly for safe and stable operation.
