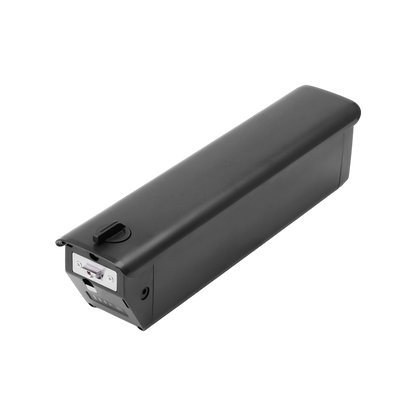

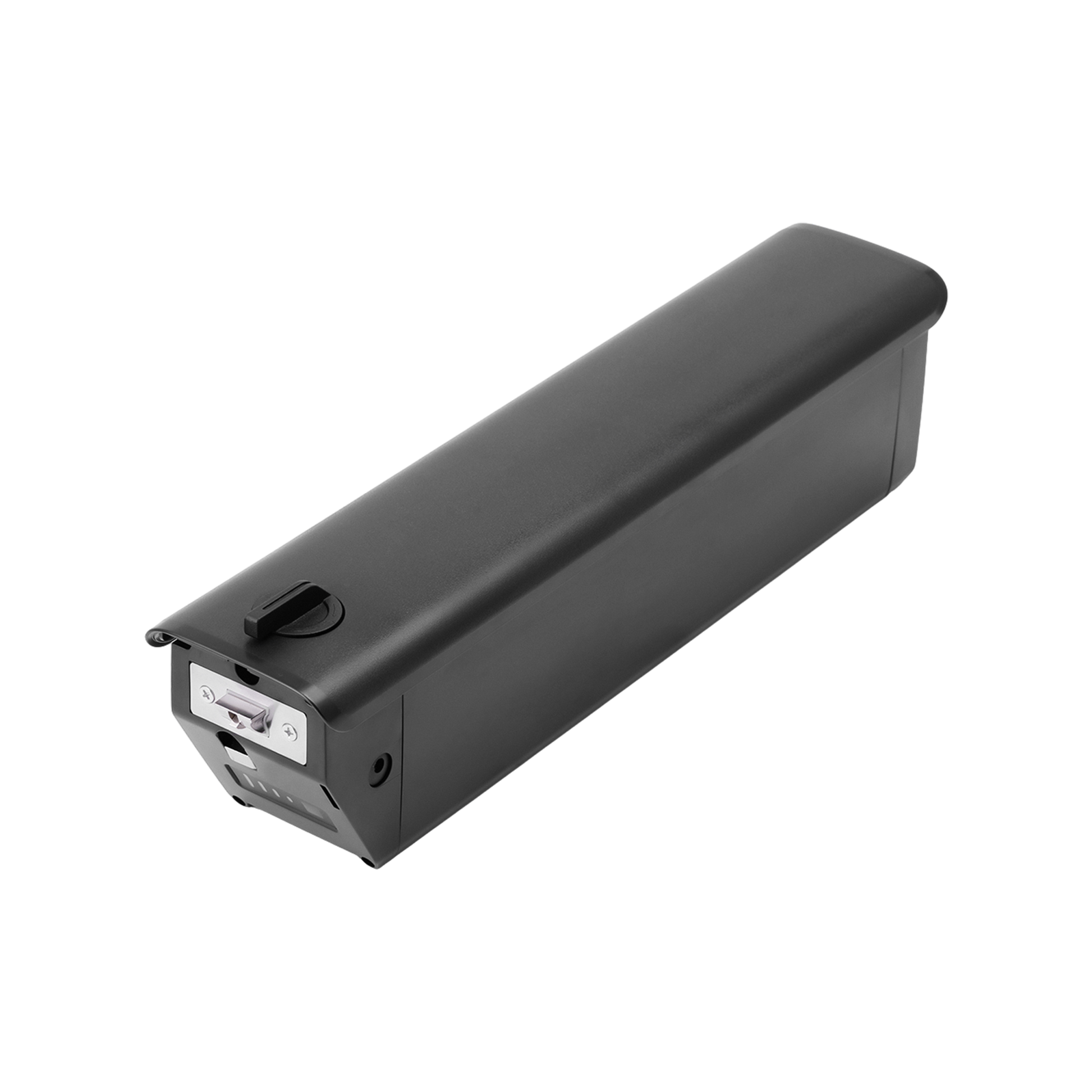

Eahora ACE / XC300 Battery Pack - YAN9005

Eahora ACE / XC300 Battery Pack - YAN9005

Features

PERFORMANCE & DESIGN

• Waterproof and solid plastic shell to protect the battery from scratch. The 5V USB port can be used to charge mobile phones and other devices outdoors.

HIGH QUALITY

• Up to 1000 times of charging. Before the battery being shipped out, the charge and discharge performance is tested in all aspects to ensure the battery is safe and stable.

SAFETY

• We use high-quality imported A-class batteries; the protection board can prevent overcharge, over-discharge, over-current, short circuit, and ensure long service life. For safety and quality, choose a reliable brand battery.

• If you don't need to use the battery for a long time, charge it up to about 75% capacity. At 75%, the battery will degrade less than at higher charge levels.
• Periodically check the battery's charge level once a month and charge it up to 75%.
• Store the battery indoors in a dry space, away from heat or flame sources, and out of direct sunlight.

CHARGING

• The battery can be charged while it is attached or detached from the e-bike. (You can remove the battery by inserting the key into the lock on the side face of the battery slide. To lock the battery, insert the key into the lock on the side face of the battery slide.)
• Use the original charger to charge the battery.
• Only charge the battery indoors in dry spaces which are not excessively hot or cold.
• Ensure there is no dirt or debris nearby when using the charger. Keep the charging port clean and dry. Wipe the dust around it periodically.
• When charging the battery, first connect the charger and the battery end, and then plug the charger into power.
• The light on the charger will be red when the battery is charging and will turn green when charging has finished.
• Avoid leaving the charger plugged in when the battery is fully charged.
• Do not charge the battery if you notice the battery is damaged, excessively hot, leaking, smelly, or discolored.
• Charging the battery should take approximately 4-6 hours if the battery is mostly empty.
• Battery charging times may increase with battery age and usage.

SAFETY

• Do NOT submerge the battery in a liquid of any kind.
• Do NOT use any metal to touch the charging port, that will cause a short-circuit.
• Turn off the battery when not in use and before removing it from the e-bike.
• Only grab the charger by the plug and not the cable when plugging and unplugging from the wall.
• If the battery has trouble charging, discontinue charging and contact Eahora immediately.

Specifications

Included

• 1 x Bike Battery

What our Experts Think

• High-Quality Cells: Utilizes imported A-class Samsung batteries, ensuring reliable performance and longevity.

• Long Lifespan: Capable of approximately 1,000 charge cycles, providing durability for extended use.

• Robust Protection: Equipped with a protection board to prevent overcharge, over-discharge, over-current, and short circuits, enhancing safety.

• Convenient Charging: Features a 5V USB port for charging mobile devices outdoors; includes a waterproof and durable plastic shell to protect the battery.

• Flexible Charging Options: Can be charged while attached to or detached from the e-bike; recommended to use the original charger and charge indoors in dry conditions.

• Maintenance Tips: For prolonged storage, maintain a 75% charge level and check monthly to preserve battery health.

Q&A

Q: What is the Eahora ACE/XC300 Battery Pack (YAN9005)?
A: The YAN9005 is a 48V lithium-ion battery pack designed for Eahora's ACE and XC300 electric bikes, providing reliable power for extended rides

Q: What are the available capacities for this battery pack?
A: The battery pack is available in 14Ah, 15Ah, and 17.5Ah capacities, allowing users to choose based on their range requirements.

Q: What is the expected lifespan of the battery?
A: The battery is rated for approximately 1,000 recharge cycles, ensuring long-term usability

Q: Does the battery come with a warranty?
A: Yes, Eahora provides a one-year warranty covering manufacturing defects.

Q: Is the battery pack waterproof?
A: Yes, it features a waterproof and solid plastic shell to protect against environmental elements.

Q: Can the battery charge other devices?
A: Yes, it includes a 5V USB port for charging mobile phones and other devices outdoors.

Q: How should the battery be maintained when not in use?
A: If unused for extended periods, charge the battery to about 75% capacity and check its charge level monthly, recharging as needed. Store it indoors in a dry space, away from heat or flame sources, and out of direct sunlight.

Q: What is the price range for the ACE/XC300 Battery Pack?
A: Prices start from $321.30, varying based on capacity and retailer.

Q: Where can I purchase the YAN9005 battery pack?
A: The battery pack is available through Eahora's official website and authorized dealers.

Maintenance Tips

• Charge Level: If you won't be using the battery for an extended period, charge it to approximately 75% capacity. This helps minimize degradation.
• Environment: Store the battery indoors in a dry, temperature-controlled space, away from heat sources, open flames, and direct sunlight.
• Periodic Maintenance:
• Monthly Checks: Once a month, verify the battery's charge level and recharge it to 75% if necessary.
• Charging:
• Procedure: The battery can be charged while attached to or detached from the e-bike. To remove the battery, insert the key into the lock on the side of the battery slide.
• Use the Original Charger: Always use the charger provided with your e-bike to ensure compatibility and safety.
• Charging Environment: Charge the battery indoors in a dry area with temperatures between 32°F (0°C) and 104°F (40°C).
• Port Care: Keep the charging port clean and dry, free from dirt and debris.
• Connection Order: When charging, first connect the charger to the battery, then plug the charger into the power source.
• Charging Indicators: The charger's light will turn red during charging and green when charging is complete.
• Avoid Overcharging: Do not leave the charger plugged in after the battery is fully charged.
• Safety Precautions: Do not charge the battery if it appears damaged, is excessively hot, leaking, emitting odors, or has discolored.
• Charging Duration: Charging from a low state may take approximately 4-6 hours, depending on the battery's capacity and charge level.
