ECO-WORTHY Home Hybrid Solar Power System: 10KW GROWATT 120V/240V Output+ 20.48kWh Lithium Battery (4*48v 100Ah)+ 4920W Solar Panel (12*410W) - L02M410-GRWTNK10KUSL4800-12 Price

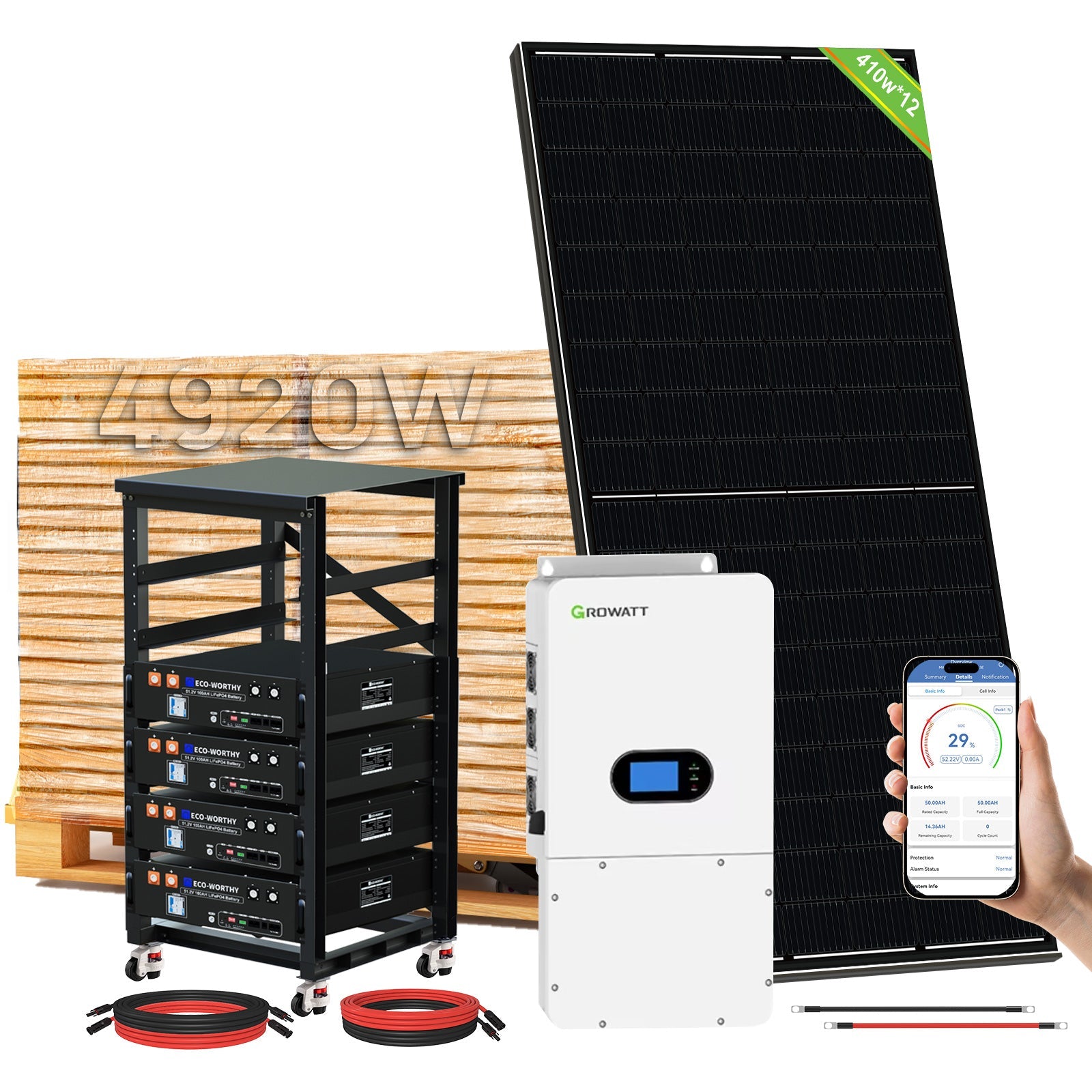

4920W PV&20.48kWh Battery
12xECO-WORTHY & 410W SOLAR PANEL-BLACK

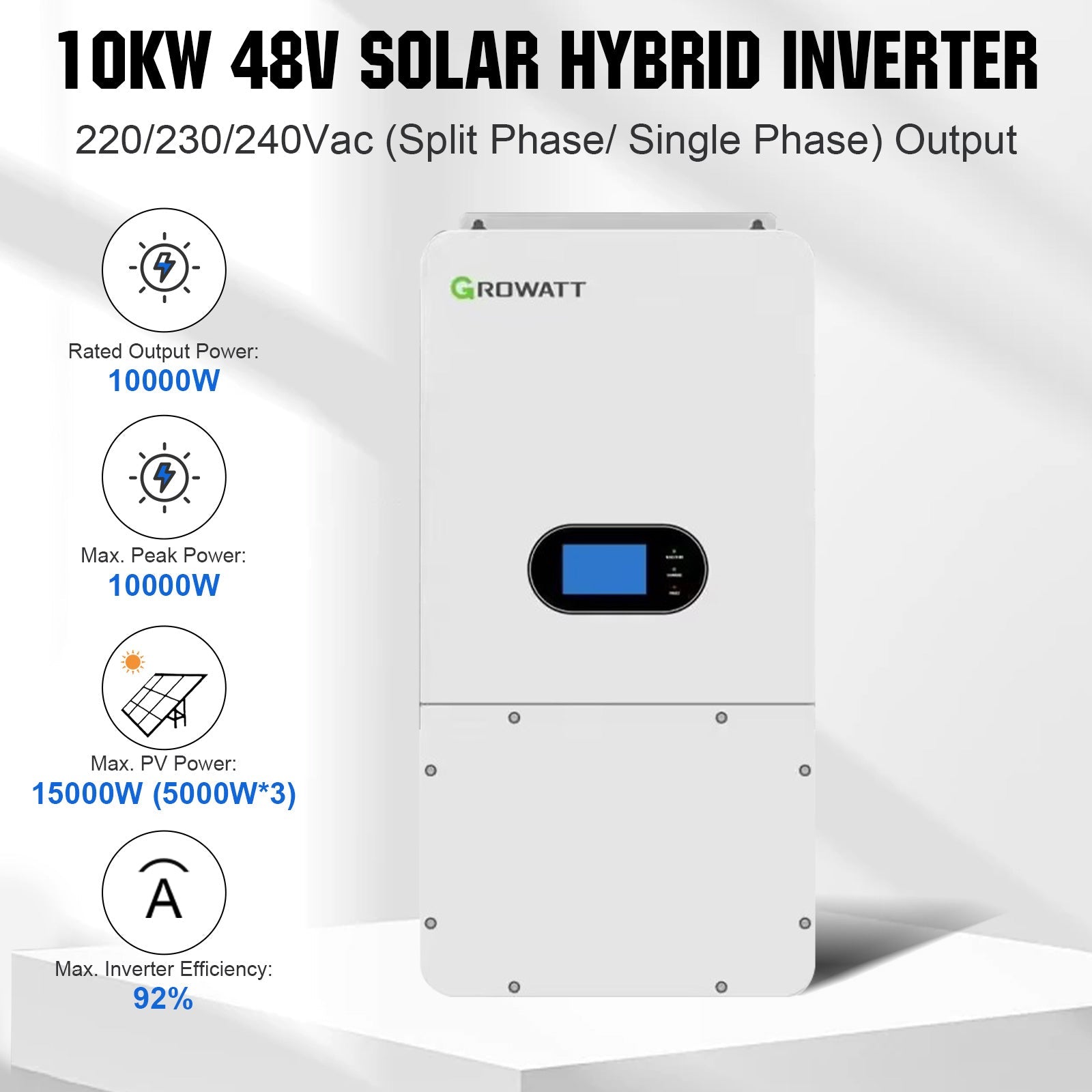

1xGROWATT 10000W ALL-IN-ONE HYBRID INVERTER
1xPV-INVERTER CABLE
2xPV EXTENSION CABLE

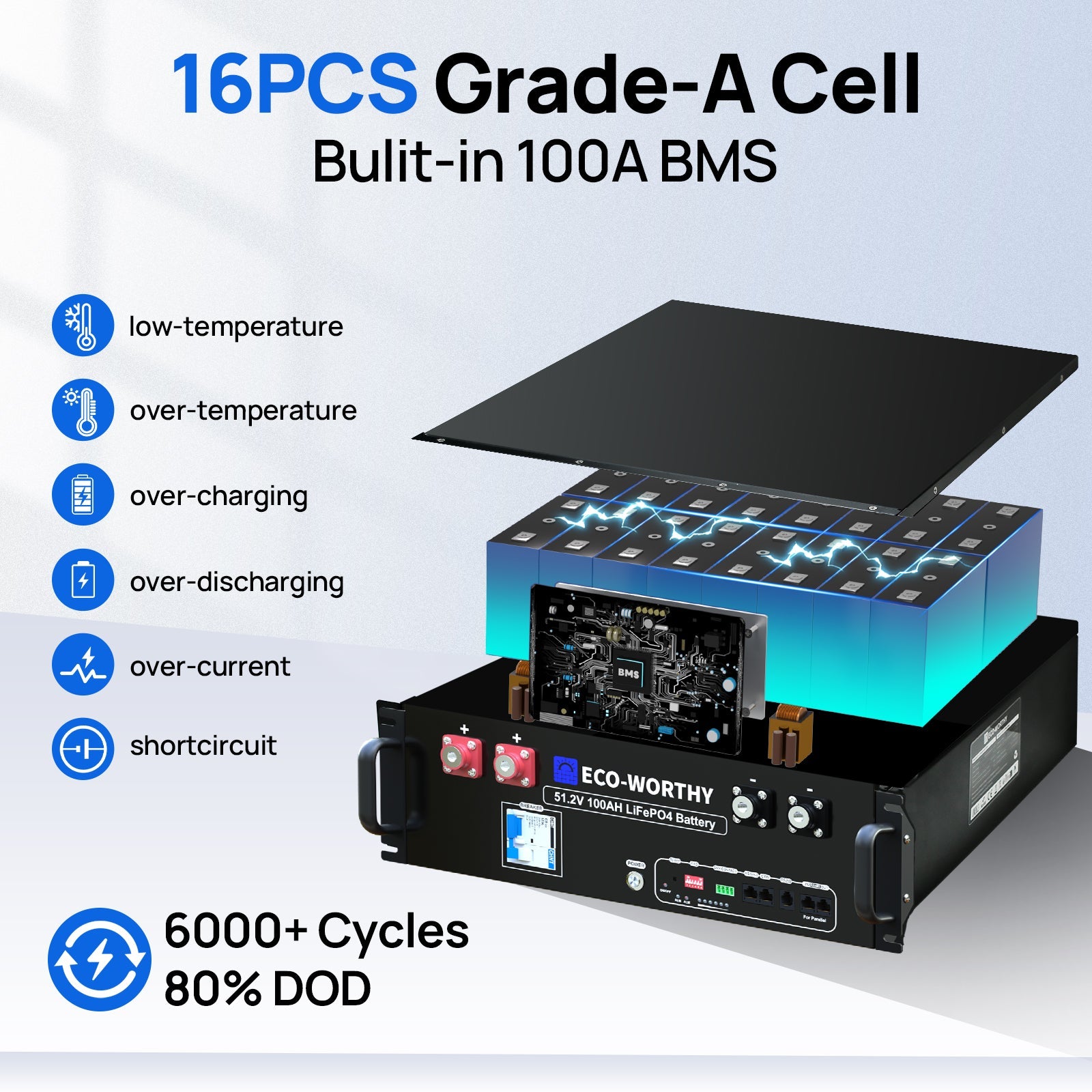

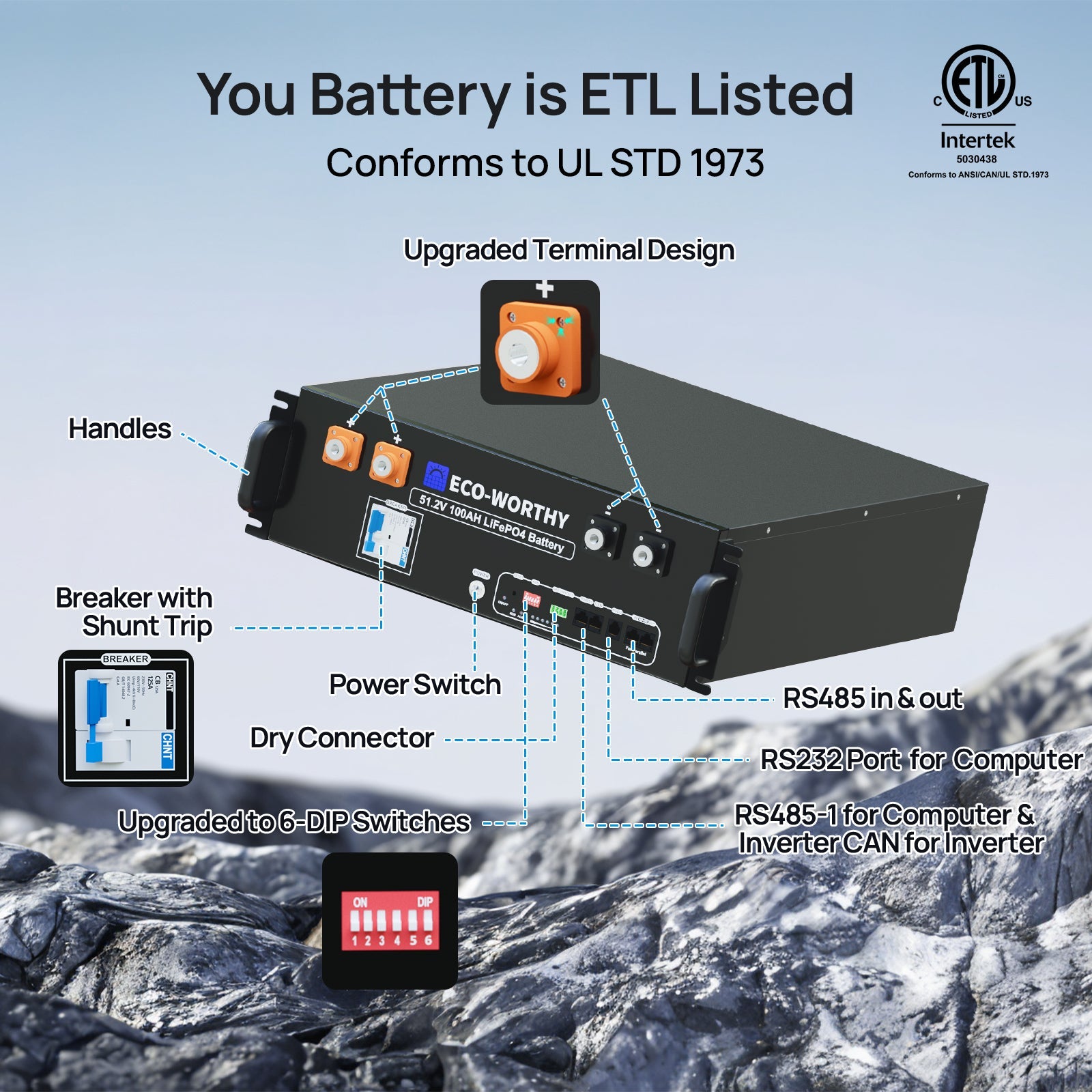

4xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY

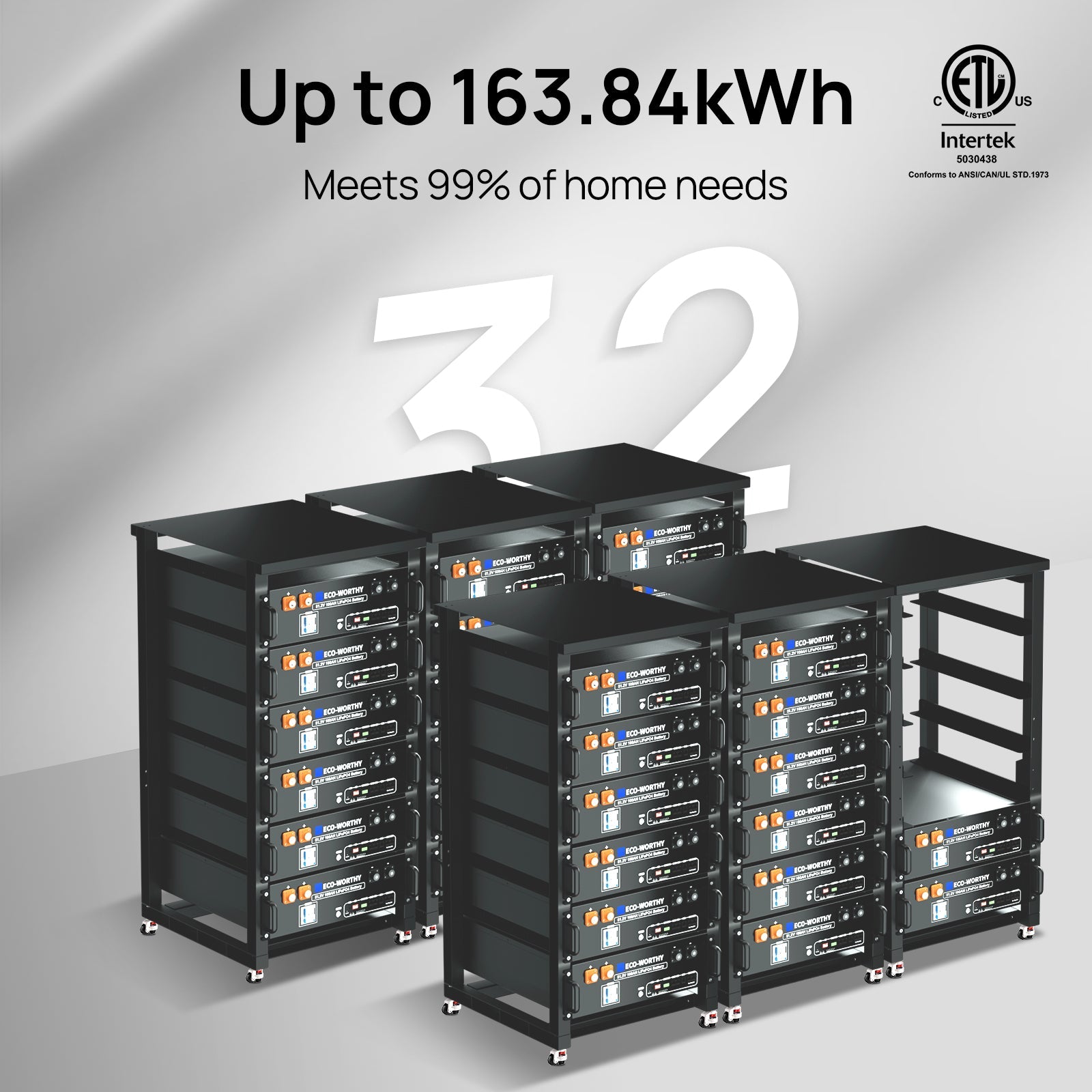

6-LAYER BATTERY RACK

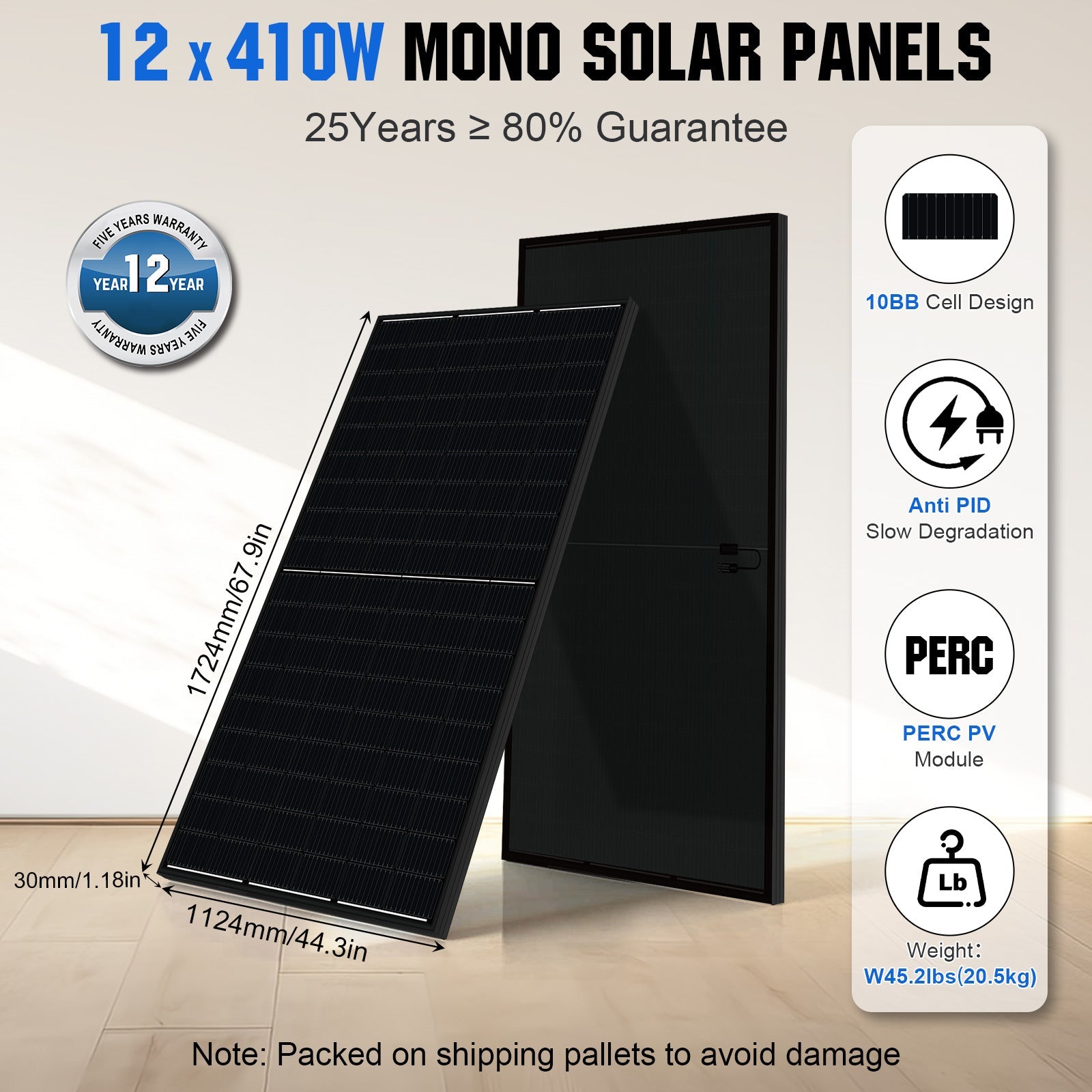

410W Monocrystalline Solar Panel
| Rated Power |
410W |
| Solar Cell Type |
Mono PERC |
| Maximum Power Voltage (Vmp) |
31.30V |
| Open Circuit Voltage (Voc) |
37.50V |
| Short Circuit Current (Isc) |
13.84A |
| Maximum Power Current (Imp) |
13.10A |
| Output Tolerance |
±3% |
| Temperature Coefficient of Isc |
0.05%/°C |
| Temperature Coefficient of Voc |
-0.29%/°C |
| Operating Temperature Range |
-40°C to +85°C |
| Frame Material |
Aluminum Alloy |
| Dimensions |
1724 Ă— 1134 Ă— 30 mm |
| Weight |
20.5 kg |
| PV Charging Current Range |
0–200A |
| MPPT Voltage Range |
150–450VDC |
| Max PV Input Power |
15,000W |
| Battery Voltage Range |
40–60VDC |
| Inverter Mode |
|
| Specification |
Details |
| Output Waveform |
Pure Sine Wave |
| Rated Output Power |
10,000W |
| Rated Output Voltage/Frequency |
120VAC / 240VAC (50Hz/60Hz) |
| Rated Battery Input Voltage |
48V |
| Peak Power |
20,000W |
| AC/Grid Charging Mode |
|
| Specification |
Details |
| Rated Input Voltage Range |
90–140VAC (50Hz/60Hz auto-detect) |
| Max Charge/Discharge Current |
200A |
| Battery Capacity |
100Ah |
| Energy Storage |
5120Wh |
| Nominal Voltage |
51.2V |
| Max Charging Current |
100A |
| Max Discharging Current |
100A |
| Max Charge Voltage |
58.4V |
| Discharge Cut-off Voltage |
10V |
| Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Cycle Life |
≥4000 cycles @ 50% DoD |
| Dimensions |
22.55 Ă— 17.13 Ă— 5.63 in |
| Weight |
97 lbs |
What Our Experts Think
-
A complete home solar solution ideal for off-grid or hybrid energy setups.
-
10KW Growatt inverter delivers 120V/240V split-phase power—perfect for both household and small business use.
-
Comes with 20.48kWh lithium battery storage (4Ă—48V 100Ah) for reliable night-time and backup power.
-
12Ă—410W high-efficiency panels ensure strong daily energy generation even in moderate sunlight.
-
Smart monitoring system provides real-time performance tracking and battery protection.
-
Great balance of power, efficiency, and long-term energy independence.
Q&A
Q: Can this system power an entire house?
A: Yes, the 10KW capacity supports most household appliances, HVAC, and lighting needs.
Q: Does it work during power outages?
A: Absolutely. The lithium battery bank stores enough energy for backup use.
Q: Is it compatible with the grid?
A: Yes, it supports hybrid operation—grid-tied, off-grid, or backup configurations.
Q: What is the estimated lifespan of the system?
A: Solar panels last up to 25 years, while the LiFePO4 batteries typically exceed 10 years.
Maintenance Tips
-
Clean solar panels every 1–2 months to remove dust and debris.
-
Check battery connections and inverter indicators monthly.
-
Ensure proper ventilation around the inverter and batteries.
-
Update Growatt inverter firmware regularly for optimal performance.
-
Inspect mounting hardware annually to ensure structural stability.
