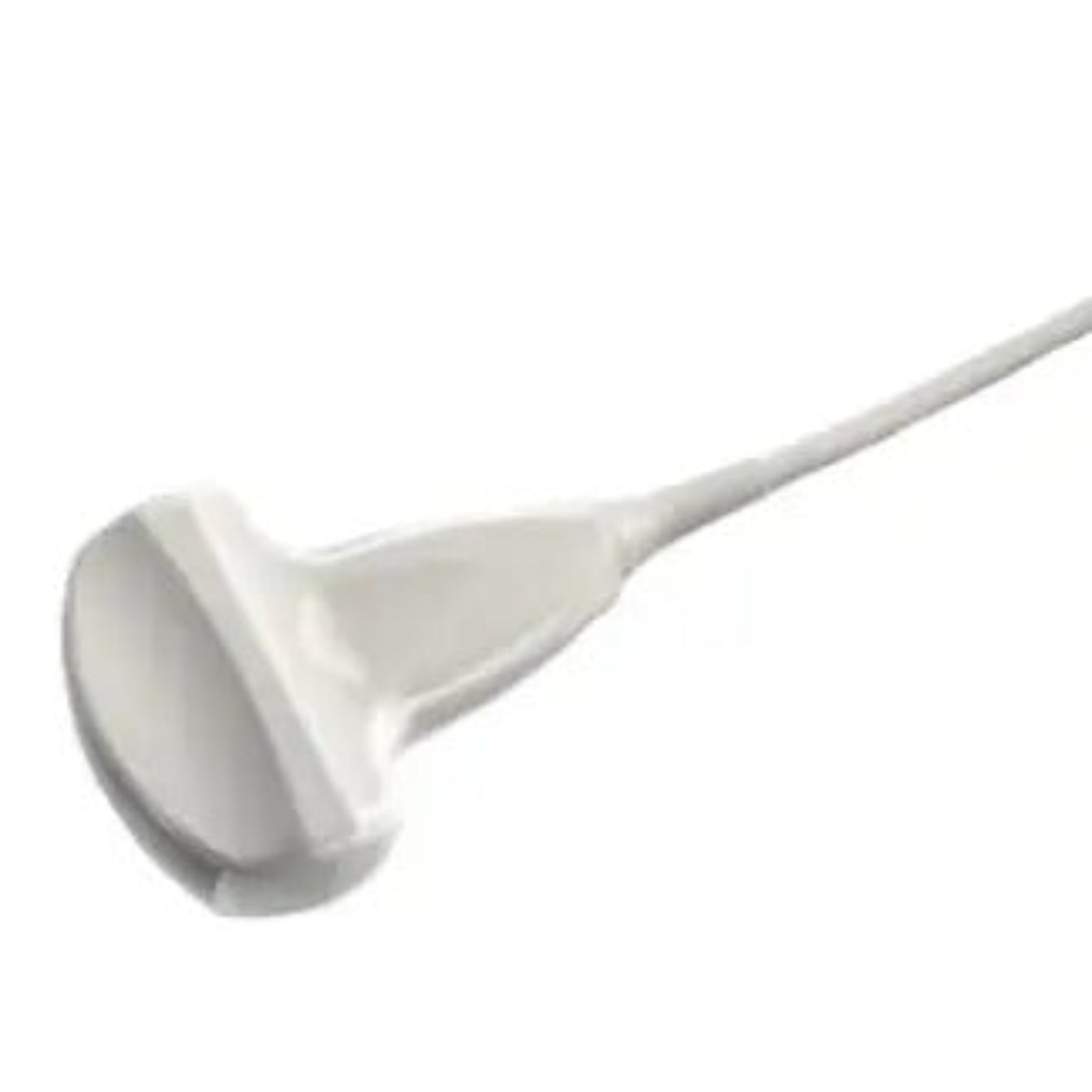

Edan C5-2b Convex Array Transducer - EDN-02-01-211004
The Edan C5-2b Convex Array Transducer (#02.01.211004) (2.5/3.5/4.0/H5.0/H6.0 MHz, 128 elements) is made for use with the U50 Diagnostic Ultrasound System
What our Experts Think
-
Frequency Range: Offers five selectable frequencies—2.5, 3.5, 4.0, 5.0, and 6.0 MHz—providing versatility for various imaging depths and resolutions.
-
Element Count: Equipped with 128 elements, ensuring high-quality image resolution and sensitivity.
-
Imaging Depth: Capable of imaging depths ranging from 19 mm to 324 mm, suitable for both superficial and deep tissue examinations.
-
Convex Radius: Features a 60 mm convex radius, enhancing the field of view and facilitating comprehensive imaging.
-
Field of View: Provides a 58° field of view, optimizing the visualization of target areas.
-
Compatibility: Designed for use with Edan U50 and U60 ultrasound systems, ensuring seamless integration and performance.
-
Ergonomic Design: Lightweight and easy to handle, reducing user fatigue during extended procedures.
-
Durability: Built to withstand rigorous clinical environments, ensuring longevity and reliability.
Q&A
Q: What is the Edan C5-2b?
A: A convex array ultrasound transducer designed for high-resolution abdominal and obstetric imaging.
Q: What is it used for?
A: Ideal for abdominal, obstetric, and general imaging requiring deep tissue penetration.
Q: What systems is it compatible with?
A: Works with select Edan ultrasound systems—verify compatibility before use.
Q: What are its key benefits?
A: Provides clear, accurate images with excellent depth and diagnostic reliability.
Q: Where is it commonly used?
A: Suitable for hospitals, clinics, and diagnostic imaging centers.
Maintenance Tips
-
Frequency Range: 2.5, 3.5, 4.0, H5.0, and H6.0 MHz, offering versatile imaging capabilities.
-
Element Count: 128 elements for high-resolution imaging.
-
Applications: Designed for OB/GYN, abdominal, and urological imaging.
-
Compatible Systems: Specifically designed for use with Edan U50 and U60 ultrasound systems.
-
Ergonomic Design: Lightweight and user-friendly for enhanced comfort during procedures.
