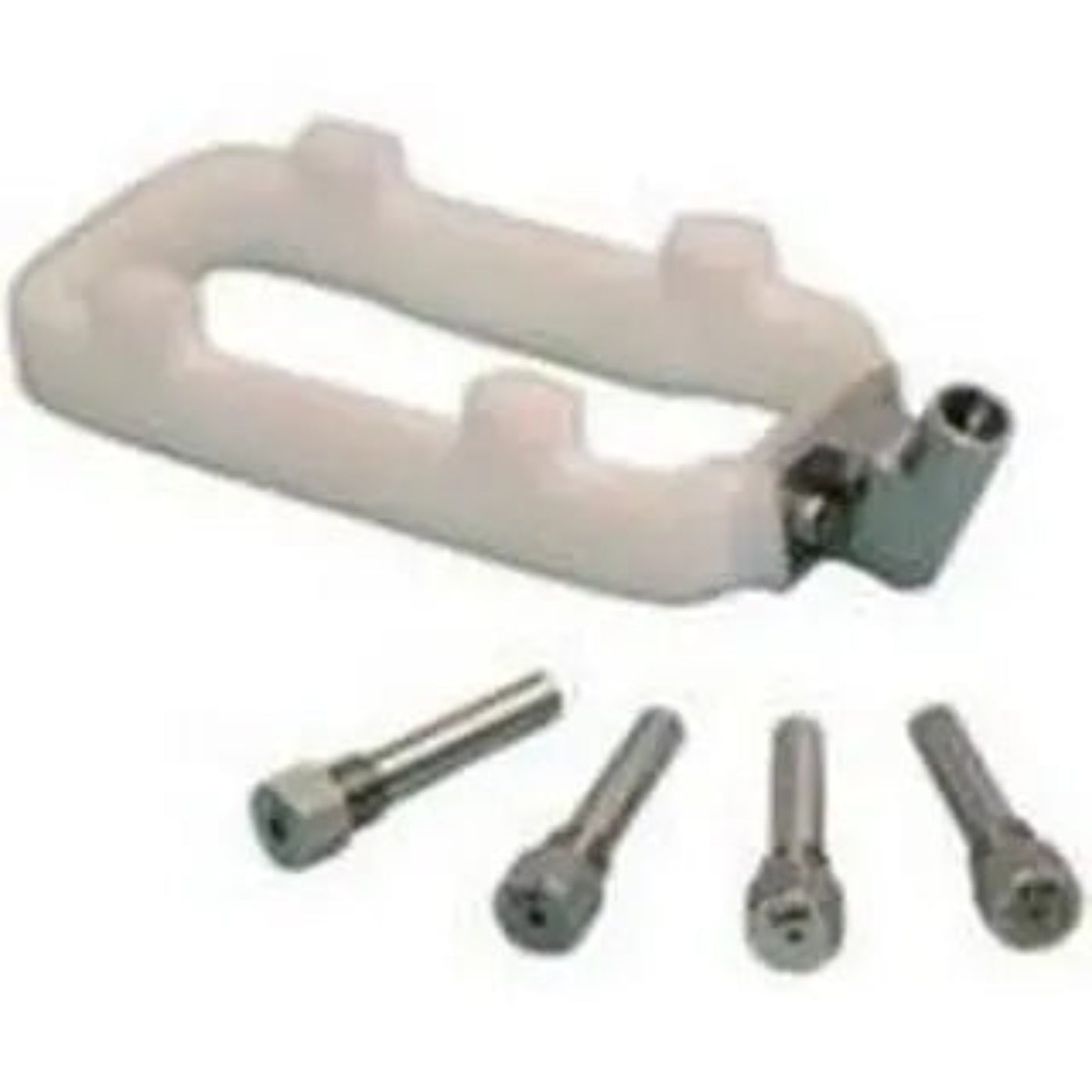

Edan Convex Array Transducer C343UA Needle Guide Bracket - EDN-02-01-102346-12
The Edan Convex Array Transducer C343UA Needle Guide Bracket (#02.01.102346-12 / BGK-CR40) is designed for use with the Convex Transducer C343UA and DUS 60 Digital Ultrasonic Diagnostic Imaging System (#DUS60).
The versatile needle guide bracket is also compatible with previous models, such as the Convex Array Transducer C343-1 (#12.01.102573) and Convex Array Transducer C341-1.
What our Experts Think
-
Enhanced Accuracy: The Edan C343UA Needle Guide Bracket ensures precise needle placement during ultrasound-guided interventions.
-
Perfect Compatibility: Custom-designed for the Edan C343UA Convex Array Transducer for a secure, stable fit.
-
Improved Visualization: Aligns the needle with the ultrasound beam for clear imaging and safer puncture control.
-
Durable & Reusable: Made from high-quality, sterilizable materials suitable for repeated clinical use.
-
Ideal for Procedures: Excellent tool for biopsies, aspirations, and other interventional applications requiring dependable guidance.
Q&A
Q: What is the Edan EDN-02-01-102346-12?
A: A needle guide bracket specifically designed for the Edan C343UA convex array ultrasound transducer.
Q: What is its purpose?
A: Ensures precise and stable needle placement during ultrasound-guided procedures.
Q: Is it compatible with other probes?
A: No, it is made to fit the Edan C343UA transducer for accurate alignment.
Q: Why use this bracket?
A: Enhances accuracy, safety, and efficiency during diagnostic or interventional imaging.
Q: Where is it typically used?
A: Ideal for hospitals, clinics, and imaging centers performing guided injections or biopsies.
Maintenance Tips
-
Clean after each use with a soft, lint-free cloth lightly dampened with an approved medical-grade disinfectant — avoid soaking or spraying directly onto the connectors.
-
Inspect connectors regularly for bent pins, corrosion, or residue buildup that may affect signal accuracy.
-
Avoid excessive bending or twisting of the cable during use and storage to prevent internal wire damage.
-
Disconnect gently from the monitor and sensor ports; never pull on the cable itself.
-
Store coiled loosely in a clean, dry area away from heat sources or direct sunlight to maintain cable flexibility.
-
Use only with compatible Edan equipment to ensure accurate cardiac output readings and prevent connector damage.
-
Label and track the cable if used across multiple devices to ensure proper pairing and avoid cross-contamination.
-
Perform periodic functionality checks as part of routine biomedical equipment maintenance schedules.
