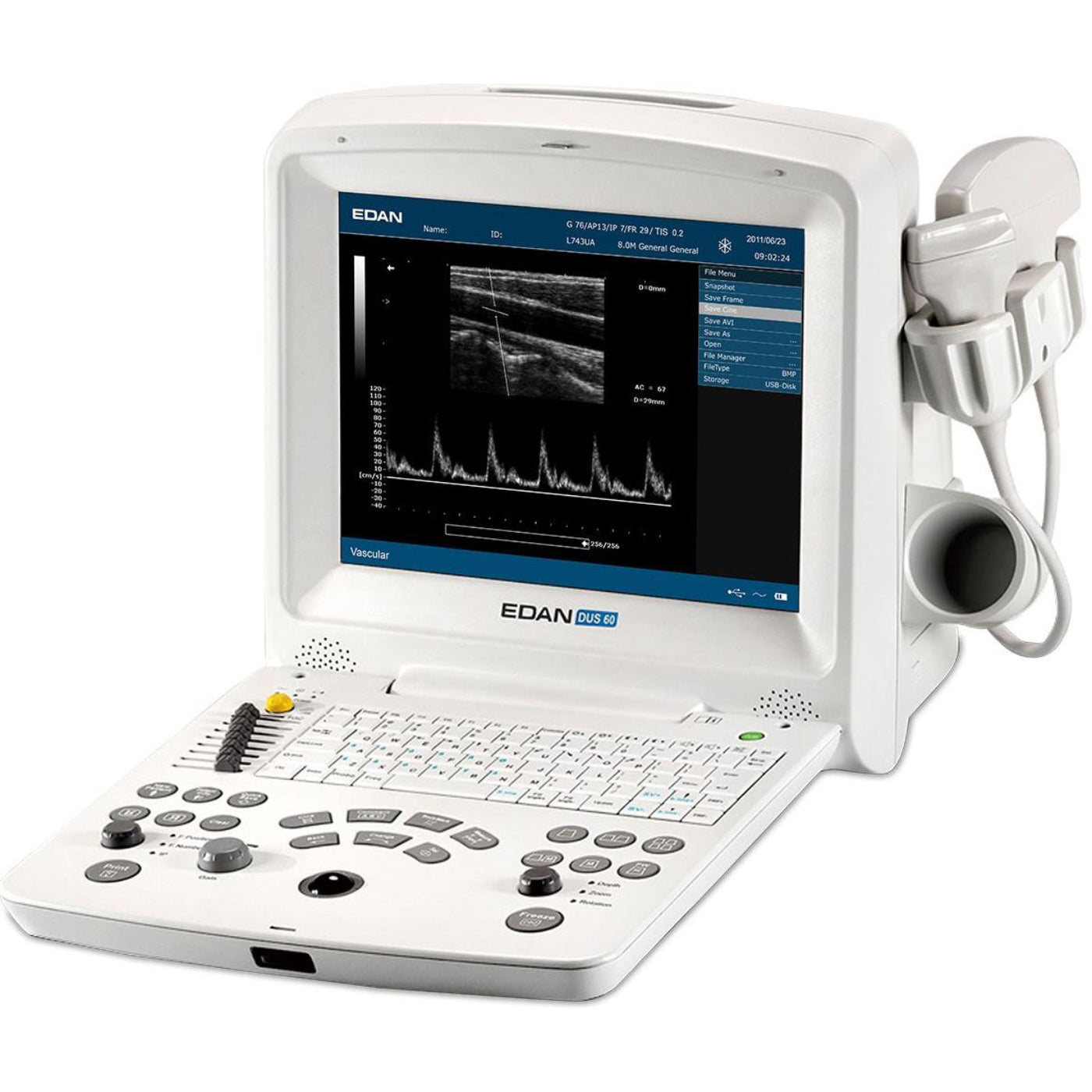

Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System - EDN-DUS60-12-01-210683

Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System - EDN-DUS60-12-01-210683

The Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System (#DUS60) comes standard with:

The DUS 60 System is intended for diagnostic ultrasound imaging analysis in gynecology rooms, obstetrics rooms, examination rooms, intensive care units, and emergency rooms. It is intended for use by or on the order of a physician or similarly qualified health care professional for ultrasound evaluation.

Common Applications: Fetus, Abdomen, Pediatrics, Small Organ, Neonatal head, Cardiology, Peripheral Vessel, Musculo-skeleton (Conventional and Superficial), Urology (including prostate), Transrecta, and Transvagina.

The DUS 60 Digital Ultrasonic Diagnostic Imaging System provides superb value and the best quality across the entire range of applications, with enhanced support of pulsed wave Doppler imaging to meet the higher diagnostic requirements.

Features

• Transducer of your choice.
• (2) Fuses (#21.21.064172).
• Transducer holder (#01.51.113140).
• Transducer cable holder (#01.52.113229).
• Ultrasound gel holder (#21.51.113131).
• Ultrasound Gel [(CE mark, 250 g) (#11.57.78007-11)].
• Power Cord [(USA standard) (#11.13.36015)].
• Ground Cable (#11.13.114214).
• Flash Disk [(Netac, U180, 2G, USB 2.0 protocol) (#11.18.052245-10)].
• User Manual.

 Features

• Powerful Technologies to Increase Your Diagnostic Confidence:
• Phase Inversion Harmonic Imaging technology provides best in-class image quality.
• PW Doppler supplies physiologic information for increased diagnostic value.
• Multiple transducer options increases versatility.
• Go Anywhere You Need to Go:
• Compact and lightweight design for excellent mobility.
• Built-in battery provides up to two hours of point-of-care imaging.
• Large capacity data storage (504 MB).
• Intuitive User-Friendly Design:
• One touch image optimization via smart IP key.
• Backlit, easy-to-use control panel.
• User-defined keys to customize your work-flow.
• Practical Tools Enhance Efficiency:
• Intelligent 8-segment TGC for precise adjustment.
• Seven pseudo-color options enhance image presentation.
• Multi-format data transfer via USB and DICOM 3.0 (optional).
• Applied Technologies: Tissue Specific Imaging (TSI), Tissue Harmonic Imaging (THI), Digital Beam-Forming (DBF), Dynamic Receiving Focusing (DRF), Real-time Dynamic Aperture (RDA), Dynamic Frequency Scanning (DFS), and Dynamic Apodization.
• Display Modes: B, B+B, 4B, B+M, M, and PW.
• Display: Date, Time, Probe Name, Probe Frequency, Frame Rate, Patient Name, Patient ID, Hospital Name, Depth, Exam Type, Measurement Values, Body Marks, Annotations, and Probe Position.
• Two standard transducer connectors.
• Maximum frequency up to 10 MHz.
• 12.1" TFT-LCD monitor.
• Folding keyboard designed with trackball is easy and convenient for various types of operation.
• Two USB ports support storage, transferring, and printing.
• 256-frame bidirectional cine loop memory.
• 8-segment TGC control.
• IP (Image Processing) Function.
• Measurement and calculation software packages.

Specifications

 Specifications

Transducers

Literature

 Literature

Edan DUS 60 Ultrasound Datasheet

Edan DUS 60 Diagnostic Ultrasound Manual

Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System Brochure

What our Experts Think

• Versatile Imaging Capabilities: The Edan DUS 60 supports a wide range of applications, including abdominal, obstetrics, gynecology, urology, small parts, and pediatric imaging.

• Advanced Imaging Technologies: Equipped with Tissue Harmonic Imaging (THI) and Tissue Specific Imaging (TSI), the DUS 60 delivers high-quality images for accurate diagnostics.

• Portable and User-Friendly Design: Its compact size, 12.1" LCD monitor, and backlit keyboard make it ideal for point-of-care settings.

• Efficient Workflow Features: The system includes one-touch image optimization, user-defined settings, and multi-format data transfer via USB and DICOM.

• Reliable Performance: With a built-in battery providing up to two hours of operation and a 504MB image storage capacity, the DUS 60 ensures dependable performance in various clinical environments.

Q&A

Q: What is the Edan DUS 60 used for?
A: It’s a digital ultrasonic diagnostic imaging system for high-quality ultrasound scanning in general, OB/GYN, and cardiology applications.

Q: What imaging features does it offer?
A: Offers real-time 2D imaging, color Doppler, PW Doppler, and advanced image optimization tools for precise diagnostics.

Q: Is it user-friendly?
A: Yes, it features an intuitive interface, customizable presets, and a compact design for easy operation and mobility.

Q: What are the clinical benefits?
A: Provides accurate imaging, enhances diagnostic confidence, and improves workflow efficiency in clinics and hospitals.

Q: Is it compatible with multiple probes?
A: Yes, it supports a variety of transducers for abdominal, cardiac, vascular, and OB/GYN imaging.

Maintenance Tips

• Clean the Console and Probe: Wipe the system, monitor, and probes with a soft, lint-free cloth and mild disinfectant. Avoid harsh chemicals.

• Probe Care: Inspect probes and cables for cracks or wear before each use. Never bend or twist cables excessively.

• Gel Management: Use only recommended ultrasound gel and wipe off excess after each examination.

• Monitor and Controls: Keep buttons, knobs, and touchscreen clean and free of debris to ensure accurate operation.

• Storage: Store the system and probes in a dry, dust-free area, away from direct sunlight and extreme temperatures.

• Periodic Calibration: Follow manufacturer guidelines for system calibration to maintain image accuracy.

• Power Management: Use surge protectors and avoid abrupt power cuts to protect internal electronics.

• Regular Inspection: Check all connections, wheels, and moving parts for smooth operation and safety.

• Handle with Care: Avoid dropping or applying excessive force to the console, probes, or cables.
