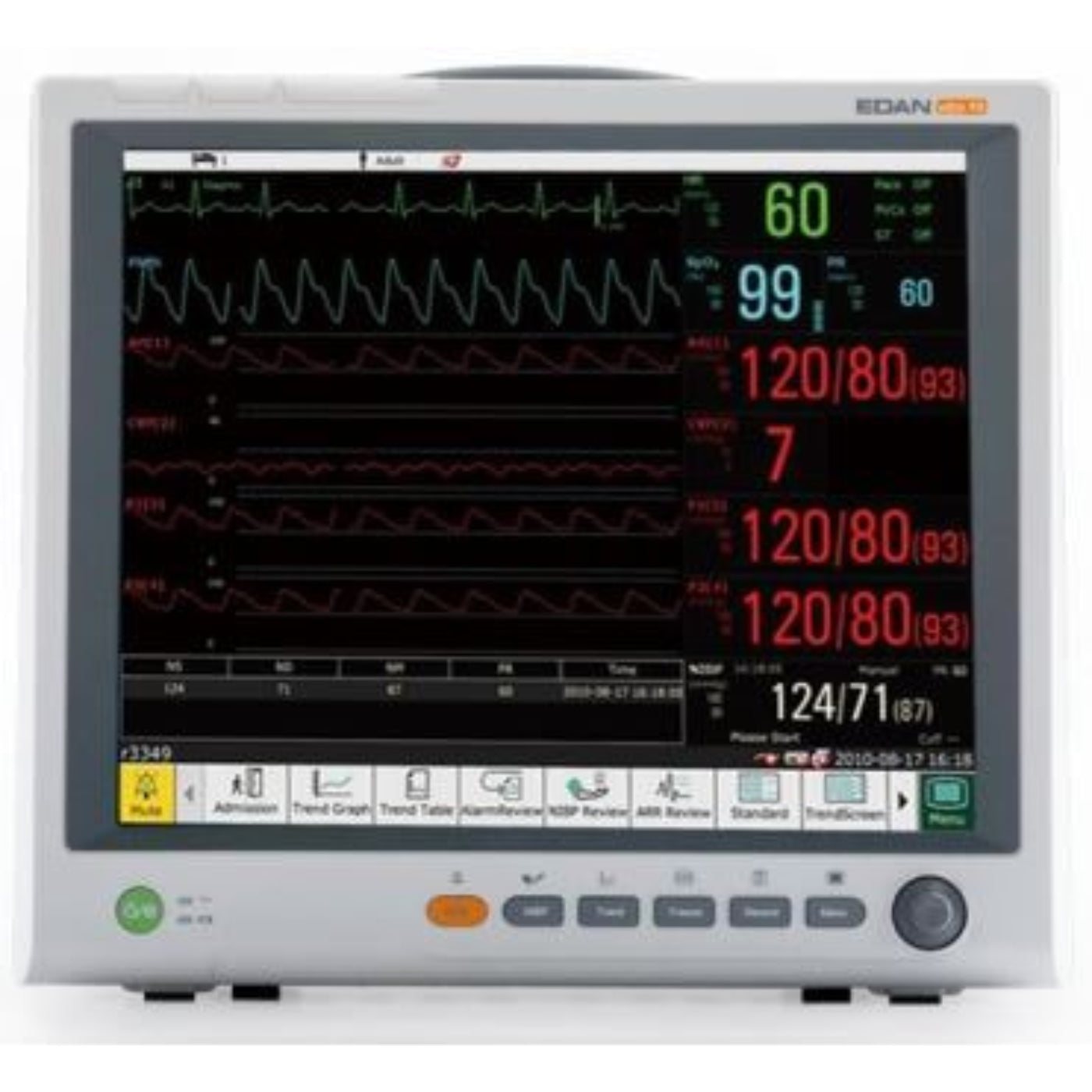

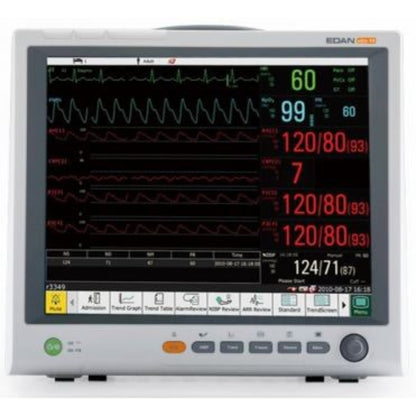

Edan Elite V8 Modular Patient Monitor - EDN-Elite-V8
Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.
In order to bring flexible top-quality healthcare solution to intensive care and anesthesia monitoring, Edan has released its latest Elite V8 Modular Patient Monitor, integrating world-leading technologies into one unit. Designed as a full modular monitor, Elite V8 provides comprehensive healthcare solutions especially for critical divisions. Using it together with iM20, you may build a seamless connection from ambulances to in-hospital cares.

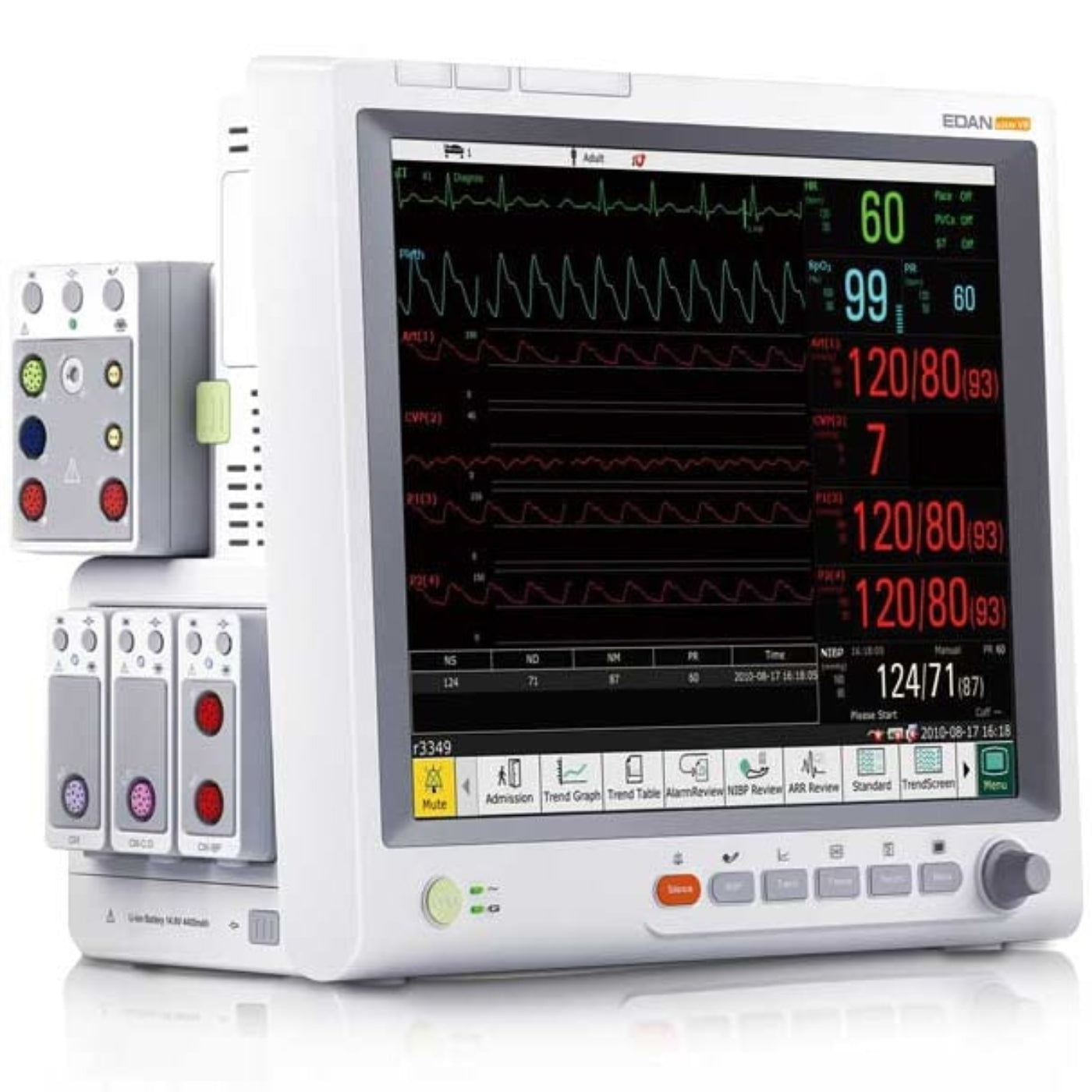

With its plug-and-play modules and an extensive modular rack, Elite V8 is able to monitor a wide range of parameters simultaneously, adapting from critical cares to anesthesia monitoring, with additional monitoring capabilities including ICG, RM, and BIS. Some other additional functions are also included in Elite V8 to assist medical treatments, such as 12-lead ECG diagnosis, hemodynamic calculation, drug dose calculation, IBP overlapping, and so on. Such functions provide quick references to help decide the adjustments of nursing and treatment plans.
The high resolution color TFT-LCD together with the up-to-date customizable shortcut menu design brings easy one-touch access to frequent used functions, allowing more attention to critical patients. Being HL7 compatible with built-in Wi-Fi capability, Elite V8 can connect to hospital network seamlessly and interact with the hospital information system. Various connection options are also employed for Elite V8 to work with other hospital facilities, such as defibrillators, nurse call system, central monitoring system, etc.*Some included accessories can be customized by size/configuration to match your needs. These options can be found below; please contact MFI Medical to personalize your Elite V8 standard accessories.
Features
The Edan Elite V8 Modular Patient Monitor (#Elite_V8) comes standard with:
-
#01.15.040187: Skin Temperature Probe*.
-
#01.21.064143: Rechargeable Lithium-ion Battery (14.8 V).
-
#01.54.455329-0.001: User manual.
-
#01.54.455332-0.001: Reference card.
-
#01.57.040205-13: Reusable NIBP Cuff - Adult (25 to 35 cm)*.
-
#01.57.471095-10: 3-Lead ECG Cable.
-
#01.59.036118-11: NIBP Tube (3 m) with connector.
-
#02.01.210119-11: Reusable SpO2 Sensor - Adult*.
-
#11.13.114214: Ground cable.
-
#11.13.36015: Power cable (AHA standard).
-
#11.57.471056: Snap Electrodes.
  Features
-
Standard Parameters: 3/5-Lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR.
- Arrhythmia, S-T Analysis, OxyCRG, Large font display.
- 720 seconds full-disclosure waveforms review.
- 150-hour graphic and tabular trends of all parameters.
- Bi-directional communications with central monitoring system.
- Waveform color adjustable.
- Customized alarm setting.
- 17" color TFT LCD 1280*1024 screen enables top-class quality display of waveforms and measurements.
- Touch screen.
- I/O:
- 4-USB.
- PAM interface.
- VGA.
- Analog output/nurse call.
- Defibrillation synchronization output.
- Ethernet interface.
Configurations
 Configurations
Must purchase XM module or iM20 Monitor to have any basic parameters. Optional acute and ambulatory configurations available with additional modules.
-
#Elite_V8: Standard (No Modules / Standard Parameters included).
-
#Elite_V8-83.60.260409: With XM1 Module (Standard Parameters only).
-
#Elite_V8-83.60.260252: With XM1-J Module (Standard Parameters plus 2-IBP).
-
#Elite_V8-83.60.260416: With XM2 Module (Standard Parameters plus 12 Lead ECG).
Accessories
Accessories
The following are compatible and commonly purchased with the Elite V8 Modular Patient Monitor:
-
#01.13.210001-13: Edan SpO2 Extension Cable (Edan Lemo to Nellcor DB9 connection).
- Temperature Probe:
-
#01.15.040225: 2-Pin Adult Skin Temperature Probe (10 K / 25 °C) (Recommended).
-
#01.15.040226: 2-Pin Adult Skin Temperature Probe (2.252 K / 25 °C).
-
#01.15.040227: 2-Pin Adult Intracavitary Temperature Probe (2.252 K / 25 °C).
-
#01.15.040228: 2-Pin Adult Intracavitary Temperature Probe (10 K / 25 °C).
- Reusable NIBP Cuff:
-
#Cuff.E7: Child (16 to 21.5 cm).
-
#Cuff.E5: Infant/Neonate (10 to 15 cm).
-
#Cuff.E9: Adult (27 to 35 cm) (Recommended).
-
#Cuff.E10: Large Adult (34 to 43 cm).
-
#01.57.471021-11: Connecting Tube for Neonatal Cuff.
-
#01.59.036118-11: NIBP Tube (3 m) with connector.
- Reusable Edan SpO2 Sensor:
-
#SH1.Lemo: Adult (Lemo) - 2.5 m.
-
#SH1.DB9: Adult (DB9) - 1 m (Recommended).
-
#SD5.DB9: Pediatric Silicone Soft-Tip (DB9) - 1 m.
-
#SH4.DB9: Adult Silicone Soft-Tip (DB9) - 1 m.
-
#SH3.DB9: Neonate Wrap (DB9) - 1 m.
- Optional Modules:
-
#03.48.348003: V-RM Module - Respironics Respiration Mechanics.
-
#22.08.208020: V-CO2 Module - Respironics Sidestream CO2.
-
#22.08.208021: V-CO2 Module - Respironics Mainstream CO2.
-
#22.08.208022: V-AG Module - Masimo Sidestream with O2.
-
#22.08.208023: V-AG Module - Masimo Mainstream.
-
#22.08.208029: V-C.O. Module - Cardiac Output.
-
#22.08.208031: V-IBP Module - 2-IBP (ICP support).
-
#22.08.208069: V-AG Module - Masimo Sidestream.
-
#83.60.260261: V-ICG Module - Impedance Cardiography.
-
#83.60.260524: V-AG Module - Drager Sidestream AG, Dual Channel, with AAID and O2.
-
#83.60.260525: V-AG Module - Drager Sidestream AG, Single Channel, with O2.
-
#83.60.260526: V-AG Module - Drager Sidestream AG, Dual Channel, with AAID.
-
#83.60.260527: V-AG Module - Drager Sidestream AG, Single Channel.
-
#83.60.260952: V-CO2 Module - Edan G2 Sidestream CO2.
-
#83.60.260953: V-BIS Module - Bispectral Index.
-
#3475-00: Respironics Disposable Sampling Line Kit with Nafion and Dehumidification Tubing (10/Pack).
-
#MT-207_plate_elite: Rolling Stand (with upper basket and plate).
Literature
 Literature
Edan Elite Series Patient Monitor Specifications Sheet
Edan Elite V8 Modular Patient Monitor User Manual
Edan Elite V8 Modular Patient Monitor Brochure
What our Experts Think
-
Advanced Modular Design: The Edan Elite V8 offers flexible configurations, allowing clinicians to tailor monitoring to specific patient needs — from basic vital signs to advanced cardiac, respiratory, and anesthetic parameters.
-
High-Definition Touchscreen: Its large, intuitive display ensures quick access to patient data and real-time waveform analysis, enhancing workflow efficiency in critical care environments.
-
Reliable Performance: Known for precise measurements and consistent accuracy across a wide range of conditions — ideal for ICU, OR, and emergency settings.
-
Connectivity Ready: Supports network integration and data management for seamless connection with hospital information systems.
-
User-Focused Operation: Easy interface, fast parameter module exchange, and durable build make it a dependable long-term monitoring solution for busy healthcare facilities.
Q&A
Q: What is the Edan Elite V8?
A: A modular patient monitor designed for comprehensive vital signs monitoring in clinical settings.
Q: What parameters does it measure?
A: Supports ECG, SpO2, NIBP, temperature, respiration, and optional COâ‚‚ and IBP modules.
Q: Is it customizable?
A: Yes, its modular design allows configuration to meet specific patient care needs.
Q: Where is it used?
A: Ideal for operating rooms, ICUs, and emergency departments.
Q: Why choose the Elite V8?
A: Offers advanced monitoring, flexibility, and reliable performance for critical care environments.
Maintenance Tips
-
Clean the monitor and modules with a soft, lint-free cloth dampened with mild detergent or approved disinfectant — avoid harsh solvents or excessive moisture.
-
Inspect all cables, sensors, and modules regularly for signs of damage, loose connectors, or corrosion.
-
Check battery status and functionality routinely; replace when capacity noticeably decreases.
-
Keep ventilation openings clear to prevent overheating and ensure proper airflow.
-
Perform regular self-tests and calibration as recommended by Edan to maintain measurement accuracy.
-
Use only Edan-approved accessories and modules to ensure compatibility and reliable performance.
-
Store the device in a clean, temperature-controlled environment when not in use.
-
Schedule periodic preventive maintenance by qualified biomedical technicians to ensure compliance with safety and accuracy standards.
