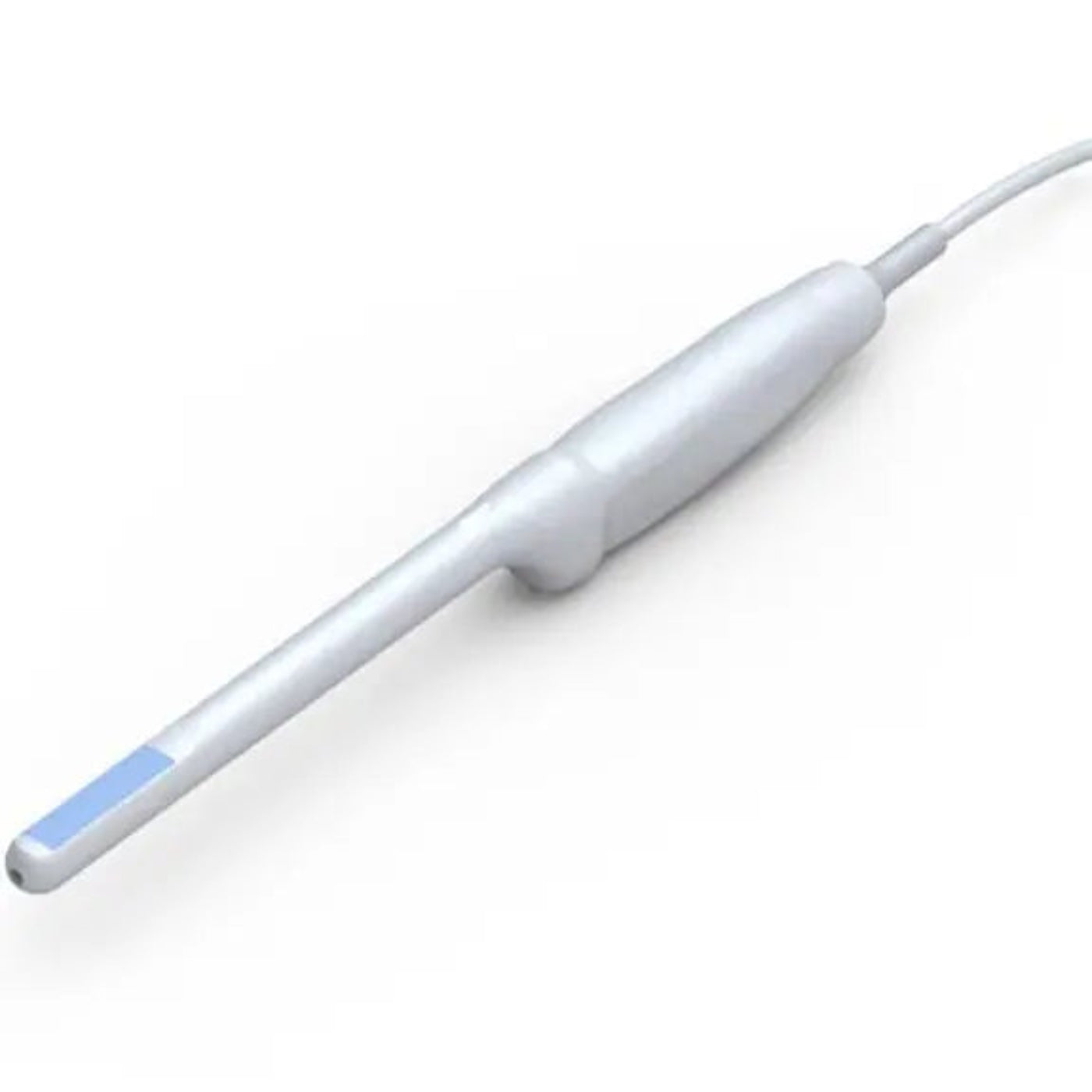

Edan Endorectal Transducer E741-2 - EDN-E741
The Edan Endorectal Transducer E741-2 is made for use with the DUS 60 Digital Ultrasonic Diagnostic Imaging System (#DUS60).
The Transrectal Transducer Needle Guide Bracket (#02.01.210216) can be purchased separately.
Features
Features
-
Imaging Format: Endocavity linear array.
-
Number of Elements: 80.
-
Scanning Length/Footprint: 40 mm.
-
Bandwidth: 5.0 to 10.0 MHz.
-
Fundamental Frequency: 6.5 MHz, 7.5 MHz, 8.5 MHz.
-
Harmonic Frequency: 9.0 MHz, 9.4 MHz.
-
Doppler Frequency: 5.5 MHz, 6.5 MHz.
-
Depth: 19 to 117 mm.
-
PW Velocity: Max 0.69 m/s (± 60°).
-
Application: Urology.
Literature
Literature
Edan DUS 60 Ultrasound Datasheet
Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System Brochure
What our Experts Think
-
Enhanced Biopsy Precision: The Edan Needle Guide Bracket (Model: 02.01.210216) is specifically designed for the E743UA transrectal transducer, facilitating accurate needle placement during procedures such as biopsies and aspirations.
-
Versatile Compatibility: This bracket is also compatible with the E741 transrectal transducer, providing flexibility for various clinical applications.
-
Robust Construction: Crafted from durable materials, the bracket is engineered to withstand the demands of frequent use in busy medical environments, ensuring longevity and consistent functionality.
-
User-Friendly Design: The bracket's intuitive design allows for easy attachment and detachment from the transducer, streamlining workflow and minimizing procedure time.
-
Cost-Effective Solution: Priced at approximately $987, it offers a budget-friendly option for healthcare facilities seeking to enhance their ultrasound-guided procedures without significant investment.
Q&A
Q: What is the Edan Transrectal Needle Guide Bracket used for?
A: It’s an accessory that ensures precise needle guidance during transrectal ultrasound procedures, such as prostate biopsies.
Q: Which transducers is it compatible with?
A: Designed for specific Edan transrectal ultrasound probes; check your model for compatibility.
Q: What are the benefits of using this bracket?
A: Improves procedural accuracy, enhances patient safety, and simplifies needle alignment during interventions.
Q: Is installation straightforward?
A: Yes, it securely attaches to the transducer for quick and stable setup.
Q: Does it require special maintenance?
A: Standard cleaning and inspection after each use are recommended to maintain performance and hygiene.
Maintenance Tips
-
Clean After Each Use: Wipe the bracket with a soft cloth and mild disinfectant. Avoid harsh chemicals or soaking.
-
Inspect for Damage: Check for cracks, bends, or wear before every procedure; replace if compromised.
-
Handle Gently: Avoid dropping or applying excessive force to maintain accurate needle guidance.
-
Secure Attachment: Ensure proper and stable fitting to the transducer before each use.
-
Proper Storage: Store in a dry, dust-free area, away from direct sunlight and extreme temperatures.
-
Functional Checks: Periodically verify alignment and stability to maintain safe, accurate procedures.
