Edan F6 Dual Fetal Monitor (Twins FHR) - EDN-F6Twinsc
Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

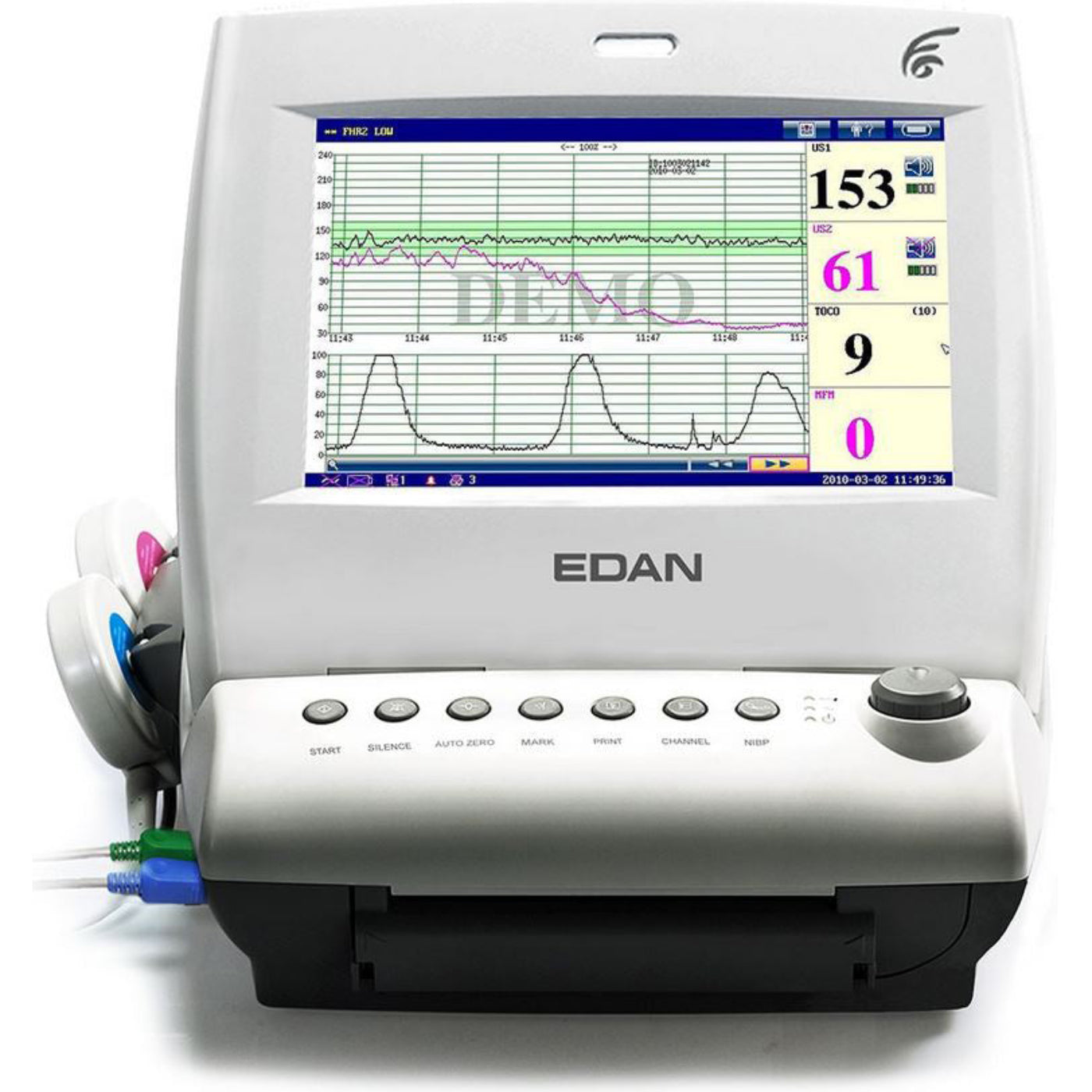

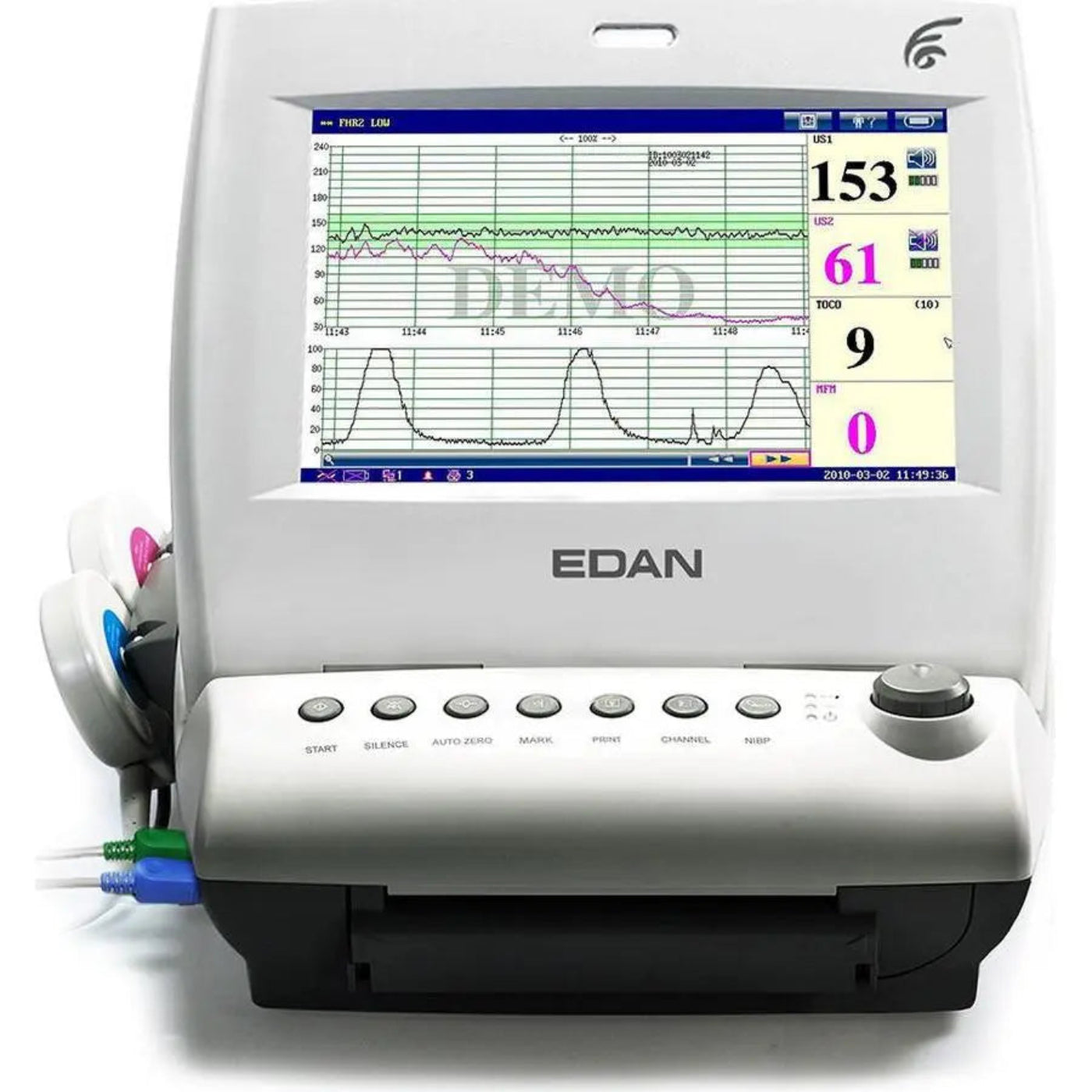

The F6 Dual Fetal Monitor (#F6Twins) is a high end hospital grade monitor designed for multi-bed units with a central station, yet simple enough for private practice. It offers the most advanced integrated monitoring for the delivery room in big hospitals, private obstetrician's offices, and antepartum clinics.
The F6Twins is intended for non-invasive and invasive monitoring of the fetus during antepartum examination, labor, and delivery. It provides non-stressful testing for pregnant women from the 28th week of gestation and on.
The Dual Fetal Monitor can externally monitor the FHRs using ultrasound and uterine activity via a TOCO transducer or internally monitor one of the FHRs with DECG and uterine activity with an IUPC.
Features
The Edan F6 Dual Fetal Monitor (Twins FHR) comes standard with:
- (2) FHR Probes (#02.01.210256).
- TOCO Probe [(F6 without DECG/IUP) (#02.01.210259)].
- TOCO Probe [(F6 with DECG/IUP) (#02.01.210260)].
- Event Marker (#02.01.210095).
- (3) Belts (#01.57.02264).
- Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
- (3) units of Recording Paper (#F6/F9-P).
- (2) T1.6AL Fuses (#01.21.64066).
- Power Cord (USA Standard) (#11.13.36016).
- User Manual.
- Quick Reference.
- Guidance to Fetal Heart Monitoring (#01.54.455058-10).
- Insight Connection Cable (#01.13.107659-11).
- Ethernet Cable (#11.13.20096).
- Ground Cable (#11.13.114214).
- Screwdriver (#01.24.070019).
 Features
-
Basic Parameters: Twins FHR, TOCO, Event Mark, Auto Fetal Movement.
- 24 hours waveforms playback.
- High resolution and long life built-in thermal printer.
- Quick printing for stored waveform.
- Display waveforms and digitals simultaneously.
- Probe rack and wall mounting rack.
- Handle for easy carry.
- Multi-crystal pulse wave doppler waterproof transducer for FHR detection.
- Signals overlap verification.
-
Optional Internal Parameters: IUP/DECG.
- Optional built-in wireless module.
- Optional fetal stimulators.
Specifications
 Specifications
| Dimensions |
347 Ă— 330 Ă— 126 mm |
| Weight |
13.2 lb (6 kg) approximate |
| Display |
|
| Screen |
10.2" high-resolution color folding TFT-LCD |
| Resolution |
800 Ă— 480 |
| Printing |
|
| Recorder Speed |
1, 2, 3 cm/min real printing; fast print (stored traces) up to 25 mm/s |
| Recording Paper |
150/152 mm, Z-Fold, thermosensitive, American/international standard |
| Ultrasound (FHR) |
|
| Technique |
Ultrasound pulse Doppler with correlation |
| Pulse Repetition Rate |
2 kHz |
| Ultrasound Frequency |
1 MHz ± 10% |
| FHR Range |
50 – 240 bpm |
| Resolution |
1 bpm |
| Accuracy |
± 2 bpm |
| DECG (FHR) |
|
| Technique |
Peak-to-peak detection |
| FHR Range |
30 – 240 bpm |
| Resolution |
1 bpm |
| Accuracy |
± 1 bpm |
| Input Impedance (Differential) |
> 10 MΩ |
| Input Impedance (Common Mode) |
> 20 MΩ |
| TOCO (Tocodynamometer) |
|
| Range |
0 – 100 Relative (%) |
| Resolution |
1% |
| Zero Mode |
Auto / Manual |
| Non-Linear Error |
± 10‰ |
| IUP (Intrauterine Pressure) |
|
| Pressure Range |
0 – 100 mmHg |
| Resolution |
1% |
| Zero Mode |
Auto / Manual |
| Non-Linear Error |
± 3 mmHg |
| Auto Fetal Movement (AFM) |
|
| Technique |
Pulsed Doppler ultrasound |
| Range |
0 – 100% |
| Resolution |
1% |
| Marking |
Manual fetal movement mark |
| Battery |
|
| Type |
14.8 V rechargeable lithium-ion |
| Continuous Working Time |
2 – 4 hours |
| Communication Ports |
DB9 network interface, RJ45 interface |
.
Accessories
 Accessories
The F6 Dual Fetal Monitor (Twins FHR) most popular accessories are:
-
#F6/F9-P: Recording paper (90 mm x 152 mm x 150 p, US standard).
-
DECG and IUP Function: Must be assembled at Edan.
- DECG and IUP function board and interface.
- DECG Cable (#01.13.036358-10).
- IUP Cable (#11.13.104152).
- IUP Communication Cable (#01.13.036357-10).
- (5) IUP Catheters (#11.57.104153).
- (5) FSE Safelinc Single Electrodes (#11.57.02145).
- (5) PAD Attachment Pad Electrodes (#11.57.02146).
-
#MT-803: Luxury Trolley for F Series Fetal Monitors.
-
#MT-207 & Plate_F6F9: Center pole trolley (roll stand) with basket and locking casters.
-
#02.01.210061: Pivot arm wall mount for F series.
-
#CMS-Lite-1bed: Edan Central Station Software - Manage 1 Bedside Patient Monitor.
-
#CMS-Lite-4bed: Edan Central Station Software - Manage up to 4 Bedside Patient Monitors.
-
#CMS-Lite-64bed: Edan Central Station Software - Manage up to 64 Bedside Patient Monitors.
Literature
 Literature
Edan Fetal Monitor Comparison Chart
Edan F6 Fetal & Maternal Monitor Brochure
Edan F6/F6 Express Fetal & Maternal Monitor User Manual
What our Experts Think
-
Dual Fetal Monitoring: The Edan F6 Twins Fetal Monitor simultaneously tracks two fetal heart rates (FHR) with high precision, ensuring reliable monitoring for twin pregnancies.
-
Comprehensive Data Display: Large, easy-to-read screen shows both fetal heart rates, uterine contractions, and maternal parameters clearly.
-
Accurate & Sensitive Probes: Delivers consistent signal quality even during maternal movement or challenging fetal positions.
-
User-Friendly Operation: Simple controls, intuitive interface, and built-in alarms enhance clinical efficiency.
-
Data Management Ready: Supports data printing, storage, and connectivity for effective patient record integration.b
Q&A
Q: What is the Edan F6 Dual Fetal Monitor?
A: A dual fetal monitor designed to track fetal heart rates (FHR) for twins simultaneously.
Q: What parameters does it measure?
A: Monitors dual FHR, uterine activity, and fetal movement.
Q: Is it suitable for all stages of pregnancy?
A: Yes, ideal for antepartum and intrapartum monitoring.
Q: What makes it easy to use?
A: Features a clear display, intuitive interface, and reliable data recording.
Q: Why choose the Edan F6 Twins monitor?
A: Provides accurate, simultaneous monitoring for twin pregnancies, ensuring enhanced prenatal care.
Maintenance Tips
-
Clean the monitor and probes with a soft, lint-free cloth moistened with mild detergent or 70% isopropyl alcohol.
-
Avoid submerging transducers, cables, or connectors in any liquid.
-
Disinfect fetal probes after each patient using Edan-approved disinfectants.
-
Check ultrasound transducers and cables regularly for cracks or frayed areas.
-
Ensure the paper feed path and thermal printer head remain dust-free.
-
Store ultrasound gel separately; wipe off residue after every use.
-
Calibrate and verify fetal heart rate accuracy according to Edan’s recommended schedule.
-
Keep ventilation openings clean and unobstructed.
-
Use only original Edan accessories and replacement parts.
-
Power off properly before unplugging to prevent data loss or device corruption.
-
Keep away from direct sunlight, high humidity, and temperature extremes.
-
Recharge and maintain battery according to the manufacturer’s instructions.
-
Regularly back up and review stored monitoring data if applicable.b
