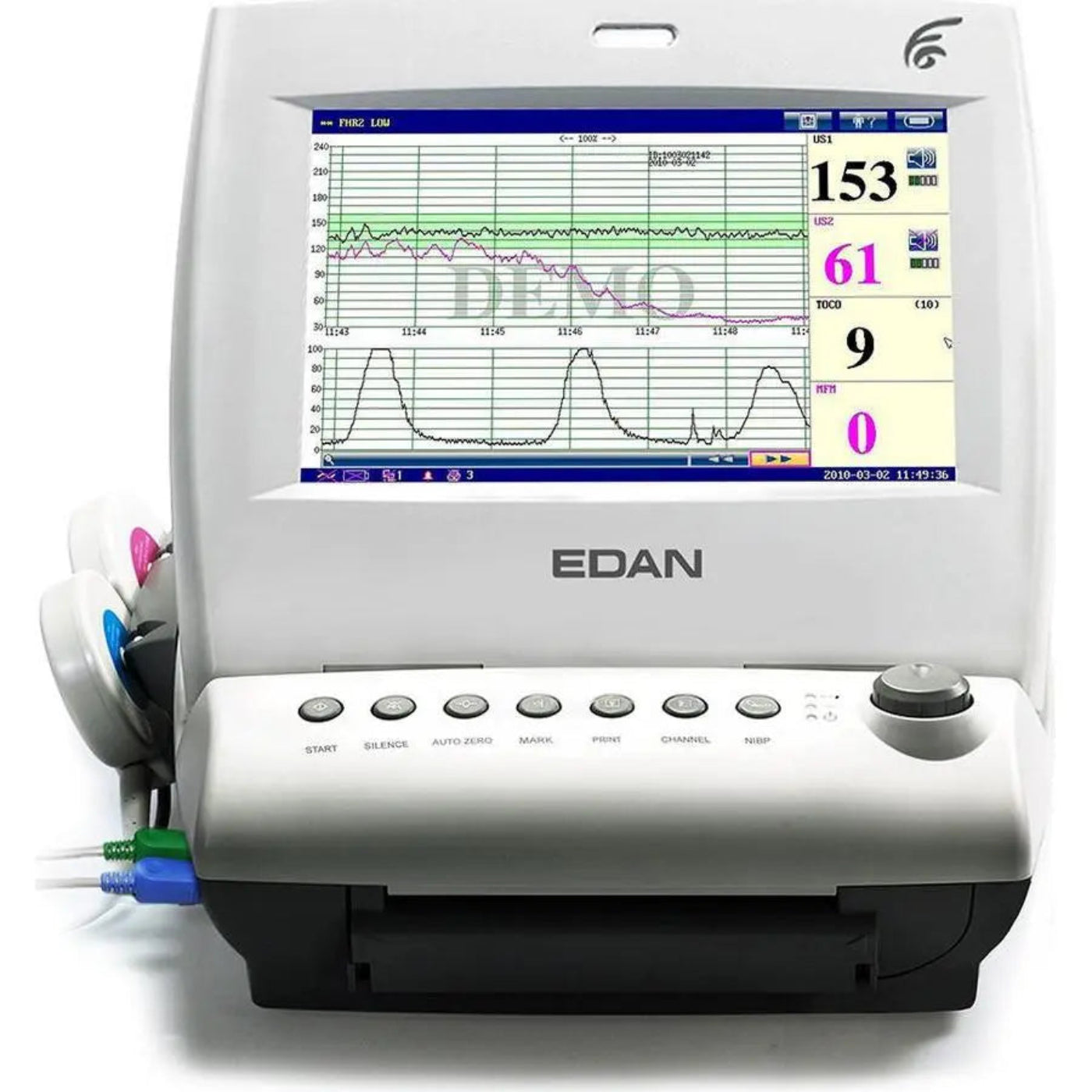

Edan F6 Express Fetal Monitor - EDN-F6Express
Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.
The F6 Express Fetal Monitor (#F6Express) is a high end hospital grade monitor designed for multi-bed units with a central station, yet is simple enough for private practice. It offers the most advanced integrated monitoring for the delivery room in big hospital, private obstetrician's office, or antepartum clinic.
The F6 Express is intended for monitoring physiological parameters of pregnant women during antepartum examination, labor, and delivery. It provides non-stressful testing and fetal monitoring for pregnant women from the 28th week of gestation on, along with maternal vital signs monitoring.
Features
The Edan F6 Express Fetal Monitor comes standard with:
- Two FHR Probes (#12.01.109301-01).
- TOCO Probe (#12.01.31527-01).
- Event Marker (#02.01.210095).
- Three Belts (#01.57.02264).
- Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008-11)].
- Fixed ECG Cable with 3 Lead Wires (#01.57.471007).
- Adult Disposable Adhesive Electrodes [(Snap Connector) (#11.57.040159)].
- Adult Reusable SpO2 Sensor (#12.01.109069).
- Adult NIBP Cuff (#11.57.40029).
- NIBP Tube and Connector (#01.59.036104).
- Temperature Skin Probe (#01.15.040187).
- (3x) Recording Paper (#F6/F9-P).
- Two T1.6AL Fuses (#01.21.64066).
- Power Cord [(US standard) (#01.13.036106)].
- Insight Connection Cable (#01.13.107659-11).
- Ethernet cable (#11.13.20096).
- Ground Cable (#11.13.114214).
- Screwdriver (#01.24.070019).
- Quick Reference.
- User Manual.
 Features
-
Basic Parameters: Twins FHR, TOCO, Event Mark, Auto Fetal Movement (AFM).
-
Maternal Parameters: ECG, HR/PR, NIBP, SpO2, Temp.
- 24 hours waveforms playback.
- High resolution and long life built-in thermal printer.
- Quick printing for stored waveform.
- Displays waveforms and digitals simultaneously.
- Probe rack and wall mounting rack.
- Handle for easy carry.
- Multi-crystal pulse wave doppler waterproof transducer for FHR detection.
- Signals overlap verification.
-
Optional Internal Parameters: IUP/DECG.
- Optional built-in wireless module.
- Optional fetal stimulators.
Specifications
 Specifications
| Dimensions |
347 Ă— 330 Ă— 126 mm |
| Weight |
13.2 lb (6 kg) approximate |
| Display |
|
| Screen |
10.2" high-resolution color folding TFT-LCD |
| Resolution |
800 Ă— 480 |
| Printing |
|
| Recorder Speed |
1, 2, 3 cm/min real printing; fast print (stored traces) up to 25 mm/s |
| Recording Paper |
150/152 mm, Z-Fold, thermosensitive, American/international standard |
| Ultrasound (FHR) |
|
| Technique |
Ultrasound pulse Doppler with correlation |
| Pulse Repetition Rate |
2 kHz |
| Ultrasound Frequency |
1 MHz ± 10% |
| FHR Range |
50 – 240 bpm |
| Resolution |
1 bpm |
| Accuracy |
± 2 bpm |
| DECG (FHR) |
|
| Technique |
Peak-to-peak detection |
| FHR Range |
30 – 240 bpm |
| Resolution |
1 bpm |
| Accuracy |
± 1 bpm |
| Input Impedance (Differential) |
> 10 MΩ |
| Input Impedance (Common Mode) |
> 20 MΩ |
| TOCO (Tocodynamometer) |
|
| Range |
0 – 100 Relative (%) |
| Resolution |
1% |
| Zero Mode |
Auto / Manual |
| Non-Linear Error |
± 10‰ |
| IUP (Intrauterine Pressure) |
|
| Pressure Range |
0 – 100 mmHg |
| Resolution |
1% |
| Zero Mode |
Auto / Manual |
| Non-Linear Error |
± 3 mmHg |
| Auto Fetal Movement (AFM) |
|
| Technique |
Pulsed Doppler ultrasound |
| Range |
0 – 100% |
| Resolution |
1% |
| Marking |
Manual fetal movement mark |
| Battery |
|
| Type |
14.8 V rechargeable lithium-ion |
| Continuous Working Time |
2 – 4 hours |
| Communication Ports |
DB9 network interface, RJ45 interface |
Â
Accessories
 Accessories
The F6 Express Fetal Monitor is commonly purchased with:
-
#F6/F9-P: Recording Paper (90 mm x 152 mm x 150 p, US Standard).
-
#MT-803: Luxury Trolley for F Series Fetal Monitors.
-
#MT-207 & Plate_F6F9: Center Pole Trolley (roll stand) with basket and locking casters.
-
#02.01.210061: Pivot arm wall mount for F series.
- Nellcor Nell-3 OXI-Max SpO2 Module and Adult Sensor (Weak Perfusion Resistance) (must be purchased with monitor).
-
#CMS-Lite-1bed: Edan Central Station Software - Manage 1 Bedside Patient Monitor.
-
#CMS-Lite-4bed: Edan Central Station Software - Manage up to 4 Bedside Patient Monitors.
-
#CMS-Lite-64bed: Edan Central Station Software - Manage up to 64 Bedside Patient Monitors.
Literature
 Literature
Edan Fetal Monitor Comparison Chart
Edan F6/F6 Express Fetal & Maternal Monitor User Manual
Edan F6 Fetal & Maternal Monitor Brochure
What our Experts Think
-
Versatile Monitoring: The Edan F6 Express Fetal Monitor offers comprehensive monitoring capabilities, including Fetal Heart Rate (FHR), Tocodynamometry (TOCO), Event Mark, Amniotic Fluid Measurement (AFM), and maternal parameters such as ECG, Heart Rate/PR, Non-Invasive Blood Pressure (NIBP), SpOâ‚‚, and Temperature.
-
Dual FHR Monitoring: Equipped with dual-channel capability, it allows simultaneous monitoring of twin pregnancies, with signal overlap verification to differentiate twin FHRs.
-
High-Resolution Display: Features a 10.2-inch high-resolution color folding LCD screen, providing clear and detailed visualizations of fetal and maternal parameters.
-
Extended Waveform Playback: Supports up to 24 hours of waveform playback, enabling thorough review of monitoring data.
-
Efficient Printing: Offers 150/152mm wide paper printing with real-time speeds of 1, 2, or 3 cm/min, and quick printing for stored waveforms.
-
Portable Power: Includes a lithium battery providing up to 4 hours of continuous operation, enhancing mobility in various clinical settings.
-
Optional Wireless Connectivity: An optional built-in wireless module allows connection to Central Nursing Stations or FTS-3, facilitating centralized monitoring.
-
Robust Design: Designed for both hospital-grade environments and private practices, offering durability and reliability across different clinical settings.
Q&A
Q: What is the Edan F6 Express Fetal Monitor used for?
A: It’s a compact fetal monitor that tracks fetal heart rate (FHR) and maternal uterine activity for reliable labor and prenatal monitoring.
Q: Is it suitable for all patients?
A: Yes, designed for use in both hospital and clinic settings, compatible with a wide range of maternal and fetal profiles.
Q: What are the key features?
A: Offers real-time FHR monitoring, uterine contraction tracking, touchscreen interface, and optional Doppler fetal monitoring.
Q: Is it portable?
A: Yes, lightweight design with intuitive controls makes it easy to use at the bedside or in mobile care settings.
Q: Does it support data management?
A: Yes, it can store and transfer monitoring data for clinical review and record keeping.
Maintenance Tips
-
Regular Cleaning: Wipe the monitor, cables, and sensors with a soft cloth and mild disinfectant. Avoid harsh chemicals or soaking.
-
Inspect Cables and Connectors: Check for frays, cracks, or loose connections before each use; replace damaged parts immediately.
-
Sensor Care: Ensure fetal and maternal sensors are intact and functioning; replace disposable parts as recommended.
-
Battery Management: Charge according to manufacturer guidelines and avoid complete discharge to prolong battery life.
-
Proper Storage: Store in a clean, dry environment, away from dust, moisture, and direct sunlight.
-
Temperature Control: Keep the device within recommended operating ranges to prevent malfunctions.
-
Functional Checks: Test monitor performance periodically to ensure accurate readings.
-
Handle Gently: Avoid dropping or applying excessive force to the unit or accessories.
