*Accessories can be customized by size/configuration to match your needs. These options can be found below; please call MFI to personalize your iM50 standard accessories.

Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively, an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise, a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

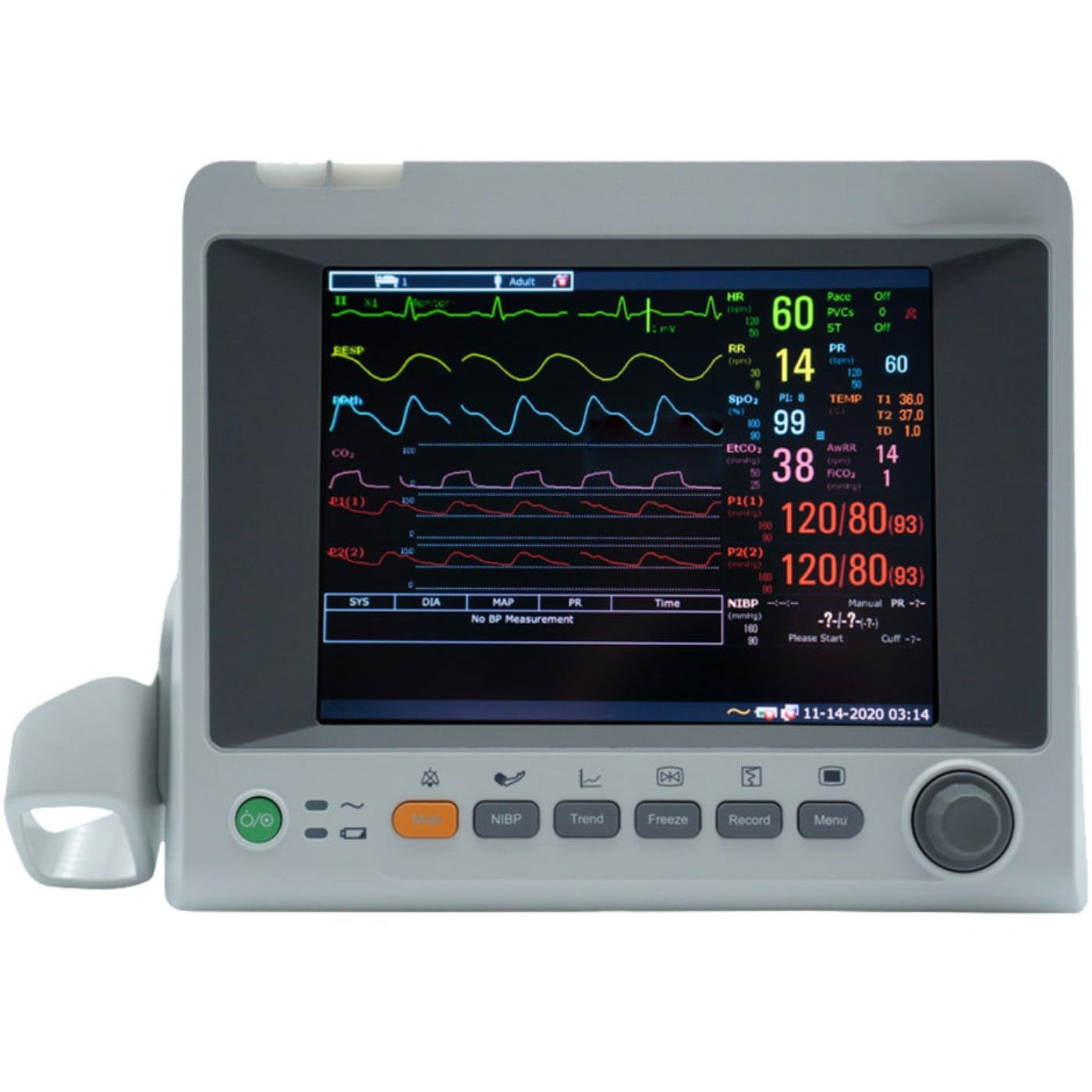

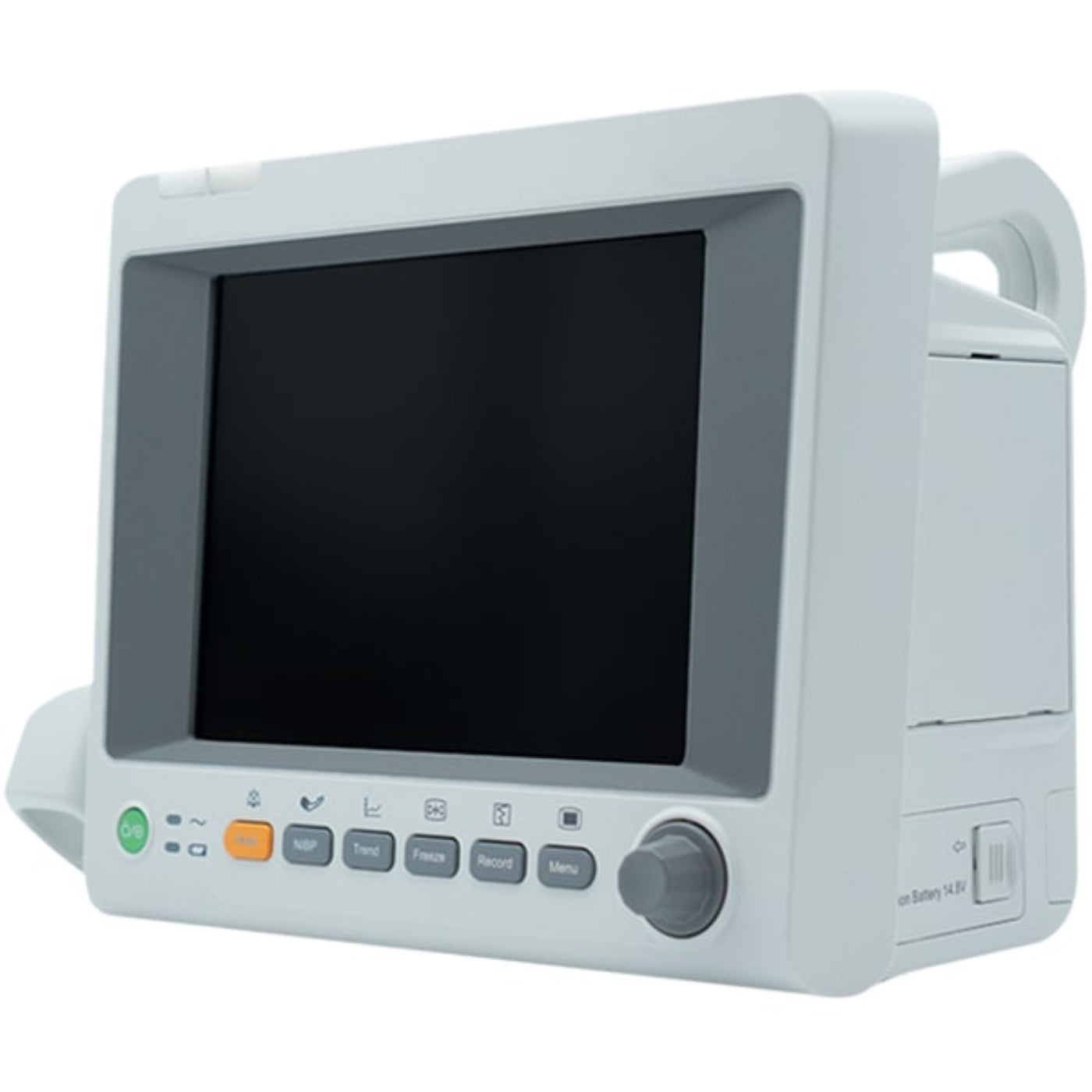

The new generation of Edan iM50 Patient Monitors provide a perfect transportation solution. The multi-functional all-in-one parameter module, and new application platform, greatly enhance the efficiency of full clinical parameter monitoring for patient transfer. The monitor includes an open port to add CO₂ modules at any time.

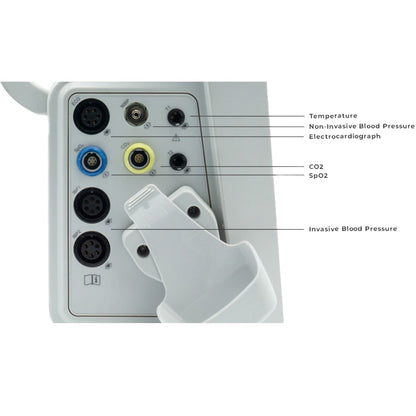

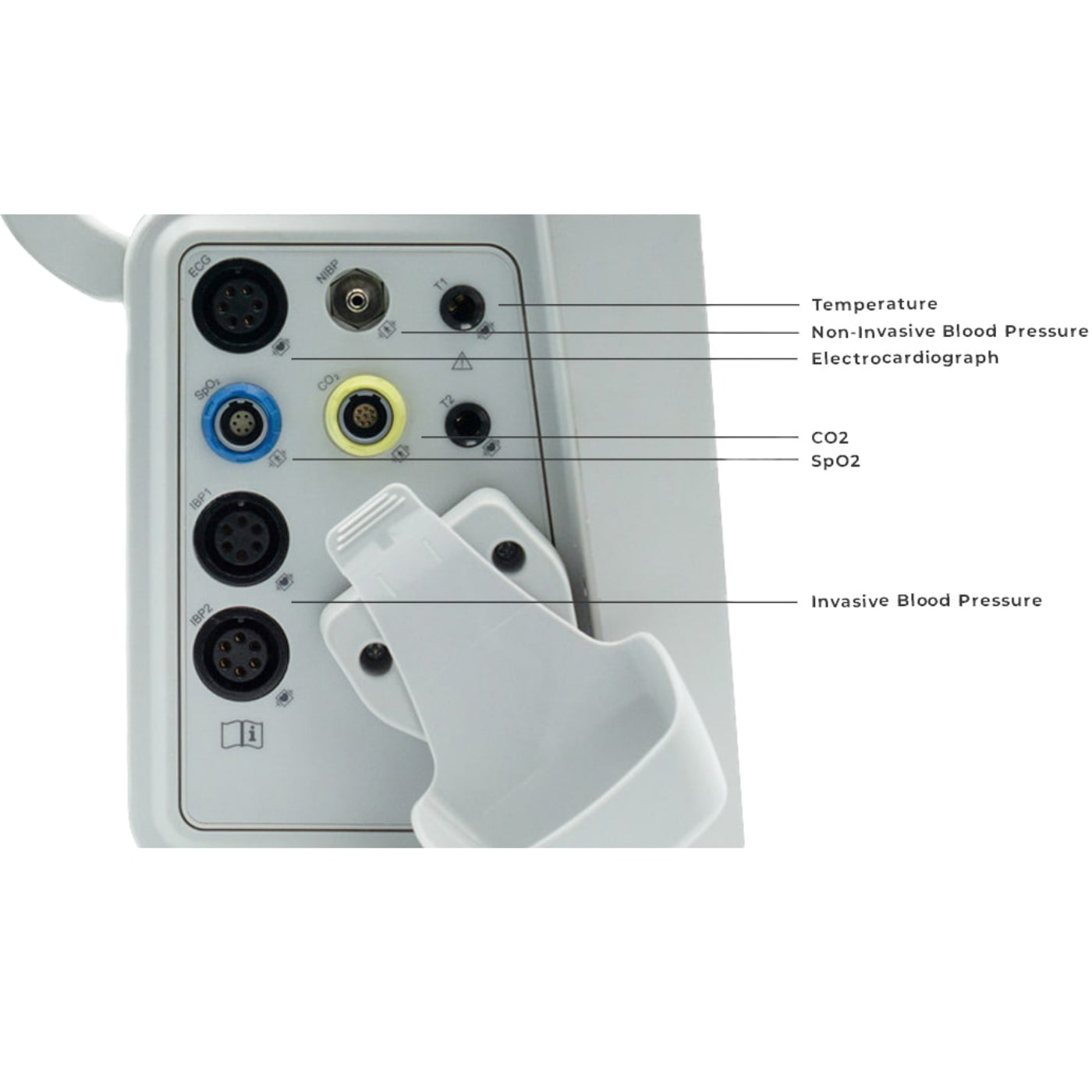

The iM50 monitors parameters such as ECG, respiration, functional arterial oxygen saturation, invasive or noninvasive blood pressure, temperature, expired CO₂, and quick temperature.

Features

The Edan iM50 Patient Monitor comes standard with:

• #01.15.040187: *Skin Temperature Probe.
• #02.01.210119-11: *Adult SpO₂ Sensor (Lemo).
• #01.57.040205-13: *Adult Reusable NIBP Cuff.
• #01.57.471095-10: *3-lead ECG snap Cable.
• #01.59.036118-11: NIBP Tube (3 m) with connector.
• #11.57.471056: (30x) Adult Disposable Adhesive Snap Electrodes.
• #01.21.064143: Rechargeable Lithium-Ion Battery (14.8 V, 4200 mAh).
• #01.13.036106: Power Cord (USA standard).
• #11.13.114214: Ground Cable.
• User manual.

 Features

• 5-Lead ECG, RESP, NIBP, Edan SpO₂, 2-TEMP, PR.
• Arrhythmia and S-T segment analysis (not intended for neonatal patients).
• Large font display.
• 120 seconds full-disclosure waveforms review.
• 120 hour graphic and tabular trends of all parameters.
• Bi-directional communications with central monitoring system.
• Customized alarm setting.
• 8.4" color TFT display with maximum 11 waveforms.
• Pacemaker detection, electrosurgical interference proof.
• Defibrillation protection and defibrillation synchronization.
• OxyCRG available to judge the respiration and circulation function for neonates.
• Built-in rechargeable lithium-ion battery.
• Nurse call function and bi-directional communication with MFM-CMS central station.
• SD card slot enables memory extension for large data storage.
• USB and serial ports enables abundant future upgrades.
• VGA output and analog output.
• Complete and flexible mounting solution for different scenarios.
• Weight: 7.94 lb (3.6 kg).

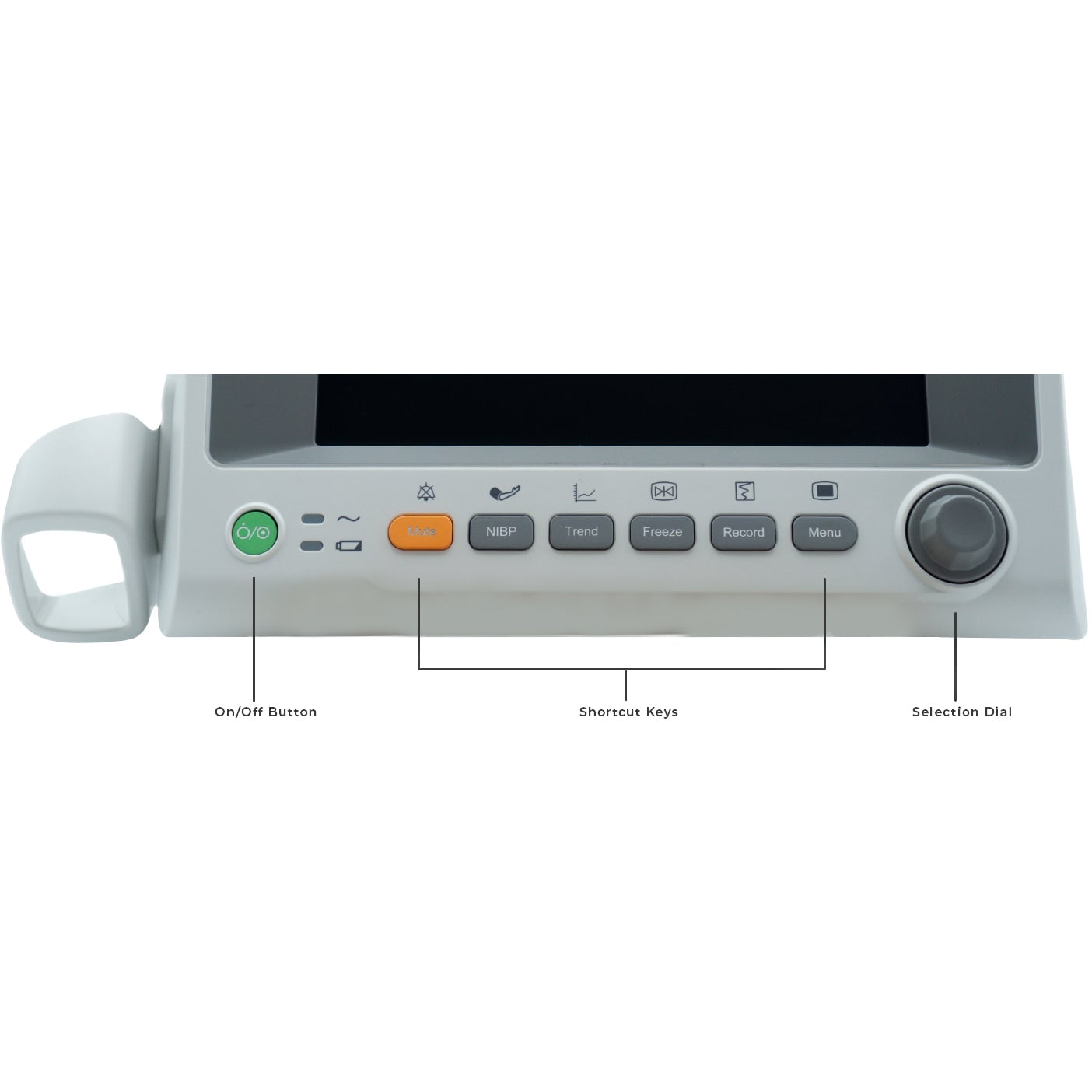

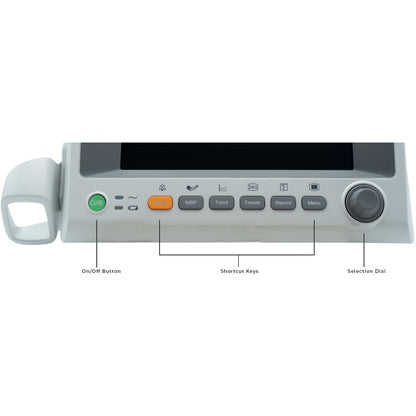

• Full touchscreen (optional) enables intuitive operation by clicking on the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

Configurations

 Configurations

• #iM50: Standard (No CO₂).
• #iM50-ETCo2-Side: With Respironics LoFlo Side-Stream ETCO₂ Module:
• Disposable Adult CO₂ Nasal Cannula (#3468ADU-00).
• Adult/Pediatric Airway Adapter Set with Dehumidification tubing (#3473ADU-00).
• Disposable Sampling Line Kit with Dehumidification Tubing (#3475-00).

Accessories

Accessories

The following accessories are compatible and commonly purchased with the iM50 Patient Monitor:

• Temperature Probe:
• #01.15.040186: Rectal/Oral Temperature Probe.
• #01.15.040187: Skin Temperature Probe (Standard).
• Reusable SpO₂ Sensor:
• #12.01.110492-11: Neonate (< 3 kg / < 6.6 lb) Wrap Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• #02.01.210121-11: Pediatric (10 to 50 kg / 22 to 110 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• #02.01.210119-11: Adult (> 30 kg / > 66 lb) Reusable SpO₂ Sensor (Lemo / 2.5 m). Compatible with Edan M series patient monitors (Standard).
• #02.01.210120-11: Adult (> 30 kg / > 66 lb) Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• #02.01.210122-11: Adult (> 30 kg / > 66 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• NIBP Cuff:
• #01.57.040212: Infant (10 to 19 cm) Reusable NIBP Cuff, CM 1301.
• #01.57.040211: Child (18 to 26 cm) Reusable NIBP Cuff, CM 1302.
• #01.57.040205-13: Adult (25 to 35 cm) Reusable NIBP Cuff, CM 1303 (Standard).
• #01.57.040210-12: Large Adult (33 to 47 cm) Reusable NIBP Cuff, CM 1304.
• ECG Cable:
• #01.57.471087-10: 3-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
• #01.57.471095-10: 3-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation (Standard).
• #01.57.471096-10: 5-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation.
• #01.57.471097-10: 5-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
• #12.03.33864-01 & 02.04.18960: IBP Module.
• #Recorder-Edan: Thermal Printer Upgrading Kit.
• #01.57.78035: Thermal Printing Paper for M3, iM50, and M80 Patient Monitors.
• #01.16.78122: Touch Screen Upgrade.
• #02.04.240050: Data Management Kit.
• #MT-207: Rolling Stand with mounting plate and basket.

Literature

 Literature

Edan iM50/iM60/iM70/iM80 Patient Monitor Product Specifications

Edan iM Series Patient Monitor User Manual

Edan iM50 Patient Monitor Brochure

What our Experts Think

• Comprehensive Monitoring: The Edan iM50 delivers accurate measurement of key vital signs including ECG, SpO₂, NIBP, respiration, and temperature—ideal for continuous bedside monitoring.

• Clear, Intuitive Display: Features a bright, high-resolution screen with customizable waveform layouts for fast data interpretation.

• Reliable & Portable: Compact yet robust design suited for hospitals, clinics, and transport applications.

• User-Friendly Operation: Simple interface and quick-access controls reduce setup time and training requirements.

• Connectivity Ready: Supports data transfer to hospital networks and EMR systems, streamlining workflow and record management.

Q&A

Q: What is the Edan iM50?
A: A compact, multi-parameter patient monitor designed for continuous vital signs monitoring.

Q: What parameters does it measure?
A: Monitors ECG, SpO₂, NIBP, respiration, and temperature, with optional CO₂ and IBP modules.

Q: Where can it be used?
A: Ideal for hospitals, clinics, and emergency departments.

Q: Is it portable?
A: Yes, it features a lightweight design with a built-in handle for easy transport.

Q: Why choose the Edan iM50?
A: Offers reliable performance, clear display, and flexible monitoring for diverse clinical needs.

Maintenance Tips

• Clean screen and casing with a soft cloth and mild detergent or 70% isopropyl alcohol.

• Avoid harsh chemicals or abrasive cleaners.

• Disinfect patient-contact accessories after every use with approved medical disinfectants.

• Never immerse cables or connectors in liquid.

• Inspect ECG leads, SpO₂ sensors, and NIBP hoses for wear or damage; replace if necessary.

• Fully charge the battery before first use; avoid complete discharges.

• Recharge the battery every 3–6 months during long storage.

• Keep the unit in a cool, dry, and well-ventilated area.

• Protect from direct sunlight, heat sources, and moisture.

• Check regularly for firmware and software updates from Edan.

• Follow Edan’s calibration schedule to maintain accurate readings.

• Use only Edan-approved accessories for best performance.

• Power off using the system’s shutdown function to prevent data corruption.

• Keep ventilation areas dust-free to avoid overheating.
