| Imaging Format |
High-frequency linear array |
| Number of Elements |
128 |
| Footprint |
38 mm |
| Bandwidth |
7.0 – 16.0 MHz |
| Fundamental Frequency |
10.0 MHz, 12.0 MHz, 14.0 MHz |
| Harmonic Frequency |
14.4 MHz, 14.8 MHz |
| Doppler Frequency |
7.2 MHz, 8.0 MHz |
| Imaging Depth |
19 – 108 mm |
| PW Velocity |
Max 1.69 m/s (± 60°) |
| Needle Guide Bracket |
BGK-L40UB (16G, 18G, 20G, 22G) |
What our Experts Think
-

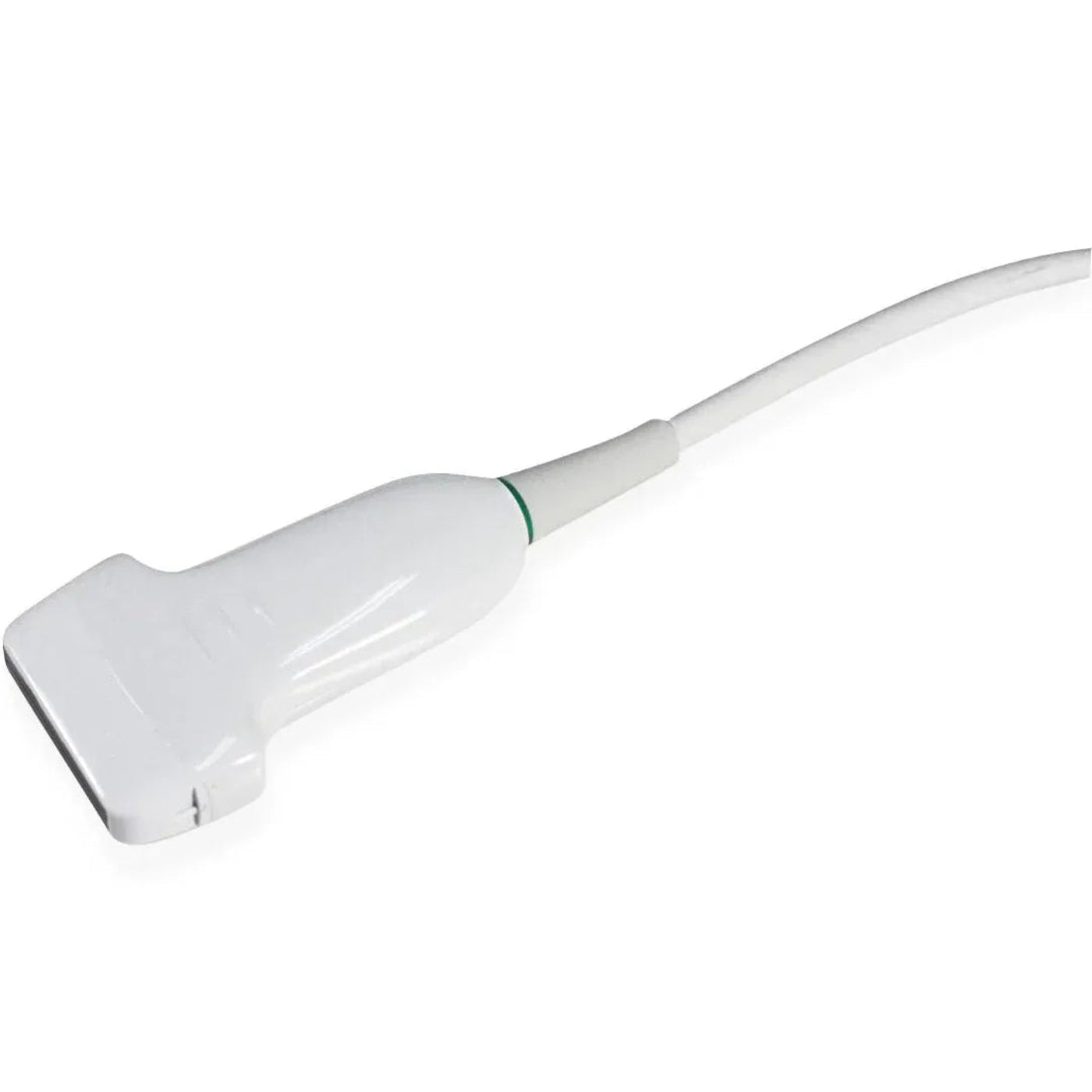

High-Resolution Imaging: The Edan L15-7b Linear Array Transducer offers a frequency range of 10.0–14.8 MHz, providing detailed imaging suitable for superficial structures.
-
Versatile Applications: Ideal for imaging small parts, musculoskeletal structures, vascular assessments, and superficial examinations.
-
Enhanced Depth Penetration: Achieves a scanning depth of 30–110 mm, enabling visualization of deeper structures.
-
Ergonomic Design: Features an ergonomic handle for comfortable use during extended procedures.
-
Compatibility: Designed for use with Edan U50, U50 Prime, and U60 diagnostic ultrasound systems.
Q&A
Q: What is the Edan P5-1b Phase Array Transducer?
A: A high-performance ultrasound probe designed for cardiac and abdominal imaging.
Q: Which systems is it compatible with?
A: Works with Edan U50 and U60 diagnostic ultrasound systems.
Q: Is it user-friendly?
A: Yes, it features an ergonomic handle and is easy to clean and disinfect.
Q: Why choose the Edan P5-1b?
A: Reliable, precise imaging, ideal for clinical and hospital use, ensuring high-quality diagnostic performance.
Maintenance Tips
-
Regular Cleaning: After each use, gently wipe the transducer's exterior with a soft, lint-free cloth dampened with a mild detergent or 70% isopropyl alcohol. Avoid using abrasive materials or harsh chemicals to prevent damage.
-
Disinfection: Before docking the transducer into the base station, ensure it is free from residual coupling gel. Disinfect the transducer at least once a month by spraying or wiping it with a disinfectant solution containing 75% ethanol or 70% isopropanol. Follow the disinfectant manufacturer's recommended contact time and mode.
-
Avoid Immersion: Do not immerse the transducer connector. If the cable connector is immersed, rinse it under running water and dry it thoroughly before reconnecting.
-
Cable Care: Avoid sharp bends or kinks in the cable. When coiling, use a loose, figure-eight pattern to prevent stress on the internal wiring.
-
Connector Maintenance: Ensure that the connector is free from moisture and debris before connecting to the ultrasound system. Clean the connector periodically with a dry, lint-free cloth.
-
Functional Testing: Periodically perform a functional test by connecting the transducer to a compatible ultrasound system and verifying that the imaging quality meets expected standards.
-
Professional Servicing: Schedule regular professional servicing to check for any wear or internal issues, ensuring the transducer remains in optimal working condition.
