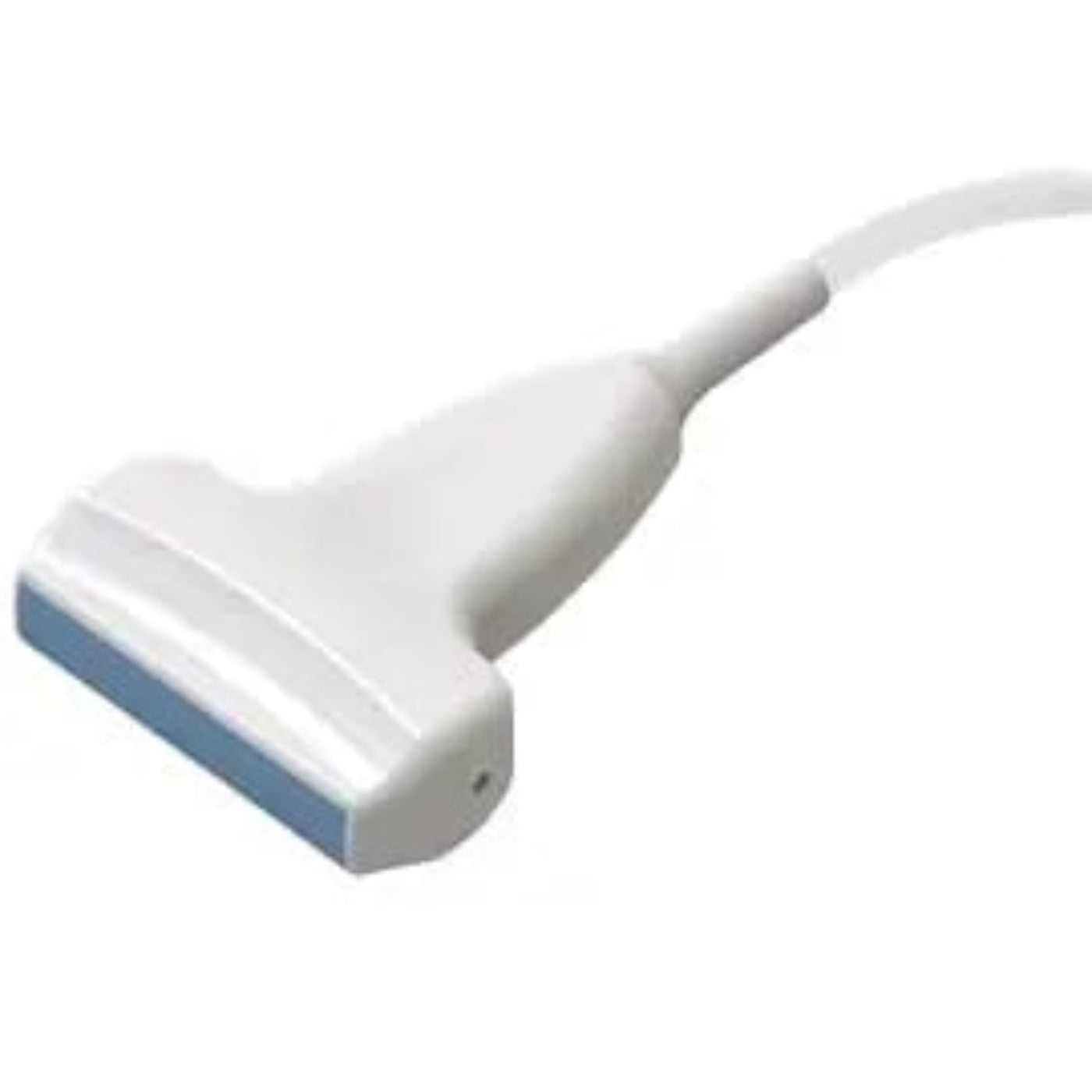

Edan Linear Array Transducer L761-2 - EDN-L761
The Edan Linear Array Transducer L761-2 is made for use with the DUS 60 Digital Ultrasonic Diagnostic Imaging System (#DUS60).
The L761-2 Transducer is commonly used with the BGK-LA70 (#12.01.102899) Needle Guide Bracket [(14G, 18G, 20G, 22G) (sold separately)].
Specifications
Specifications
| Elements |
80 |
| Footprint / Scanning Length |
60 mm |
| Bandwidth |
5.0 – 10.0 MHz |
| Fundamental Frequency |
6.5, 7.5, 8.5 MHz |
| Harmonic Frequency |
9.0, 9.4 MHz |
| Doppler Frequency |
5.5, 6.5 MHz |
| Depth |
29 – 117 mm |
| PW Velocity |
Max 1.14 m/s (± 60°) |
| Applications |
Small parts, musculoskeletal, vascular, superficial |
Literature
Edan DUS 60 Digital Ultrasonic Diagnostic Imaging System Brochure
Edan DUS 60 Ultrasound Datasheet
What our Experts Think
-
High-Definition Imaging: The Edan L761-2 Linear Array Transducer delivers outstanding clarity for vascular, musculoskeletal, and small-parts examinations.
-
Wide Frequency Range: Operating between 5.0 – 10.0 MHz, it offers an excellent balance of resolution and penetration for superficial structures.
-
Precision Design: Features an 80-element array and ~60 mm footprint for broad, detailed image coverage.
-
Ergonomic & Durable: Lightweight, easy to handle, and built for consistent performance in busy clinical environments.
-
Reliable Compatibility: Optimized for use with Edan ultrasound systems such as the DUS series, ensuring seamless integration and dependable results.
Q&A
Q: What is the Edan L761-2?
A: A high-frequency linear array ultrasound transducer designed for detailed vascular and small-parts imaging.
Q: What is it used for?
A: Ideal for vascular, musculoskeletal, thyroid, and superficial tissue examinations.
Q: What systems is it compatible with?
A: Works with select Edan ultrasound systems—confirm compatibility before use.
Q: What are its key benefits?
A: Delivers high-resolution, accurate images with excellent depth and clarity.
Q: Where is it typically used?
A: Commonly used in hospitals, clinics, and diagnostic imaging centers.
Maintenance Tips
-
Linear array transducer designed for high-resolution imaging applications.
-
Frequency range optimized for superficial structures and vascular imaging.
-
Provides clear visualization of tendons, muscles, vessels, and small parts.
-
Compatible with Edan ultrasound systems for diagnostic use.
-
Lightweight and ergonomic for improved operator comfort.
-
Offers excellent image penetration and detail resolution.
-
Ideal for musculoskeletal, small parts, and peripheral vascular examinations.
-
Built with durable materials for long-lasting clinical performance.
-
Easy to connect and detach, ensuring quick setup and workflow efficiency.
