Edan M3 Vital Signs Monitor - EDN-M3-NS

Edan M3 Vital Signs Monitor - EDN-M3-NS

*Part number depends on chosen configuration. Accessories can be customized by size/configuration to match your needs. Please call MFI to customize your M3 standard accessories.: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

The M3 has made its mark in the out-patient department, doctor's office, and general wards for its accuracy, durability, and cost-effectiveness of non-invasive SpO₂, NIBP, and fast temp monitoring. Its affordable price and multi-parameter functionality address vital signs monitoring needs.

The monitor is intended to be used only under regular supervision of clinical personnel. It is equipped with alarms that indicate system faults (such as loose or defective electrodes), physiologic parameters that have exceeded the limits set by the operator, or both.

Features

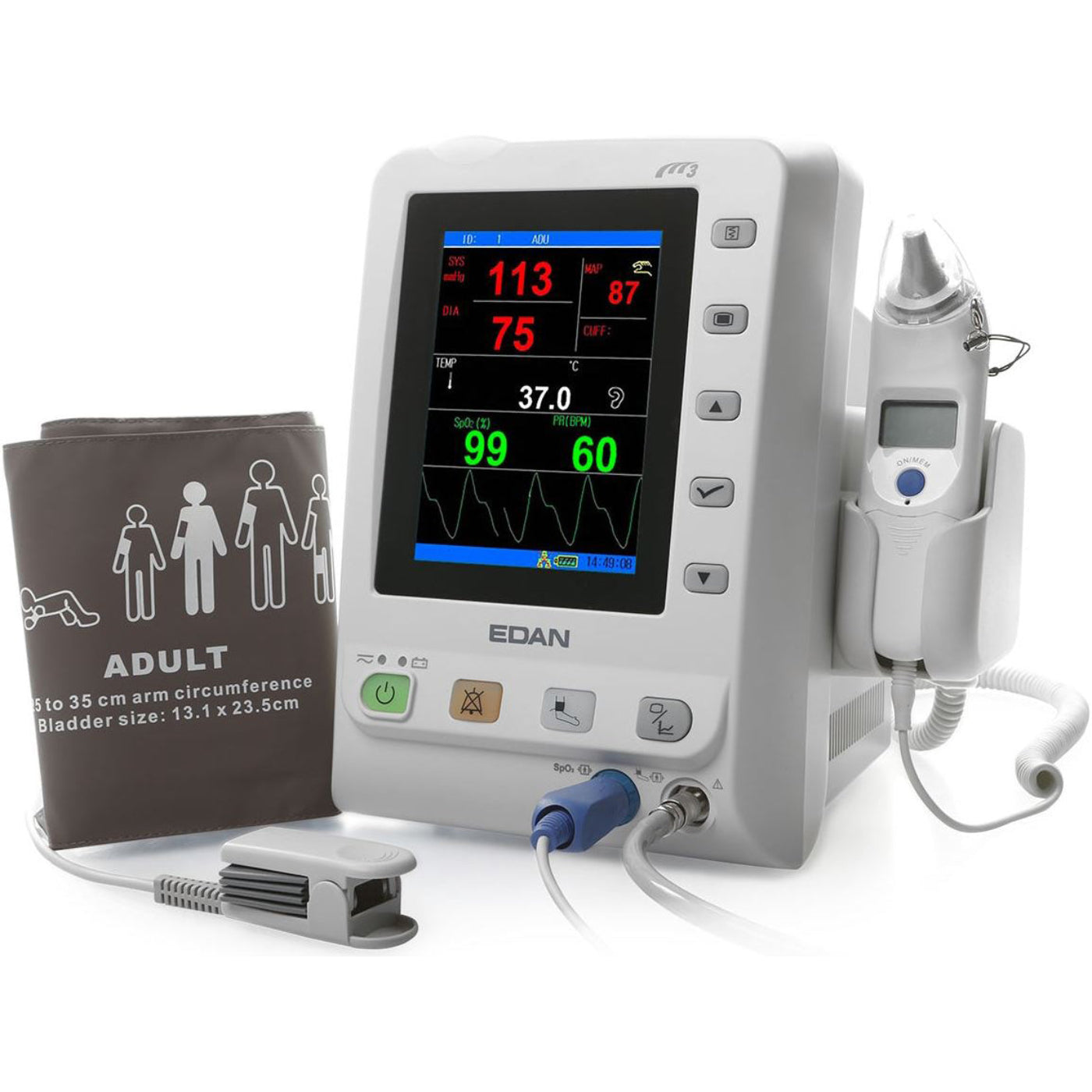

The Edan M3 Vital Signs Monitor comes complete with:

• *SH1 Adult (Lemo) Reusable SpO₂ Sensor (#12.01.109069 or #02.01.210119)
• *Adult NIBP Cuff [(25 - 35 cm) (#01.57.040205-11 or #01.57.040205-12)].
• *NIBP Tube (3 m) with connector (#01.57.471005 or #01.59.036118-11).
• Rechargeable Lithium-ion Battery [(14.8 V, 2.2 Ah) (#21.21.064168)].
• Power Cord [(USA standard) (#01.13.036106)].
• Ground Cable (#11.13.114214).
• User Manual.

 Features

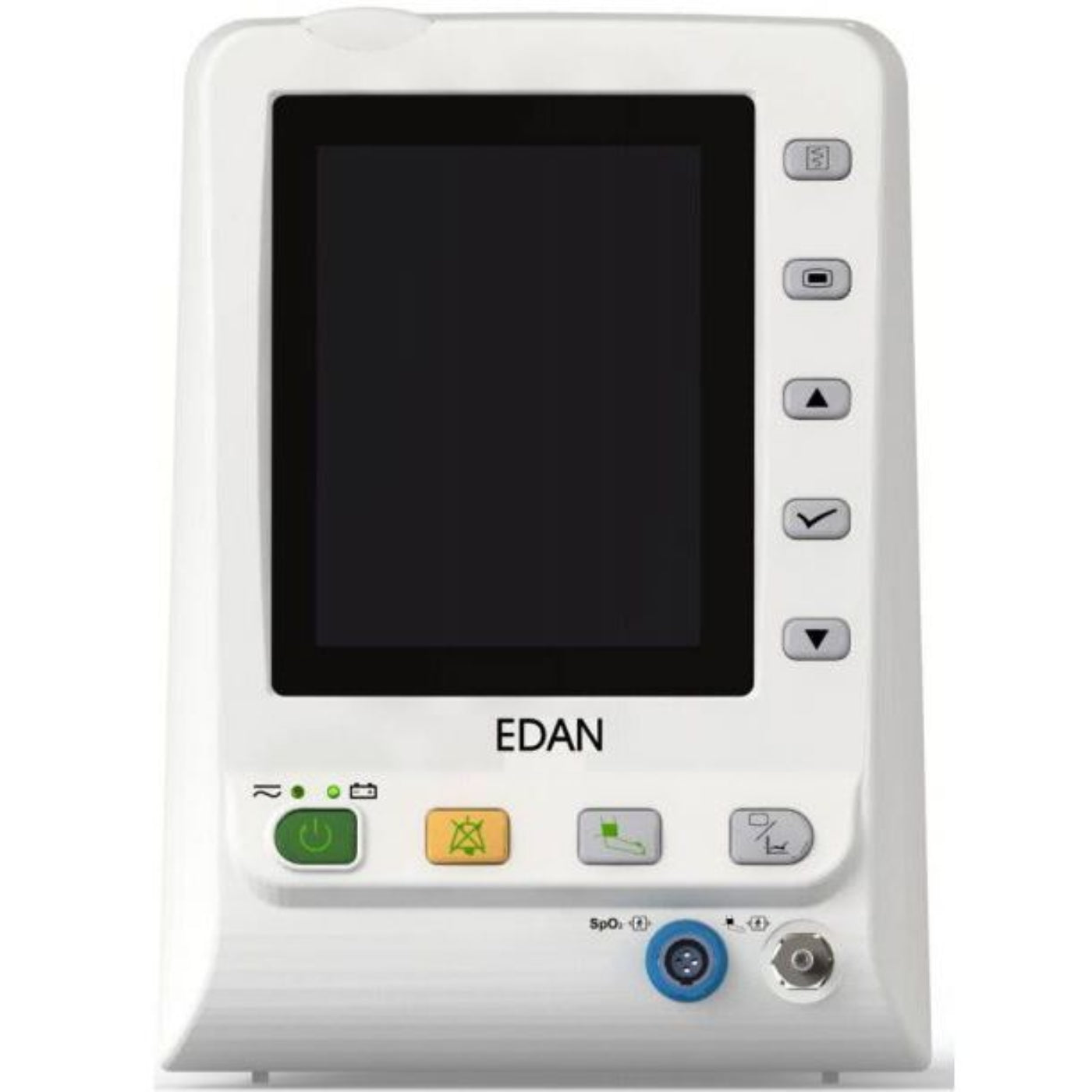

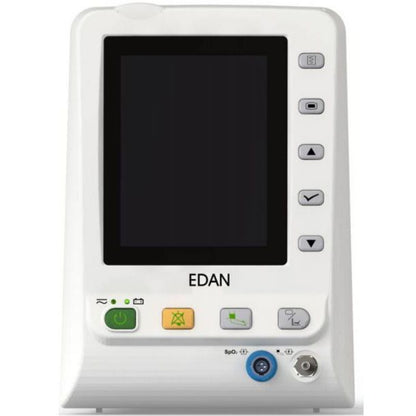

• 5.7" high resolution, full color TFT Screen display for easy reading.
• Lightweight, portable design, and user-friendly interface for easy operation.
• SpO₂, Pulse Rate, NIBP, and fast Temperature measurement.
• Nellcor OxiMax SpO₂.
• Auto/Manual/Continuous/Average BP mode.
• Fast temp thermometer to obtain temperature in approximately 15 seconds.
• Display numeric and waveform information simultaneously.
• Real-time waveform printing.
• Backlight control and standby mode for power saving.
• Nurse call.
• Powerful storage capacity.
• Built-in lithium-ion battery for eight hours of continuous work.
• Suitable for adult, pediatric, and neonatal patients.
• PR measurement (from SpO₂/NIBP).
• Trend table review and record.
• Trend graph review and record.
• USB data storage and review.
• Barcode scanner support.
• Wired and wireless network capability.
• Weight: 6.8 lbs.

Options

Edan M3 Vital Signs Monitor Options

• Configuration:
• #M3_NS (NIBP and SpO₂): Includes all standard accessories.
• #M3_NS-P (NIBP, SpO₂, and Printer): All standard accessories plus a Thermal Printer Kit.
• #M3_NST (NIBP, SpO₂, and Temp): All standard accessories plus an Infrared Ear Temperature Kit (#22.04.240612).
• #M3_NST-P (NIBP, SpO₂, Temp, and Printer): All standard accessories plus an Infrared Ear Temperature Kit (#22.04.240612) and Thermal Printer Kit.

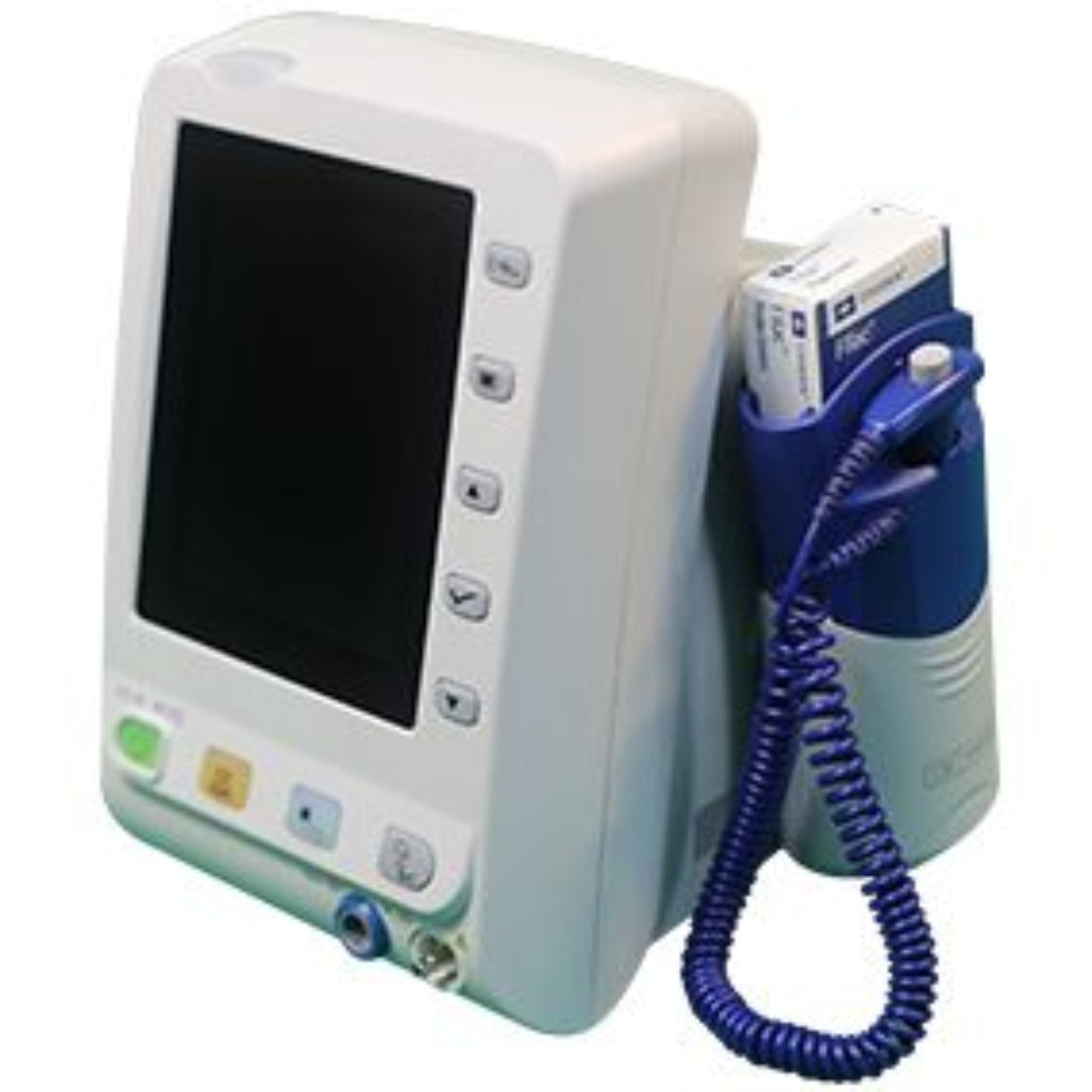

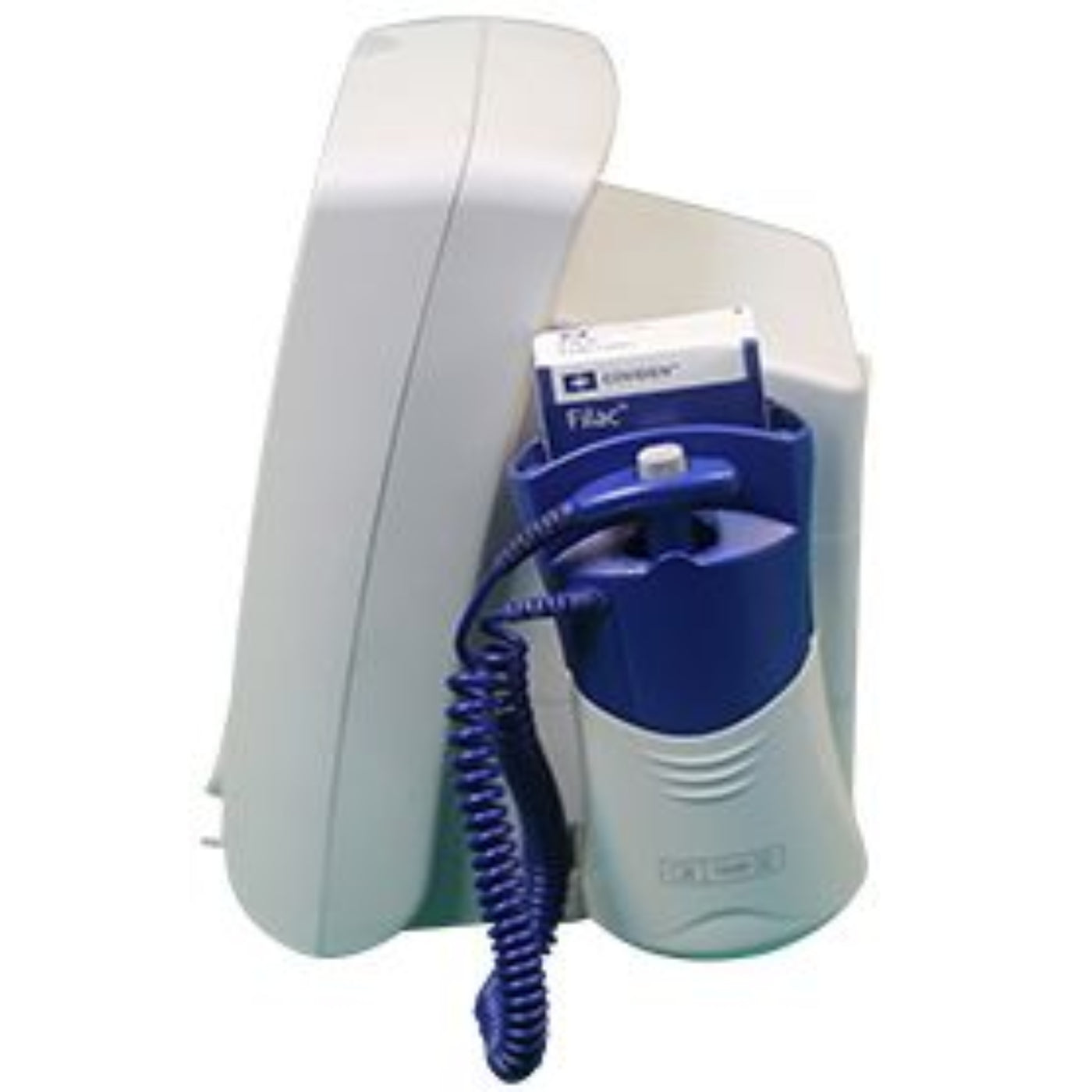

• #M3_NST.C (NIBP, SpO₂, and Covidien Oral Temp): All standard accessories plus a Covidien Oral Temperature Kit.
• #M3_NST.C-P (NIBP, SpO₂, Covidien Oral Temp, and Printer): All standard accessories plus a Covidien Oral Temperature Kit and Thermal Printer Kit.
• Reusable SpO₂ Sensor:
• #12.01.110492-11: Neonate Wrap (Less than 3 kg / 6.6 lbs) Reusable SpO₂ Sensor (DB9, 1 m). To be used on Edan M series monitors with use of an extension cable.
• #02.01.210121-11: Pediatric (10 - 50 kg / 22 - 110 lbs) Reusable Silicone Soft-Tip SpO₂ Sensor (DB9, 1 m). To be used on Edan M series monitors with use of an extension cable.
• #02.01.210119-11: Adult (> 30 kg / > 66 lbs) Reusable SpO₂ Sensor (Lemo, 2.5 m). Compatible with Edan M series patient monitors (Recommended).
• #02.01.210120-11: Adult (> 30 kg / > 66 lbs) Reusable SpO₂ Sensor (DB9, 1 m). To be used on Edan M series monitors with use of an extension cable.
• #02.01.210122-11: Adult (> 30 kg / > 66 lbs) Reusable Silicone Soft-Tip SpO₂ Sensor (DB9, 1 m). To be used on Edan M series monitors with use of an extension cable.
• NIBP Cuff:
• #01.57.040212: Infant (10 - 19 cm) NIBP Cuff, CM 1301.
• #01.57.040211: Child / Small Adult (18 - 26 cm) NIBP Cuff, CM 1302.
• #01.57.040205-13: Adult (25 - 35 cm) NIBP Cuff, CM 1303 (Recommended).
• #01.57.040210-12: Large Adult (33 - 47 cm) NIBP Cuff, CM 1304.

Accessories

 Accessories

The M3 Vital Signs Monitor is commonly purchased with:

• #22.04.240612: Infrared Ear Temperature Kit.
• #12.01.19084: Thermal Printer Upgrading Kit.
• #01.57.78035: Thermal Printing Paper.
• #02.04.240050: Data Management Kit.
• #MT-207: Mobile Stand.
• #02.01.210142: Wall Mount.

Literature

 Literature

Edan M3 Vital Signs Monitor Brochure

Edan M3 Vital Signs Monitor User Manual

What our Experts Think

• Compact & Portable: The Edan M3 Vital Signs Monitor features a lightweight design with a built-in rechargeable battery, ideal for wards, clinics, and patient transport.

• Clear Display: Its 5.7-inch color TFT screen provides sharp, easy-to-read vital sign data for quick clinical assessment.

• Comprehensive Monitoring: Measures SpO₂, NIBP, pulse rate, and temperature — suitable for adult, pediatric, and neonatal patients.

• Data Management Ready: Offers trend tables, USB data storage, and network communication for efficient record handling.

• Reliable & User-Friendly: Simple interface, fast measurement response, and dependable accuracy make it a trusted choice for routine patient monitoring

Q&A

Q: What is the Edan M3?
A: A compact vital signs monitor designed for accurate, real-time patient monitoring.

Q: What parameters does it measure?
A: Monitors SpO₂, NIBP, and temperature for comprehensive vital sign assessment.

Q: Is it portable?
A: Yes, it’s lightweight and easy to move, ideal for bedside or mobile use.

Q: Where can it be used?
A: Suitable for hospitals, clinics, and outpatient facilities.

Q: Why choose the Edan M3?
A: Offers reliable performance, intuitive operation, and accurate monitoring for everyday clinical needs.

Maintenance Tips

• Compact and portable design ideal for spot-check and continuous monitoring.

• Measures NIBP, SpO₂, and temperature with high accuracy and reliability.

• Features bright, easy-to-read color display for clear data visualization.

• User-friendly interface for quick operation in fast-paced clinical settings.

• Provides automatic and manual measurement modes for flexibility.

• Supports adult, pediatric, and neonatal patient monitoring.

• Long-lasting battery life for uninterrupted use during transport or bedside care.

• Includes data storage and review capabilities for up to thousands of records.

• Lightweight and durable—suitable for hospitals, clinics, and mobile care environments.

• Compatible with Edan SpO₂ sensors and accessories for reliable performance.
