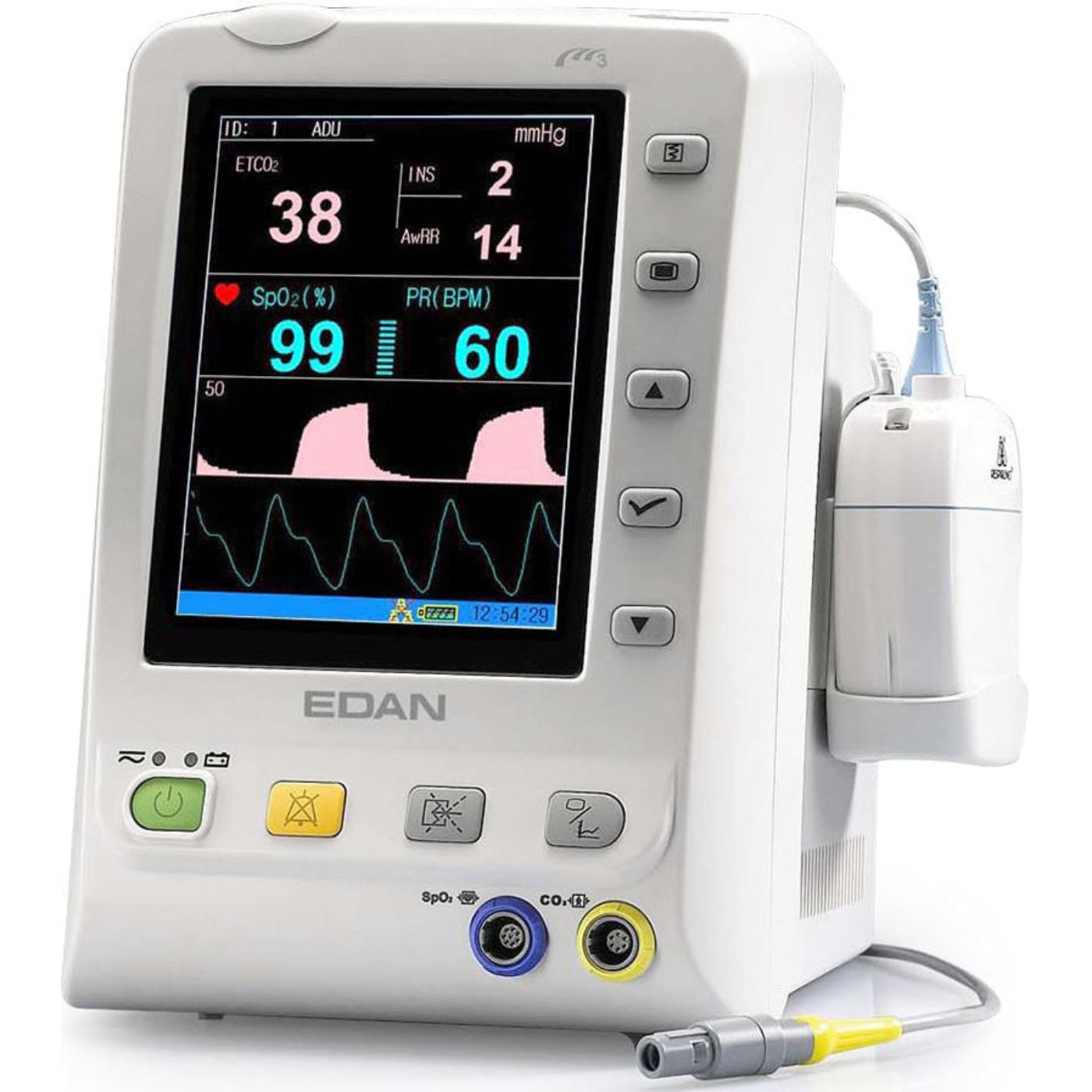

Edan M3B Vital Signs Monitor - EDN-M3B-S
Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.
The M3B ensures effective capnography monitoring for intubated and non-intubated patients for continuous long-term monitoring. With its highly advanced SpO2 and Respironics CO2 monitoring technologies, it is tailored for mechanically ventilated and non-intubated patients.
It is intended for use only under regular supervision of clinical personnel. It is suitable for adult, pediatric, and neonatal patients in a hospital environment and intra-hospital moves.
Features
The Edan M3B Vital Signs Monitor comes standard with:
- Edan Adult Reusable SpO2 Sensor [(Lemo) (#02.01.210119-11)].
- Power Cord [(USA standard) (#01.13.036106)].
- Rechargeable Lithium-ion Battery [(14.8 V, 2.2 Ah) (#21.21.064168)].
- Ground Cable (#11.13.114214).
- User Manual.
Features
- 5.7" high resolution, color TFT screen display for easy reading (640 x 480 resolution).
- Lightweight, portable design and user-friendly interface for easy operation.
- Edan SpO2, Pulse Rate, and Respironics sidestream or mainstream CO2 measurement.
- Backlight control and standby mode for power saving.
- Display numeric and waveform information simultaneously.
- Nurse call.
- Powerful storage capacity.
- Built-in lithium-ion battery for eight hours continuous working.
- Trend table review and record.
- Trend graph review and record.
- USB data storage and review.
- Wired and wireless network capability.
Specifications
Specifications
| Dimensions |
200.8 × 241 × 189 mm (L × H × D) |
| Weight |
6.6 lb (3 kg) |
| Power Supply |
|
| AC Power |
100 – 240 V AC, 50/60 Hz |
| Battery Type |
Lithium-ion |
| Battery Voltage |
14.8 V DC |
| SpO₂ Measurement |
|
| Measurement & Alarm Range |
0 – 100% |
| Resolution |
1% |
| Accuracy |
Adult/Pediatric: ±2% (70–100%), Neonate: ±3% (70–100%) |
| Pulse Rate (PR) Measurement |
|
| Measurement & Alarm Range |
25 – 300 bpm |
| Resolution |
1 bpm |
| Accuracy |
±3 bpm |
| Refresh Rate |
1 s |
Configurations
Respironics LoFlo EtCO2 Side-Stream Module (#M3B.S): Sidestream is most often used for non-intubated patients with the use of nasal or nasal/oral cannulas. However, the Sidestream module can also be used on intubated patients with the use of an airway adapter (typically used for shot term ventilator care - under three days). Sidestream is commonly used in Emergency Medicine and Procedural Sedation. Side-Stream Module includes all standard accessories, plus:
- Respironics Disposable CO2 Nasal Cannula - Adult (#3468ADU-00).
- Respironics Adult/Pediatric Airway Adapter Set With Dehumidification tubing (#3473ADU-00).
- Respironics Disposable Sampling Line Kit with Nafion and Dehumidification Tubing (#3475-00).
- #M3B.S-P: Optional Thermal Printer Kit (#12.01.19084).
Respironics CAPNOSTAT5 EtCO2 Main-Stream Module (#M3B.M): The Mainstream sensor can only be used on patients who are intubated and on ventilators. The CAPNOSTAT Mainstream technology is designed for use for long-term ventilator care, typically longer than three days and up to 30 days or longer. Main-Stream Module includes all standard accessories, plus:
- Respironics Disposable Adult Airway Adapter (#6063-00).
- Respironics Disposable Neonatal Airway Adapter (#6312-00).
- #M3B.M-P: Optional Thermal Printer Kit (#12.01.19084).
Accessories
Accessories
The M3B Vital Signs Monitor is commonly purchased with:
-
#12.01.19084: Thermal Printer Upgrading Kit.
-
#01.57.78035: Thermal Printing Paper for M3, M3B, M50, iM50, and M80 Patient Monitors.
-
#02.04.240050: Data Management Kit.
-
#MT-207: Rolling Stand with upper basket and plate.
Literature
Literature
Edan M3B Capnograph Monitor Brochure
Edan M3B Vital Signs Monitor User Manual
What our Experts Think
-
Comprehensive Monitoring: Tracks SpO₂, pulse rate, and CO₂ (sidestream and mainstream), suitable for a variety of patient conditions.
-
Clear Display: 5.7" high-resolution color screen shows numeric data and waveforms for easy interpretation.
-
Portable & Durable: Lightweight design with a built-in lithium-ion battery supports up to 8 hours of continuous use.
-
Advanced Data Management: Stores trends, supports USB export, and integrates with wired or wireless networks for central monitoring.
-
Versatile Patient Use: Safe for adult, pediatric, and neonatal patients across different clinical environments.
Q&A
Q: What is the Edan M3B Vital Signs Monitor?
A: A compact, reliable monitor that measures key vital signs including SpO₂, pulse rate, NIBP, and temperature for clinical and home use.
Q: What vital signs does it track?
A: Blood oxygen saturation (SpO₂), pulse rate, non-invasive blood pressure (NIBP), and body temperature.
Q: Is it suitable for hospitals or home use?
A: Yes, its portability and ease of use make it ideal for both clinical settings and home monitoring.
Q: What are its main features?
A: High-accuracy sensors, easy-to-read display, battery operation, and compact, portable design.
Q: Why choose the Edan M3B Monitor?
A: Provides reliable, real-time vital sign monitoring, enhancing patient safety and convenience.
Maintenance Tips
-
Clean routinely: Wipe the monitor and sensors with a soft cloth and approved disinfectant; avoid liquid entering ports.
-
Check cables and sensors: Inspect for wear, fraying, or loose connections before each use.
-
Calibrate regularly: Follow manufacturer guidelines to ensure accurate measurements.
-
Battery care: Charge according to instructions and avoid complete discharge to extend battery life.
-
Store safely: Keep in a dry, temperature-controlled environment when not in use.
