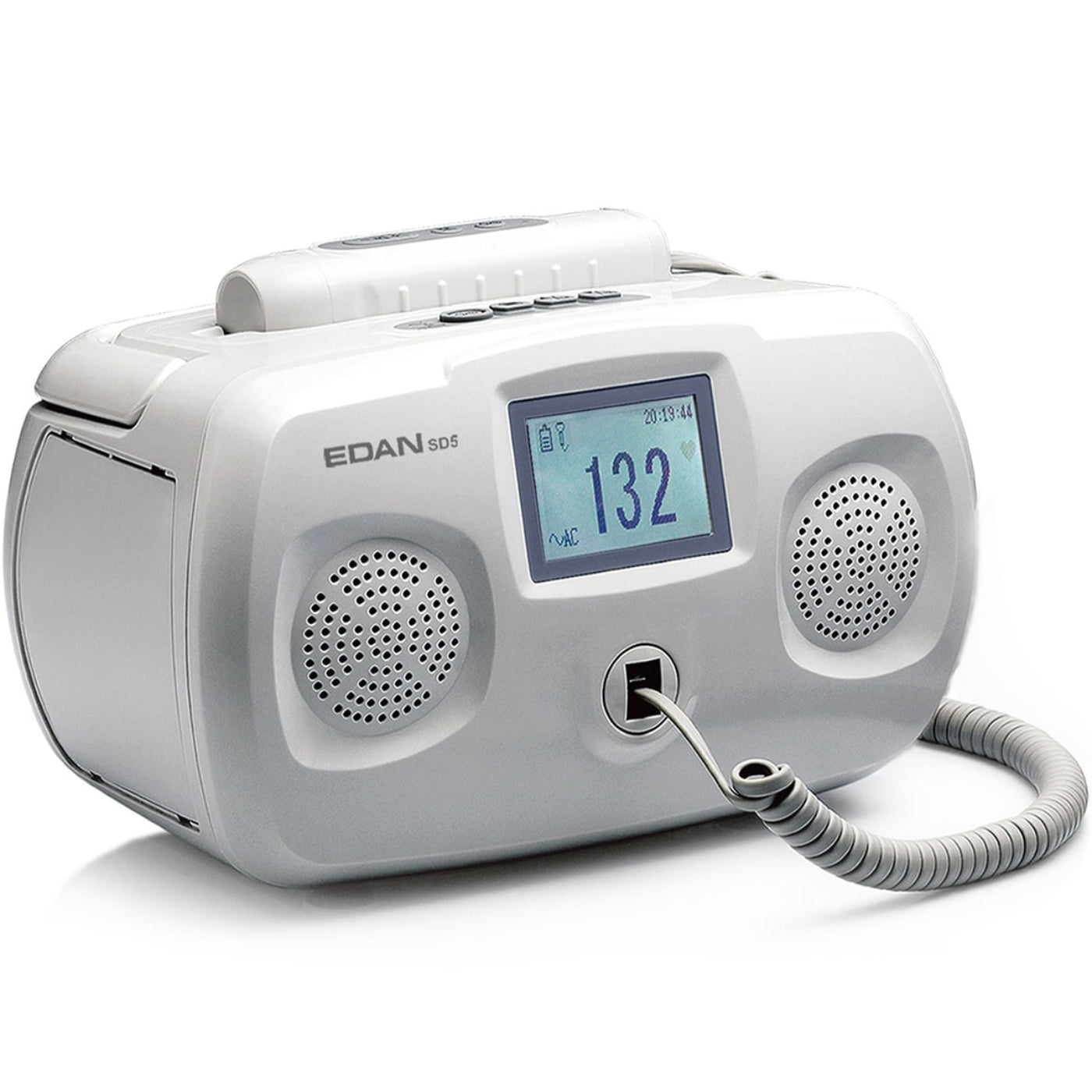

Edan SD5 Ultrasonic Tabletop Doppler - EDN-SD5-12-01-110744
The Ultrasonic Tabletop Doppler SD5 is the innovative development of Edan's fetal Doppler category. The application of infrared transmission technology, remote control probe, along with the brand new design, brings out the SD series to the top of the list.
The SD5 Tabletop Doppler provides unmatched accuracy in FHR detection, while its large digital display of the FHR enables it for the intended antepartum application from the 10th week pregnancy on for midwives, private doctors, general practice, OB office, and L&D outpatient service.
Features
The Edan SD5 Ultrasonic Tabletop Doppler includes:
- Wired Interchangeable Probe of your choice (recommended standard: 2 MHz).
-
#01.13.036108: Probe Cable.
-
#11.57.78008: Ultrasound Gel (CE Mark, 250 g).
-
#01.21.064131: Rechargeable Ni-MH battery for the main unit.
-
#11.13.36015: Power Cord (U.S.A. Standard).
-
#01.21.64074: (2x) T400mA 250 V Fuses.
- Quick Reference Card.
- User Manual.
 Features
- Convenient remote control probe.
- Eye-catching backlight 2.7" LCD screen.
- Accurate FHR calculation.
- Built-in recorder.
- Dual high-fidelity speakers.
- Built-in, long lasting rechargeable battery for the main unit.
- Auto shut off for no signal or no operation.
- Backlight display.
- Display features battery status, auto probe detection, and signal strength indication.
- Portable and lightweight design.
- Complete carting and mounting solution.
- Low battery indication.
- Optional security lock.
Specifications
 Specifications
| Main Unit Dimensions |
265 Ă— 155 Ă— 180 mm |
| Probe Dimensions |
140 Ă— 40 Ă— 32 mm |
| Main Unit Weight |
3.75 lb (1.7 kg) with battery and probe |
| Probe Weight |
95 g |
| Power Supply |
AC 100–240 V, 50/60 Hz; DC 7.2 V (Ni-MH battery) |
| Battery Life |
>10 hours continuous operation |
| Display Area |
62 Ă— 44 mm |
| Display Resolution |
128 Ă— 64 pixels |
| Backlight |
White, adjustable (Off/On) |
| FHR Range |
50–210 bpm |
| FHR Resolution |
1 bpm |
| FHR Accuracy |
±3 bpm |
| Recording Length |
240 s |
| Audio Output Power |
2 W |
| Earphone Jack |
3.5 mm |
| Auto Shut-Off |
1 min / 3 min (no signal or operation) |
| Ultrasound Probe Frequency |
2 MHz ±10% (2 MHz probe), 3 MHz ±10% (3 MHz probe) |
 Literature
Edan SD5/SD6 Ultrasonic TableTop Doppler User Manual
Edan SD5/SD6 Ultrasonic TableTop Doppler Brochure
What our Experts Think
-
Enhanced Accuracy: The Edan SD5 Ultrasonic Tabletop Doppler provides precise fetal heart rate (FHR) detection with a range of 50–210 bpm and ±3 bpm accuracy, ensuring reliable monitoring from the 10th week of pregnancy onward.
-
User-Friendly Interface: Features a 2.7-inch backlit LCD screen displaying large digital FHR readings, along with battery status, probe detection, and signal strength indicators for ease of use.
-
Dual High-Fidelity Speakers: Equipped with built-in speakers that deliver clear audio, and includes a headphone jack for use in noisy environments.
-
Portable Design: Weighs approximately 1.7 kg (including battery and probe), with a rechargeable Ni-MH battery providing over 10 hours of continuous operation, making it suitable for mobile use.
-
Interchangeable Probes: Compatible with 2 MHz and 3 MHz wired probes, allowing flexibility to choose the appropriate probe based on the stage of pregnancy and patient requirements.
-
Built-In Recorder: Includes a built-in recorder to document FHR sounds, aiding in patient records and enhancing diagnostic reliability.
-
Auto Shut-Off Feature: Automatically powers down after 1 or 3 minutes of inactivity or no signal, conserving battery life and ensuring readiness for the next use.
-
Mounting Options: Offers optional carting and mounting solutions for convenient placement in clinical settings.
Q&A
Q: What is the Edan SD5?
A: A tabletop ultrasonic Doppler device designed for non-invasive fetal heart rate monitoring.
Q: What does it measure?
A: Detects and monitors fetal heart rate and blood flow using ultrasound technology.
Q: Is it easy to use?
A: Yes, features a compact, user-friendly design ideal for quick assessments.
Q: Where is it commonly used?
A: Suitable for hospitals, clinics, and prenatal care settings.
Q: Why choose the SD5 Doppler?
A: Provides reliable, safe, and accurate fetal monitoring for patient care.
Maintenance Tips
-
Tabletop Doppler system for non-invasive fetal and vascular assessments.
-
Provides clear, high-quality audio signals of fetal heart rate and blood flow.
-
Compact and portable design for clinic or bedside use.
-
Simple user interface with intuitive controls for easy operation.
-
Supports multiple probe types for adult, pediatric, and fetal applications.
-
Equipped with volume control and adjustable signal sensitivity.
-
Reliable for prenatal monitoring, peripheral vascular assessments, and spot-checks.
-
Durable medical-grade construction for long-term clinical use.
-
Quick setup with plug-and-play functionality.
