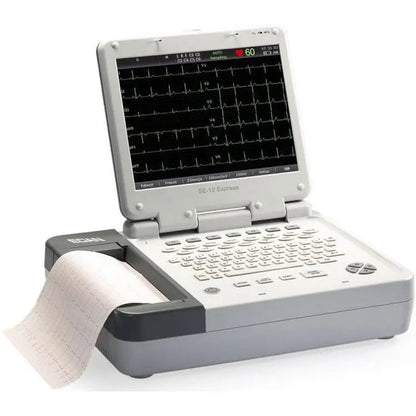

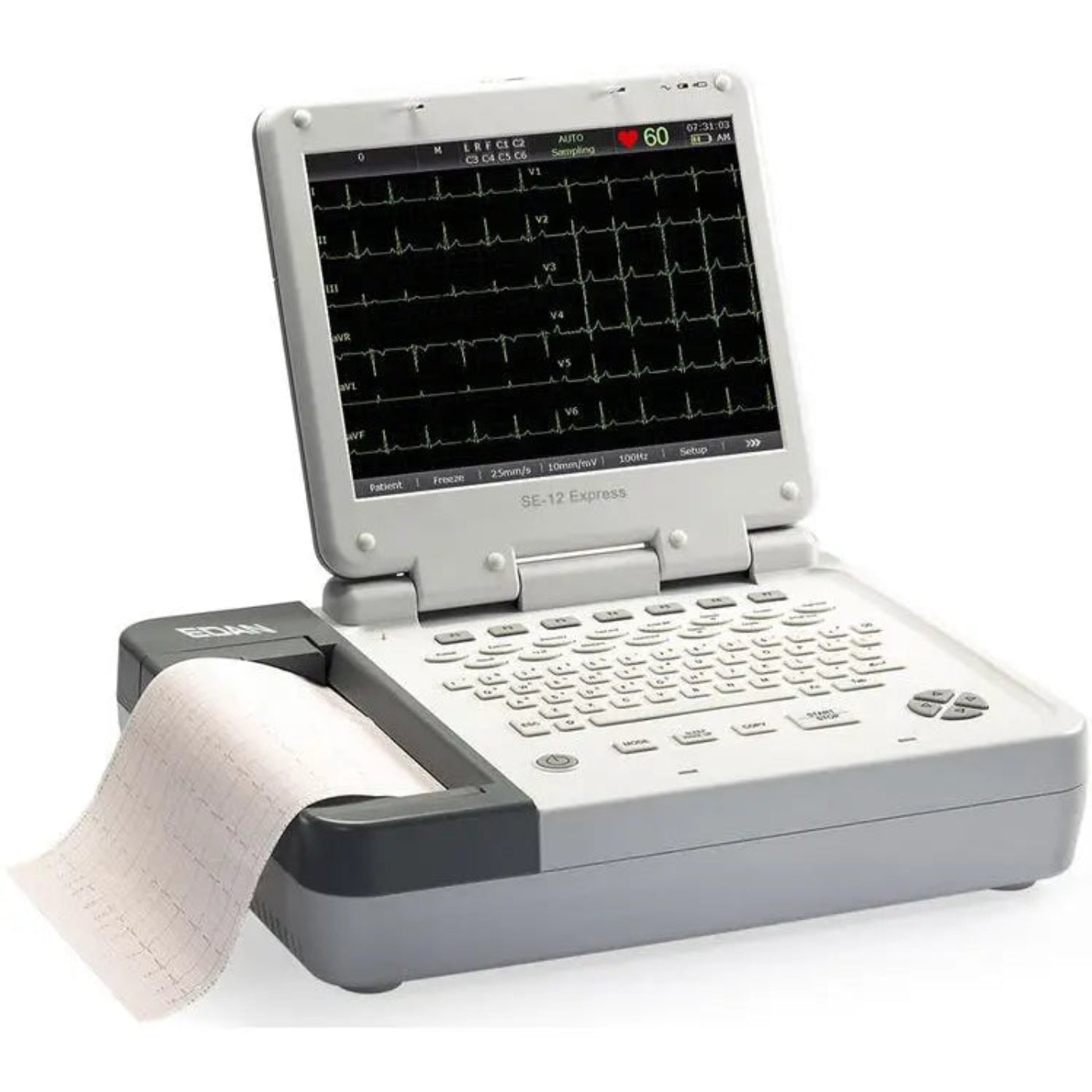

Edan SE-12 Express 12-Channel ECG - EDN-SE-12E
The Edan SE-12 Express 12-Channel ECG (#SE-12E) includes standard accessories such as:
The SE-12 Express 12-Channel ECG is a special smart ECG system that supports both resting ECG and exercise ECG with high performance and reliable analysis. The recorded cardiogram can help users to analyze and diagnose heart disease.
The electrocardiograph is only intended to be used in hospitals or healthcare facilities by doctors and trained healthcare professionals.
- ECG Cable and Electrodes:
- ECG Cable [(4 mm, banana connector, AHA) (#01.57.107048)].
- Bio ProTech Resting Tab Electrodes (#PT-2334).
- Unomedical 10-Lead Universal Clips (#0334).
- Recording Paper [(Z-fold, 210 mm x 295 mm x 100 P) (#SE-12P)].
- Power:
- Power Cord [(USA Standard) (#01.13.036106)].
- Rechargeable Lithium Battery [(2200 mAH) (#21.21.064149)].
- Fixed Bar for Battery (#11.51.32501).
- Fuse [(1 A) (#11.21.64073)].
- User Manual.
- Quick Reference Card.
- User Guide for Interpretation.
Features
- User-Friendly Design:
- 12.1" high-resolution foldable color TFT touch-screen with grid display.
- Full alphanumeric keyboard.
- Streamlined Workflow:
- One touch operation with age and gender shortcuts.
- Supports barcode scanner to simplify workflow.
- Accurate Clinical Performance:
- Weak signal detection with the most advanced 24 bits A/D converter technology.
- Anti-noise technology with comprehensive filters and the high CMRR over 115 dB.
- 120 seconds ECG waveform freeze and review to assist your diagnosis.
- Waveforms and auto-diagnosis results preview before printing.
- Automatic measurement and interpretation tested with authoritative CSE/AHA/MIT database.
- Automatic arrhythmia detection and recording.
- Flexible Printing Solutions:
- Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper.
- External USB printer support.
- Data Management:
- 200 ECGs internal memory which can be enlarged by USB flash disk.
- PC-based data management and measurement software "Smart ECG Viewer" (optional).
- Extensive Communications:
- Ethernet and RS-232 interface for data transmission to PC.
- Standard ECG Formats: PDF, SCP, FDA-XML, and DICOM data export.
- Bi-directional data communication with DMS.
- ST analysis and reports.
- Complete digital filters, resisting baseline drift, AC, and EMG interference.
- Built-in rechargeable Lithium battery, AC/DC supply.
- Sleep mode for saving energy and extending LCD life.
- Heart rate variability (HRV) analysis.
-
Stress Test (optional):
- Various treadmills or bicycles, as well as the Suntech tango+ exercise blood pressure monitor are supported.
- Specific function keys for Exercise ECG test.
- Customized exercise protocols.
- Trolley and cable bracket (optional).
Literature
Edan SE-12 Series Electrocardiograph User Manual
Edan SE-12 Express Twelve-Channel ECG Brochure
What our Experts Think
-
Dual ECG Capability: Supports both resting and exercise ECGs, making it versatile for various clinical settings.
-
High-Resolution Display: Features a 12.1" foldable color TFT touch-screen for clear waveform visualization.
-
Advanced Signal Processing: Utilizes a 24-bit A/D converter with comprehensive digital filters to minimize noise and baseline drift.
-
Comprehensive Data Storage: Offers internal memory for 200 ECGs, expandable via USB flash drive.
-
Connectivity Options: Equipped with Ethernet and RS-232 interfaces for seamless data transmission.
-
Optional Stress Test Kit: Supports various treadmills, bicycles, and the Suntech Tango+ exercise blood pressure monitor.
-
User-Friendly Interface: Includes a full alphanumeric keyboard and one-touch operation for efficient workflow.
-
Battery-Powered Operation: Built-in rechargeable lithium battery allows for portability and continuous use.
Q&A
Q: What is the Edan SE-12 Express ECG?
A: A 12-channel electrocardiograph designed for fast, accurate cardiac diagnostics in clinics and hospitals.
Q: How many channels does it support?
A: Provides 12 simultaneous ECG channels for comprehensive heart monitoring.
Q: What are its main features?
A: High-resolution display, fast recording, automatic interpretation, and compact, portable design.
Q: Who can use the SE-12 Express?
A: Suitable for cardiologists, general practitioners, and clinical staff requiring reliable ECG readings.
Q: Why choose the Edan SE-12 Express ECG?
A: Delivers precise, rapid ECG measurements, enhancing workflow efficiency and patient care.
Maintenance Tips
-
Clean regularly: Wipe the device and leads with a soft cloth and approved disinfectant; avoid liquid entering ports.
-
Inspect cables and electrodes: Check for wear, fraying, or loose connections before each use.
-
Calibrate periodically: Follow manufacturer guidelines to ensure accurate ECG readings.
-
Battery care: Charge according to instructions and avoid full discharge to extend battery life.
-
Store properly: Keep in a dry, temperature-controlled environment when not in use.
