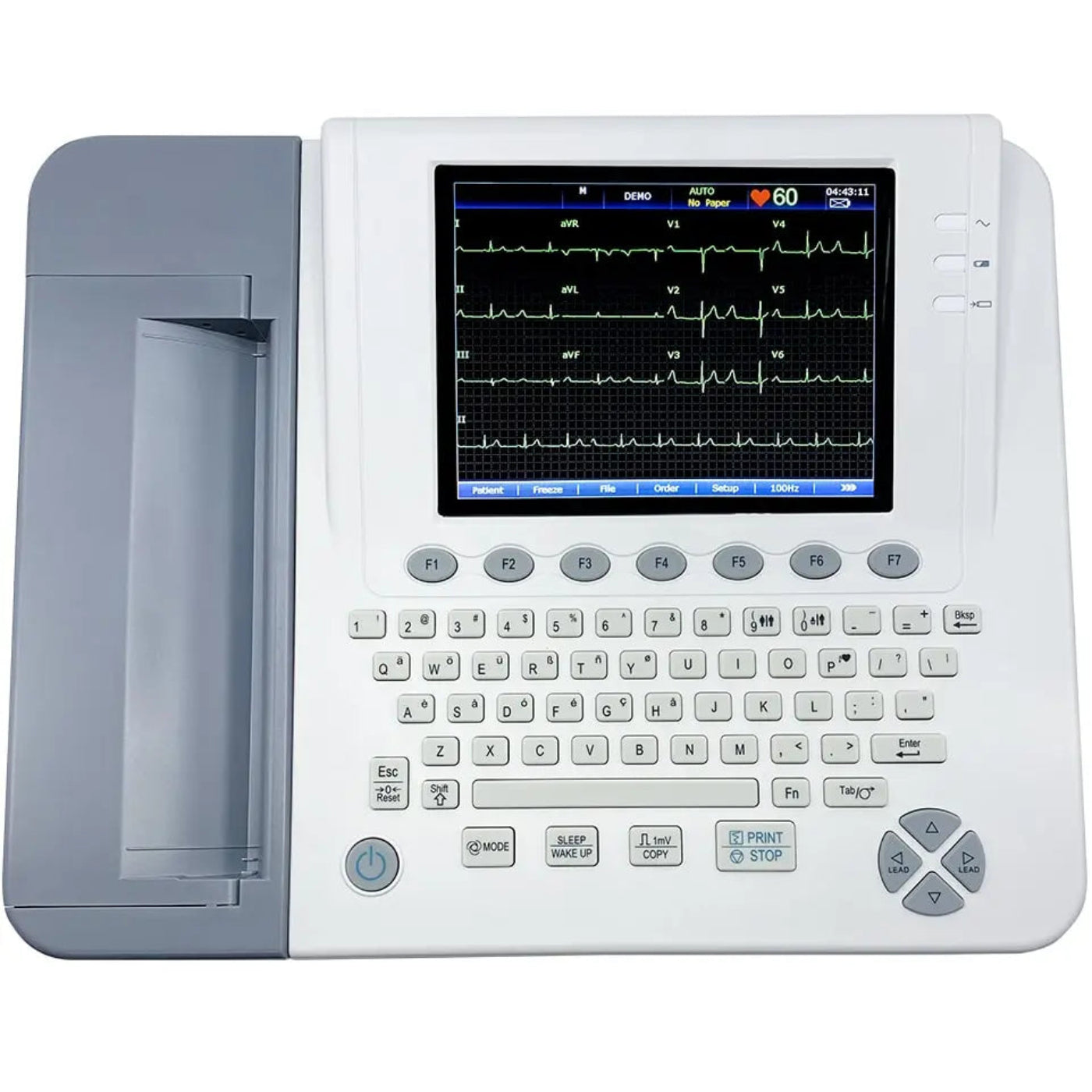

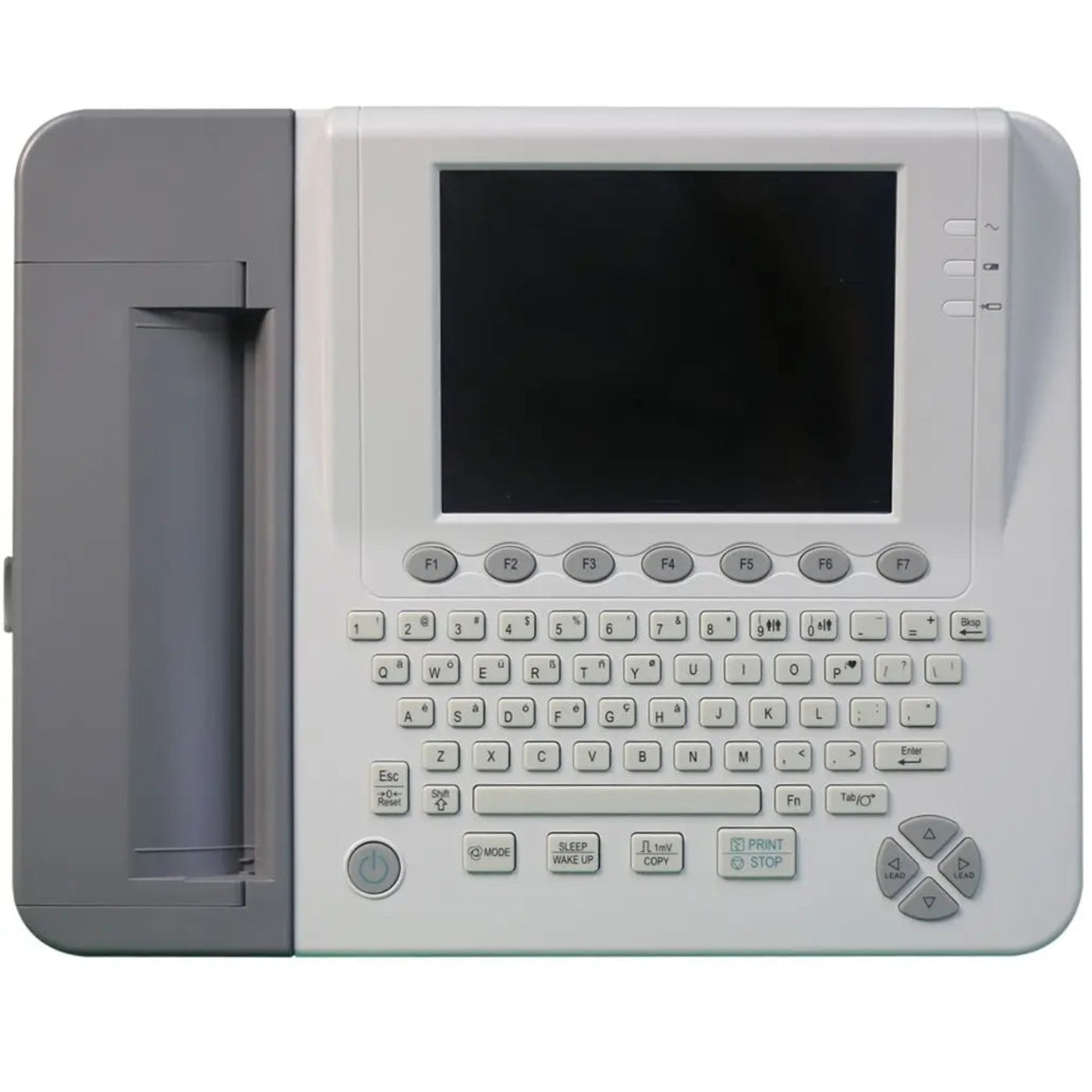

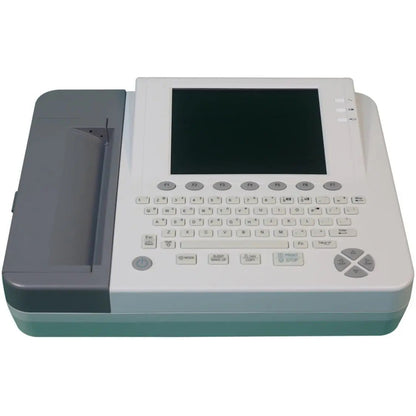

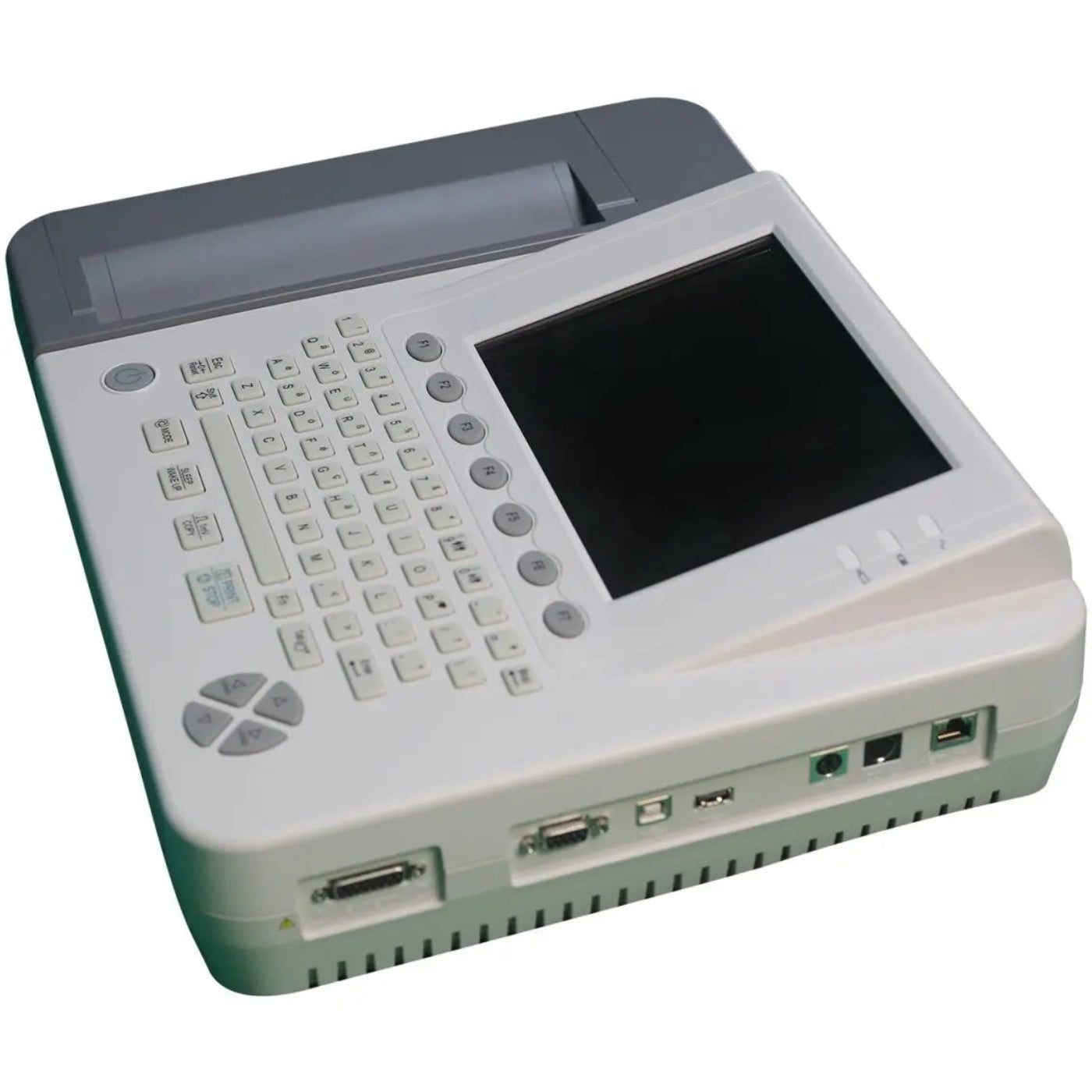

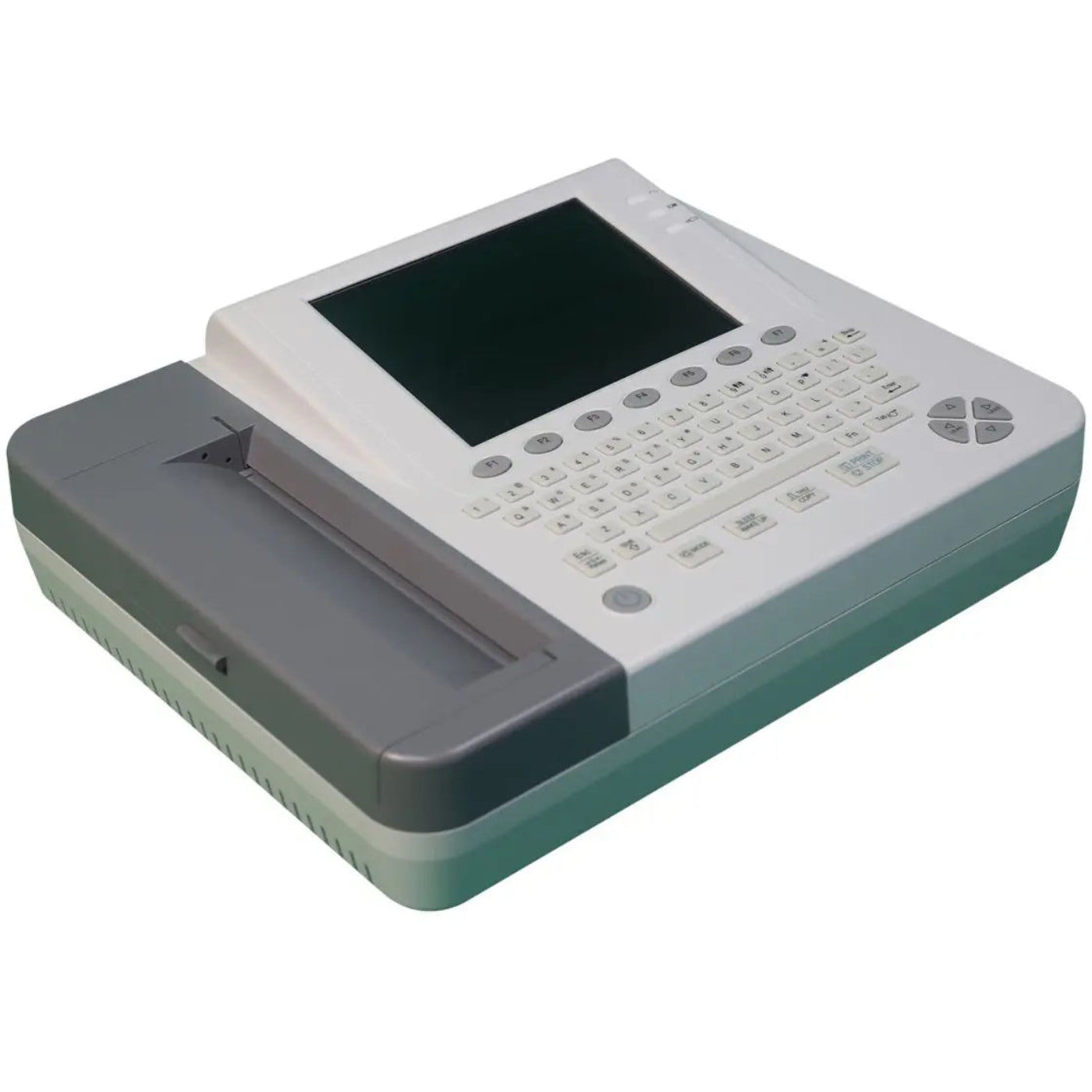

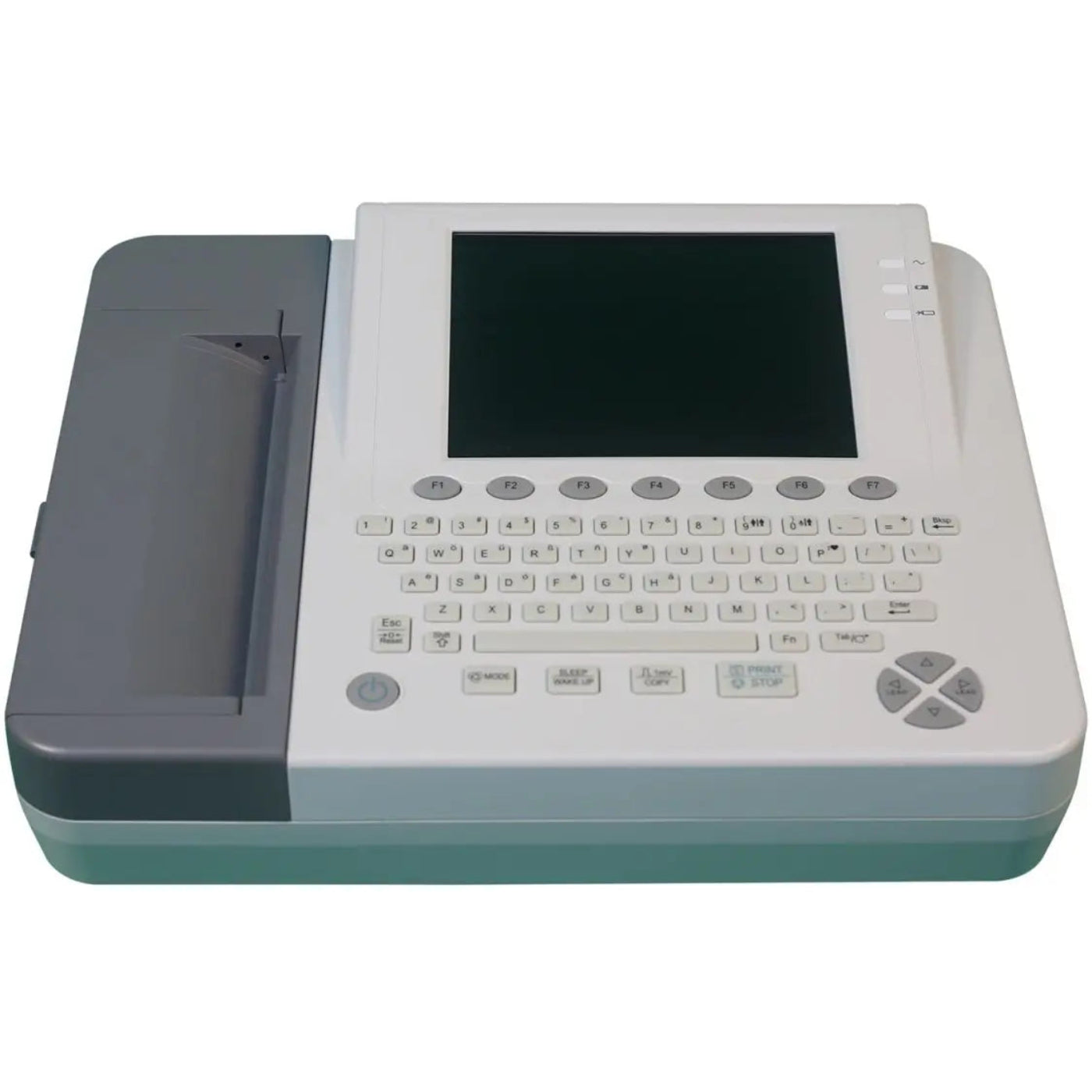

Edan SE-1200 Express Basic 12-Channel ECG - EDN-SE-1200EB
-
#01.57.471614: ECG Cable (4 mm, banana connector).
-
#PT-2334: (100x) Bio ProTech Resting Tab Electrodes.
-
#0334: (10x) Unomedical 10-Lead Universal Clips.
-
#SE-12P: Recording Paper (Z-fold, 210 mm x 295 mm x 100 P).
-
#01.13.036106: Power Cord (USA standard).
-
#21.21.064149: Rechargeable Lithium Battery (2200 mAH).
-
#11.51.32501: Fixed Bar for Battery (necessary accessory for 2200 mAH battery).
-
#11.21.64073: (2x) Fuses (1 A).
- User Manual.
- Quick Reference Card.
- User Guide for Interpretation.
Features
- User-Friendly Design:
- 8" LCD screen for optimal viewing.
- Alphanumeric keyboard.
- Onboard PDF creator to transmit data to USB.
- Built-in rechargeable Lithium battery, AC/DC supply.
- Expert Communications:
- Auto analyzing and diagnostic software.
- Glasgow Interpretation.
- Preview/printing for waveform and analysis.
- Wifi Module for use with SE-1515 Software.
- 800 ECG memory.
- Streamlined Workflow:
- One touch operation with age and gender shortcuts.
- Support barcode scanner to simplify workflow (optional).
- Accurate Clinical Performances:
- Enhanced weak signal detection with the most advanced 24 bits A/D converter technology.
- Anti-noise technology with comprehensive filters and the high CMRR over 115 dB.
- 120s real-time ECG waveforms freezing and review to assist your diagnosis.
- Automatic measurements and interpretation tested by CSE/AHA/MIT database and advanced SEMIP algorithm.
- Extended printing once arrhythmia is detected to further rhythm analysis.
- Integrated advanced ECG analysis (Vector ECG).
- Flexible Printing Solutions:
- Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper.
- External USB printer support.
Specifications
Specifications
| Weight |
11 lb (5 kg) excluding recorder paper and battery |
| Dimensions |
16.5" × 13" × 4.7" (420 × 330 × 120 mm) |
| Display |
8" multicolor LCD, 800 × 600 pixels |
| Power Supply |
|
| Mains Voltage |
100–240 V AC |
| Frequency |
50 / 60 Hz |
| Input Current |
0.9 – 0.4 A |
| Battery |
|
| Type |
Internal Li-ion battery pack |
| Rated Voltage |
14.8 V |
| Capacity |
2500 / 5000 mAh |
| Operating Time |
1.5 / 2.5 hours continuous printing (≈300 / 450 ECGs) |
| Charging Time |
3 / 6 hours |
| Recording System |
|
| Recorder Type |
Thermal dot-matrix recorder |
| Printing Density |
Amplitude: 8 dots/mm (200 dpi); Time: 40 dots/mm (1000 dpi @ 25 mm/s) |
| Recorder Paper |
SE-12P Z-Fold Thermal Paper (210 mm × 295 mm × 100 pages) |
| Paper Speed |
5, 6.25, 10, 12.5, 25, 50 mm/s |
| External Printer Compatibility |
HP 1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525 |
| Heart Rate Measurement |
|
| HR Range |
30 – 300 BPM |
| Accuracy |
±1 BPM |
| ECG Acquisition |
|
| Leads |
12 standard leads (simultaneous acquisition) |
| A/D Converter |
24-bit |
| Resolution |
2.52 µV/LSB |
| Time Constant |
≥ 3.2 s |
| Frequency Response |
0.01 – 300 Hz (−3 dB) |
| Gain |
1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC |
| Input Impedance |
≥ 100 MΩ (at 10 Hz) |
| Input Circuit Current |
≤ 0.01 µA |
| Input Voltage Range |
≤ ±5 mVpp |
| Calibration Voltage |
1 mV ± 2% |
| CMRR (AC On / Off) |
≥ 140 dB / ≥ 123 dB |
| Sampling Frequency |
16,000 Hz |
| Pacemaker Detection |
|
| Amplitude |
±750 µV to ±700 mV |
| Width |
50 µs to 2.0 ms |
| Filters |
|
| AC Filter |
50 / 60 Hz |
| Drift Filter (DFT) |
0.01 / 0.05 / 0.15 / 0.25 / 0.32 / 0.5 / 0.67 Hz |
| EMG Filter |
Off / 25 / 35 / 45 Hz |
| Low-pass Filter |
300 / 270 / 150 / 100 / 75 Hz |
| Data & Connectivity |
|
| Report Formats |
PDF, XML, DICOM, FDA-SCP |
| Data Transmission |
Wi-Fi, Ethernet, RS-232 |
| Management Software |
SE-1515 Data Management System (bi-directional) |
| HIS Connectivity |
DICOM Worklist, DICOM Storage, HL7, GDT |
| Wi-Fi Module |
|
| Frequency Band |
2400 – 2497 MHz |
| Modulation Type |
DSSS, CCK, OFDM |
| Transmission Power |
6 – 17 dBmup to 15°) |
Literature
Edan SE-1200 Express Basic/SE-1200 Express 12-Channel ECG Brochure
Edan SE-1200 Express Basic Electrocardiograph Spec Sheet
Edan SE-1200 Series Electrocardiograph User Manual
What our Experts Think
-
Comprehensive ECG Analysis: Equipped with Glasgow interpretation and advanced diagnostic software, the SE-1200EB provides detailed insights into cardiac health.
-
User-Friendly Interface: Features an 8.4" LCD screen and alphanumeric keyboard, ensuring ease of use for healthcare professionals.
-
Efficient Data Management: Offers 800 ECG memory with USB export capabilities, facilitating seamless data storage and transfer.
-
Wireless Connectivity: Includes built-in Wi-Fi for convenient data transmission and integration with other medical systems.
-
Portable and Reliable: Designed with a rechargeable lithium battery, making it suitable for both stationary and mobile clinical environments.
-
Enhanced Diagnostic Features: Supports 12-lead simultaneous acquisition with a 24-bit A/D converter, ensuring high-quality ECG recordings.
-
Optional Touchscreen: An optional touchscreen interface is available for those preferring a more interactive user experience.
