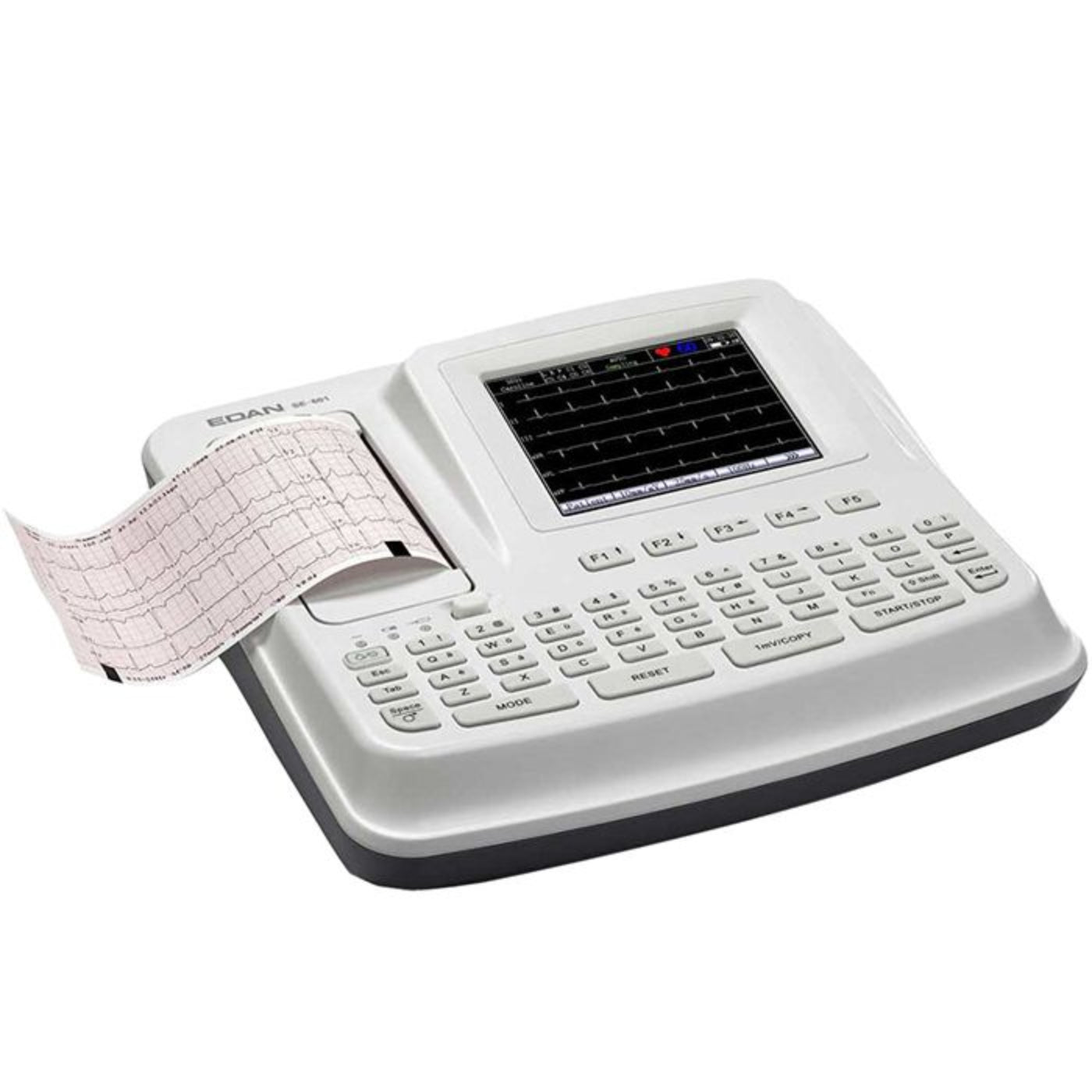

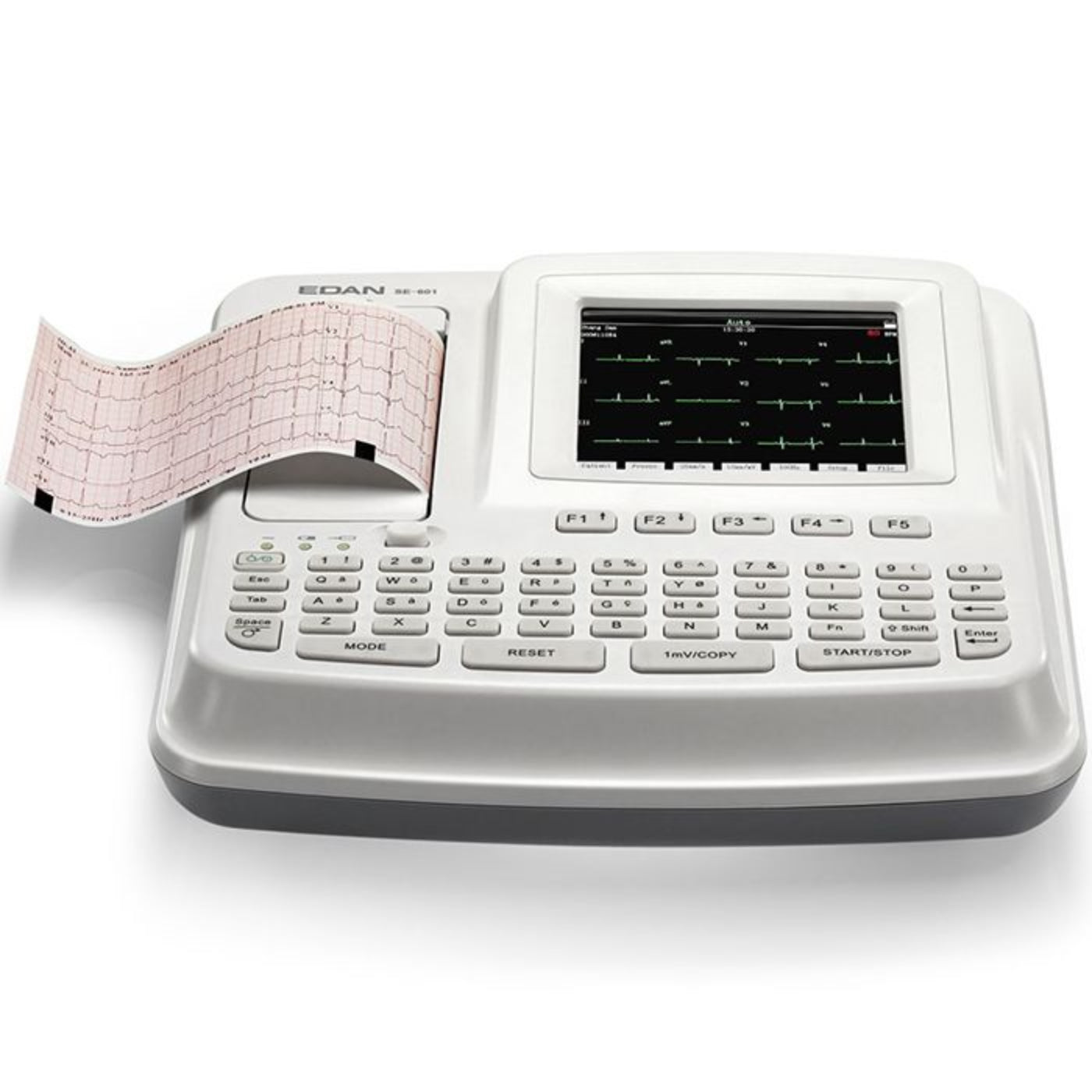

Edan SE-601 6-Channel ECG - EDN-SE-601A
The Edan SE-601 6-Channel ECG includes:The SE-601 series is a cost-effective solution for hospital wards, routine checks, home visit, and emergency cases. It is intended to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes. The cardiogram recorded by the electrocardiograph can help users to analyze and diagnose heart disease.
- ECG Cable [(4 mm, banana connector, AHA) (#01.57.471017)].
- (100) Bio ProTech Resting Tab Electrodes (#PT-2334).
- (10) Unomedical 10-Lead Universal Clips (#0334).
- Recording Paper [(Z-fold, 110 mm x 140 mm x 144 p) (#SE-601P)].
- Power Cord [(USA Hospital Grade) (#01.13.036106)].
- Rechargeable Lithium Battery [(2200 mAH) (#01.21.064114)].
- (2) Fuses [(T400 mA, USA standard) (#01.21.64074)].
- User Manual.
- Quick Reference Card
Features
Edan SE-601 6-Channel ECG Features
- FDA Approved.
- Heart rate variability (HRV) and R to R Trending analysis.
- Auto analyzing and Diagnostic software (Interpretation).
- Portable, lightweight design.
- Easy data input and operation.
- Alphanumeric keyboard and one-touch operation.
- Built-in rechargeable battery, AC/DC power supply.
- Pacemaker detection which meet the requirements of ANSI/AAMI EC11.
- Automatic analysis and diagnostic software for adults and pediatrics.
- Two-step exercise test with periodic recording.
- Built-in internal thermal printer and external printer.
- Support external archiving: USB flash disk, card reader.
- Data transmission to PC via Ethernet or serial port.
Literature
Edan SE-601 6-Channel ECG Literature
Edan SE-601 Series Electrocardiograph User Manual
Edan SE-601 Series Multi-channel ECG Brochure
What our Experts Think
-
Comprehensive 12-Lead Acquisition: Simultaneous 12-lead recording with 6-channel thermal printing ensures precise and detailed ECG results.
-
Advanced Diagnostic Features: Includes automatic analysis for adults and pediatrics, pacemaker detection, HRV, and R-to-R trend analysis for accurate diagnostics.
-
Versatile Display Options: Available in multiple models with 3.5" or 5.7" LCD displays, including color options to suit clinical preferences.
-
Robust Connectivity: Supports Ethernet, RS232, and external archiving via USB for efficient data management.
-
Portable and User-Friendly: Built-in rechargeable Li-ion battery provides up to 6 hours of use, ideal for mobile or clinical applications.
Q&A

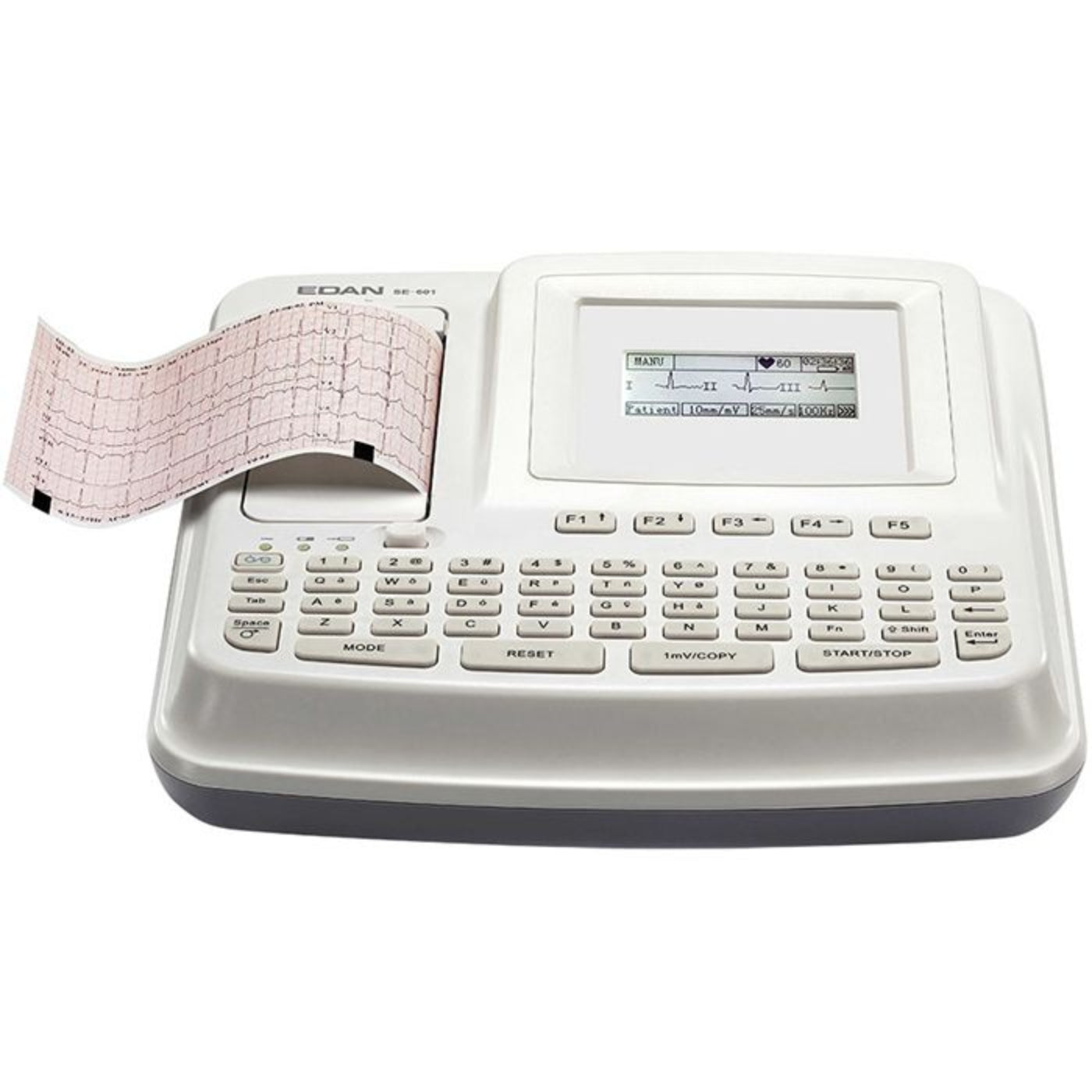

Q: What is the Edan SE-601A?
A portable, 6-channel electrocardiograph designed for both clinical and mobile use.
Q: What display does the SE-601A have?
3.5" STN LCD screen with a resolution of 192×64 pixels.
Q: How many ECGs can it store?
Internal memory for up to 50 ECGs.
Q: What power options are available?
Built-in rechargeable Li-ion battery (2200mAh, 14.8V), AC (100-240V), and 12V vehicle inverter.
Q: What printing capabilities does it offer?
Internal thermal printer with adjustable paper speeds (5–50 mm/s).
Q: Can it transmit data?
Yes, via Ethernet and RS232 interfaces.
Q: Is it suitable for pediatric use?
Yes, it includes automatic analysis and diagnostic software for both adults and pediatrics.
Maintenance Tips
-
Regular Cleaning: Wipe the exterior with a soft, lint-free cloth dampened with 70% isopropyl alcohol or mild detergent. Avoid abrasive materials.
-
Battery Care: Recharge before full depletion to extend battery life. Ensure proper charging when connected to mains.
-
Paper Handling: Use only approved thermal paper. Store in a cool, dry place away from direct sunlight.
-
Electrode Maintenance: Clean reusable electrodes after each use. Keep suction bulbs away from heat and sunlight.
-
Visual Inspections: Check cables, connectors, and the keypad regularly for wear, damage, or debris.
-
Storage Conditions: Store in a dry, dust-free environment when not in use to protect internal components.
-
Software Updates: Periodically update firmware to maintain performance and features.
