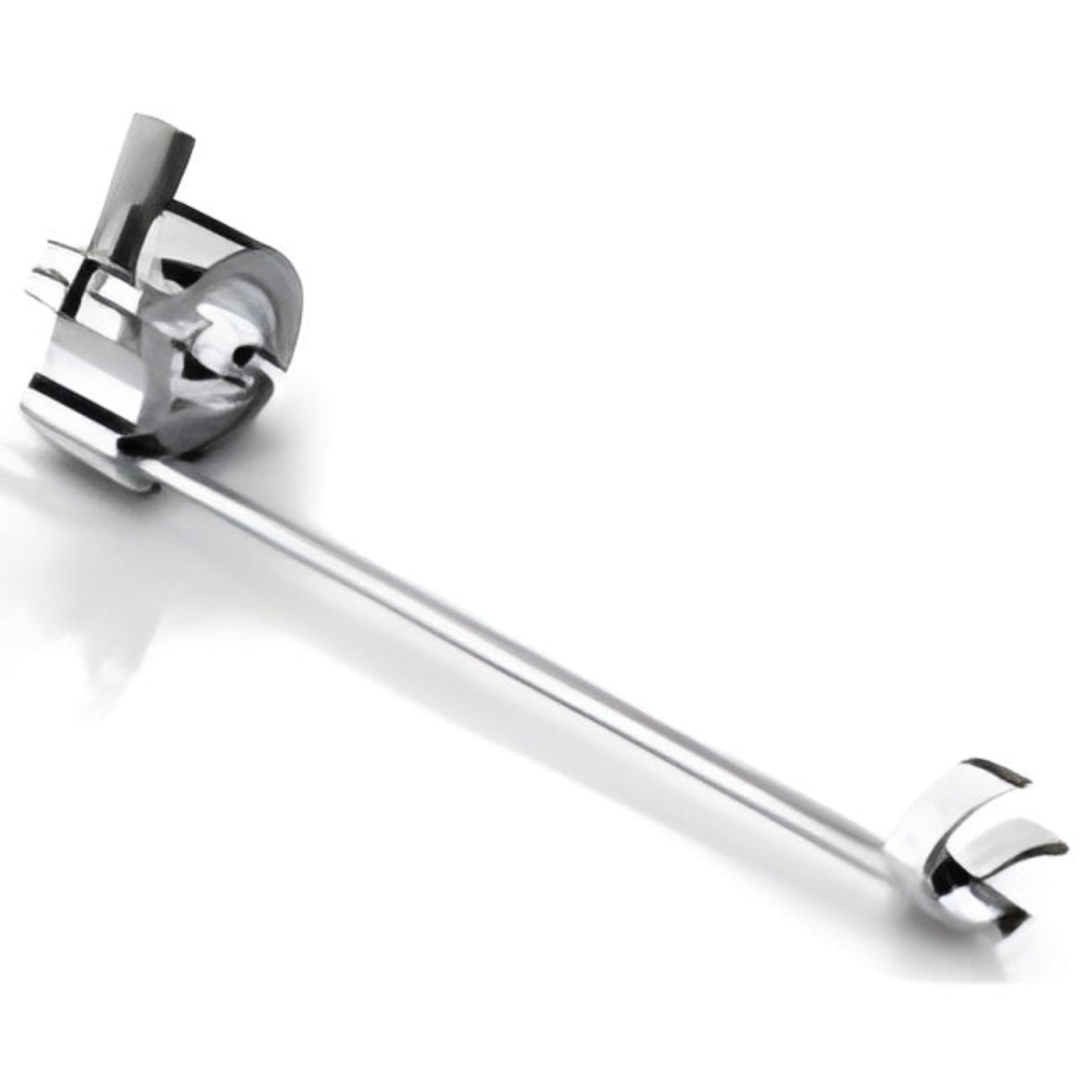

Edan Transvaginal Transducer Needle Guide Bracket - EDN-02-01-102963-11
The Edan Transvaginal Transducer Needle Guide Bracket (BGK-CR10UA) is designed for use with the DUS 60 (#DUS60) and U50 Prime diagnostic ultrasound systems. The versatile unit is also compatible with previous models, such as the DUS 3, D3, D6, and U50.
Configurations
Edan Transvaginal Transducer Needle Guide Bracket Configurations
-
#02.01.102963-11: For Transvaginal Transducer E613UA (for use with DUS 60 System). Also compatible with E611-1 (#12.01.102578) and E613 (#12.01.102588).
-
#02.01.102963-12: For Transvaginal Transducer E612UB (#02.01.210400-11) (for use with U50 Prime System).
What our Experts Think
-
Precision in Biopsy Procedures: The Edan Transvaginal Transducer Needle Guide Bracket (Model: EDN-02-01-102963-11) is engineered to facilitate accurate needle guidance during transvaginal ultrasound procedures, enhancing the precision of biopsies and injections.
-
Compatibility with DUS 60 System: Specifically designed for use with the Edan DUS 60 ultrasound system, ensuring seamless integration and optimal performance.
-
Versatile Transducer Support: Compatible with various Edan transvaginal transducers, including E613UA, E611-1, and E613, offering flexibility in clinical applications.
-
Durable Construction: Crafted from high-quality materials to withstand repeated use, ensuring longevity and reliability in clinical settings.
-
Easy Maintenance: Designed for straightforward cleaning and sterilization, adhering to infection control standards and maintaining patient safety.
Q&A
Q: What is the EDN-02-01-102963-11 Needle Guide Bracket?
A: A precision accessory designed for transvaginal biopsies, compatible with Edan’s E613UA transducer and the DUS 60 ultrasound system.
Q: Which systems and transducers is it compatible with?
A: Primarily for DUS 60 with E613UA transducer; also fits E611-1 and E613 models.
Q: What is included in the package?
A: The bracket assembly and a selection of interchangeable needle guides for various needle gauges.
Q: Is it suitable for other Edan ultrasound systems?
A: Yes, it’s compatible with earlier models like DUS 3, DUS 6, and U50 Prime systems.
Q: Where can I purchase it?
A: Available from authorized dealers such as MedLab America, Medequip Depot, and Vigour Med Store
Maintenance Tips
-
Sterilization: Sterilize before first use and after each use using recommended methods.
-
Calibration: Calibrate if the bracket/transducer is used for the first time, dropped, shows wear, or needle alignment drifts.
-
Proper Handling: Avoid excessive force when attaching or detaching the bracket; ensure secure fit without bending.
-
Single-Use Sheath: Always use a disposable sheath for biopsies to prevent contamination.
-
Storage: Store in a sterile environment after cleaning; avoid non-sterile cases.
-
Regular Inspections: Check for wear or damage and address issues immediately to maintain functionality.
