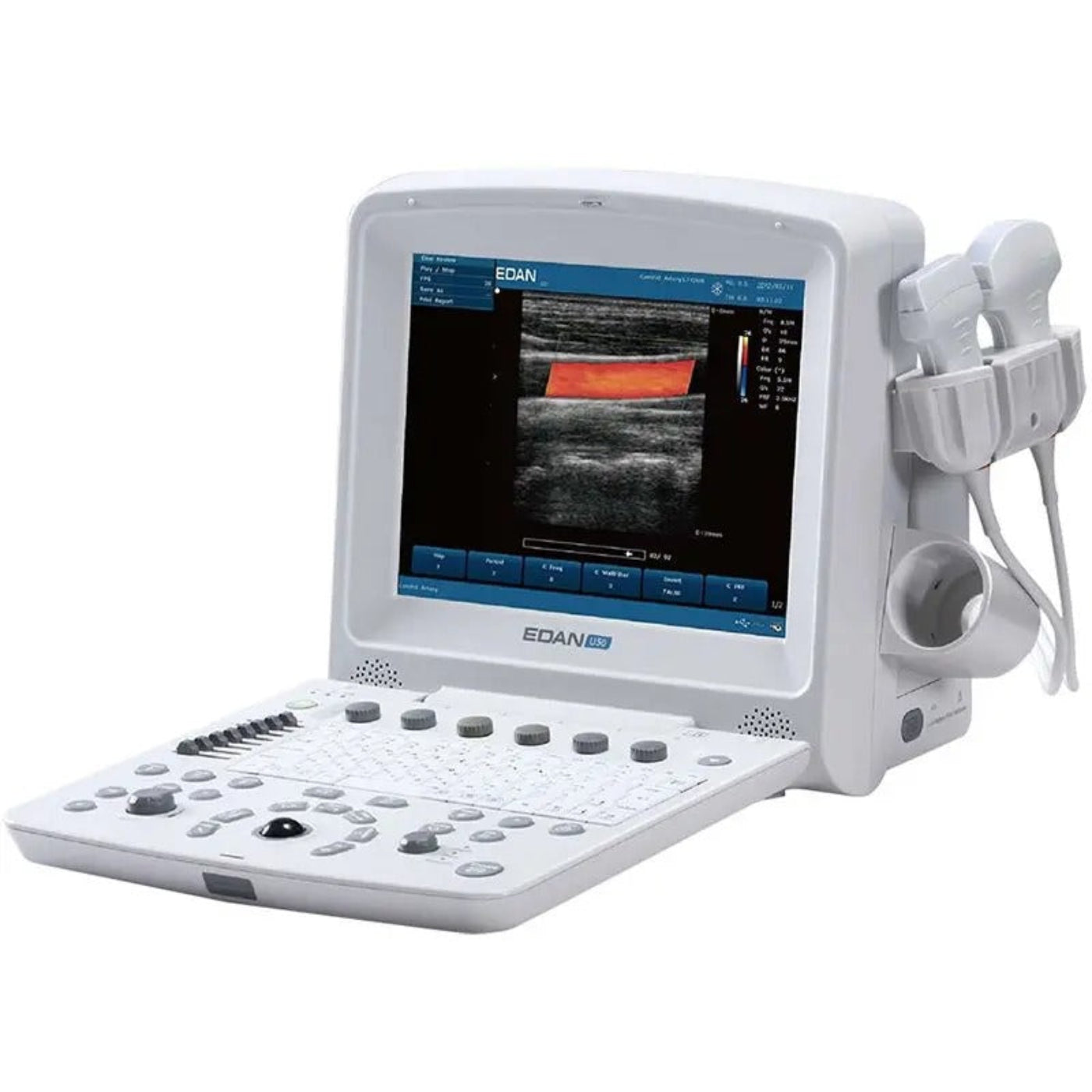

Edan U50 Prime Diagnostic Ultrasound System - EDN-U50P

Edan U50 Prime Diagnostic Ultrasound System Features

• Imaging Modes: B, B+B, 4B, B+M, M, and PW.
• Color Doppler Flow.
• Pulsed Wave Doppler (PW).
• Continuous Wave Doppler (CW).
• Power (Directional Power) Doppler.
• Multi-Beam-Forming: High frame-rate in all modes including color and Doppler.
• Phased Inversion Harmonic Compound: Reduces noise and clutter for optimum image quality.
• Speckle Resistance: Improves contrast resolution while maintaining detail resolution.
• Spatial Compounding: Multiple lines-of-sight improves contrast resolution.
• Spectral Doppler high-PRF (HPRF).
• THI.
• TSI.
• Multi-Frequency Transducer Technology: Multiple 2-D, harmonic and color frequencies increases transducer utility.
• User-Friendly Workflow: Intuitive control panel reduces learning curve.
• Smart PreSets: Quickly adjust multiple settings to suit your patient type and imaging preferences.
• Multi-pseudo color.
• Light-weight design for excellent mobility (can be hand carried).
• Quick boot-up.
• Back-lit control panel.
• Measurement and calculation packages.
• Multi-language software packages.
• High-performance transducers feature outstanding quality and reliability.
• The new Prime Edition Transducer Suite includes the C5-2b, L15-7b, and P5-1b.
• The U50 Universal Transducer Suite includes the C352UB, C612UB, C6152UB, L1042UB, L742UB, L552UB, and E612UB.
• The performance of a high-end system at a compact price.
• Built in lithium battery for continuous two hour work (optional).

Edan U50 Prime Diagnostic Ultrasound System Specifications

• Monitor: 12.1" LCD.
• Transducer Connectors: 2.
• Memory: 256 frames CINE loop.
• Image Storage: 504 MB (built-in).
• USB Ports: 2.

Edan U50 Prime Diagnostic Ultrasound System Accessories

The Edan U50 Prime Diagnostic Ultrasound System is commonly purchased with the following transducers:

• #12.01.210398: Edan Linear Array Transducer L742UB.
• #02.01.211004: Edan C5-2b Convex Array Transducer.
• #02.01.211291: Edan P5-1b Phase Array Transducer.
• #02.01.211060: Edan L15-7b Linear Array Transducer.
• #12.01.210565: Edan Micro-Convex Array Transducer C6152UB.
• #12.01.210567: Edan Micro-Convex Array Transducer C612UB.
• #12.01.210569: Edan Micro-Convex Array Transducer C422UB.
• #12.01.210398: Edan Linear Array Transducer L742UB.
• #12.01.210402: Edan Linear Array Transducer L1042UB.
• #12.01.210575: Edan Linear Array Transducer L552UB.
• #12.01.210400: Edan Transvaginal Array Transducer E612UB.

Edan U50 Prime Diagnostic Ultrasound System Literature

Edan U50 Datasheet

Edan U50 Prime Edition Brochure

What our Experts Think

• Comprehensive Imaging: Offers advanced 2D and color Doppler imaging with Pulse Wave Doppler, Continuous Wave Doppler, Directional Power Doppler, Speckle Reduction Imaging, Spatial Compounding, Multi-Beam Forming, and Harmonic Imaging for superior image clarity.

• Versatile Clinical Use: Suitable for abdominal, obstetric, gynecological, small parts, musculoskeletal, cardiology, urology, and pediatric imaging.

• User-Friendly Design: 12.1" high-resolution LCD, backlit control panel with hotkeys, compact and lightweight for easy portability.

• Advanced Image Quality: Delivers high detail and contrast resolution, supporting precise diagnostics across applications.

• Enhanced Mobility: Optional built-in lithium battery provides up to 90 minutes of operation, ideal for point-of-care diagnostics.

Q&A

Q: What is the Edan U50 Prime?
A: A portable, high-performance ultrasound system designed for a wide range of clinical applications, including obstetrics, gynecology, cardiology, musculoskeletal, and vascular imaging.

Q: Which transducers are compatible?
A: Compatible with various Edan transducers, including convex, linear, and phased array probes, suitable for different imaging needs.

Q: Is it easy to use?
A: Yes, the U50 Prime features a user-friendly interface with a backlit control panel and hotkeys for quick access to imaging modes.

Q: Why choose the Edan U50 Prime?
A: It offers a balance of advanced imaging capabilities and portability, making it ideal for both hospital and point-of-care settings.

Maintenance Tips

• Regular Cleaning: Wipe the system’s exterior and screen with a soft, lint-free cloth dampened with mild detergent or 70% isopropyl alcohol. Avoid abrasive materials or harsh chemicals.

• Transducer Care: After each use, clean transducers with a suitable disinfectant. Ensure they are free from gel and residues before storage.

• Battery Maintenance: Charge the built-in lithium battery regularly to maintain performance and ensure up to 90 minutes of continuous operation.

• Software Updates: Periodically check for firmware updates to maintain optimal functionality and access new features.

• Functional Testing: Regularly verify that all imaging modes—B-mode, M-mode, Doppler, and color flow—are working correctly.

• Storage and Handling: Store the system in a clean, dry environment, avoiding extreme temperatures or humidity.

• Professional Servicing: Schedule annual servicing to inspect internal components and ensure long-term reliable performance.
