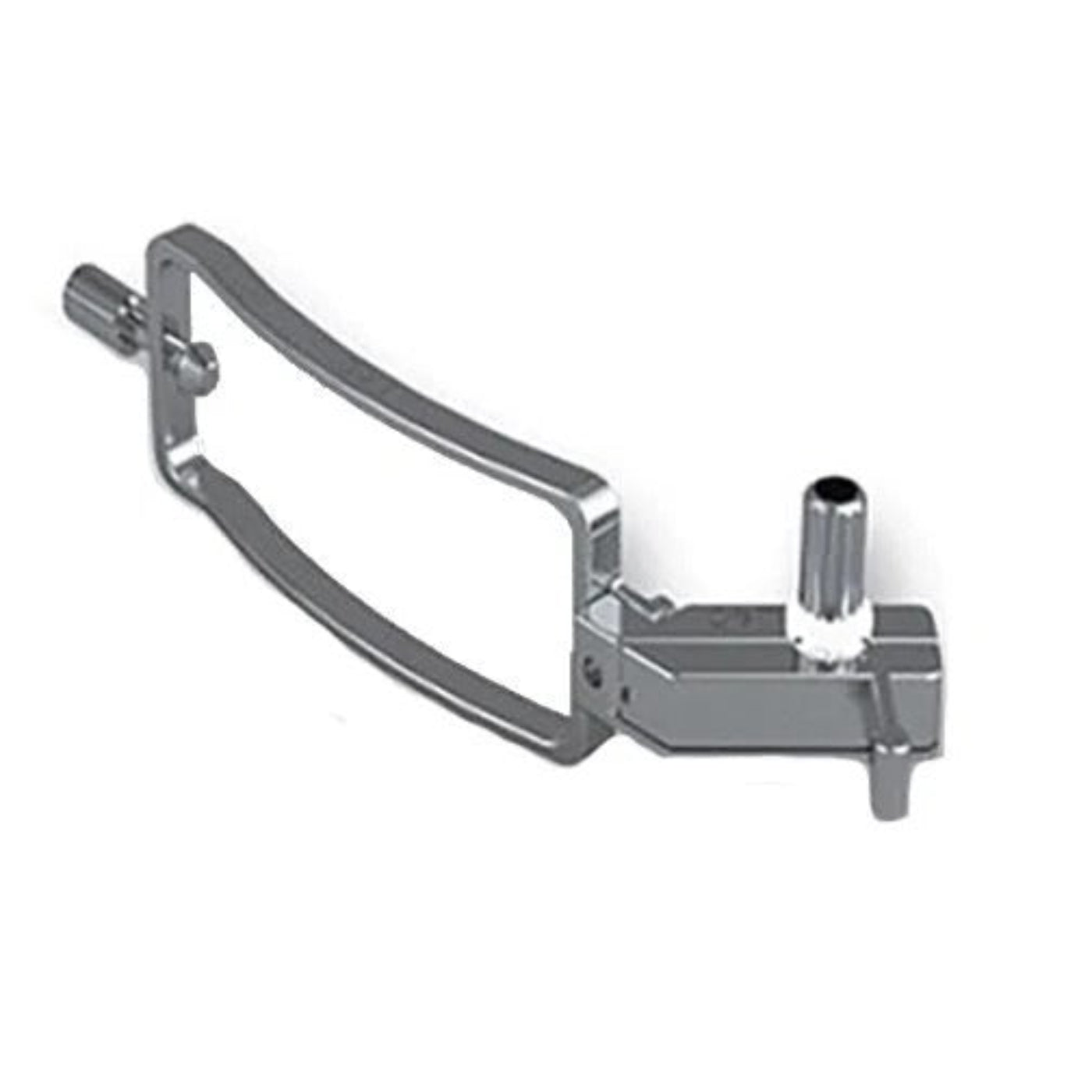

Edan U50 Prime & U60 Needle Guide Bracket - EDN-02-01-211006
The Edan U50 Prime & U60 Needle Guide Bracket (#02.01.211006) is designed for use with the convex transducer C5-2b/C5-2XQ/C5-2Q/C5-2XD/C5-2D, BGK-C5-2 and is compatible with the U50 Prime Diagnostic Ultrasound System (#U50P) and U60 Color Doppler Ultrasound.
What our Experts Think
-
Enhanced Precision for Procedures: The Edan U50 Prime & U60 Needle Guide Bracket (Model: EDN-02-01-211006) is designed to facilitate accurate needle guidance during procedures, improving procedural efficiency and patient safety.
-
Optimized for Specific Transducers: This bracket is compatible with convex transducers C5-2b, C5-2XQ, C5-2Q, C5-2XD, C5-2D, and BGK-C5-2, ensuring precise alignment for needle guidance.
-
Seamless Integration with Ultrasound Systems: It is specifically designed for use with the Edan U50 Prime Diagnostic Ultrasound System and the Edan U60 Color Doppler Ultrasound, ensuring compatibility and optimal performance.
-
Durable Construction: Crafted from high-quality materials, the bracket is built to withstand the demands of clinical environments, ensuring long-lasting reliability.
-
Easy Installation and Use: The bracket is designed for straightforward attachment to the compatible transducers, facilitating quick setup and efficient workflow during procedures.
Q&A
Q: What is the Edan U50 Prime & U60 Needle Guide Bracket?
A: An accessory bracket designed to hold and guide needles accurately during ultrasound-guided procedures.
Q: Which devices is it compatible with?
A: Specifically compatible with Edan U50 Prime and U60 ultrasound systems.
Q: Who should use it?
A: Ideal for clinicians, radiologists, and medical professionals performing precise ultrasound-guided interventions.
Q: How does it improve procedures?
A: Ensures accurate needle placement, enhances safety, and reduces procedural errors.
Q: Is it easy to install?
A: Yes, it attaches securely to the ultrasound system without complex setup.
Q: What materials is it made from?
A: Durable, medical-grade materials designed for stability and long-term use
Maintenance Tips
-
Sterilization: Sterilize the bracket before first use and after each procedure to ensure safety.
-
Proper Attachment: Align the locating markers on the bracket and transducer, open the clamp, attach securely, and tighten the locking knob.
-
Needle Guide Installation: Select the appropriate disposable needle guide for the desired depth, insert it into the path, and secure with the adjusting knob.
-
Calibration: Enable the needle guide function on the B-mode imaging screen and calibrate to the correct angle and position for accurate needle visualization.
-
Cleaning: After use, disconnect the bracket and remove all visible residues using a soft brush or similar cleaning tool.
-
Storage: Store in a clean, dry environment, protected from dust and physical damage.
