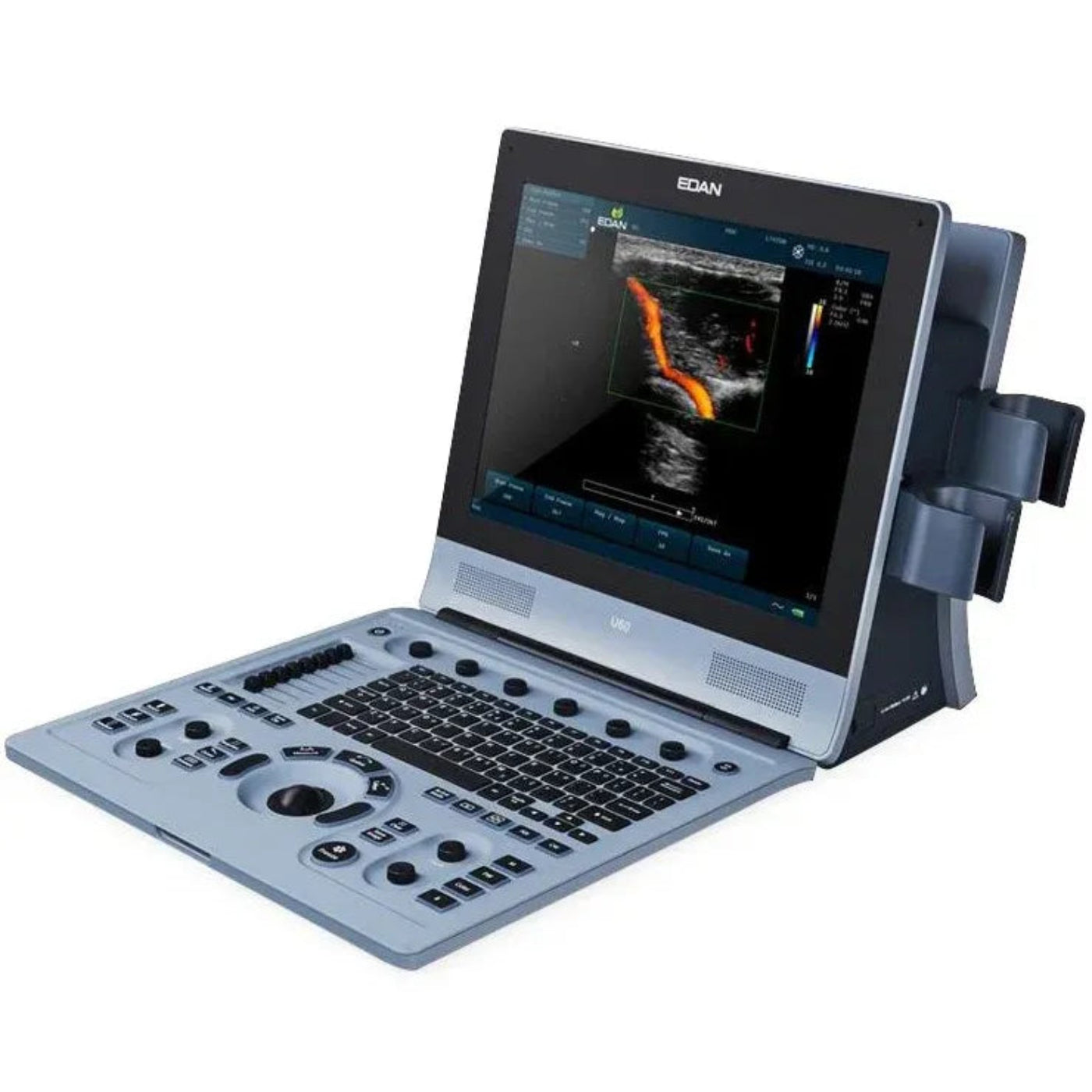

Edan U60 Color Doppler Ultrasound - EDN-U60-Mainunit

Edan U60 Color Doppler Ultrasound Features

• Compact, lightweight design.
• Covers a broad range of clinical applications like general imaging, cardiac, OB/GYN, vascular, point of care, and veterinary.
• Innovative technologies include:
• Speckle Reduction Technology: Improves contrast resolution while maintaining detail.
• Spatial Compounding Technology: Utilizes multiple lines of sight to improve contrast resolution.
• Multi-Beam Technology: Maintains high frame rates in all modes including color and pulse wave Doppler.
• Phase-Inversion Tissue Harmonic Imaging: Reduces image noise and clutter.
• Multi-Frequency Transducer Technology: Allows multiple frequencies in 2D, harmonics, and Doppler increasing transducer utility.
• User programmable smart pre-sets quickly adjust multiple settings to customize imaging preferences.
• Flexible image archiving solutions including storage to USB and DICOM store.
• High-resolution 15" monitor for easy viewing.
• Intuitive control panel makes the system easy to learn and use.
• Battery operation of up to 60 minutes provides uninterrupted workflow.
• Dual transducer ports allow you to have two transducers connect simultaneously.
• Multiple peripheral ports enable easy connectivity and image archiving.
• Optional cart and carrying case can protect the system during transport.

Edan U60 Color Doppler Ultrasound Accessories

The following accessories are compatible and commonly purchased with the U60 Color Doppler Ultrasound:

• #01.21.064143: Rechargeable Lithium-Ion Battery (14.8 V, TWSLB-003).
• #01.56.466571: Luxury Carrying Bag.
• #01.57.471026: Dust Cover.
• #02.01.211006: Needle Guide Bracket for Convex Transducer.
• #21.10.027169: U60 Footswitch.
• #E612UB: U50 & U60 Transvaginal Array Transducer.
• #MT-805.U60: Luxury Mobile Trolley.
• C5-2b Convex Array Transducer.
• C422UB Micro-Convex Array Transducer.
• C612UB Micro-Convex Array Transducer.
• C6152UB Micro-Convex Array Transducer.
• L15-7b Linear Array Transducer.
• L552UB Linear Array Transducer.
• L742UB Linear Array Transducer.
• L1042UB Linear Array Transducer.
• P5-1b Phased Array Transducer.

Edan U60 Color Doppler Ultrasound Literature

Edan U60 Diagnostic Ultrasound System Datasheet

Edan U60 Color Ultrasound Brochure

What our Experts Think

• Comprehensive Imaging Capabilities: The Edan U60 Color Doppler Ultrasound (Model: EDN-U60-Mainunit) supports a wide range of clinical applications, including general imaging, cardiac, OB/GYN, vascular, point-of-care, and veterinary use.

• Advanced Imaging Technologies: Equipped with innovative features such as Speckle Reduction Technology, Spatial Compounding Technology, Multi-Beam Technology, Phase-Inversion Tissue Harmonic Imaging, and Multi-Frequency Transducer Technology, the U60 delivers high-quality imaging with improved contrast resolution and detail.

• User-Friendly Design: The system boasts a high-resolution 15" monitor and an intuitive control panel, making it easy to learn and operate.

• Portability and Convenience: Its compact, lightweight design and battery operation of up to 60 minutes provide flexibility for various clinical settings.

• Connectivity and Archiving: The U60 offers dual transducer ports and multiple peripheral ports for easy connectivity and image archiving, including storage to USB and DICOM store.

• Comprehensive Accessories: The system includes essential accessories such as a rechargeable lithium-ion battery, power cord, transducer holder, luxury travel bag, ground cable, flash disk, ultrasound gel, quick guide, and user manual.

Q&A

Q: What is the Edan XM2 Module?
A: A patient monitoring module designed to expand the capabilities of compatible Edan monitors.

Q: What does it monitor?
A: Supports multiple vital signs including ECG, SpO₂, NIBP, temperature, and optional parameters depending on configuration.

Q: Is it compatible with all monitors?
A: Works with specific Edan patient monitors—verify compatibility before use.

Q: Why use the XM2 Module?
A: Enhances monitoring flexibility and provides reliable, accurate vital sign data.

Q: Where is it typically used?
A: Ideal for hospitals, ICUs, and critical care environment

Maintenance Tips

• Regular Cleaning: Wipe the console, probes, and monitor with a soft, lint-free cloth; use approved disinfectants for probes.

• Inspect Cables & Connectors: Check for wear, cracks, or loose connections to prevent signal loss.

• Software Updates: Keep the system firmware and software current for accurate imaging and improved performance.

• Proper Storage: Store probes and accessories in a dry, dust-free environment; avoid excessive heat or humidity.

• Safe Handling: Handle probes and the main unit carefully to prevent drops or mechanical damage.

• Routine Calibration: Perform regular system tests and calibrations to maintain diagnostic accuracy.

• Avoid Liquids: Prevent exposure to water or other fluids to protect internal electronics.

• Power Management: Use surge protectors and properly shut down the unit to extend its lifespan.
