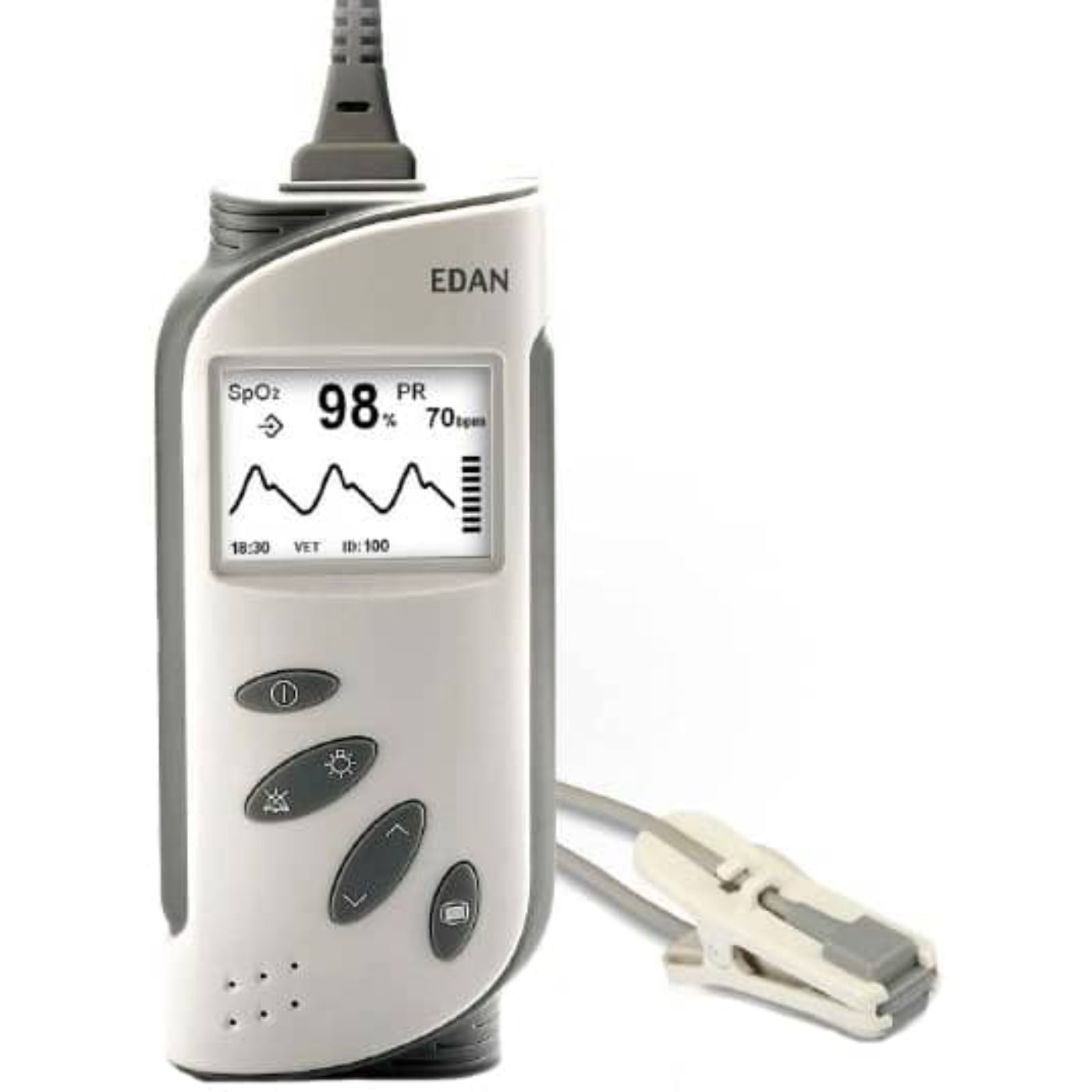

Edan VE-H100B Veterinary Pulse Oximeter - EDN-VE-H100B
The Edan VE-H100B Veterinary Pulse Oximeter (#EDN-VE-H100B) is a universal tool that's been specially designed for veterinary use. From spot checks to continuous monitoring, all monitoring data can be transferred to a PC for convenient storage, management, review, or printing. The VE-H100B Veterinary is easy-to-use and features both small and large size sensors. It is suitable for dogs, cats, and other animals.
Features
Features
- Main Unit with LCD screen and RTC (Real Time Clock) display.
- Backlight switch and automatic power-off function allow you to save power when needed.
- SpO2 and Pulse Rate Measurement occurs via ear sensor.
- Displays Numeric and Waveform of SpO2 simultaneously.
- Long battery life enjoy up to 48 working hours with 4 AA or Ni-H rechargeable batteries.
- Powerful data storage capacity.
- Data can be transferred to a PC for storage, review, or printing with optional PC software.
- Capable of up to 100 IDs and 300 hours of data storage for continuous monitoring.
- Review the latest 10 minutes trend graph and SpO2 and Pulse Rate table in screen.
- Compatible with the Nellcor VETSAT veterinary sensor.
- Boasts audible and visible alarm capabilities.
- Pulse-tone modulation (pitch tone).
Specifications
Specifications
| Weight |
11 lb (5 kg) excluding recorder paper and battery |
| Dimensions |
16.5" × 13" × 4.7" (420 × 330 × 120 mm) |
| Display |
8" multicolor LCD, 800 × 600 pixels |
| Power Supply |
|
| Mains Voltage |
100–240 V AC |
| Frequency |
50 / 60 Hz |
| Input Current |
0.9 – 0.4 A |
| Battery |
|
| Type |
Internal Li-ion battery pack |
| Rated Voltage |
14.8 V |
| Capacity |
2500 / 5000 mAh |
| Operating Time |
1.5 / 2.5 hours continuous printing (≈300 / 450 ECGs) |
| Charging Time |
3 / 6 hours |
| Recording System |
|
| Recorder Type |
Thermal dot-matrix recorder |
| Printing Density |
Amplitude: 8 dots/mm (200 dpi); Time: 40 dots/mm (1000 dpi @ 25 mm/s) |
| Recorder Paper |
SE-12P Z-Fold Thermal Paper (210 mm × 295 mm × 100 pages) |
| Paper Speed |
5, 6.25, 10, 12.5, 25, 50 mm/s |
| External Printer Compatibility |
HP 1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525 |
| Heart Rate Measurement |
|
| HR Range |
30 – 300 BPM |
| Accuracy |
±1 BPM |
| ECG Acquisition |
|
| Leads |
12 standard leads (simultaneous acquisition) |
| A/D Converter |
24-bit |
| Resolution |
2.52 µV/LSB |
| Time Constant |
≥ 3.2 s |
| Frequency Response |
0.01 – 300 Hz (−3 dB) |
| Gain |
1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC |
| Input Impedance |
≥ 100 MΩ (at 10 Hz) |
| Input Circuit Current |
≤ 0.01 µA |
| Input Voltage Range |
≤ ±5 mVpp |
| Calibration Voltage |
1 mV ± 2% |
| CMRR (AC On / Off) |
≥ 140 dB / ≥ 123 dB |
| Sampling Frequency |
16,000 Hz |
| Pacemaker Detection |
|
| Amplitude |
±750 µV to ±700 mV |
| Width |
50 µs to 2.0 ms |
| Filters |
|
| AC Filter |
50 / 60 Hz |
| Drift Filter (DFT) |
0.01 / 0.05 / 0.15 / 0.25 / 0.32 / 0.5 / 0.67 Hz |
| EMG Filter |
Off / 25 / 35 / 45 Hz |
| Low-pass Filter |
300 / 270 / 150 / 100 / 75 Hz |
| Data & Connectivity |
|
| Report Formats |
PDF, XML, DICOM, FDA-SCP |
| Data Transmission |
Wi-Fi, Ethernet, RS-232 |
| Management Software |
SE-1515 Data Management System (bi-directional) |
| HIS Connectivity |
DICOM Worklist, DICOM Storage, HL7, GDT |
| Wi-Fi Module |
|
| Frequency Band |
2400 – 2497 MHz |
| Modulation Type |
DSSS, CCK, OFDM |
| Transmission Power |
6 – 17 dBm |
| Safety & Protection |
|
| Type of Protection |
Internally powered equipment (on battery power) |
| EMC Compliance |
Class B |
| Degree of Protection (Applied Part) |
Type BF |
| Mode of Operation |
Continuous |
| Enclosure Degree of Ingress Protection |
IPX2 (protected against vertically dripping water when tilted |
Literature
Edan VE-H100B Veterinary Pulse Oximeter Brochure
What our Experts Think
-
Veterinary-Focused Design: Engineered for a wide range of animals, from cats and dogs to exotic pets, ensuring accurate readings across species.
-
Flexible Monitoring: Offers both continuous and spot-check modes to suit different clinical scenarios.
-
Comprehensive Data Display: Shows numeric values, waveforms, and trend graphs; supports up to 300 hours of data storage with PC transfer capability.
-
Enhanced Alarm System: Adjustable audible and visual alerts help detect critical changes promptly.
-
Long Battery Life: Runs up to 48 hours on AA or Ni-MH rechargeable batteries, ideal for prolonged use.
-
User-Friendly Interface: Backlit LCD and intuitive controls make it easy to operate, even in low-light conditions.
-
Portable and Lightweight: Compact design ensures mobility for use across various clinical settings.
Q&A
Q: What is the Edan VE-H100B used for?
A: It’s a veterinary pulse oximeter that monitors oxygen saturation (SpO₂) and pulse rate in animals, providing fast, accurate readings for clinical care.
Q: Which animals is it suitable for?
A: Designed for small to medium-sized animals, including cats, dogs, and other pets.
Q: Is it easy to use?
A: Yes, it features a user-friendly interface with a clear LED display and quick sensor attachment for reliable readings.
Q: What are the key benefits of the VE-H100B?
A: Provides accurate SpO₂ and pulse monitoring, enhances patient safety, and supports quick decision-making in veterinary practice.
Q: Is it portable?
A: Yes, it’s lightweight and battery-operated, ideal for both clinic and field use.
Maintenance Tips
-
Clean Regularly: Wipe the device and probe with a soft cloth and mild disinfectant. Avoid harsh chemicals or soaking.
-
Probe Care: Inspect the sensor cable and clip for wear or damage before each use. Replace if frayed or broken.
-
Battery Maintenance: Recharge according to manufacturer guidelines and avoid over-discharging to extend battery life.
-
Storage: Keep the unit in a clean, dry environment away from direct sunlight or extreme temperatures.
-
Calibration Check: Periodically verify readings against known standards to ensure accuracy.
-
Avoid Moisture: Do not expose the device to water or liquids; protect from spills during use.
-
Handle with Care: Avoid dropping or applying excessive force to the oximeter to prevent internal damage.
