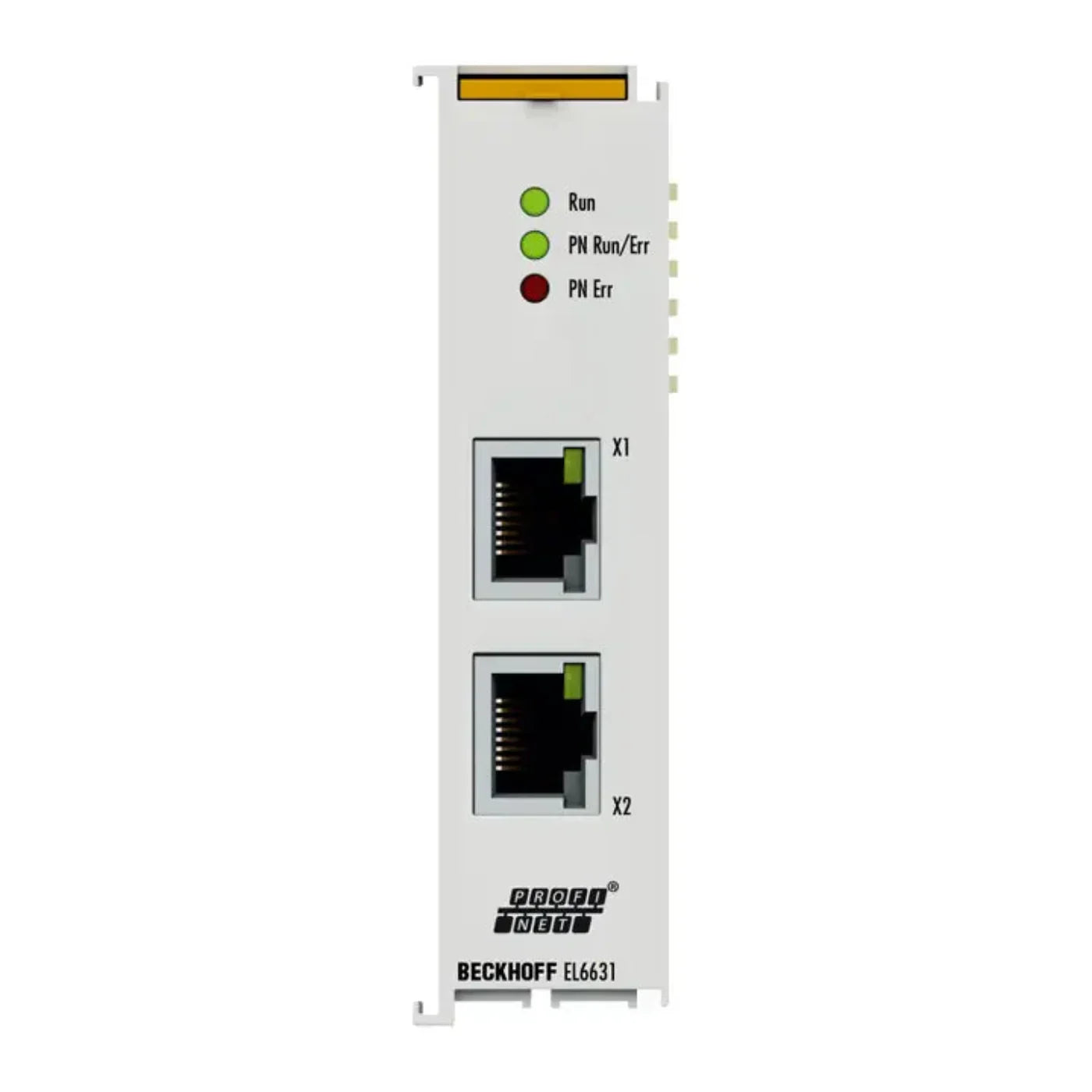

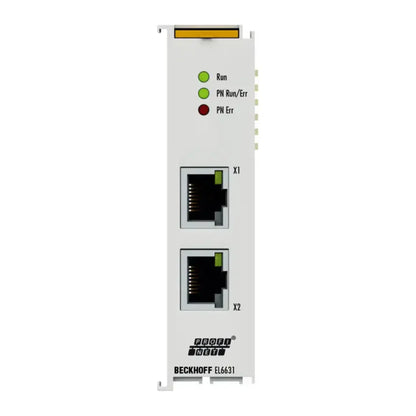

BECKHOFF EtherCAT Terminal, 2-port Communication Interface, PROFINET RT, Controller - EL6631
EL6631 is an EL6xxx series terminal manufactured by Beckhoff. This terminal weighs approx. 75 g, operates at a temperature range of 0 to 55 degrees Celsius, and its current consumption (from the E-bus) is typ. 400 mA.
Manufacturer information
Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
SpecificationsÂ
| Manufacturer |
BECKHOFF
|
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Programming Terminal |
| Part Number |
EL6631 |
| Technology |
PROFINET RT |
| Number of ports/channels |
2 (switched) |
| Ethernet interface |
100BASE-TX Ethernet with 2 x RJ45 |
| Fieldbus |
PROFINET RT controller |
| Max. process data size |
1 kbyte input/1 kbyte output data |
| Cable length |
up to 100 m twisted pair |
| Hardware diagnostics |
status LEDs |
| Power supply |
via the E-bus |
| Electrical isolation |
500 V (E-bus/Ethernet) |
| Protocol |
RT |
| Configuration |
via EtherCAT master |
| Current consumption E-bus |
typ. 400 mA |
| Special features |
LLDP, SNMP,
Conformance Class B,
max. 15 RT devices,
min. 1 ms RT cycle |
| Operating/storage temperature |
0…+55 °C/-25…+85 °C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating |
IP20 |
