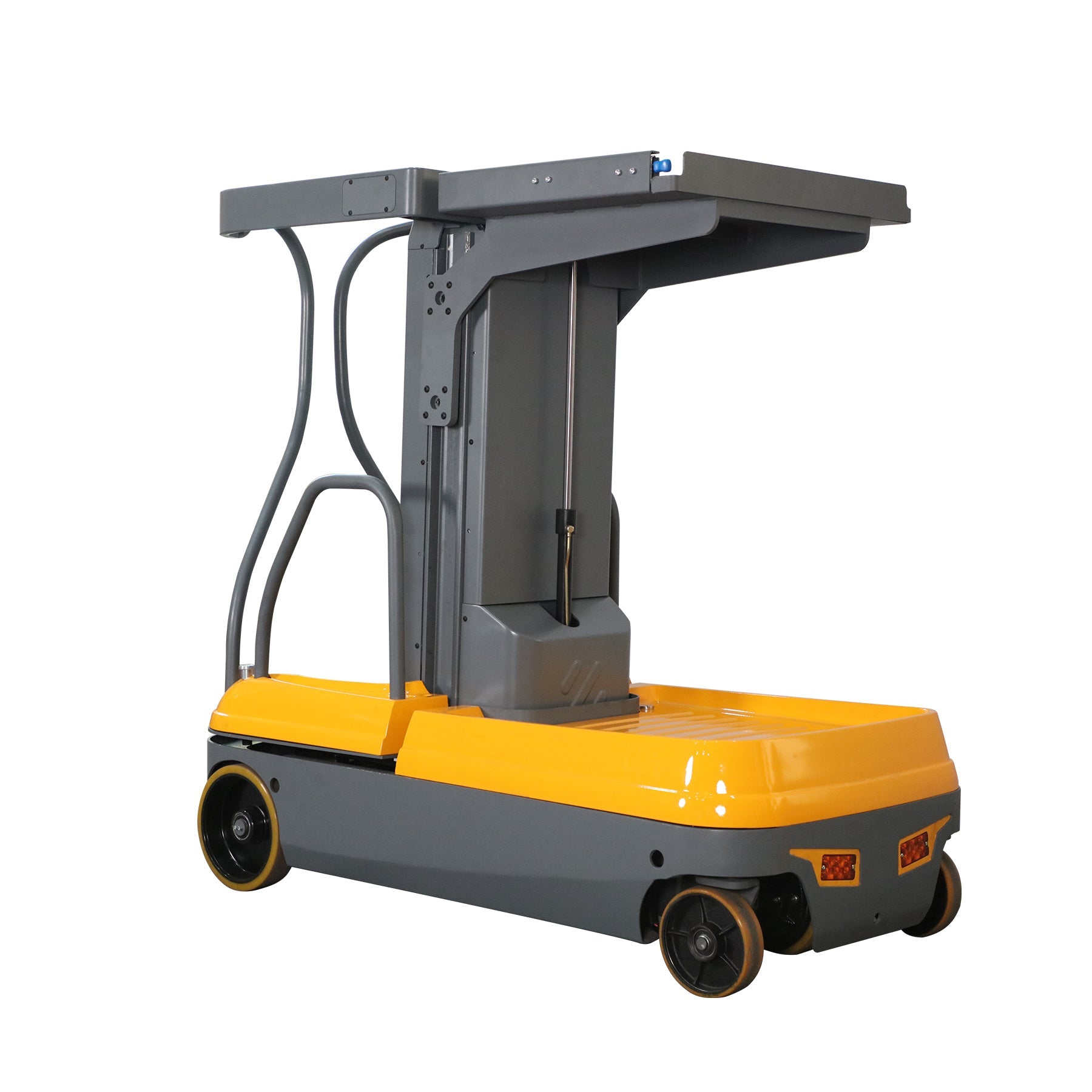

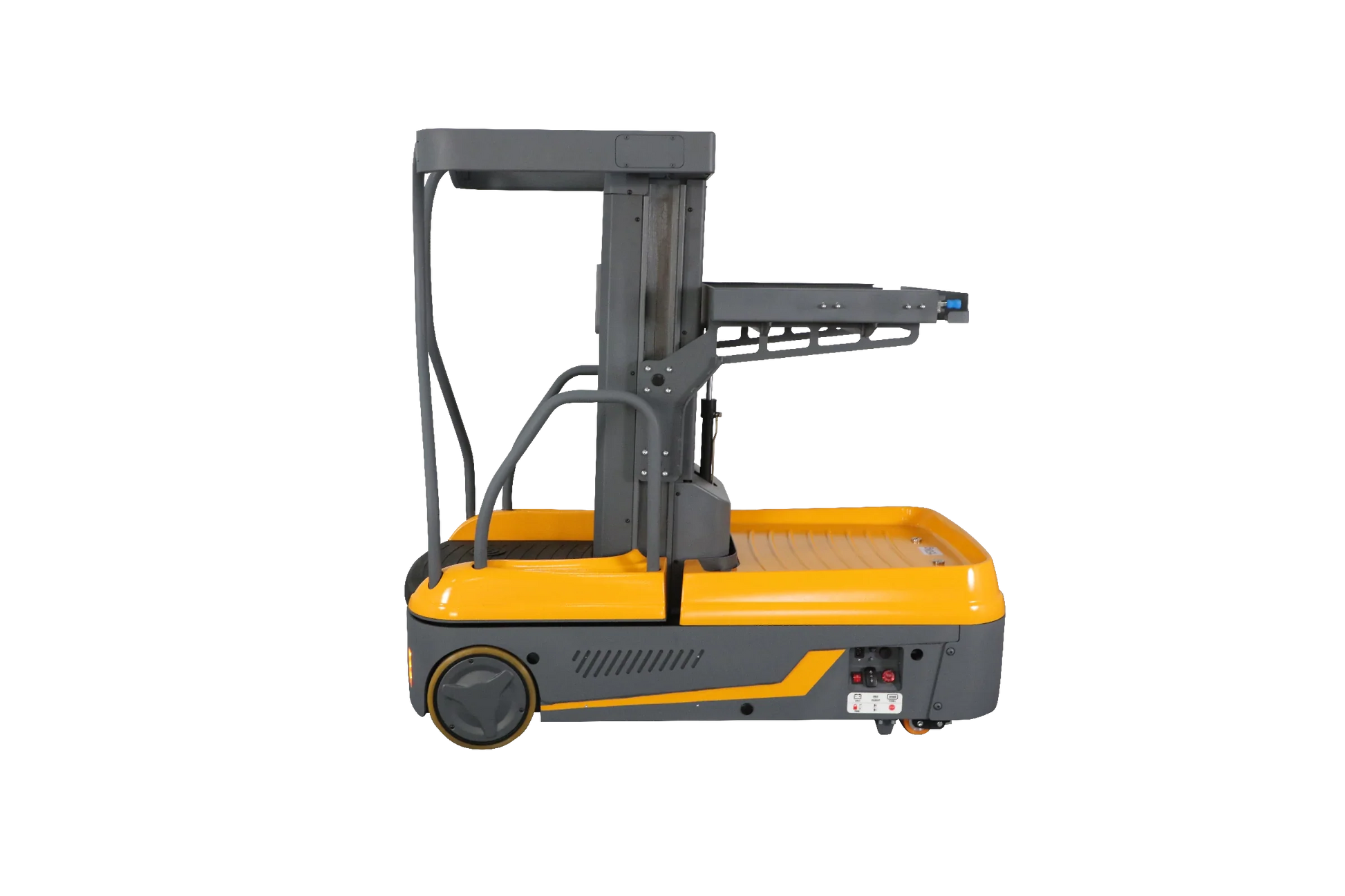

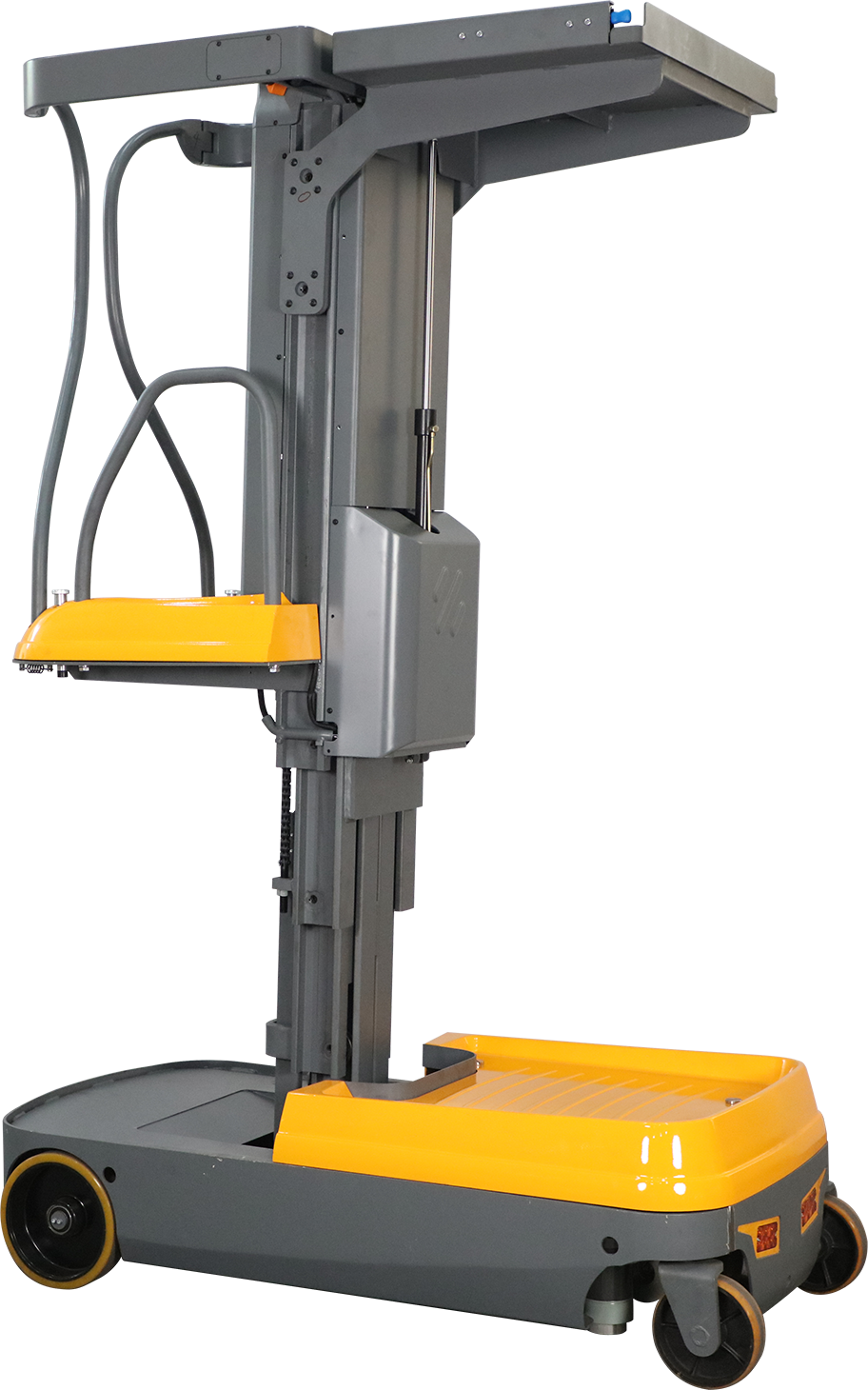

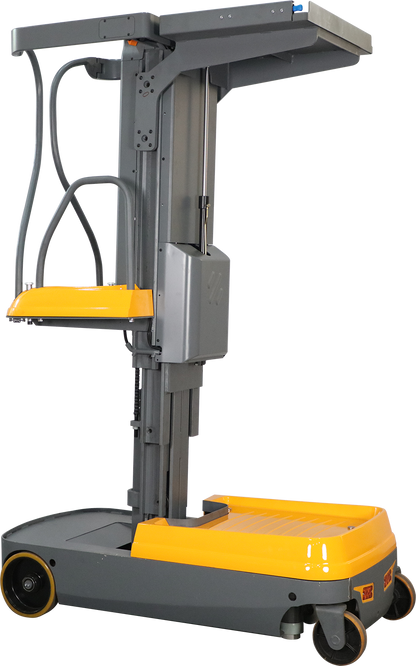

Apollolift Electric Mini Order Picker - A-500101

Apollolift Electric Mini Order Picker   - A-500101

• 500-watt drive motor, 2,200-watt lift motor.
• Safety guard gives the biggest safety concern that the power will be cut off if the gate is open when lifting to 20'' height.
• Dual foot pedals will detect if the operator has both feet properly positioned on the platform for safety aim.
• Hand sensors ensure the operator has both hands on the controls for normal travel and lift functions.
• Humanism design with flashing light.

Specifications

• Not explosion proof.
• This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.

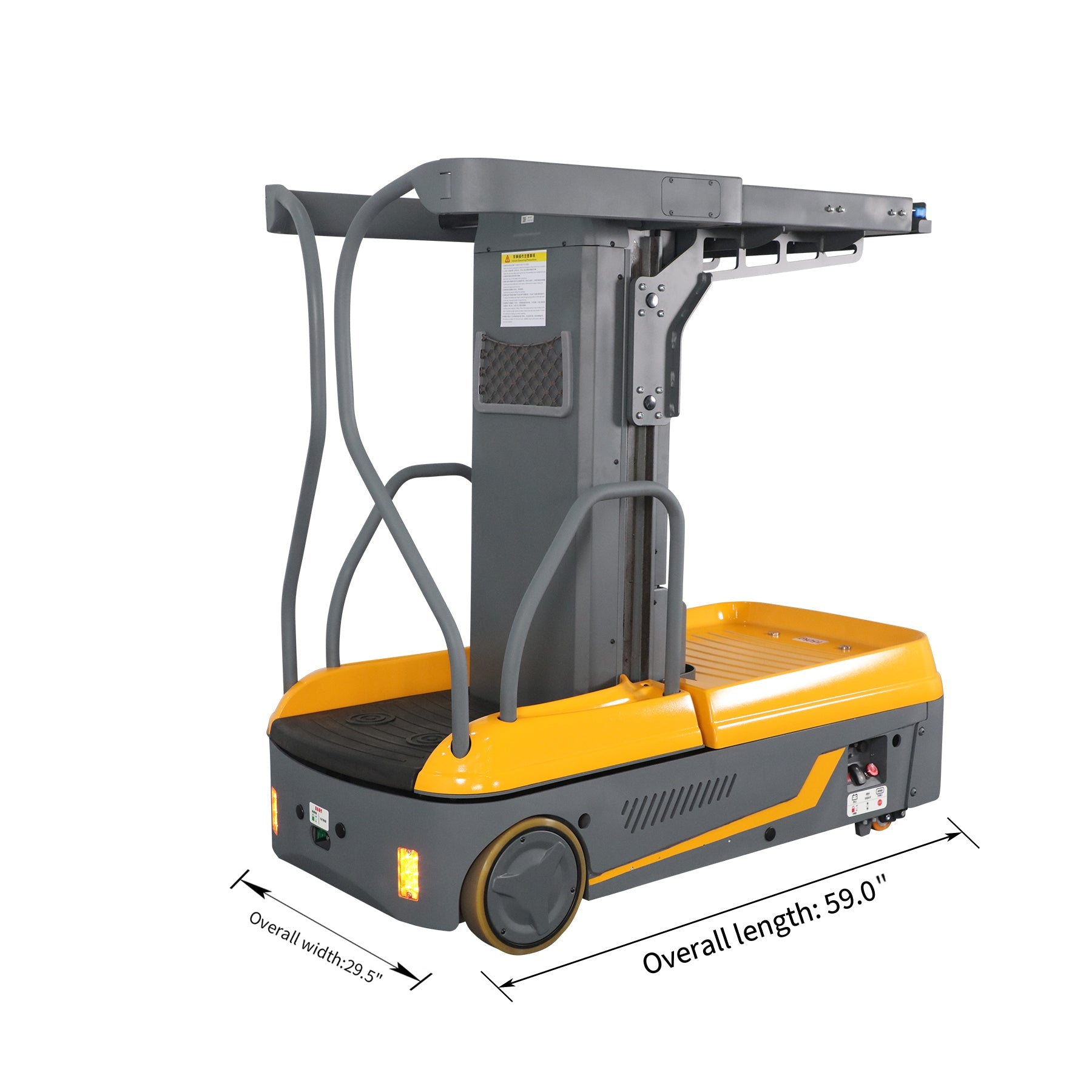

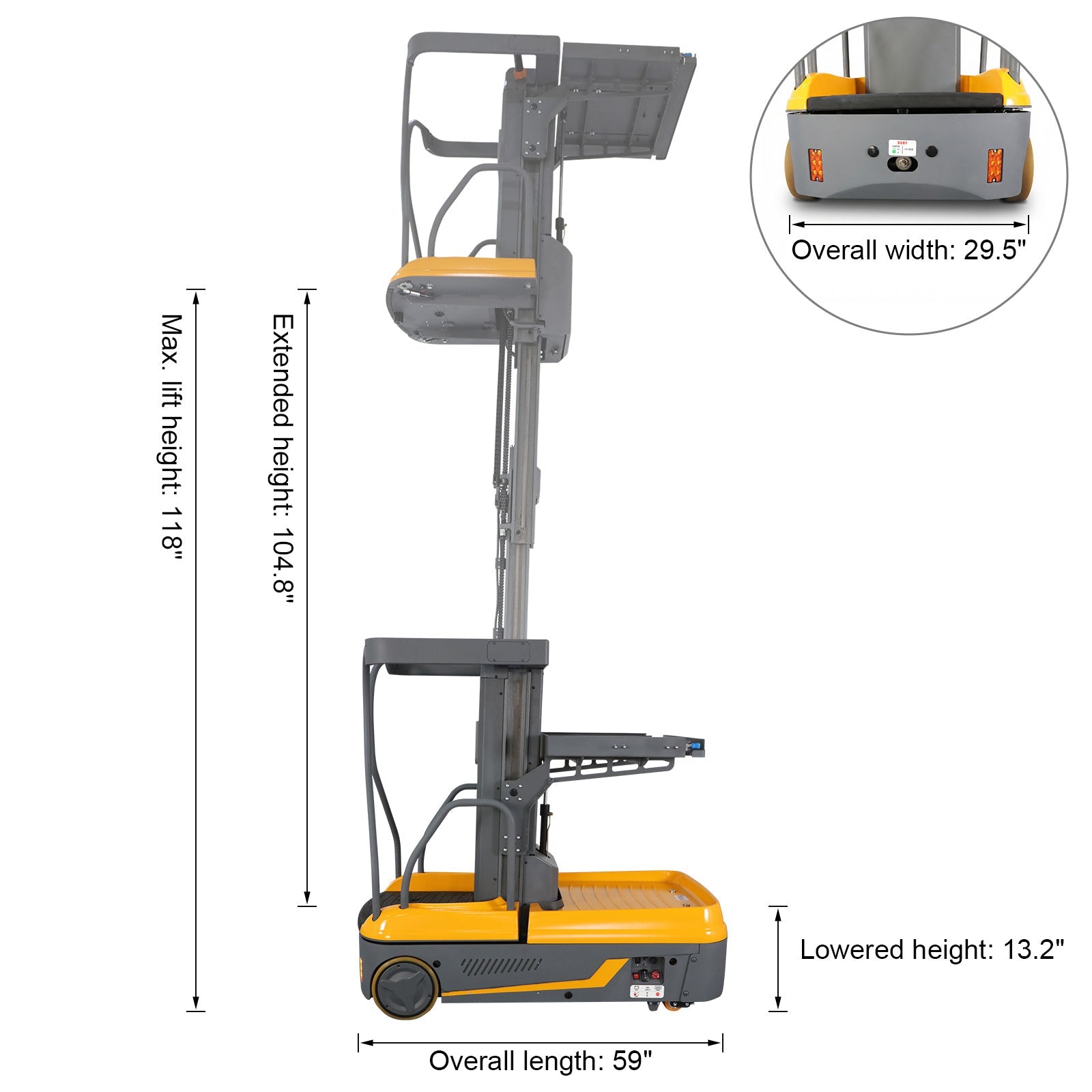

Dimensions

• Overall Length: 59"
• Overall width: 29.5''
• Recommended Aisle Width:68.9"
• Turning Radius : 51.2"

LOADING TRAY

• Adjustable height:10.2''
• Size:27.5''x19.7''

• A high-powered solution for facilities and outlets
• Ideally for handling high lift tasks, including stock picking, inspection, maintenance and installation.
• Smart for light maintenance applications or picking tasks without a pallet.
• 105 Ah rechargeable batteries free to maintain, built-in charger

What our Experts Think

• Compact high-reach solution: The Apollolift A-500101 Electric Mini Order Picker is designed for safe, efficient access to elevated warehouse storage and light-duty picking tasks.
• 330 lb platform capacity: Ideal for order picking, inventory handling, and light maintenance work in retail, warehouse, and distribution settings.

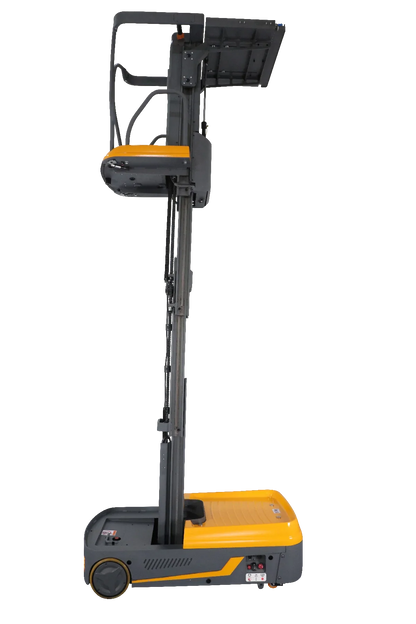

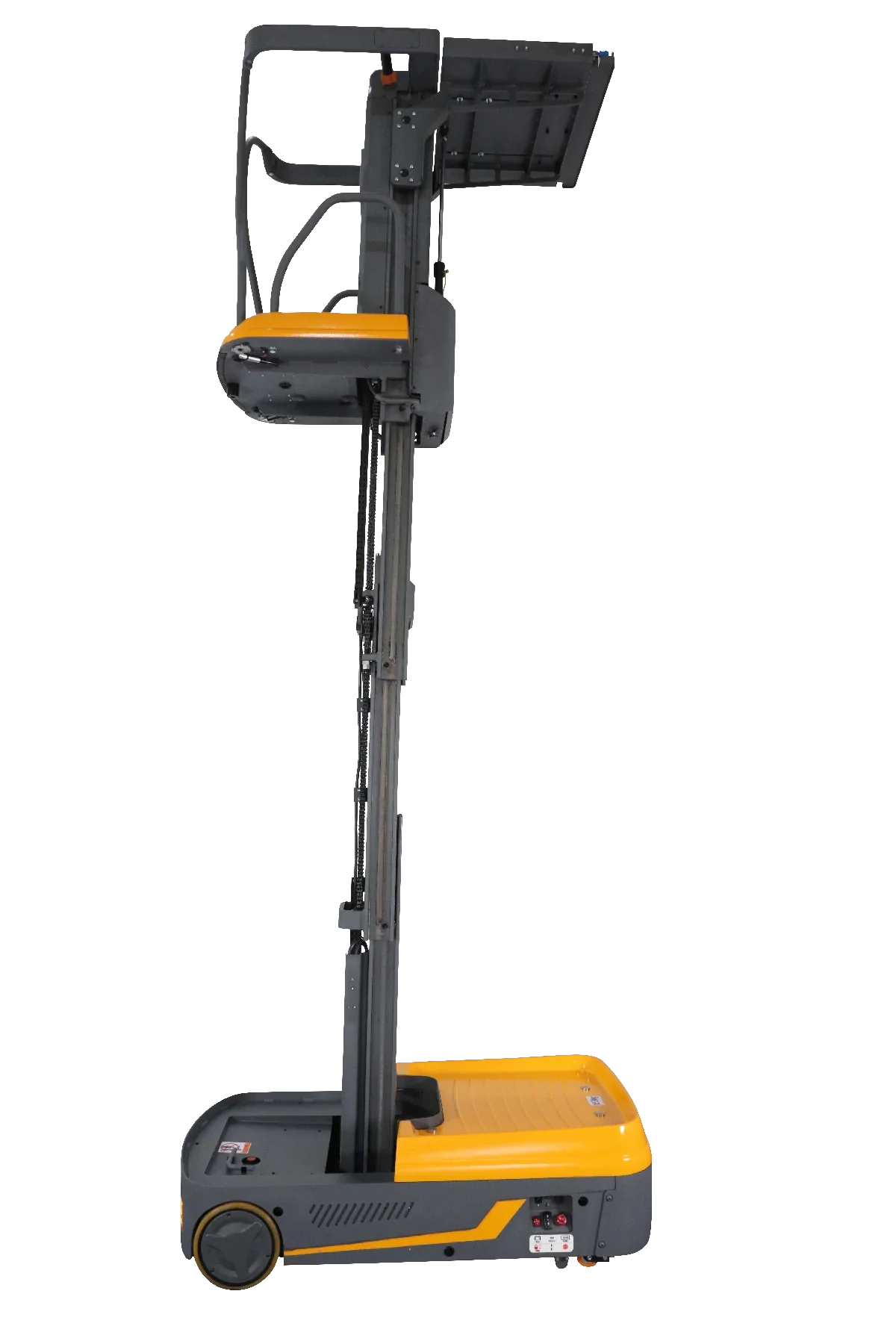

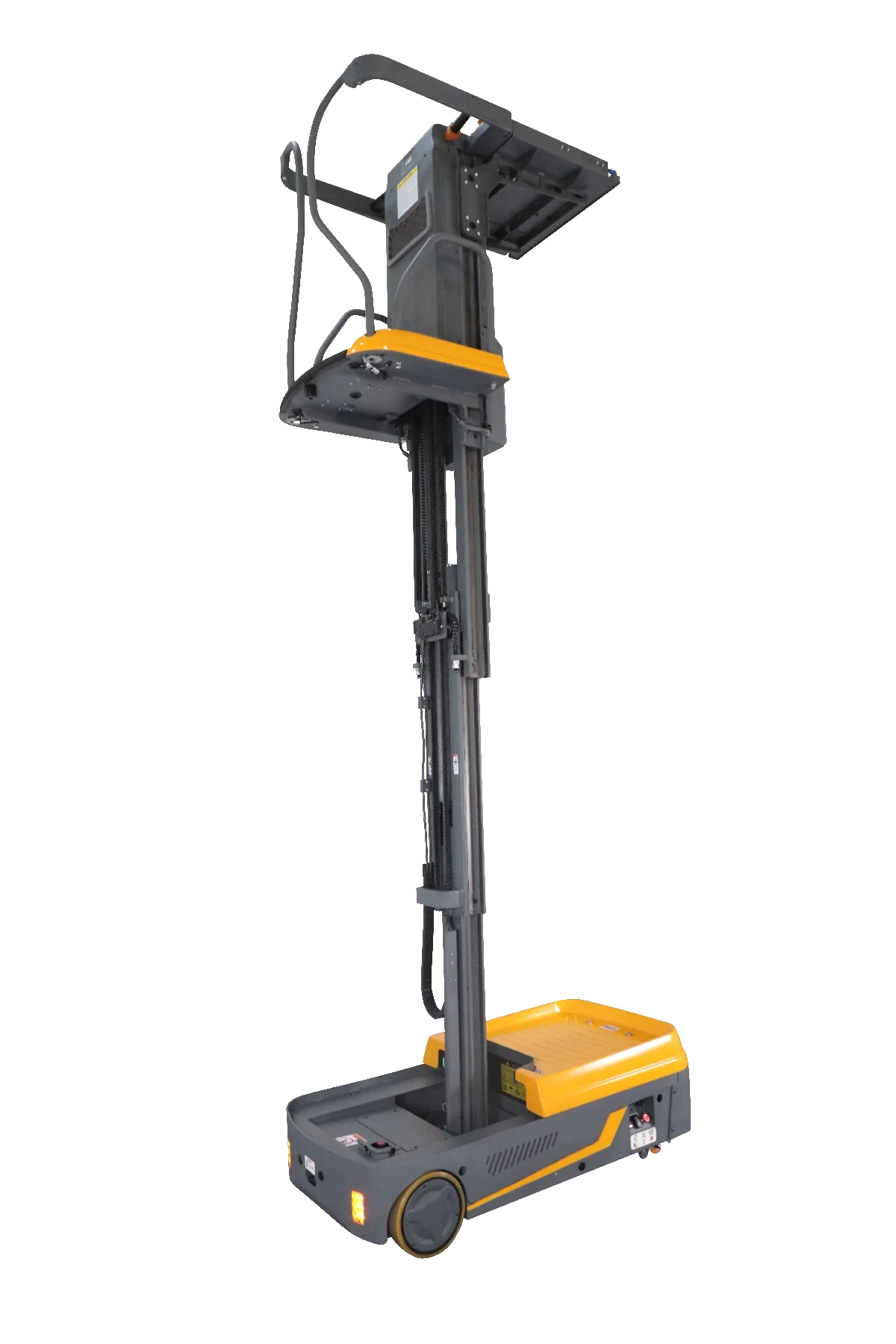

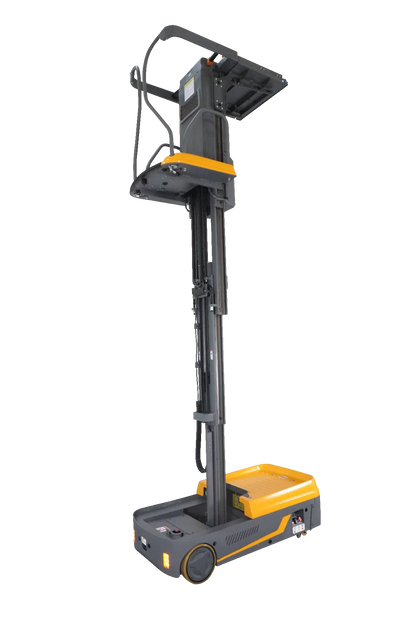

• Extended vertical reach: Offers up to 118" platform lift height and approximately 197" reachable height, enabling multi-level shelving access.
• Stable electric drive system: Powered by a 24V/105Ah gel battery, delivering consistent runtime for full-shift warehouse operations.
• Safety-first operation design: Integrated interlocks and control sensors ensure the unit only operates when the operator is properly positioned, improving high-reach safety.
• Narrow-aisle maneuverability: Compact chassis with tight turning radius makes it suitable for dense storage layouts and confined warehouse spaces.
• Smooth lifting performance: Electric lift system enables controlled vertical movement, reducing operator fatigue and improving picking accuracy.
• Productivity-focused design: Built to reduce manual ladder use and speed up high-shelf picking workflows in busy facilities.
• Industrial durability: Reinforced frame and warehouse-grade components support repeated daily use in commercial environments.

Q&A

Q1: What is the Apollolift A-500101 used for?
A: It is a fully electric mini order picker designed for high-reach picking, inventory handling, and maintenance tasks in warehouses, retail storage, and distribution centers.

Q2: What is its load capacity?
A: It supports up to 330 lbs, ideal for light-duty order picking and elevated stock access.

Q3: What is the maximum lifting height?
A: The platform lifts up to 118 inches, with a reachable height of approximately 197 inches.

Q4: What type of battery does it use?
A: It uses a 24V / 105Ah gel battery system with a built-in charger for maintenance-free operation.

Q5: How long does it run on a full charge?
A: Typical working time is about 6–8 hours, depending on load and usage conditions.

Q6: Is it suitable for narrow warehouse aisles?
A: Yes. Its compact design and tight turning radius (around 51.2 inches) make it ideal for confined storage spaces.

Q7: What safety features does it include?
A: It includes safety interlocks, automatic speed reduction at higher lift heights, and operator presence detection for safer operation.

Maintenance Tips

• Charge after every shift: Use only the approved 24V GEL charger; avoid deep discharge below ~20%.
• Monthly charging rule (idle units): If not in use, recharge at least once every 30 days to prevent battery degradation.
• Avoid overloading: Do not exceed 330 lb capacity to protect mast, drive motor, and hydraulic lift system.
• Keep mast & chains lubricated: Apply recommended grease to rails, rollers, and lift chain for smooth vertical travel.
• Inspect hydraulic system weekly: Check for leaks, uneven lift, or slow lowering—service immediately if detected.
• Battery terminal care: Clean corrosion and tighten connections to maintain stable voltage and prevent power loss.
• Operate on flat floors only: Avoid ramps, potholes, or uneven surfaces to prevent tipping risk.
• Check safety systems daily: Ensure interlocks, hand sensors, and emergency stop functions work before operation.
• Keep wheels & steering clean: Remove debris to maintain precise maneuvering in narrow aisles.
• Store in dry, cool area: Protect electronics and battery life (avoid heat above ~40°C).
