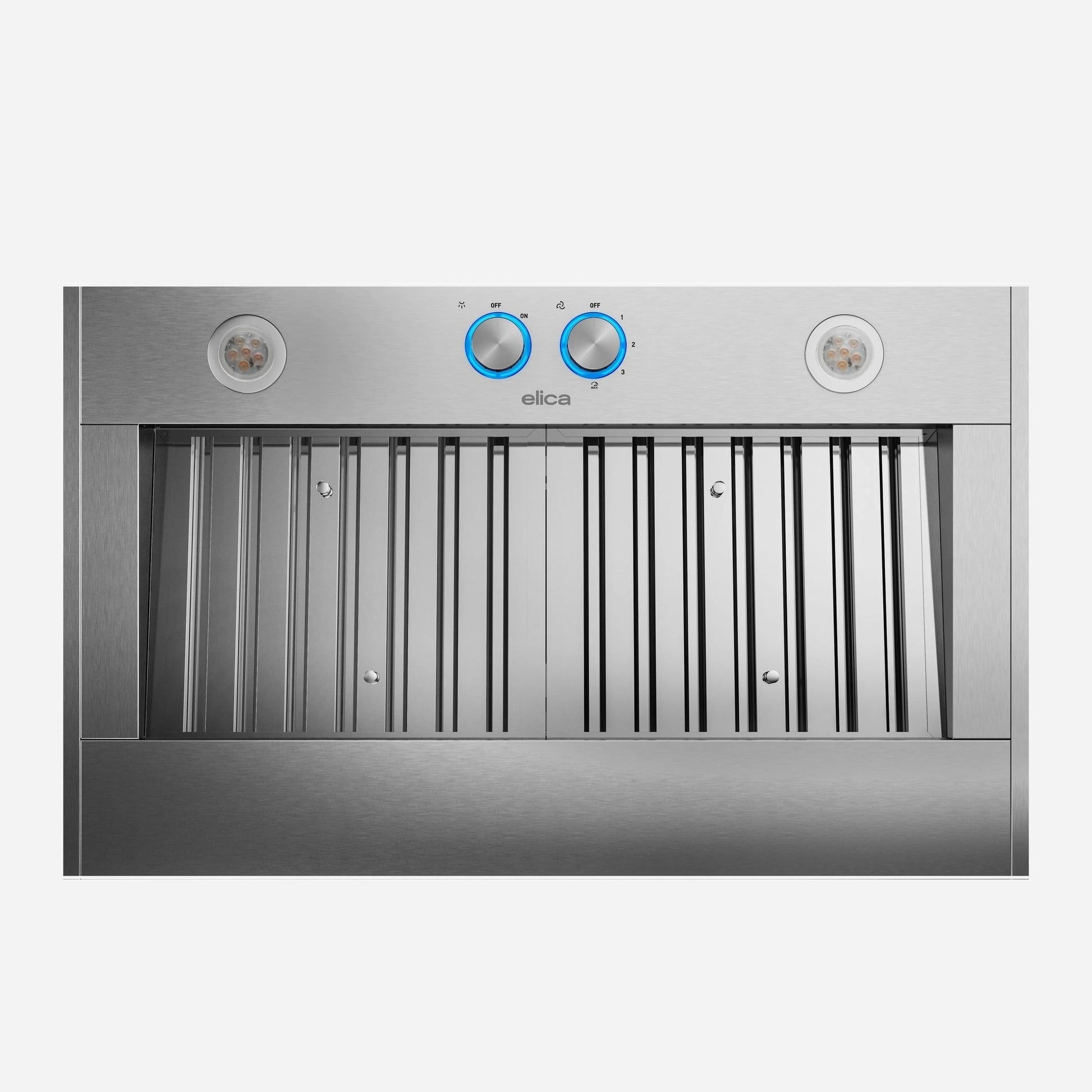

ELICA EAR134S4 AREZZO Insert Range Hood 34 1/2 wide - 1200CFM in Stainless Steel - EAR134S4
Arezzo provides professional grade performance, while being discreetly mounted inside the cabinetry. Available in 28 1/ and 34 1/ width with a 600 CFM blower, and equipped with a 1200 CFM blower for widths of 34 1/ , 40 1/ and 46 1/ for extraordinary ventilating power. The extra depth (22 ) is ideal for supporting powerful professional ranges. Plus the All-In-One design avoids the need to purchase a stainless liner. Hidden metallic in/out knob controls operate the 4-speed blower and LED lighting. *Damp-location approved
What our Experts Think
-
High‑Performance Insert Design: The Elica EAR134S4 is a 34 ½″ wide cabinet‑insert range hood delivering up to 1,200 CFM (4‑speed internal blower) — ideal for serious cooking environments.
-
Premium Build & Quiet Operation: Features heavy gauge stainless steel “seamless” construction, a “Hush” sound‑deadening system that reduces noise by ~35%, and dishwasher‑safe professional steel baffle filters for efficient grime capture.
-
Smart and Refined Controls: Equipped with fully retractable rotating knobs (backlit in blue) and LED lighting for a refined aesthetic that conceals controls when not in use.
-
Designed for Integration: Measures approximately 34 ½″ W × 22″ D × 11 ⅞″ H, making it well‑suited for standard cabinetry insert installations above range tops.
-
Expert Verdict: If you’re outfitting a kitchen with high cooking demand and need powerful extraction without a visible canopy hood, this insert model excels. It brings professional performance, quiet operation and sleek integration. For homes with lighter cooking loads, it might be over‑spec’d, but it stands out in high-end or pro‑style installations.
Q&A
Q1: What size and capacity does this range hood offer?
A1: It is 34 ½″ wide, approximately 22″ deep, and has a built‑in style insert design. It supports up to 1200 CFM airflow.
Q2: What type of installation and venting is needed?
A2: Designed for ducted installation (top vent only) with an 8” round (or 10” in older models) duct transition. Recirculating is optional with a kit.
Q3: What are the controls and lighting features?
A3: It uses fully retractable rotating knobs with back‑lighting and includes LED lighting over the cooktop.
Q4: What type of filters and maintenance features?
A4: Comes with professional stainless steel baffle filters that are dishwasher‑safe and designed to trap high volumes of grease.
Q5: What special technologies or noise performance?
A5: Includes the “Hush System” sound‑deadening technology and “Heat Guard” which detects excessive heat and raises blower speed automatically. Noise range is up to about 8.5 sones.
Q6: Why choose this model?
A6: It offers very high ventilation capacity (1200 CFM) in a 34½″ footprint, ideal for serious cooks with strong ventilation demands, while maintaining a refined stainless steel insert look.
Maintenance Tips
-
Remove and clean baffle grease filters frequently: The stainless‑steel baffle filters are designed for high airflow cooking and are dishwasher‑safe; cleaning them regularly helps trap grease effectively and keeps performance high.
-
Wipe exterior stainless‑steel surfaces gently: Use a soft cloth with a mild detergent; avoid abrasive pads or harsh chemicals that could scratch or dull the finish.
-
Use hood before and after cooking: Turn the blower on before high‑heat or high‑smoke cooking, and leave it running a few minutes afterward to clear residual heat, odor, and vapours.
-
Ensure proper ducting and airflow: The unit requires ducted installation (10″ round for this capacity). Make sure the duct is clear, minimal bends, and back‑draft damper functions correctly, for optimal extraction.
-
Power off before servicing: Disconnect power when removing filters or cleaning internal components to avoid electric shock or damage.
-
Inspect performance periodically: If you notice reduced airflow, increased noise, or smells, check filters, ductwork, and blower for blockages or wear.
